ZF1-04-03-TM-WT datasheet, PDF

Datasheet> All Categories > The connector> The connector> ZF1-04-03-TM-WT

ZF1-04-03-TM-WT: DescriptionCard Edge Connector, 4 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size311KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

ZF1-04-03-TM-WT Overview

Card Edge Connector, 4 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal

ZF1-04-03-TM-WT Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-2

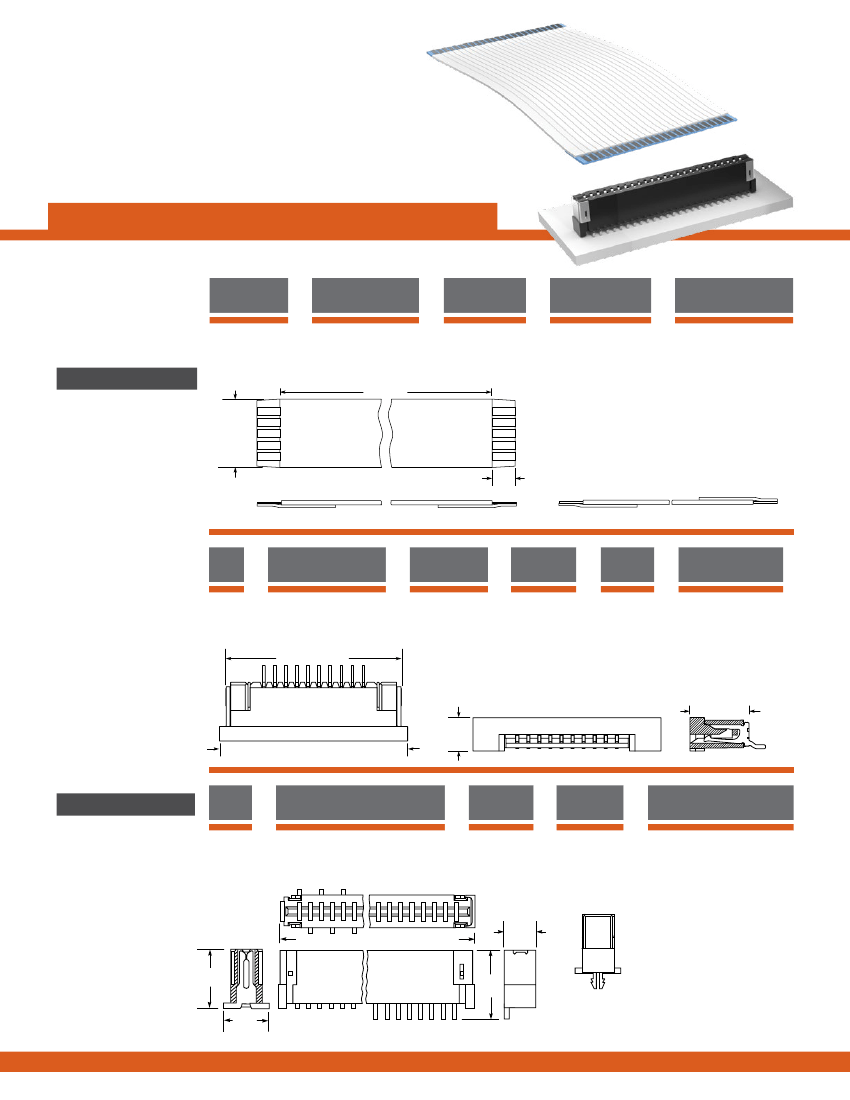

ZF1-04-03-TM-WT Preview

FLAT FLEXIBLE CABLE

(FCC) JUMPER & SOCKET

(1.00 mm) .0394" PITCH • FJ/ZF1/FC1 SERIES

Mates:

FC1, ZF1

ZF1/FC1

Mates:

NO. OF

POSITIONS

STYLE

LENGTH

Length in inches

= (76.2 mm) 3.00"

= (152.4 mm) 6.00"

= (304.8 mm) 12.00"

= (609.6 mm) 24.00"

(Standard Lengths)

STRIP

LENGTH

–05, –10, –15,

–20, –25, –30

LENGTH

(No. of

positions

x (1.00)

.03937)

+ (1.00)

.03937

= Double End

= Reversed End

–D

–R

–03.00

SPECIFICATIONS

= (4.00 mm) .157"

(Required for mating

with FC1 & ZF1)

–4

–06.00

–12.00

Conductor:

Tin Plated Copper

Conductor Resistance:

300

W/km

max

Insulation Resistance:

10 MW/km min

(conductor-to-conductor)

Dielectric Test:

400 VAC during 1 minute

(conductor-to-conductor)

Temperature Rating:

-30 °C to +80 °C

Voltage Rating:

300 VAC

–24.00

(4.00)

.157

–D STYLE

–R STYLE

ZF1

Insulator Material:

Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn over 40 µ" (1.02 µm) Ni

Weld Tab:

Phosphor Bronze

Operating Temp Range:

-55 °C to +105 °C

ZF1

NO. OF

POSITIONS

LEAD

STYLE

PLATING

OPTION

= Weld Tab

OPTION

–05, –10, –15,

–16, –20, –25, –30

(No. of pins x (1.00) .03937)

+ (5.85) .230

= Contact

Bottom

= Contact

Top

(10 positions

only)

–01

= Matte Tin

–T

–WT

= Tape & Reel

= Full Reel Tape & Reel

(must order max.

quantity per reel;

contact Samtec for

quantity breaks)

(5.30) .209

–TR

–02

–FR

FC1

Insulator Material:

Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn over 50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +105 °C

Max Cycles:

25 with FJ

(No. of pins x (1.00) .03937) + (7.00) .276

(3.00)

.118

PROCESSING

FC1

ZF1/FC1

NO. OF

POSITIONS

LEAD

STYLE

PLATING

OPTION

–LC

OPTION

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

–05, –10, –15, –20, –25

= Vertical

= Horizontal

–01

= Tin

–T

–02

= Locking

Clip

(Manual

placement

required)

(–01 only)

= Weld

Tab

(–02 only)

= (4.00 mm)

.158" DIA

Polyimide film

Pick & Place Pad

(–01 only)

= Tape & Reel

= Full Reel

Tape & Reel

(must order

max. quantity

per reel;

contact Samtec

for quantity

breaks)

F-221

–K

(No. of pins x (1.00) .03937)+ (2.33) .092

(2.77)

.109

–WT

–TR

–FR

Notes:

FJ Stiffener color will be

blue or black at Samtec’s

discretion.

Some sizes, styles and

options are non-standard,

non-returnable.

(5.18)

.204

(6.35)

.250

(4.09)

.161

—LC

—02

—01

samtec.com?FJ, samtec.com?ZF1 or samtec.com?FC1

Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ZF1-04-03-TM-WT Related Products

	ZF1-04-03-TM-WT	ZF1-04-03-TM-WT-TR	ZF1-05-02-TM-WT-TR	ZF1-05-03-TM-WT	ZF1-05-03-TM-WT-TR
Description	Card Edge Connector, 4 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 4 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Reach Compliance Code	unknown	unknown	compliant	unknown	compliant
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Contact completed and terminated	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	Matte Tin (Sn)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	4	5	5	5
UL Flammability Code	94V-2	94V-2	94V-2	94V-2	94V-2
