ZHR5-30-01-T-RA: DescriptionCard Edge Connector, 60 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size349KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

ZHR5-30-01-T-RA Overview

Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT

ZHR5-30-01-T-RA Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	ZHR5
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	60

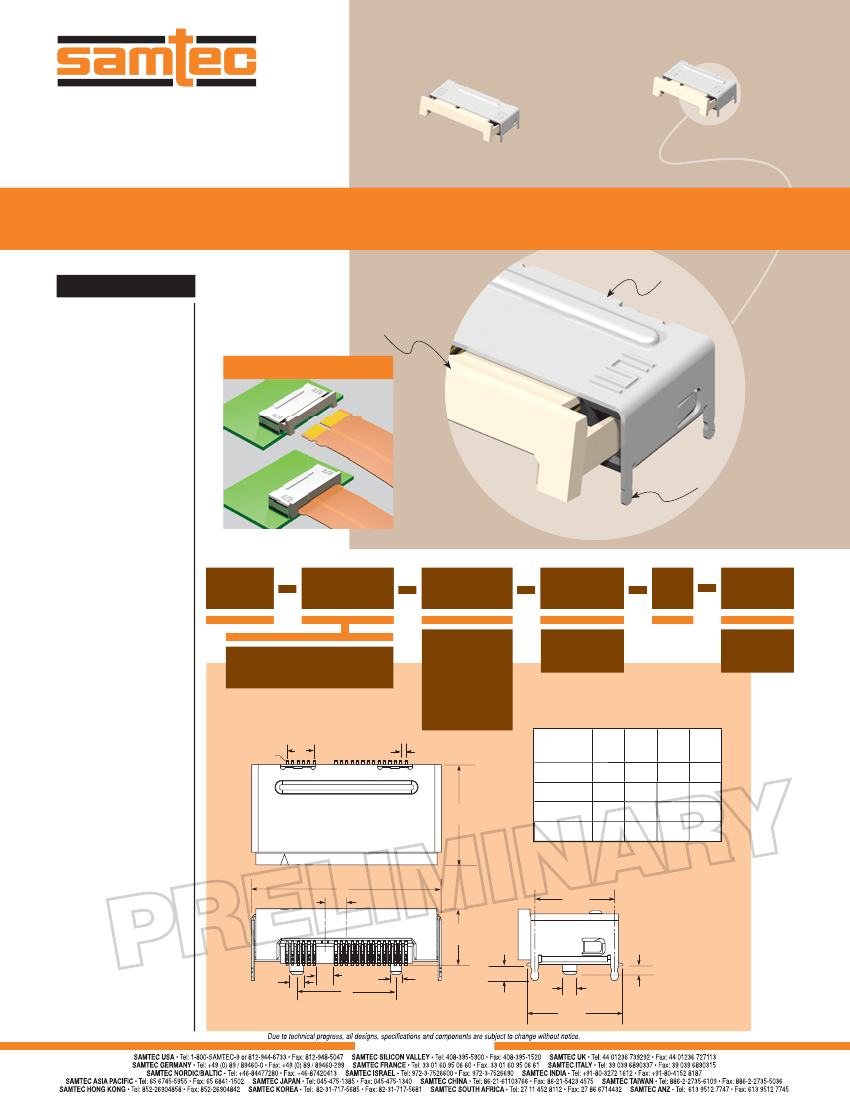

ZHR5-30-01-T-RA Preview

F-209-1

ZHR5–30–02–T–RA

ZHR5–40–02–T–RA

0,50

mm

ZIF FLEX SOCKET

ZHR5 SERIES

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?ZHR5

Insulator Material:

Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Sn over 50µ" (1,27µm) Ni

Weld Tab:

Phosphor Bronze

Operating Temp Range:

-55°C to +105°C

RoHS Compliant:

Yes

Mates with:

ZHDL2

Zero

Insertion

force latch

(0,50mm)

.0197"

pitch

APPLICATION

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 2x

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max

“Weld Tabs”

for rugged

connection

to the board

ZHR5

NO. OF

POSITIONS

LEAD

STYLE

PLATING

OPTION

RA

OTHER

OPTION

–20, –30, –40, –50

(Per Row)

– 01

= Contacts on

Top only

–T

= Matte Tin

–TR

= Tape & Reel

– 02

= Contacts on

Top & Bottom

(0,50)

.0197

NO. OF

POSITIONS

–20

–30

(9,90)

.390

–40

–5

–50

01

B

A

B

D

(10,70)

.421

(15,70)

.618

618

(20,70)

.815

5

(

(25,70)

0)

1

1.012

E

(2,00)

.079

(1,50)

)

.059

(

(2,00)

.0

.079

(1 0)

(1,50)

.059

(19,20) (2,50)

.756

.098

(24,20) (5,50)

.953

.217

(29,20) (7

9,20) (7,50)

1.150

.1

.2

.295

(34,20) (10,50)

34 )

0,5

1.

1.346

.413

13

A

E

(5,25)

.207

(1,32)

.052

DIA

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

(2,00)

.079

D

(1,10)

.043

(7,90)

7 90

.311

(1,40)

.055

(0,85)

.033

(1,32)

.052

(8,90)

.350

–02 SHOWN

WWW.SAMTEC.COM
