Part Number

Search

81RIA10

Description
Silicon Controlled Rectifier, 125A I(T)RMS, 70000mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-209AC
CategoryAnalog mixed-signal IC    Trigger device
File Size355KB,8 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric Compare View All

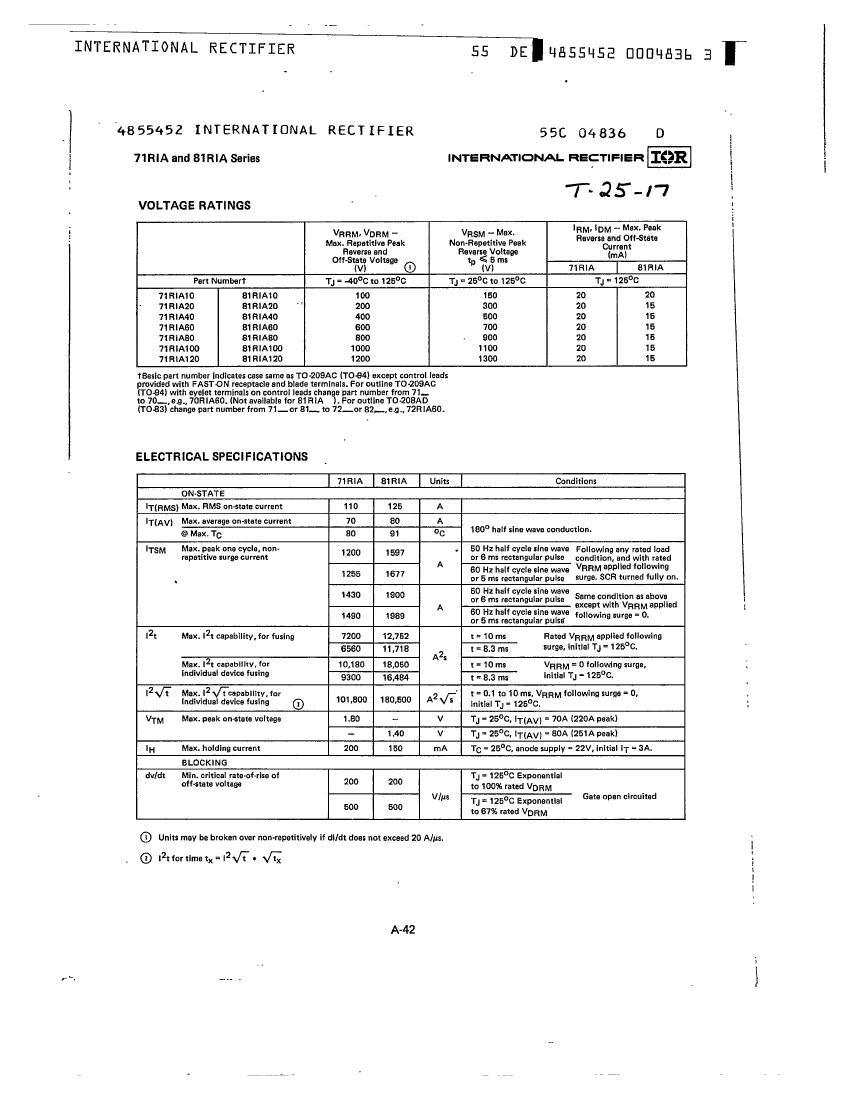

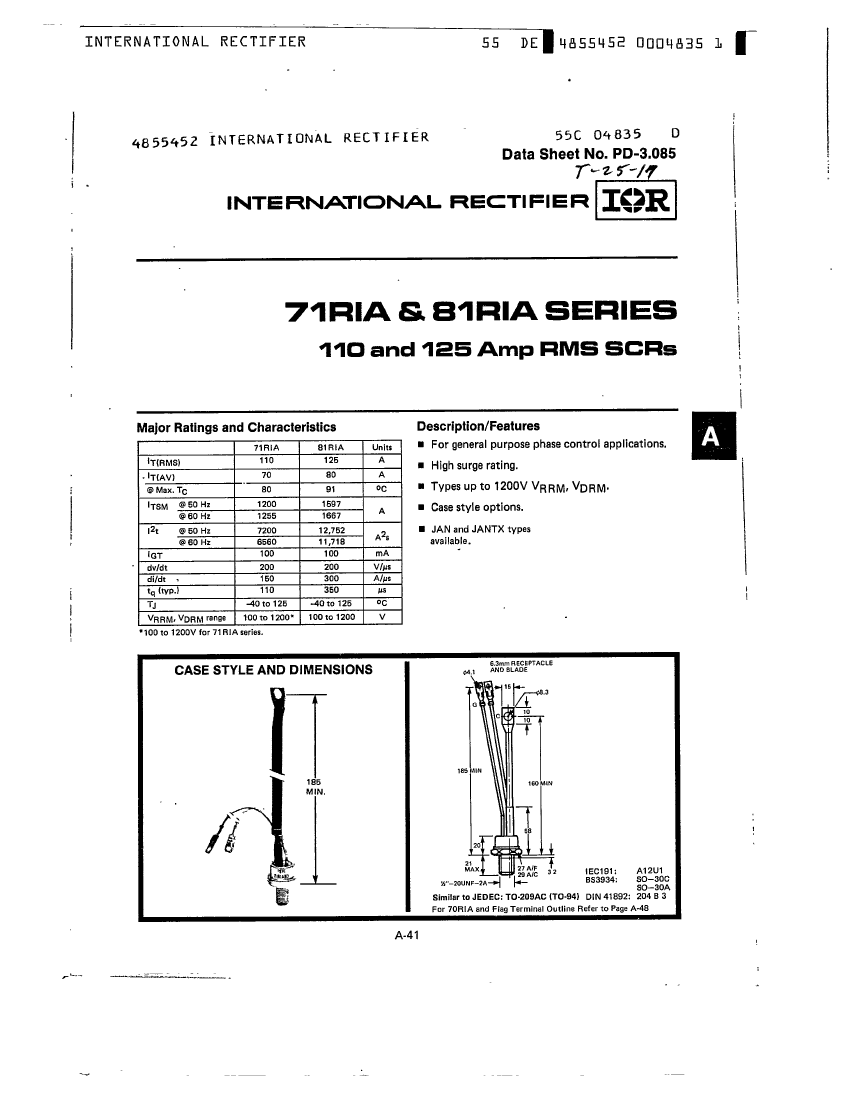

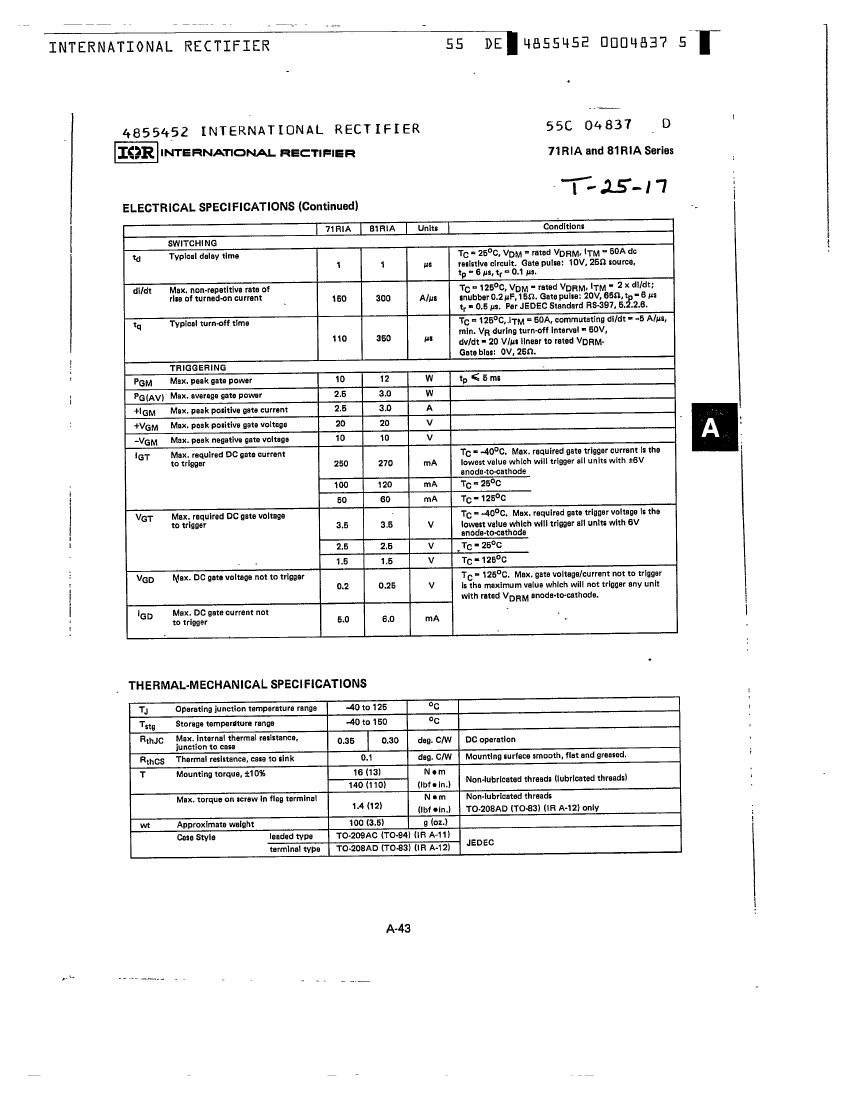

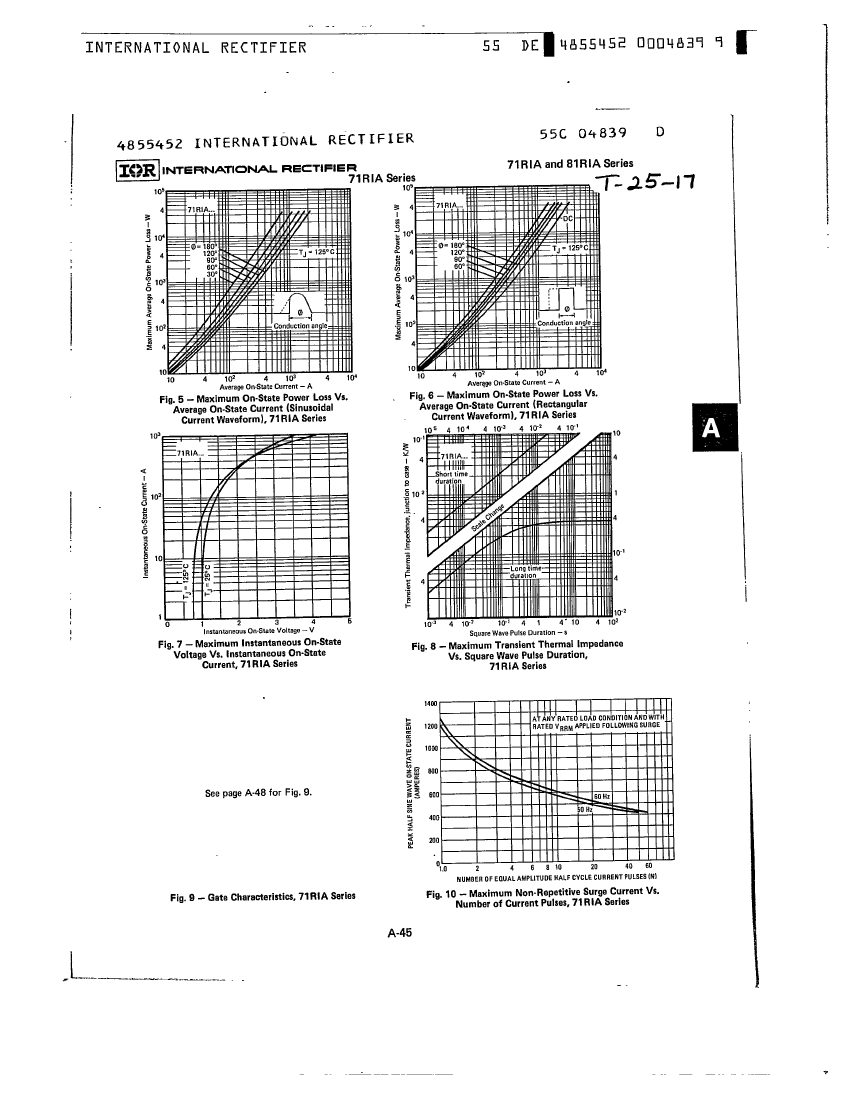

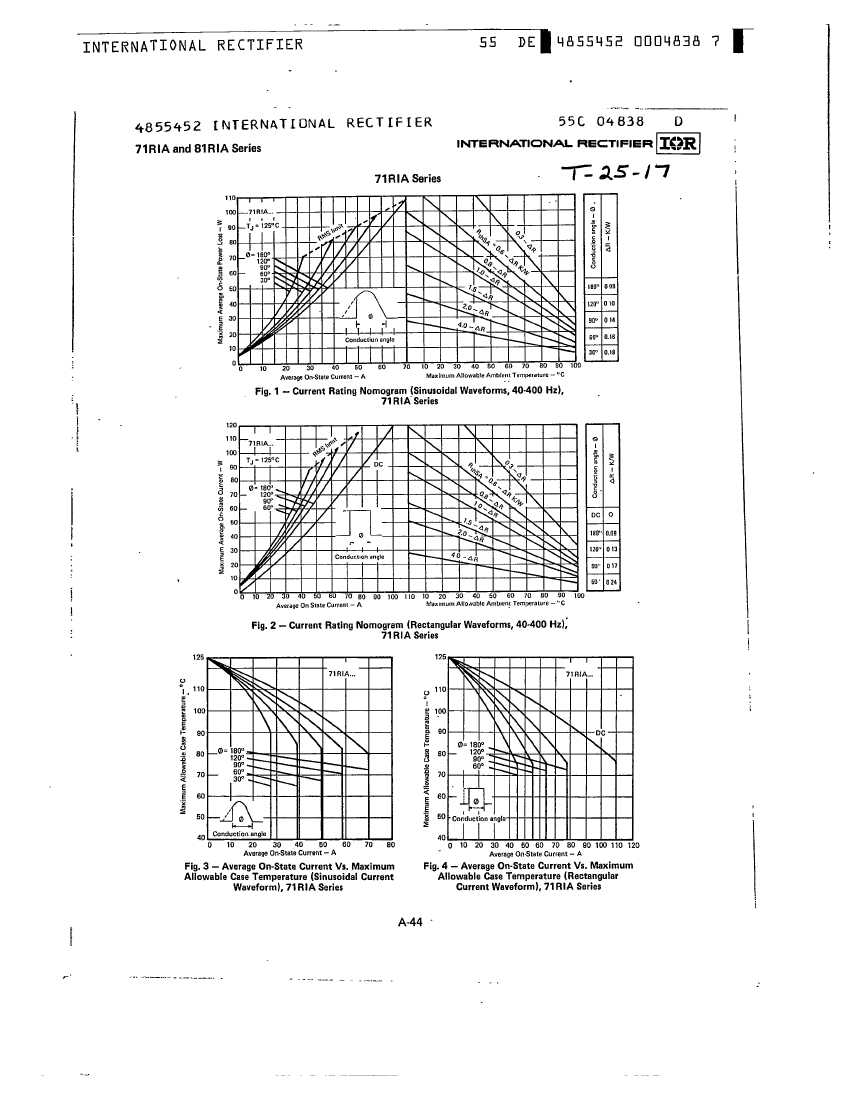

81RIA10 Overview

Silicon Controlled Rectifier, 125A I(T)RMS, 70000mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-209AC

81RIA10 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerInternational Rectifier ( Infineon )
package instructionPOST/STUD MOUNT, O-MUPM-H3
Reach Compliance Codeunknown
ECCN codeEAR99
Nominal circuit commutation break time350 µs
ConfigurationSINGLE
Critical rise rate of minimum off-state voltage500 V/us
Maximum DC gate trigger current120 mA
Maximum DC gate trigger voltage2.5 V
Maximum holding current0.00015 mA
JEDEC-95 codeTO-209AC
JESD-30 codeO-MUPM-H3
Maximum leakage current20 mA
On-state non-repetitive peak current1600 A
Number of components1
Number of terminals3
Maximum on-state current70000 A
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialMETAL
Package shapeROUND
Package formPOST/STUD MOUNT
Certification statusNot Qualified
Maximum rms on-state current125 A
Off-state repetitive peak voltage100 V
Repeated peak reverse voltage100 V
surface mountNO
Terminal formHIGH CURRENT CABLE
Terminal locationUPPER
Trigger device typeSCR

81RIA10 Related Products

81RIA10 71RIA40 71RIA60 71RIA80 81RIA60 81RIA100 81RIA20 71RIA10 71RIA20
Description Silicon Controlled Rectifier, 125A I(T)RMS, 70000mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-209AC Silicon Controlled Rectifier, 110A I(T)RMS, 70000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-209AC Silicon Controlled Rectifier, 110A I(T)RMS, 70000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, TO-209AC Silicon Controlled Rectifier, 110A I(T)RMS, 70000mA I(T), 800V V(DRM), 800V V(RRM), 1 Element, TO-209AC Silicon Controlled Rectifier, 125A I(T)RMS, 70000mA I(T), 600V V(DRM), 600V V(RRM), 1 Element, TO-209AC Silicon Controlled Rectifier, 125A I(T)RMS, 70000mA I(T), 1000V V(DRM), 1000V V(RRM), 1 Element, TO-209AC Silicon Controlled Rectifier, 125A I(T)RMS, 70000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-209AC Silicon Controlled Rectifier, 110A I(T)RMS, 70000mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-209AC Silicon Controlled Rectifier, 110A I(T)RMS, 70000mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-209AC,
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
package instruction POST/STUD MOUNT, O-MUPM-H3 POST/STUD MOUNT, O-MUPM-H3 POST/STUD MOUNT, O-MUPM-H3 POST/STUD MOUNT, O-MUPM-H3 POST/STUD MOUNT, O-MUPM-H3 POST/STUD MOUNT, O-MUPM-H3 POST/STUD MOUNT, O-MUPM-H3 POST/STUD MOUNT, O-MUPM-H3 POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown
Nominal circuit commutation break time 350 µs 110 µs 110 µs 110 µs 350 µs 350 µs 350 µs 110 µs 110 µs
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Critical rise rate of minimum off-state voltage 500 V/us 500 V/us 500 V/us 500 V/us 500 V/us 500 V/us 500 V/us 500 V/us 500 V/us
Maximum DC gate trigger current 120 mA 100 mA 100 mA 100 mA 120 mA 120 mA 120 mA 100 mA 100 mA
Maximum DC gate trigger voltage 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V
Maximum holding current 0.00015 mA 200 mA 200 mA 200 mA 150 mA 150 mA 150 mA 0.0002 mA 200 mA
JEDEC-95 code TO-209AC TO-209AC TO-209AC TO-209AC TO-209AC TO-209AC TO-209AC TO-209AC TO-209AC
JESD-30 code O-MUPM-H3 O-MUPM-H3 O-MUPM-H3 O-MUPM-H3 O-MUPM-H3 O-MUPM-H3 O-MUPM-H3 O-MUPM-H3 O-MUPM-H3
Maximum leakage current 20 mA 20 mA 20 mA 20 mA 15 mA 15 mA 20 mA 20 mA 20 mA
On-state non-repetitive peak current 1600 A 1300 A 1300 A 1300 A 1700 A 1700 A 1700 A 1300 A 1300 A
Number of components 1 1 1 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3 3 3 3
Maximum on-state current 70000 A 70000 A 70000 A 70000 A 70000 A 70000 A 70000 A 70000 A 70000 A
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Package body material METAL METAL METAL METAL METAL METAL METAL METAL METAL
Package shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND
Package form POST/STUD MOUNT POST/STUD MOUNT POST/STUD MOUNT POST/STUD MOUNT POST/STUD MOUNT POST/STUD MOUNT POST/STUD MOUNT POST/STUD MOUNT POST/STUD MOUNT
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 125 A 110 A 110 A 110 A 125 A 125 A 125 A 110 A 110 A
Off-state repetitive peak voltage 100 V 400 V 600 V 800 V 600 V 1000 V 200 V 100 V 200 V
Repeated peak reverse voltage 100 V 400 V 600 V 800 V 600 V 1000 V 200 V 100 V 200 V
surface mount NO NO NO NO NO NO NO NO NO
Terminal form HIGH CURRENT CABLE HIGH CURRENT CABLE HIGH CURRENT CABLE HIGH CURRENT CABLE HIGH CURRENT CABLE HIGH CURRENT CABLE HIGH CURRENT CABLE HIGH CURRENT CABLE HIGH CURRENT CABLE
Terminal location UPPER UPPER UPPER UPPER UPPER UPPER UPPER UPPER UPPER
Trigger device type SCR SCR SCR SCR SCR SCR SCR SCR SCR
Maker International Rectifier ( Infineon ) - - - International Rectifier ( Infineon ) International Rectifier ( Infineon ) International Rectifier ( Infineon ) International Rectifier ( Infineon ) International Rectifier ( Infineon )
Base Number Matches - 1 1 1 1 1 1 - -
