LH540206D-80 datasheet, PDF - EEWORLD Datasheet

LH540206D-80: DescriptionFIFO, 16KX9, 80ns, Asynchronous, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28; Categorystorage storage; File Size89KB，2 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

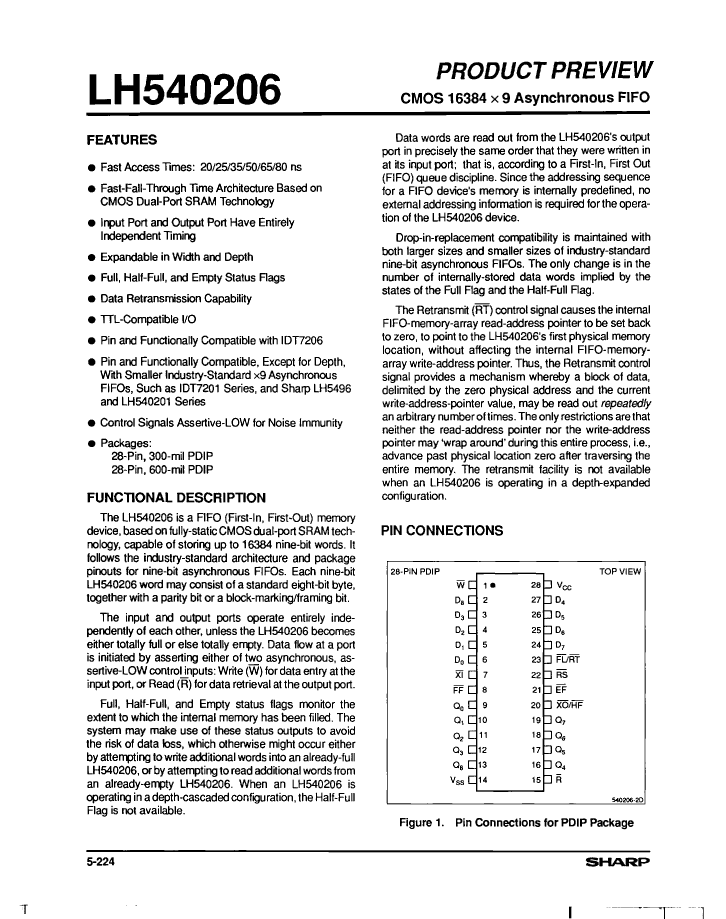

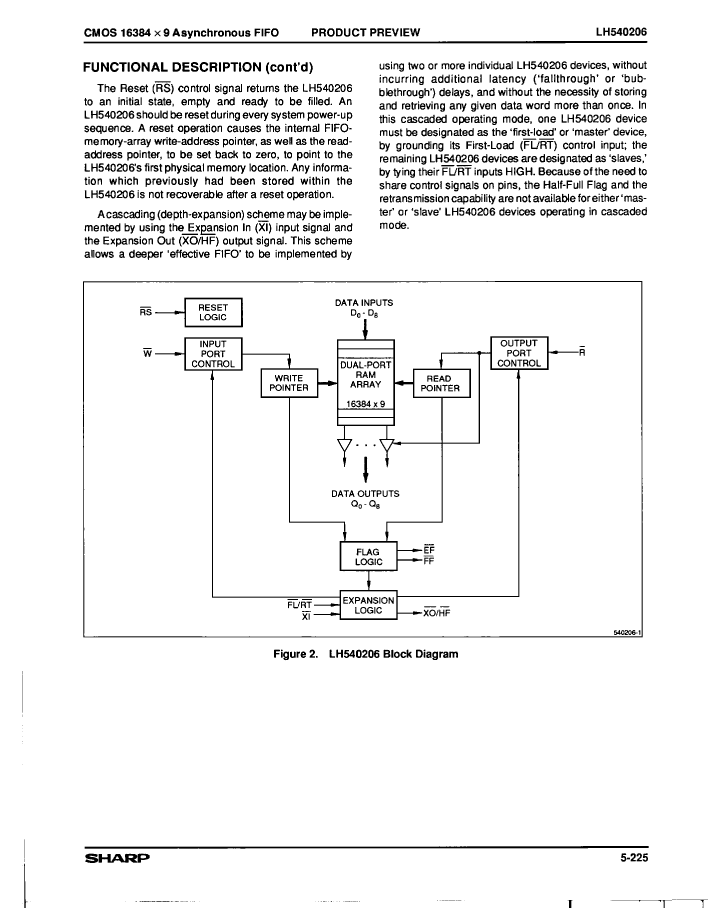

LH540206D-80 Overview

FIFO, 16KX9, 80ns, Asynchronous, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28

Parameter Name	Attribute value
Maker	SHARP
package instruction	0.300 INCH, PLASTIC, DIP-28
Reach Compliance Code	unknown
Maximum access time	80 ns
Other features	RETRANSMIT
period time	100 ns
JESD-30 code	R-PDIP-T28
length	34.7 mm
memory density	147456 bit
memory width	9
Number of functions	1
Number of terminals	28
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16KX9
Output characteristics	TOTEM POLE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	4.4 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	LH540206D-80	LH540206D-65
Description	FIFO, 16KX9, 80ns, Asynchronous, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28	FIFO, 16KX9, 65ns, Asynchronous, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28
Maker	SHARP	SHARP
package instruction	0.300 INCH, PLASTIC, DIP-28	0.300 INCH, PLASTIC, DIP-28
Reach Compliance Code	unknown	unknown
Maximum access time	80 ns	65 ns
Other features	RETRANSMIT	RETRANSMIT
period time	100 ns	80 ns
JESD-30 code	R-PDIP-T28	R-PDIP-T28
length	34.7 mm	34.7 mm
memory density	147456 bit	147456 bit
memory width	9	9
Number of functions	1	1
Number of terminals	28	28
word count	16384 words	16384 words
character code	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	16KX9	16KX9
Output characteristics	TOTEM POLE	TOTEM POLE
Exportable	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.4 mm	4.4 mm
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
