8432CY-111LFT

Description
TQFP-32, Reel
Categorylogic    logic
File Size240KB，18 Pages
ManufacturerIDT (Integrated Device Technology)
Environmental Compliance
Download Datasheet Parametric Compare View All

8432CY-111LFT Online Shopping

Suppliers Part Number Price MOQ In stock
8432CY-111LFT - - View Buy Now

8432CY-111LFT Overview

TQFP-32, Reel

8432CY-111LFT Parametric

Parameter NameAttribute value
Brand NameIntegrated Device Technology
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerIDT (Integrated Device Technology)
Parts packaging codeTQFP
package instructionLQFP,
Contacts32
Manufacturer packaging codePRG32
Reach Compliance Codecompliant
ECCN codeEAR99
series8432
Input adjustmentDIFFERENTIAL MUX
JESD-30 codeS-PQFP-G32
JESD-609 codee3
length7 mm
Logic integrated circuit typePLL BASED CLOCK DRIVER
Humidity sensitivity level3
Number of functions1
Number of inverted outputs
Number of terminals32
Actual output times2
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeLQFP
Package shapeSQUARE
Package formFLATPACK, LOW PROFILE
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Same Edge Skew-Max（tskwd）0.06 ns
Maximum seat height1.6 mm
Maximum supply voltage (Vsup)3.465 V
Minimum supply voltage (Vsup)3.135 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
Temperature levelCOMMERCIAL
Terminal surfaceMatte Tin (Sn) - annealed
Terminal formGULL WING
Terminal pitch0.8 mm
Terminal locationQUAD
Maximum time at peak reflow temperature30
width7 mm
minfmax700 MHz

8432CY-111LFT Preview

ICS8432-111
700MH
Z
/350MH
Z
D
IFFERENTIAL
-
TO
-3.3V LVPECL F
REQUENCY
S
YNTHESIZER
PRODUCT DISCONTINUATION NOTICE - LAST TIME BUY EXPIRES JULY 31, 2015
G
ENERAL
D
ESCRIPTION
The ICS8432-111 is a general purpose, dual output
Differential-to-3.3V LVPECL High Frequency Synthesizer.
The ICS8432-111 has a selectable differential CLK, nCLK
pair or LVCMOS/LVTTL TEST_CLK. The TEST_CLK input
accepts LVCMOS or LVTTL input levels and translates them
to 3.3V LVPECL levels. The CLK, nCLK pair can accept most
standard differential input levels.The VCO operates at a
frequency range of 200MHz to 700MHz. The VCO frequency is
programmed in steps equal to the value of the input differential
or single ended reference frequency. Output frequencies up to
700MHz for FOUT and 350MHz for FOUT/2 can be programmed
using the serial or parallel interfaces to the configuration logic.
The low phase noise characteristics and the multiple frequency
outputs of the ICS8432-111 makes it an ideal clock source for
Fibre Channel 1 and 2, and Infiniband applications.
F
EATURES
•
Dual differential 3.3V LVPECL outputs
•
Selectable differential CLK, nCLK pair or LVCMOS TEST_
CLK
•
CLK, nCLK pair can accept the following differential input
levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL
•
TEST_CLK can accept the following input types:
LVCMOS or LVTTL
•
Maximum FOUT frequency: 700MHz
Maximum FOUT/2 frequency: 350MHz
•
CLK, nCLK or TEST_CLK input frequency: 40MHz
•
VCO range: 250MHz to 700MHz
•
Parallel or serial interface for programming counter
and VCO frequency multiplier and dividers
•
RMS period jitter: 5ps (maximum)
•
Cycle-to-cycle jitter: 40ps (maximum)
•
3.3V supply voltage
•
0°C to 70°C ambient operating temperature
•
Available in lead-free (RoHS 6) package
•
For functional replacement device use 8432DY-101LF
B
LOCK
D
IAGRAM
VCO_SEL
CLK_SEL
TEST_CLK
CLK
nCLK
0
P
IN
A
SSIGNMENT
VCO_SEL
nP_LOAD
nCLK
M4
M3
M2
M1
M0
32 31 30 29 28 27 26 25
1
M5
M6
M7
M8
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16
TEST
V
CC
FOUT/2
nFOUT/2
V
CCO
FOUT
nFOUT
V
EE
24
23
22
CLK
TEST_CLK
CLK_SEL
V
CCA
S_LOAD
S_DATA
S_CLOCK
MR
PLL
PHASE DETECTOR
MR
VCO
÷M
0
1
÷1
÷2
÷4
÷8
÷2
N0
N1
nc
FOUT
nFOUT
FOUT/2
nFOUT/2
V
EE
ICS8432-111
21
20
19
18
17
S_LOAD
S_DATA
S_CLOCK
nP_LOAD
M0:M8
N0:N1
CONFIGURATION
INTERFACE
LOGIC
TEST
32-Lead LQFP
7mm x 7mm x 1.4mm package body
Y Package
Top View
8432CY-111
www.idt.com
1
REV. C SEPTEMBER 11, 2014
ICS8432-111
700MH
Z
/350MH
Z
D
IFFERENTIAL
-
TO
-3.3V LVPECL F
REQUENCY
S
YNTHESIZER
F
UNCTIONAL
D
ESCRIPTION
NOTE: The functional description that follows describes opera-
tion using a 25MHz clock input. Valid PLL loop divider values for
different input frequencies are defined in the Input Frequency
Characteristics, Table 5, NOTE 1.
The ICS8432-111 features a fully integrated PLL and therefore
requires no external components for setting the loop band-
width. A differential clock input is used as the input to the
ICS8432-111. This input is fed into the phase detector. A 25MHz
clock input provides a 25MHz phase detector reference fre-
quency. The VCO of the PLL operates over a range of 250MHz
to 700MHz. The output of the M divider is also applied to the
phase detector.
The phase detector and the M divider force the VCO output
frequency to be M times the reference frequency by adjusting
the VCO control voltage. Note, that for some values of M (either
too high or too low), the PLL will not achieve lock. The output
of the VCO is scaled by a divider prior to being sent to each of
the LVPECL output buffers. The divider provides a 50% output
duty cycle.
The programmable features of the ICS8432-111 support two
input modes to program the PLL M divider and N output divider.
The two input operational modes are parallel and serial.

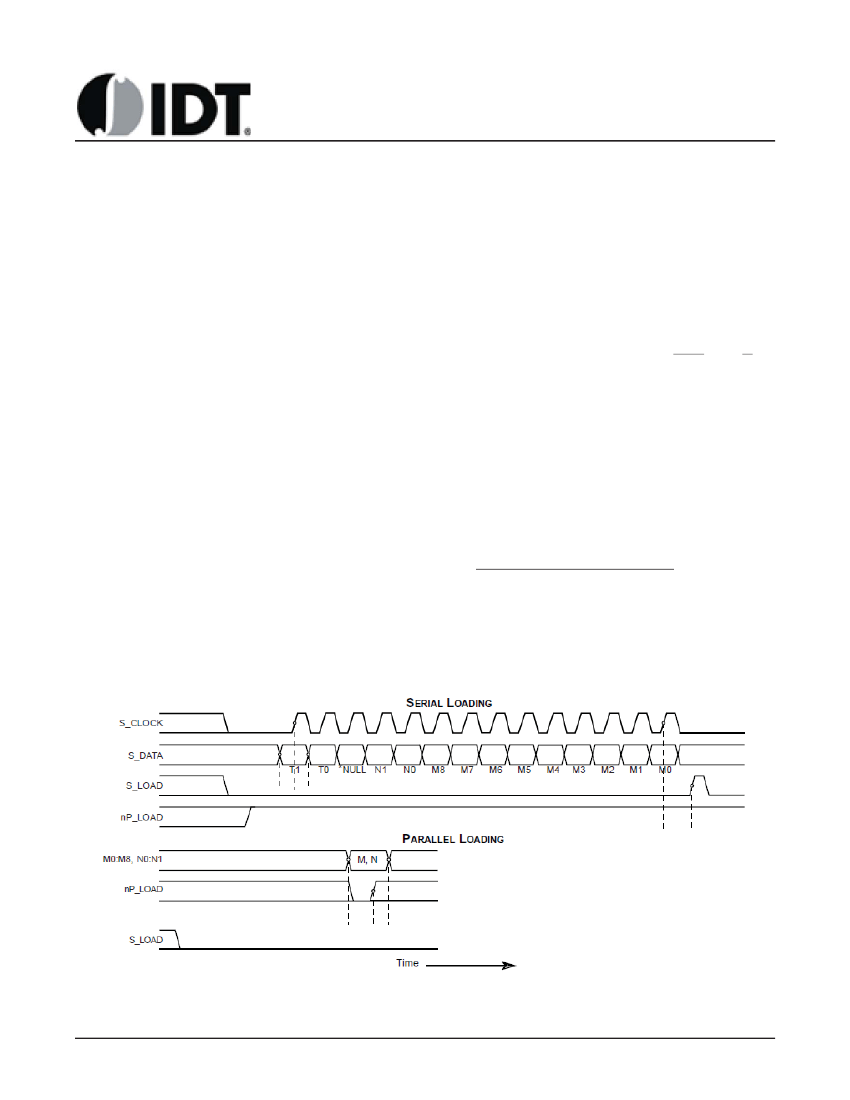

Figure1
shows the timing diagram for each mode. In parallel mode, the
nP_LOAD input is initially LOW. The data on inputs M0 through
M8 and N0 and N1 is passed directly to the M divider and
N output divider. On the LOW-to-HIGH transition of the
nP_LOAD input, the data is latched and the M divider remains
loaded until the next LOW transition on nP_LOAD or until a serial
event occurs. As a result, the M and N bits can be hardwired
to set the M divider and N output divider to a specific default
state that will automatically occur during power-up. The TEST
output is LOW when operating in the parallel input mode. The
relationship between the VCO frequency, the input frequency
and the M divider is defined as follows: fVCO = f
IN
x M
The M value and the required values of M0 through M8 are
shown in Table 3B, Programmable VCO Frequency Function
Table. When the input clock is at 25MHz, the valid M values for
which the PLL will achieve lock are defined as 10
≤
M
≤
28. The
frequency out is defined as follows: fOUT = fVCO = f
IN
x M
N
N
Serial operation occurs when nP_LOAD is HIGH and S_LOAD
is LOW. The shift register is loaded by sampling the S_DATA
bits with the rising edge of S_CLOCK. The contents of the shift
register are loaded into the M divider and N output divider when
S_LOAD transitions from LOW-to-HIGH. The M divide and N
output divide values are latched on the HIGH-to-LOW transi-
tion of S_LOAD. If S_LOAD is held HIGH, data at the S_DATA
input is passed directly to the M divider and N output divider on
each rising edge of S_CLOCK. The serial mode can be used to
program the M and N bits and test bits T1 and T0. The internal
registers T0 and T1 determine the state of the TEST output as
follows:
T1 T0
TEST Output
0
0
1
1
0
1
0
1
LOW
S_Data, Shift Register Input
Output of M divider
CMOS Fout/2
F
IGURE
1. P
ARALLEL
& S
ERIAL
L
OAD
O
PERATIONS
*NOTE:
8432CY-111
The NULL timing slot must be observed.
www.idt.com
2
REV. C SEPTEMBER 11, 2014
ICS8432-111
700MH
Z
/350MH
Z
D
IFFERENTIAL
-
TO
-3.3V LVPECL F
REQUENCY
S
YNTHESIZER
T
ABLE
1. P
IN
D
ESCRIPTIONS
Number
1
2, 3, 4,
28, 29,
30, 31, 32
5, 6
7
8, 16
9
10
11,
12
13
14, 15
Name
M5
M6, M7, M8,
M0, M1,
M2, M3, M4
N0, N1
nc
V
EE
TEST
V
CC
Input
Input
Input
Unused
Power
Output
Power
Type
Pullup
M counter/divider inputs. Data latched on LOW-to-HIGH transistion
Pulldown of nP_LOAD input. LVCMOS/LVTTL interface levels.
Pulldown
Determines output divider value as defined in Table 3C
Function Table. LVCMOS/LVTTL interface levels.
No connect.
Negative supply pins.
Test output which is ACTIVE in the serial mode of operation.
Output driven LOW in parallel mode. LVCMOS/LVTTL interface levels.
Core supply pin.
Half frequency differential output for the synthesizer.
3.3V LVPECL interface levels.
Output supply pin.
Differential output for the synthesizer. 3.3V LVPECL interface levels.
Active High Master Reset. When logic HIGH, the internal dividers
are reset causing the true outputs FOUTx to go low and the inverted
outputs nFOUTx to go high. When logic LOW, the internal dividers are
the outputs are enabled. Assertion of MR does not effect loaded
M, N, and T values. LVCMOS/LVTTL interface levels.
Clocks in serial data present at S_DATA input into the shift register
on the rising edge of S_CLOCK. LVCMOS/LVTTL interface levels.
Shift register serial input. Data sampled on the rising edge
of S_CLOCK. LVCMOS/LVTTL interface levels.
Controls transition of data from shift register into the dividers. LVC-
MOS/LVTTL interface levels.
Analog supply pin.
Selects between differential clock input or test input as the PLL ref-
erence source. LVCMOS/LVTTL interface levels. Selects CLK, nCLK
inputs when HIGH. Selects TEST_CLK when LOW.
Test clock input. LVCMOS/LVTTL interface levels.
Description
FOUT/2, nFOUT/2 Output
V
CCO
FOUT, nFOUT
Power
Output
17
MR
Input
Pulldown
18
19
20
21
22
23
24
25
26
27
S_CLOCK
S_DATA
S_LOAD
V
CCA
CLK_SEL
TEST_CLK
CLK
nCLK
nP_LOAD
VCO_SEL
Input
Input
Input
Power
Input
Input
Input
Input
Input
Input
Pulldown
Pulldown
Pulldown
Pullup
Pulldown
Pullup
Pulldown Non-inverting differential clock input.
Inverting differential clock input.
Parallel load input. Determines when data present at M8:M0 is loaded
Pulldown into M divider, and when data present at N1:N0 sets the N output divid-
er value. LVCMOS/LVTTL interface levels.
Determines whether synthesizer is in PLL or bypass mode.
Pullup
LVCMOS/LVTTL interface levels.
NOTE: Pullup and Pulldown refers to internal input resistors. See Table 2, Pin Characteristics, for typical values.
T
ABLE
2. P
IN
C
HARACTERISTICS
Symbol
C
IN
R
PULLUP
R
PULLDOWN
Parameter
Input Capacitance
Input Pullup Resistor
Input Pulldown Resistor
Test Conditions
Minimum
Typical
4
51
51
Maximum
Units
pF
kW
kW
8432CY-111
www.idt.com
3
REV. C SEPTEMBER 11, 2014
ICS8432-111
700MH
Z
/350MH
Z
D
IFFERENTIAL
-
TO
-3.3V LVPECL F
REQUENCY
S
YNTHESIZER
T
ABLE
3A. P
ARALLEL AND
S
ERIAL
M
ODE
F
UNCTION
T
ABLE
Inputs
MR
H
L
L
L
L
L
L
L
nP_LOAD
X
L
↑
H
H
H
H
H
M
X
Data
Data
X
X
X
X
X
N
X
Data
Data
X
X
X
X
X
S_LOAD
X
X
L
L
↑
↓
L
H
S_CLOCK
X
X
X
↑
L
L
X
↑
S_DATA
X
X
X
Data
Data
Data
X
Data
Reset. Forces outputs LOW.
Data on M and N inputs passed directly to the M divider
and N output divider. TEST output forced LOW.
Data is latched into input registers and remains loaded
until next LOW transition or until a serial event occurs.
Serial input mode. Shift register is loaded with data on
S_DATA on each rising edge of S_CLOCK.
Contents of the shift register are passed to the M divider
and N output divider.
M divider and N output divider values are latched.
Parallel or serial input do not affect shift registers.
S_DATA passed directly to ripple counter as it is clocked.
Conditions
NOTE: L = LOW
H = HIGH
X = Don’t care
↑=
Rising edge transition
↓=
Falling edge transition
T
ABLE
3B. P
ROGRAMMABLE
VCO F
REQUENCY
F
UNCTION
T
ABLE
VCO Frequency
(MHz)
250
275
•
•
650
675
M Count
10
11
•
•
26
27
256
M8
0
0
•
•
0
0
128
M7
0
0
•
•
0
0
64
M6
0
0
•
•
0
0
32
M5
0
0
•
•
0
0
16
M4
0
0
•
•
1
1
8
M3
1
1
•
•
1
1
4
M2
0
0
•
•
0
0
2
M1
1
1
•
•
1
1
1
M0
0
1
•
•
0
1
700
28
0
0
0
0
1
1
1
0
0
NOTE 1: These M count values and the resulting frequencies correspond to differential input or TEST_CLK input frequency of
25MHz.
T
ABLE
3C. P
ROGRAMMABLE
O
UTPUT
D
IVIDER
F
UNCTION
T
ABLE
Inputs
N1
0
0
1
1
N0
0
1
0
1
1
2
4
8
Output Frequency (MHz)
N Divider Value
Minimum
250
125
62.5
31.25
FOUT
Maximum
700
350
175
87.5
FOUT/2
Minimum
Maximum
125
62.5
31.25
15.625
350
175
87.5
43.75
8432CY-111
www.idt.com
4
REV. C SEPTEMBER 11, 2014
ICS8432-111
700MH
Z
/350MH
Z
D
IFFERENTIAL
-
TO
-3.3V LVPECL F
REQUENCY
S
YNTHESIZER
A
BSOLUTE
M
AXIMUM
R
ATINGS
Supply Voltage, V
CC
Inputs, V
I
Outputs, I
O
Continuous Current
Surge Current
Package Thermal Impedance,
θ
JA
Storage Temperature, T
STG
4.6V
-0.5V to V
CC
+ 0.5 V
50mA
100mA
47.9°C/W (0 lfpm)
-65°C to 150°C
NOTE: Stresses beyond those listed under Absolute
Maximum Ratings may cause permanent damage to the
device. These ratings are stress specifications only. Functional
operation of product at these conditions or any conditions
beyond those listed in the
DC Characteristics
or
AC Charac-
teristics
is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect product reliability.
T
ABLE
4A. P
OWER
S
UPPLY
DC C
HARACTERISTICS
,
V
CC
= V
CCA
= V
CCO
= 3.3V±5%, T
A
= 0°C
TO
70°C
Symbol
V
CC
V
CCA
V
CCO
I
EE
I
CCA
Parameter
Core Supply Voltage
Analog Supply Voltage
Output Supply Voltage
Power Supply Current
Analog Supply Current
Test Conditions
Minimum
3.135
3.135
3.135
Typical
3.3
3.3
3.3
Maximum
3.465
3.465
3.465
140
15
Units
V
V
V
mA
mA
T
ABLE
4B. LVCMOS / LVTTL DC C
HARACTERISTICS
,
V
CC
= V
CCA
= V
CCO
= 3.3V±5%, T
A
= 0°C
TO
70°C
Symbol
Parameter
Input
High Voltage
VCO_SEL, CLK_SEL, S_LOAD,
S_DATA, S_CLOCK, nP_LOAD,
N0:N1, M0:M8, MR
TEST_CLK
Input
Low Voltage
VCO_SEL, CLK_SEL, S_LOAD,
S_DATA, S_CLOCK, nP_LOAD,
N0:N1, M0:M8, MR
TEST_CLK
M0-M4, M6-M8, N0, N1, S_
CLOCK, S_DATA, S_LOAD,
TEST_CLK, nP_LOAD, MR
M5, CLK_SEL, VCO_SEL
M0-M4, M6-M8, N0, N1, S_
CLOCK, S_DATA, S_LOAD,
TEST_CLK, nP_LOAD, MR
M5, CLK_SEL, VCO_SEL
V
OH
V
OL
Output
High Voltage
Output
Low Voltage
TEST; NOTE 1
TEST; NOTE 1
V
CC
= V
IN
= 3.465V
V
CC
= V
IN
= 3.465V
V
CC
= 3.465V,
V
IN
= 0V
V
CC
= 3.465V,
V
IN
= 0V
-5
Test Conditions
Minimum
2
2
-0.3
Typical
Maximum
V
CC
+ 0.3
V
CC
+ 0.3
0.8
1.3
150
Units
V
V
V
V
µA
V
IH
V
IL
I
IH
Input
High Current
5
µA
I
IL
Input
Low Current
µA
-150
2.6
0.5
µA
V
V
NOTE 1: Outputs terminated with 50Ω to V
CCO
/2. See Parameter Information, 3.3V Output Load Test Circuit.
8432CY-111
www.idt.com
5
REV. C SEPTEMBER 11, 2014
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

8432CY-111LFT Related Products

8432CY-111LFT 8432CY-111LF
Description TQFP-32, Reel TQFP-32, Tray
Brand Name Integrated Device Technology Integrated Device Technology
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Maker IDT (Integrated Device Technology) IDT (Integrated Device Technology)
Parts packaging code TQFP TQFP
package instruction LQFP, LQFP,
Contacts 32 32
Manufacturer packaging code PRG32 PRG32
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
series 8432 8432
Input adjustment DIFFERENTIAL MUX DIFFERENTIAL MUX
JESD-30 code S-PQFP-G32 S-PQFP-G32
JESD-609 code e3 e3
length 7 mm 7 mm
Logic integrated circuit type PLL BASED CLOCK DRIVER PLL BASED CLOCK DRIVER
Humidity sensitivity level 3 3
Number of functions 1 1
Number of terminals 32 32
Actual output times 2 2
Maximum operating temperature 70 °C 70 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code LQFP LQFP
Package shape SQUARE SQUARE
Package form FLATPACK, LOW PROFILE FLATPACK, LOW PROFILE
Peak Reflow Temperature (Celsius) 260 260
Certification status Not Qualified Not Qualified
Same Edge Skew-Max（tskwd） 0.06 ns 0.06 ns
Maximum seat height 1.6 mm 1.6 mm
Maximum supply voltage (Vsup) 3.465 V 3.465 V
Minimum supply voltage (Vsup) 3.135 V 3.135 V
Nominal supply voltage (Vsup) 3.3 V 3.3 V
surface mount YES YES
Temperature level COMMERCIAL COMMERCIAL
Terminal surface Matte Tin (Sn) - annealed Matte Tin (Sn) - annealed
Terminal form GULL WING GULL WING
Terminal pitch 0.8 mm 0.8 mm
Terminal location QUAD QUAD
Maximum time at peak reflow temperature 30 30
width 7 mm 7 mm
minfmax 700 MHz 700 MHz

Recommended Resources

LED drive circuit based on switching power supply

Power on mobile phone detector circuit

Automatic voltage regulating AC voltage regulator circuit

3V-12V DC DC conversion circuit 2

Average absolute value circuit

Broadband low frequency frequency multiplier circuit diagram

【TI recommended course】#Achieving a new generation of test and measurement applications#
//training.eeworld.com.cn/TI/show/course/5546...
lark100 TI Technology Forum
It's graduation season again. Those who are graduating this year, please tell us where you will go after graduation.
[font=微软雅黑][size=3]I remember that I have graduated for two years. The scene of packing my luggage to go to Beijing after graduation is still vivid in my mind. [/size][/font]:Cry:[font=微软雅黑][size=3]It...
kevin.di Talking
Can MSP4250 run MCLK at 4M without connecting an external crystal?
The frequency accuracy requirement is not too high, and the stability of the 1 series can reach4M ± 20%, which is acceptable.But it seems that the 4 series must be connected to an external crystal to ...
seewei Microcontroller MCU
Controlling iesimple's scrollbar
I created a new iesimple process in my application. After I got the handle of iesimple, I sent messages to iesimple in the application to control iesimple to "forward" and "backward", but I found that...
xingtao Embedded System
Can someone teach me about power supply?
My QQ: 605179640...
605179640 Power technology
How did the company calculate the air gap of the switching transformer?
I recently learned about switching power supplies, and I feel that the parameter calculation of this switching transformer is very complicated. The transformer calculation formula in the figure is wha...
_earth Power technology
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. U722218391
  2. P9L-213147W
  3. P1206E2083BGW
  4. RBR75L561R0BR
  5. VTC1-C2BB-15M360
  6. BGL26090LU
  7. RP73D2B3K83ATG
  8. 500P01B272NN4C
  9. MURF2020CT
  10. 5KP12CA_AY_10001
  11. SA70_B0_10001
  12. MPP105J2191017LC

Popular Articles

  1. Film capacitors: TDK launches ultra-compact X2 capacitors
  2. Galaxy S21 FE HD renderings and detailed specifications revealed
  3. Xinlai Materials: The company has sufficient product orders and good production capacity
  4. The design of the 2024 iPhone SE will be similar to the iPhone XR/11
  5. Introduction to Rubbing Color Fastness Tester
  6. 30 Examples of MCU Interrupt Problems and Their Solutions
  7. 51 MCU Introduction - Register Function List
  8. A Brief Introduction to Soil pH Tester
  9. The shipment ratio of large-size products increased, and JinkoSolar's revenue in 2021 increased by 20.26% year-on-year
  10. How to read Mitsubishi PLC password

Technical ResourceMore

  1. Using L4981B to realize switching frequency modulation of variable frequency air conditioner
  2. Classification and development overview of high-frequency switching power supply integrated circuits
  3. Design and optimization of DC-DC converter in single-phase photovoltaic grid-connected power generation system
  4. Timing Constraints User Guide (Chinese)
  5. MATLAB Case 19 Classification Prediction of Probabilistic Neural Network - Transformer Fault Diagnosis Based on PNN.rar
  6. Leakage current in STOP2 mode in STM32L4
  7. High-precision 50/60 Hz pulse signal source for digital electronic clock
  8. Huawei\'s internal hardware development and design process
  9. SPICE Circuit Analysis
  10. MSP430 series single chip microcomputer interface technology and system design examples

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 249  751  1015  2692  2731  6  16  21  55  29
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
