MTP4N80

Description
TMOS POWER FET 4.0 AMPERES 800 VOLTS RDS(on) = 3.0 OHM
File Size123KB,8 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Compare View All

MTP4N80 Overview

TMOS POWER FET 4.0 AMPERES 800 VOLTS RDS(on) = 3.0 OHM

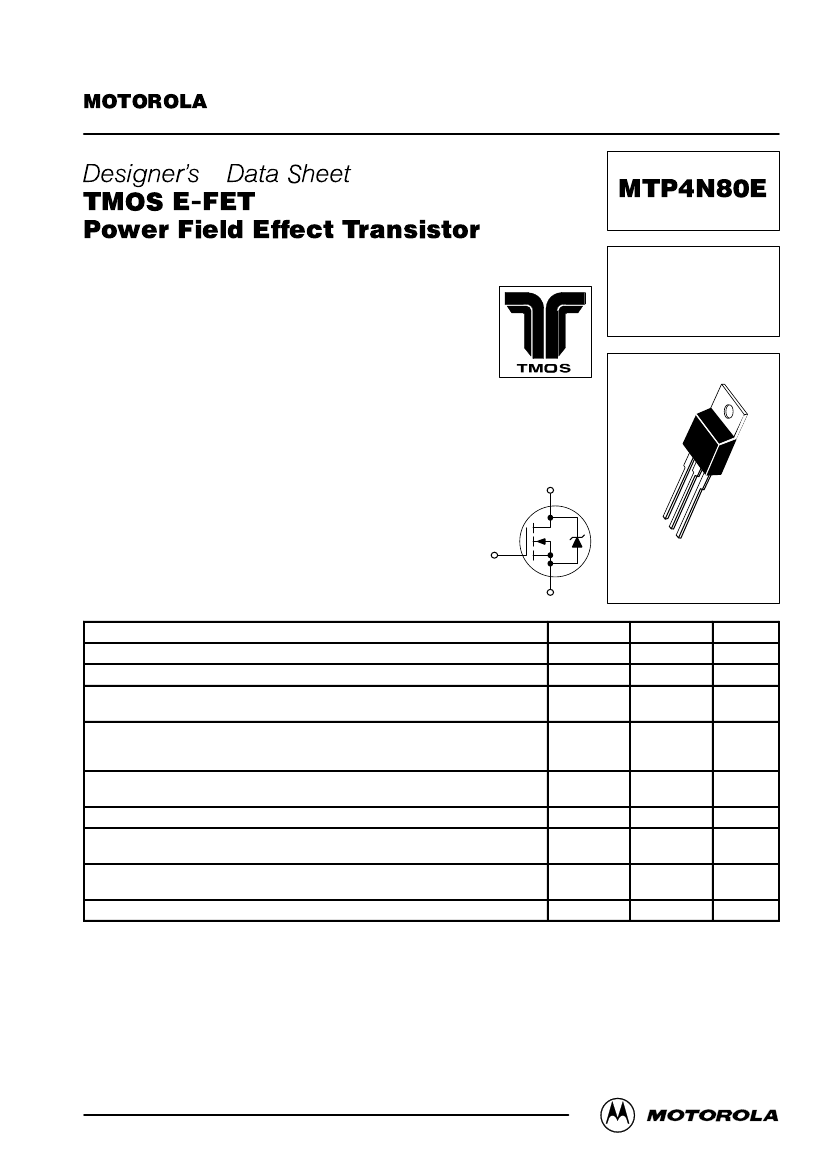

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by MTP4N80E/D
Data Sheet
TMOS E-FET.
Power Field Effect Transistor
Designer's
MTP4N80E
Motorola Preferred Device
N–Channel Enhancement–Mode Silicon Gate
This high voltage MOSFET uses an advanced termination
scheme to provide enhanced voltage–blocking capability without
degrading performance over time. In addition, this advanced TMOS
E–FET is designed to withstand high energy in the avalanche and
commutation modes. The new energy efficient design also offers a
drain–to–source diode with a fast recovery time. Designed for high
voltage, high speed switching applications in power supplies,
converters and PWM motor controls, these devices are particularly
well suited for bridge circuits where diode speed and commutating
safe operating areas are critical and offer additional safety margin
against unexpected voltage transients.
Robust High Voltage Termination
Avalanche Energy Specified
Source–to–Drain Diode Recovery Time Comparable to a
Discrete Fast Recovery Diode
Diode is Characterized for Use in Bridge Circuits
IDSS and VDS(on) Specified at Elevated Temperature
G
S
TMOS POWER FET
4.0 AMPERES
800 VOLTS
RDS(on) = 3.0 OHM
®
D
CASE 221A–06, Style 5
TO–220AB
MAXIMUM RATINGS
(TC = 25°C unless otherwise noted)
Rating
Drain–Source Voltage
Drain–Gate Voltage (RGS = 1.0 MΩ)
Gate–Source Voltage — Continuous
Gate–Source Voltage
— Non–Repetitive (tp
10 ms)
Drain Current — Continuous
Drain Current
— Continuous @ 100°C
Drain Current
— Single Pulse (tp
10
µs)
Total Power Dissipation
Derate above 25°C
Operating and Storage Temperature Range
Single Pulse Drain–to–Source Avalanche Energy — Starting TJ = 25°C
(VDD = 100 Vdc, VGS = 10 Vdc, IL = 8.0 Apk, L = 10 mH, RG = 25
Ω)
Thermal Resistance — Junction to Case
Thermal Resistance
— Junction to Ambient
Maximum Lead Temperature for Soldering Purposes, 1/8″ from case for 10 seconds
Symbol
VDSS
VDGR
VGS
VGSM
ID
ID
IDM
PD
TJ, Tstg
EAS
R
θJC
R
θJA
TL
Value
800
800
±
20
±
40
4.0
2.9
12
125
1.0
– 55 to 150
320
1.0
62.5
260
Unit
Vdc
Vdc
Vdc
Vpk
Adc
Apk
Watts
W/°C
°C
mJ
°C/W
°C
Designer’s Data for “Worst Case” Conditions
— The Designer’s Data Sheet permits the design of most circuits entirely from the information presented. SOA Limit
curves — representing boundaries on device characteristics — are given to facilitate “worst case” design.
E–FET and Designer’s are trademarks of Motorola, Inc. TMOS is a registered trademark of Motorola, Inc.
Preferred
devices are Motorola recommended choices for future use and best overall value.
REV 5
©
Motorola TMOS
Motorola, Inc. 1996
Power MOSFET Transistor Device Data
1
