LENGTH "H"
1/16 [1.6]
1/8 [3.2]
3/16 [4.8]
1/4 [6.4]
5/16 [7.9]
3/8 [9.5]
7/16 [11.1]
1/2 [12.7]
9/16 14.3]
5/8 [15.9]
11/16 [17.5]
DIM. "H"
TOLERANCE
±.007 [±0.18]
±.010 [±0.25]
PART NO.
ID: .028 [0.7] ID: .032 [0.8] ID: .032 [0.8] ID: .047 [1.2] ID: .090 [2.3] ID: .085 [2.2] ID: .047[1.2] ID: .105 [2.7]
OD: .085 [2.2] OD: .085 [2.2] OD: .125 [3.2] OD: .125 [3.2] OD: .125 [3.2] OD: .148 [3.6] OD: .156 [4.0] OD: .167 [4.2]
R901-1
R938-1
R902-1
R939-1
R937-1
R906-1
R903-1
R907-1
R901-2
R938-2
R902-2
R939-2
R937-2
R906-2
R903-2
R907-2
R901-3
R938-3
R902-3
R939-3
R937-3
R906-3
R903-3
R907-3
R901-4
R938-4
R902-4
R939-4
R937-4
R906-4
R903-4
R907-4
R901-5
R938-5
R902-5
R939-5
R937-5
R906-5
R903-5
R907-5
R901-6
R938-6
R902-6
R939-6
R937-6
R906-6
R903-6
R907-6
R901-7
R938-7
R902-7
R939-7
R937-7
R906-7
R903-7
R907-7
R901-8
R938-8
R902-8
R939-8
R937-8
R906-8
R903-8
R907-8
*R901-9
*R938-9
*R902-9
*R939-9
*R937-9
*R906-9
*R903-9
*R907-9
*R901-10
*R938-10
*R902-10
*R939-10
*R937-10
*R906-10
*R903-10
*R907-10
*R901-11
*R938-11
*R902-11
*R939-11
*R937-11
*R906-11
*R903-11
*R907-11
LENGTH "H"
1/16 [1.6]
1/8 [3.2]
3/16 [4.8]
1/4 [6.4]
5/16 [7.9]
3/8 [9.5]
7/16 [11.1]
1/2 [12.7]
9/16 14.3]
5/8 [15.9]
11/16 [17.5]
3/4 [19.1]
13/16 [20.6]
7/8 [22.2]
15/16 [23.8]
1 [25.4]
DIM. "H"
TOLERANCE
±.007 [±0.18]
±.010 [±0.25]
±.015 [±0.38]
PART NO.
ID: .063 [1.6] ID: .091 [2.3] ID: .125 [3.2] ID: .135 [3.4] ID: .091 [2.3] ID: .125 [3.2] ID: .147 [3.7] ID: .171 [4.3]
OD: .187 [4.8] OD: .187 [4.8] OD: .187 [4.8] OD: .230 [5.8] OD: .250 [6.4] OD: .250 [6.4] OD: .250 [6.4] OD: .250 [6.4]
R904-1
R913-1
R908-1
R941-1
R910-1
R911-1
R905-1
R912-1
R904-2
R913-2
R908-2
R941-2
R910-2
R911-2
R905-2
R912-2
R904-3
R913-3
R908-3
R941-3
R910-3
R911-3
R905-3
R912-3
R904-4
R913-4
R908-4
R941-4
R910-4
R911-4
R905-4
R912-4
R904-5
R913-5
R908-5
R941-5
R910-5
R911-5
R905-5
R912-5
R904-6
R913-6
R908-6
R941-6
R910-6
R911-6
R905-6
R912-6
R904-7
R913-7
R908-7
R941-7
R910-7
R911-7
R905-7
R912-7
R904-8
R913-8
R908-8
R941-8
R910-8
R911-8
R905-8
R912-8
*R904-9
*R913-9
*R908-9
R941-9
*R910-9
R911-9
*R905-9
*R912-9
*R904-10
*R913-10
*R908-10
R941-10
*R910-10
*R911-10
*R905-10
*R912-10
*R904-11
*R913-11
*R908-11
R941-11
*R910-11
*R911-11
*R905-11
*R912-11
R904-12
R913-12
R908-12
R941-12
R910-12
R911-12
R905-12
R912-12
R904-13
R913-13
R908-13
R941-13
R910-13
R911-13
R905-13
R912-13
R904-14
R913-14
R908-14
R941-14
R910-14
R911-14
R905-14
R912-14
R904-15
R913-15
R908-15
R941-15
R910-15
R911-15
R905-15
R912-15
R904-16
R913-16
R908-16
R941-16
R910-16
R911-16
R905-16
R912-16
I.D. .007 [±0.18]
O.D. .007 [±0.18]
"H"
*PARTS AVAILABLE BY SPECIAL ORDER ONLY.
NOTES:
1. MATERIAL: MODIFIED TYPE 6 NYLON (RMS-60).
2. COLOR: WHITE.
COLOR BLACK AVAILABLE BY SPECIAL ORDER. TO ORDDER ADD
"BK" AT THE END OF PART NUMBER.

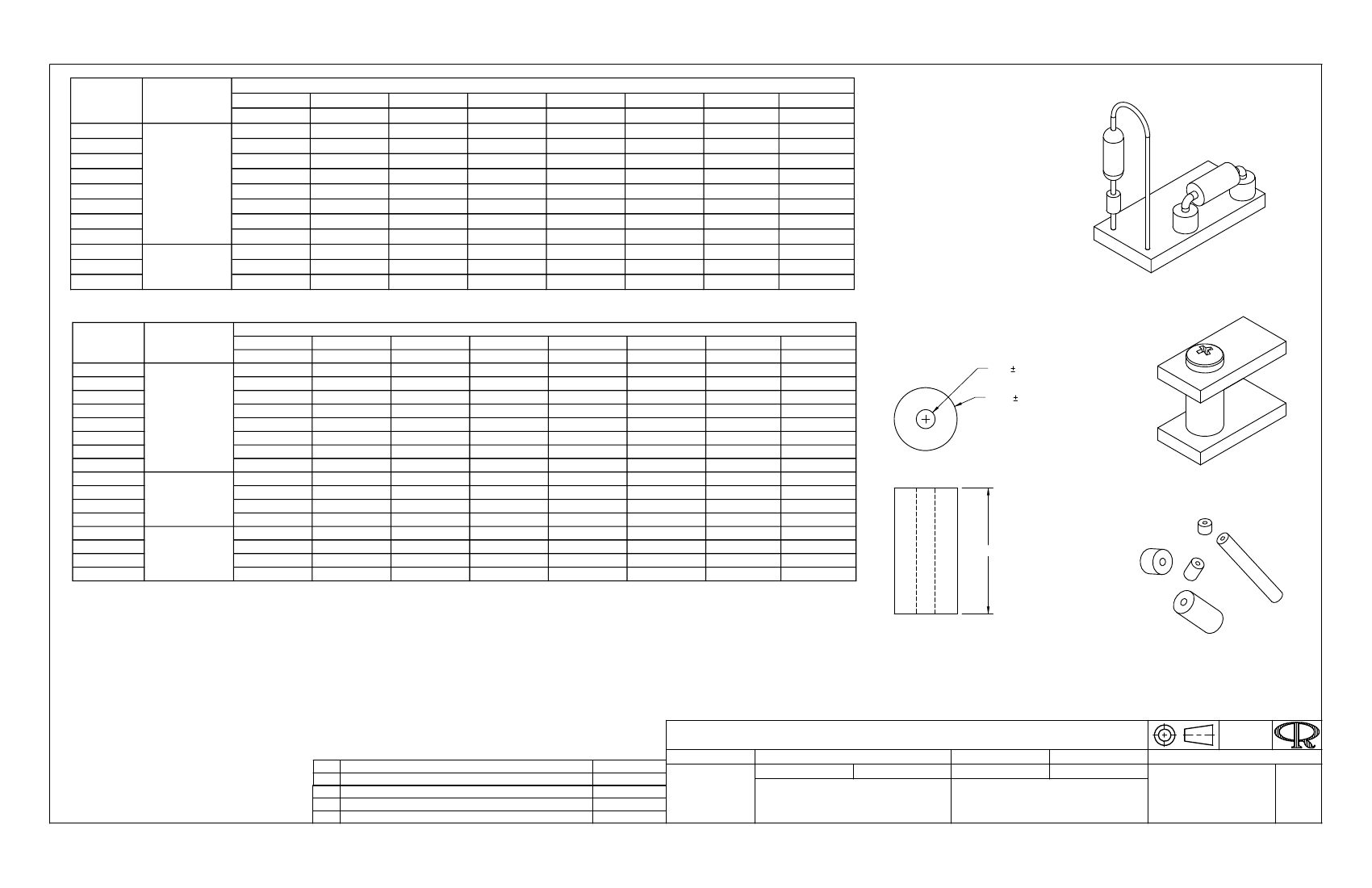

TITLE:
