AS39S020420: DescriptionRocker Switch, SPDT, Latched, Solder Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size142KB，3 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric View All

AS39S020420 Overview

Rocker Switch, SPDT, Latched, Solder Terminal, Rocker Actuator, Panel Mount

AS39S020420 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	ROCKER
body width	6.8 mm
body height	15.3 mm
Body length or diameter	13.2 mm
Contact (AC) maximum rated R load	4A@125VAC
Maximum contact current (AC)	4 A
Maximum contact voltage (AC)	125 V
Electrical life	50000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	AS
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BULK
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER

Preview

Download Datasheet

View All

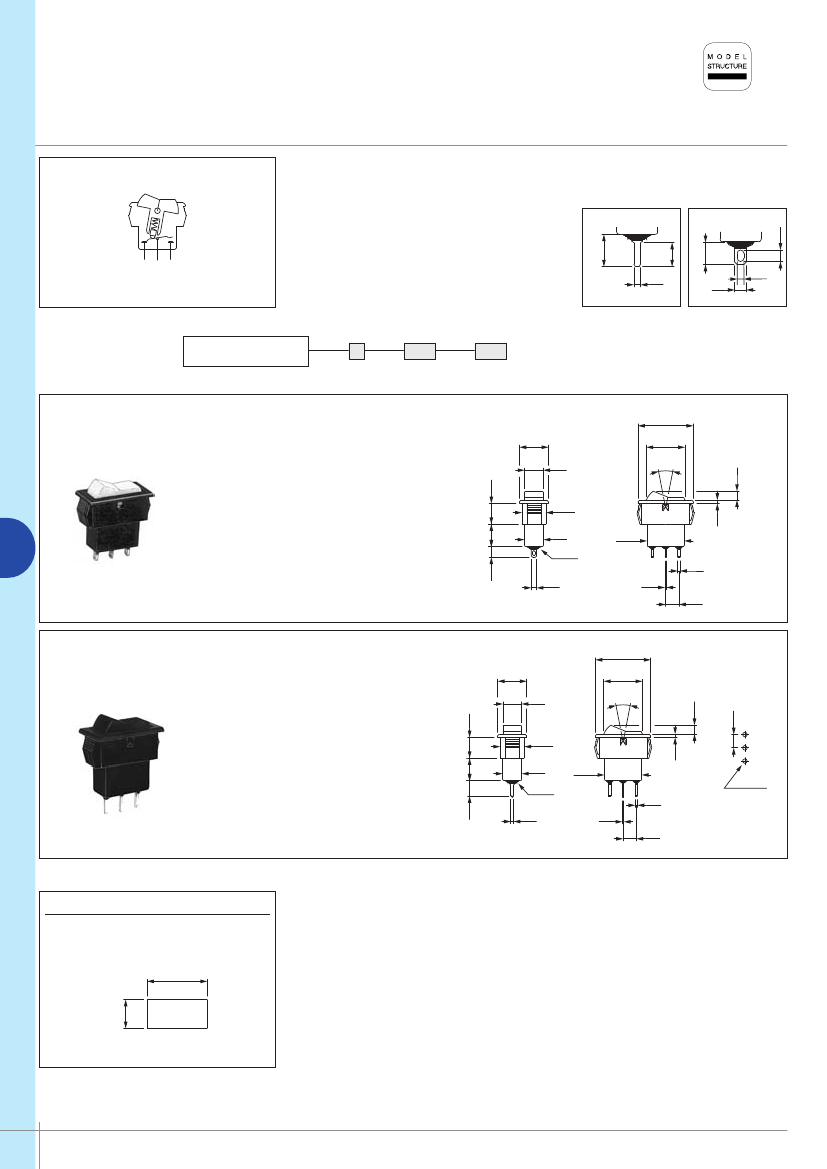

AS series

Snap-in rocker switches

Distinctive features and specifications

❑

Double insulation

❑

Epoxy sealed terminals

❑

UL and CSA approved

ELECTRICAL AND GENERAL SPECIFICATIONS

• Max. current/voltage rating with resistive load :

- silver contacts (code 1) and gold plated silver contacts (code 2) : 4A 30VDC

- gold plated brass contacts (code 0) : 0,4VA 20V AC or DC

• Initial contact resistance : 10 mΩ max.

• Insulation resistance : 10.000 MΩ min.

• Dielectric strength :

1.000 Vrms 50 Hz min. between terminals

4.000 Vrms 50 Hz min. between terminals and metal panel

• Electrical life : 50.000 cycles

• Panel thickness : 1 (.039) to 3 mm (.118) max.

• Operating temperature : -40°C to +85°C

MATERIALS

APPROVALS

D

• Case : PES

• Actuator : polyamide

• Contacts

0

: brass, gold plated

1

: silver

2

: silver, gold plated

5

: special contact, lower rating

Minimum quantity : consult

factory.

• Terminal seal : epoxy

2A 250VAC

4A 125VAC

Availability

: consult factory for details or approved models.

Marking

: to order switches marked with above approvals, complete last box

of ordering format.

ABOUT THIS SERIES

Dimensions

: first dimensions are in mm while inches are shown as bracketed numbers.

Packaging unit

: 50 pieces.

APEM

www.apem.com

D-19
