932977-100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 932977-100

932977-100: DescriptionRectangular Connector, Socket; CategoryThe connector The connector; File Size122KB，1 Pages; ManufacturerHirschmann; Environmental Compliance

Download Datasheet Parametric Compare View All

932977-100 Overview

Rectangular Connector, Socket

932977-100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Body/casing type	SOCKET
Connector type	RECTANGULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

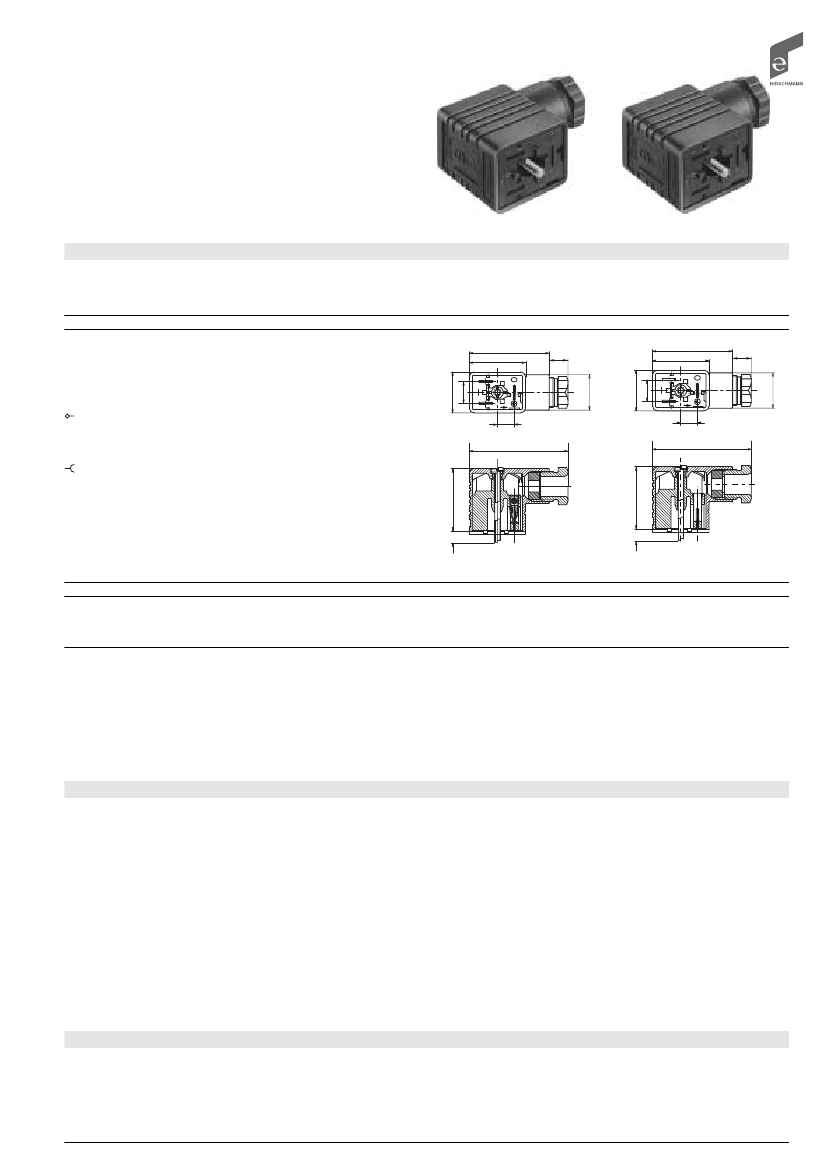

GM-Serie

Leitungsdose

Cable socket

prise secteur

Zulassung

Approval

Homologation

Typ

Type

Bestell-Nr.

Order no.

No. réf.

Farbe

colour

couleur

Gehäuse

casing

boîtier

schwarz

black

noir

grau

grey

gris

Verpackungseinheit

Quantity boxed

Unité de vente

Zeichnung

Drawing

Plan

GCKH

GM 209 NJ

GCKH

GMC 209 NJ

932 977-100

932 977-106

200 Stück

each

pièces

40,6

28,6

AV1

933 384-100

933 384-106

200 Stück

each

pièces

40,6

28,6

AV1

20,8

lift

… Anschlußklemme

connection terminal

borne brevetée

… Gabelfeder

fork type spring

ressort à fourche

8,5

≈51

8,5

≈51

Polzahl

Poles

Pôles

Kontaktbelegung

Contact arrangement

Affectation des contacts

DIN-Norm

DIN-standard

Norme DIN

Beschreibung

Description

Industriestandard (11 mm)

industrial standard (11 mm)

standard industriel (11 mm)

Leitungsdose mit Zentral-

schraube M 3 x 35

cable socket with central screw

M 3 x 35

prise secteur avec vis centrale

M 3 x 35

5,5

-1

Industriestandard (11 mm)

industrial standard (11 mm)

standard industriel (11 mm)

Leitungsdose mit Zentral-

schraube M 3 x 35, ohne

Kontakte

cable socket with central screw

M 3 x 35, without contacts

prise secteur avec vis centrale

M 3 x 35, sans contacts

Technische Daten nach DIN/VDE 0627 / IEC 61984 (Draft)

Technical data

Données techniques

Allgemeine techn. Daten

General techn. data

Données techn. générales

Betriebsspannung

Operating voltage

Tension nominale

Verschmutzungsgrad

Pollution severity

Seuil d’encrassement

max. Betriebsstrom*

maximum operating current*

courant max.*

Spannungsgleichrichter

Voltage rectifier

Redressement

Seite

Page

UC 250 V (

)

16 A

Seite

Page

UC 250 V (

)

16 A

Schutz vor Spannungsspitzen

Suppressor

Antiparasitage

Umgebungstemperatur* (Seite

Page

54)

ambient temperature*

temperature ambienté*

Leitungsverschraubung

Cable gland

Verrouillage à vis

anschließbare Leitungen

Connecting lead

Cable de branchement

Anschlußart

Type or connection

Mode de branchement

–40 °C … +125 °C

Pg 9

ø 4,5 … 7 mm / max. 1,5 mm

Schrauben/Kabelschuh/Ringöse

screw/cable shoe/cable eye

visser/cosse

à oeillet/cosse à

fourche

–40 °C … + 125 °C

Pg 9

ø 4,5 … 7 mm / max. 1,5 mm

crimpen

crimp

sertir

Zubehör

Accessories

Accesoires

(gesondert zu bestellen

must be ordered seperately

à commander séparément)

(NBR) Flachdichtung

flat gasket

join plat

(ECO) Flachdichtung

flat gasket

join plat

Edelstahlschraube

Stainless steel screw

vis inox

Rändelschraube

knurled screw

vis moletée

Crimpkontakte

Crimping contacts

Contacts à sortir

Crimpzange

Crimping tool

Pince à sentir

GM 207-3

GM 207-7

GDM 3011 RF-1

GDM 3011-8

731 423-002

731 755-002

734 363-001

732 574-001

GM 207-3

GM 207-7

GDM 3011 RF-1

GDM 3011-8

RBC 630

RBCB 630

XZC 0700

5,5

-1

731 423-002

731 755-002

734 363-001

732 574-001

732 425-022

732 384-001

932 507-001

Dichtung für einwandfreie Funktion erforderlich

Sealing must be used for faultless function

joint essentiel pour bon fonctionnement

* siehe Deratingkurve

* see derating curve

* voir la courbe de déclassement

250
