System pro
M
compact
®
Switch disconnector SD 200
2CDC051001S0013
The SD 200 extends the proven System
pro
M
compact
®
series by a new range
of switch disconnectors which provides
state-of-the-art safety and comfort.
The series is available with 1 to 4 poles
with rated currents from 16 to 63 A
and provides disconnection properties
according to IEC/EN 60947-3.
With a rated voltage of 253/440 V AC,
a rated conditional short-circuit current
of 25 kA, terminals with protection from
misconnection, a “Real CPI” contact
position indication, as well as full
compatibility with all MCB accessories,
SD 200 is unique in its field of appli-
cation.
The laser printing and the design of
the devices allow a consistent optical
appearance in the distribution board.
Special features
− Isolating characteristics acc. to IEC/EN 60947-3
− Clear contact position indication in red/green (“Real CPI”)
− Highest performance at an increased voltage level:
25 kA conditional short-circuit current at U
e
= 253/440 V AC
acc. to IEC/EN 60947-3
− Protection type IP20 = finger safe
− 35 mm² cylinder lift terminal with 2 terminal openings
for two wires or one wire and one busbar for cross wiring
− Bottom fixed auxiliary contact for a space saving installation
or upgrade of existing assemblies without additional moun-
ting width
− Consistent design to other System pro
M
DIN rail products
− Cross wiring with MCBs or RCDs using busbars PS
− Durable device identification due to laser labeling
− Captive screws with recessed head
− Compatibility with all MCB accessories
− Approved acc. to IEC/EN 60947-3 for international use
2CDC051003S0013
Switch disconnector SD 200
Technical data
Electrical data
Standards
Poles
Rated current I
e
Utilization category
Rated voltage U
e
IEC/EN 60947-3
1P, 2P, 3P, 4P
16 A, 25 A, 32 A, 40 A, 50 A, 63 A
AC-23A, DC-21A
1P: 253 V AC; 60 V DC
2P: 440 V AC, 125 V DC
3…4P: 440 V AC
440 V AC
1P: 266 V AC, 63 V DC
2P: 462 V AC, 131 V DC
3…4P: 462 V AC
12 V AC
50/60 Hz, DC
Yes
25 kA in series with NH 00 ≤ 63 A gG
III
3
4 kV (test voltage 6.2 kV at sea level; 5 kV at 2,000 m)
2 kV (50/60 Hz, 1 min.)
Insulation group I, RAL 7035
Insulation group II, red, sealable
Marking on toggle, I ON / 0 OFF
Real CPI (green OFF/red ON)
IP20 / IP40 in enclosure with cover
I
e
< 32 A: 20,000 ops. (AC), 1,500 ops. (DC)
I
e
≥ 32 A: 10,000 ops. (AC), 1,500 ops. (DC)
20,000 ops.
25 g, 2 shocks, 13 ms
5g, 20 cycles at 5…150…5 Hz with load 0.8 I
n
28 cycles with 55°C/90-96% and 25°C/95-100% [°C/RH]
-25 ... +55 °C
-40 ... +70 °C
Cylinder lift terminal
Yes
Yes
35 mm
2
10 mm
2
2.8 Nm
No. 2 Pozidrive
On DIN rail 35 mm acc. to EN 60715 by fast clip
Optional
Yes
Optional
Mounting dimension 1
88 x 68 x 17.5 mm
approx. 85 g
Yes
Yes
Yes
Yes
Yes
Yes
CE and RoHS conform
Approvals: VDE
Insulation voltage U
i
Max. power frequency recovery voltage U
max.
Min. operating voltage U
Bmin
Rated frequency f
Suitable for isolation
Rated conditional short-circuit current
Overvoltage category
Pollution degree
Rated impulse withstand voltage U
imp.
(1.2/50µs)
Dielectric test voltage
Mechanical data
Housing
Toggle
Contact position indication
Protection degree acc. to EN 60529
Electrical endurance
Mechanical endurance
Shock resistance acc. to IEC/EN 60068-2-27
Vibration resistance acc. to IEC/EN 60068-2-6
Environmental conditions (damp heat cyclic)
acc. to EC/EN 60068-2-30
Ambient temperature
Storage temperature
Installation
Terminal
Safety wire guard
Two terminal openings for conductor and busbar
Cross-section of conductors
Cross-section of busbars
Torque
Screwdriver
Mounting
Mounting position
Removal without disassembling of the busbar
Supply
Dimensions and weight
Mounting dimensions acc. to DIN 43880
Pole dimensions (H x D x W)
Pole weight
Combination with auxiliary elements
Auxiliary contact
Signal/auxiliary contact
Shunt trip
Undervoltage release
Motor operating device
Padlock
Approvals
2 - 2CDC441015D0201
Switch disconnector SD 200
Accessories
H
S/H
S/H (H)
ST
UR
OR
MOD-S
Auxiliary contact
(changeover contact)
Signal/Auxiliary contact
Signal/Auxiliary contact
used as auxiliary contact
Shunt trip
Undervoltage release
Overvoltage release
Motor operating device
H-L
H-R
Auxiliary contact to be
mounted on the left
Auxiliary contact to be
mounted on the right
(2 contacts)
H-BF
BP
NT
Auxiliary contact,
bottom fitting (1 per pole)
Mechanical tripping device
Neutral disconnector
2CDC441015D0201 - 3
2CDC 092 011 F0113
Switch disconnector SD 200
Conditional short-circuit resistance, dimensional drawing
and wiring diagrams
Conditional short-circuit restistance (in kA) in combination with back-up protection
Supply side: NH 00 – gG
Load side:
SD 200
I
e
(A)
16
25
32
40
50
63
16
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
32
40
50
63

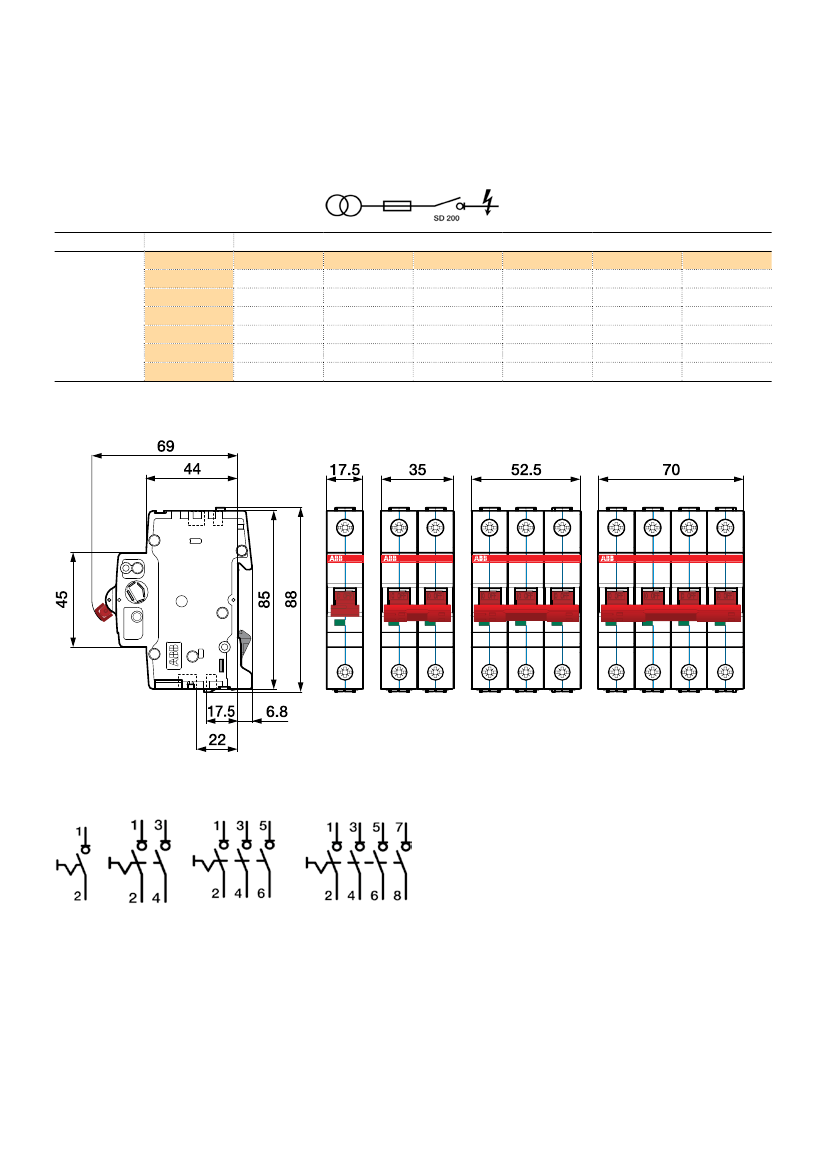

Dimensional drawing
Wiring diagrams
4 - 2CDC441015D0201
2CDC 052 005 F0012
Switch disconnector SD 200

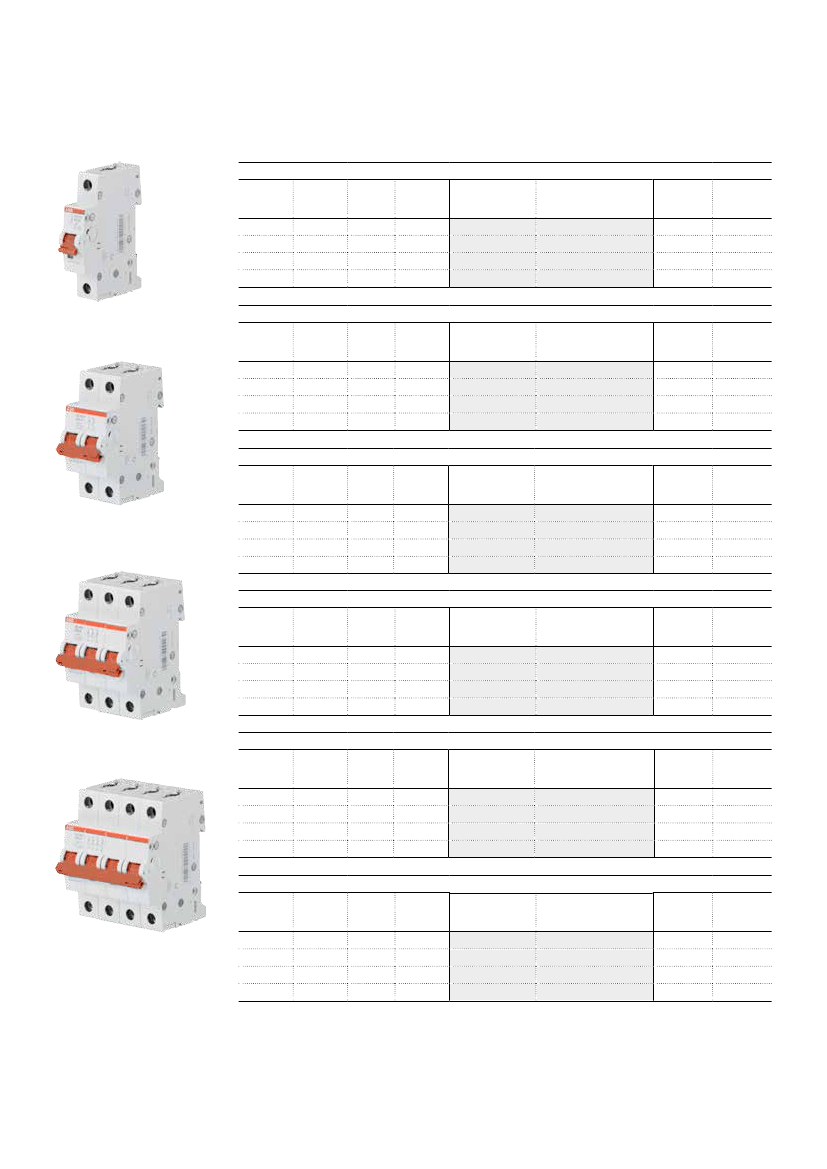

Ordering data
Rated current: 16 A
Poles
Rated
voltage
V AC
253
440
440
440
Power
loss
W
Bbn
4016779
EAN
904063
904124
904186
904247
Type
Order code
Weight
1 piece
kg
0.085
0.170
0.255
0.340
Pack
unit
pc.
10
5
1
1
1
2CDC051001S0013
SD201/16
SD202/16
SD203/16
SD204/16
2CDD281101R0016
2CDD282101R0016
2CDD283101R0016
2CDD284101R0016
2
3
4
SD 201
Rated current: 25 A
Poles
Rated
voltage
V AC
253
440
440
440
Power
loss
W
Bbn
4016779
EAN
904070
904131
904193
904254
Type
Order code
Weight
1 piece
kg
0.085
0.170
0.255
0.340
Pack
unit
pc.
10
5
1
1
1
2
3
4
2CDC051002S0013
SD201/25
SD202/25
SD203/25
SD204/25
2CDD281101R0025
2CDD282101R0025
2CDD283101R0025
2CDD284101R0025
Rated current: 32 A
Poles
Rated
voltage
V AC
253
440
440
440
Power
loss
W
Bbn
4016779
EAN
904087
904148
904209
904261
Type
Order code
Weight
1 piece
kg
0.085
0.170
0.255
0.340
Pack
unit
pc.
10
5
1
1
SD 202
1
2
3
4
SD201/32
SD202/32
SD203/32
SD204/32
2CDD281101R0032
2CDD282101R0032
2CDD283101R0032
2CDD284101R0032
Rated current: 40 A
Poles
Rated
voltage
V AC
253
440
440
440
Power
loss
W
Bbn
4016779
EAN
904094
904155
904216
904278
Type
Order code
Weight
1 piece
kg
0.085
0.170
0.255
0.340
Pack
unit
pc.
10
5
1
1
2CDC051003S0013
1
2
3
4
SD201/40
SD202/40
SD203/40
SD204/40
2CDD281101R0040
2CDD282101R0040
2CDD283101R0040
2CDD284101R0040
SD 203
Rated current: 50 A
Poles
Rated
voltage
V AC
253
440
440
440
Power
loss
W
Bbn
4016779
EAN
904100
904162
904223
904285
Type
Order code
Weight
1 piece
kg
0.085
0.170
0.255
0.340
Pack
unit
pc.
10
5
1
1
1
2
3
4
2CDC051004S0013
SD201/50
SD202/50
SD203/50
SD204/50
2CDD281101R0050
2CDD282101R0050
2CDD283101R0050
2CDD284101R0050
Rated current: 63 A
Poles
Rated
voltage
V AC
253
440
440
440
Power
loss
W
Bbn
4016779
EAN
904117
904179
904230
904292
Type
Order code
Weight
1 piece
kg
0.085
0.170
0.255
0.340
Pack
unit
pc.
10
5
1
1
SD 204
1
2
3
4
SD201/63
SD202/63
SD203/63
SD204/63
2CDD281101R0063
2CDD282101R0063
2CDD283101R0063
2CDD284101R0063
