54HCT533C datasheet, PDF - EEWORLD Datasheet

54HCT533C: DescriptionBus Driver, HCT Series, 1-Func, 1-Bit, Inverted Output, CMOS, CDIP20, CERAMIC, SIDE-BRAZED, DIP-20; Categorylogic logic; File Size120KB，5 Pages; ManufacturerSupertex

Download Datasheet Parametric View All

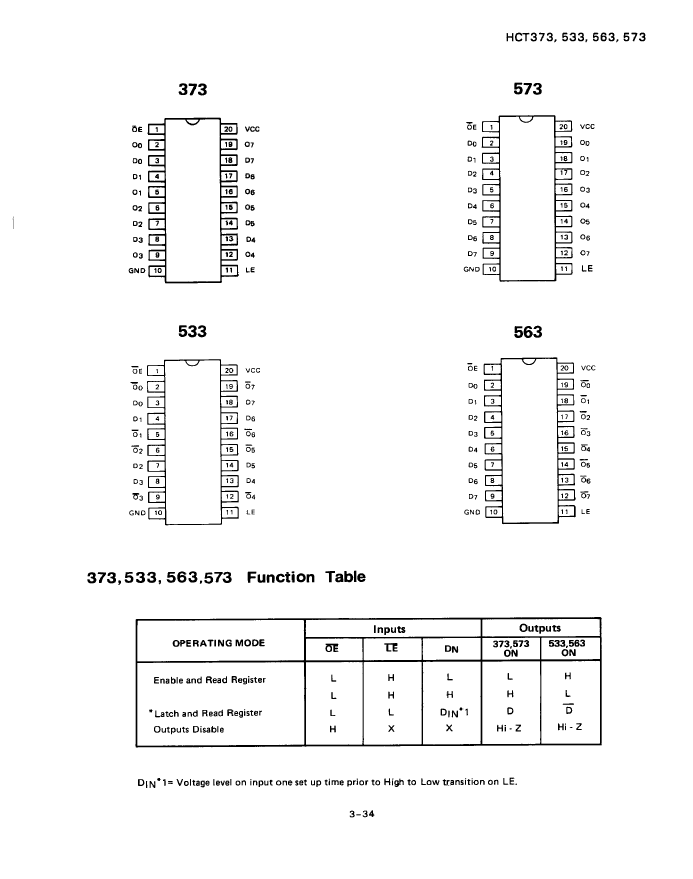

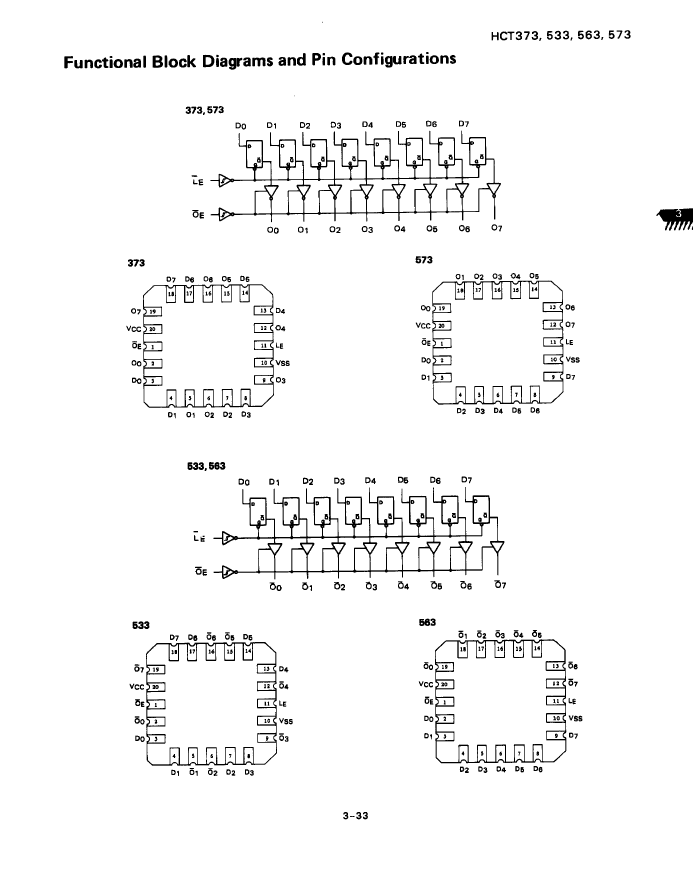

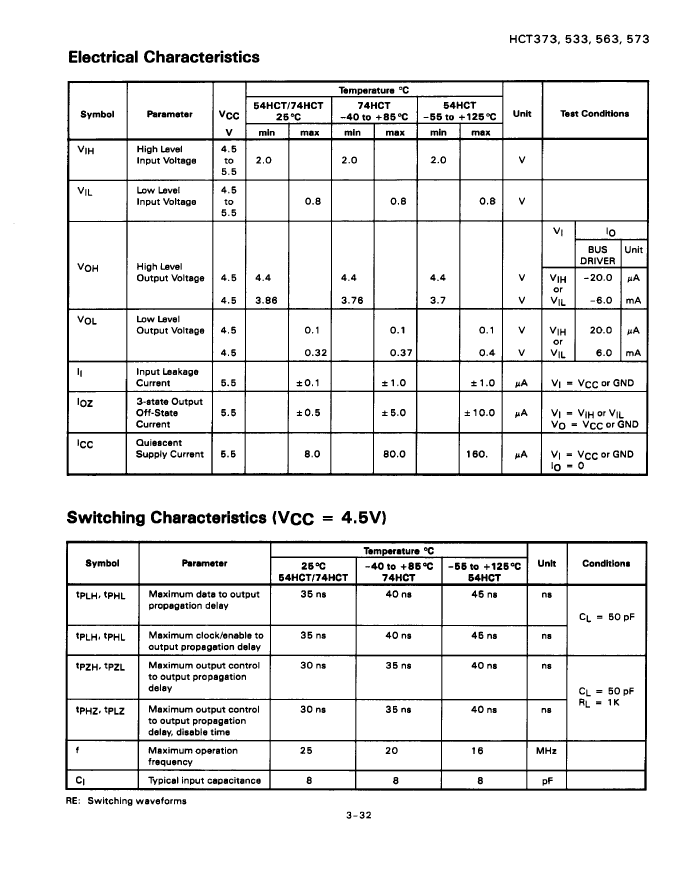

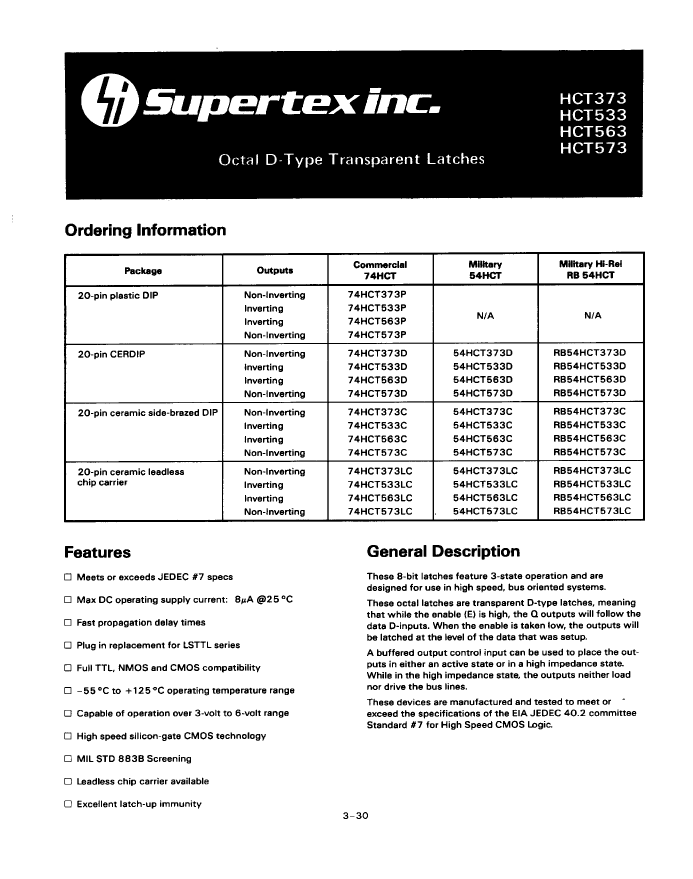

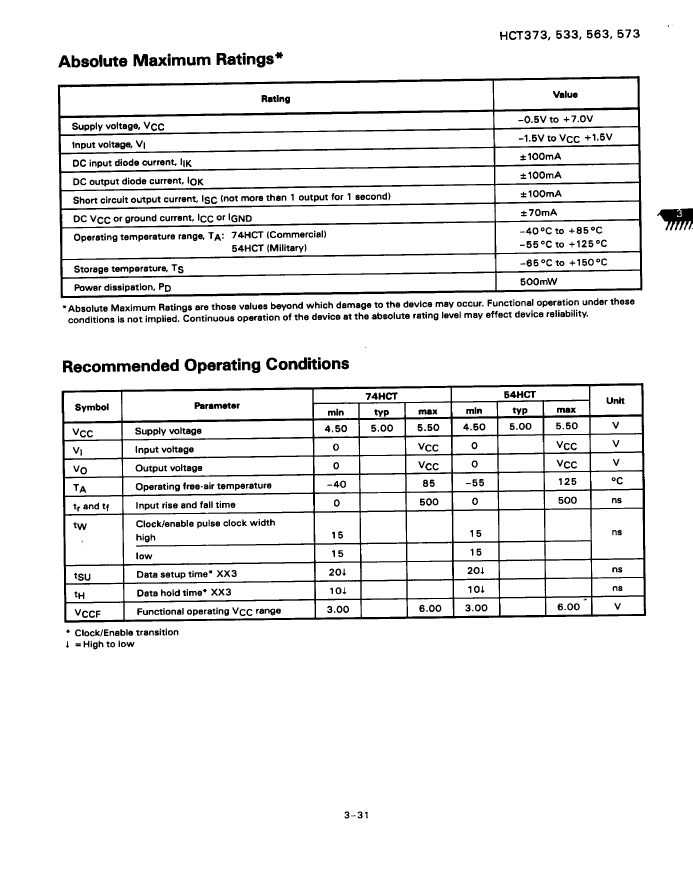

54HCT533C Overview

Bus Driver, HCT Series, 1-Func, 1-Bit, Inverted Output, CMOS, CDIP20, CERAMIC, SIDE-BRAZED, DIP-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Supertex
Parts packaging code	DIP
package instruction	CERAMIC, SIDE-BRAZED, DIP-20
Contacts	20
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-CDIP-T20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
Number of digits	1
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

This Material Copyrighted By Its Respective Manufacturer
