935255450118 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 935255450118

935255450118: DescriptionIC ALVT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 7.50 MM, PLASTIC, MO-118AB, SOT-371-1, SSOP3-56, Bus Driver/Transceiver; Categorylogic logic; File Size364KB，12 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

935255450118 Overview

IC ALVT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 7.50 MM, PLASTIC, MO-118AB, SOT-371-1, SSOP3-56, Bus Driver/Transceiver

935255450118 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	56
Reach Compliance Code	unknown
Other features	USER SELECTABLE 3.3V VCC
series	ALVT
JESD-30 code	R-PDSO-G56
length	18.425 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Maximum seat height	2.8 mm
Maximum supply voltage (Vsup)	2.7 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

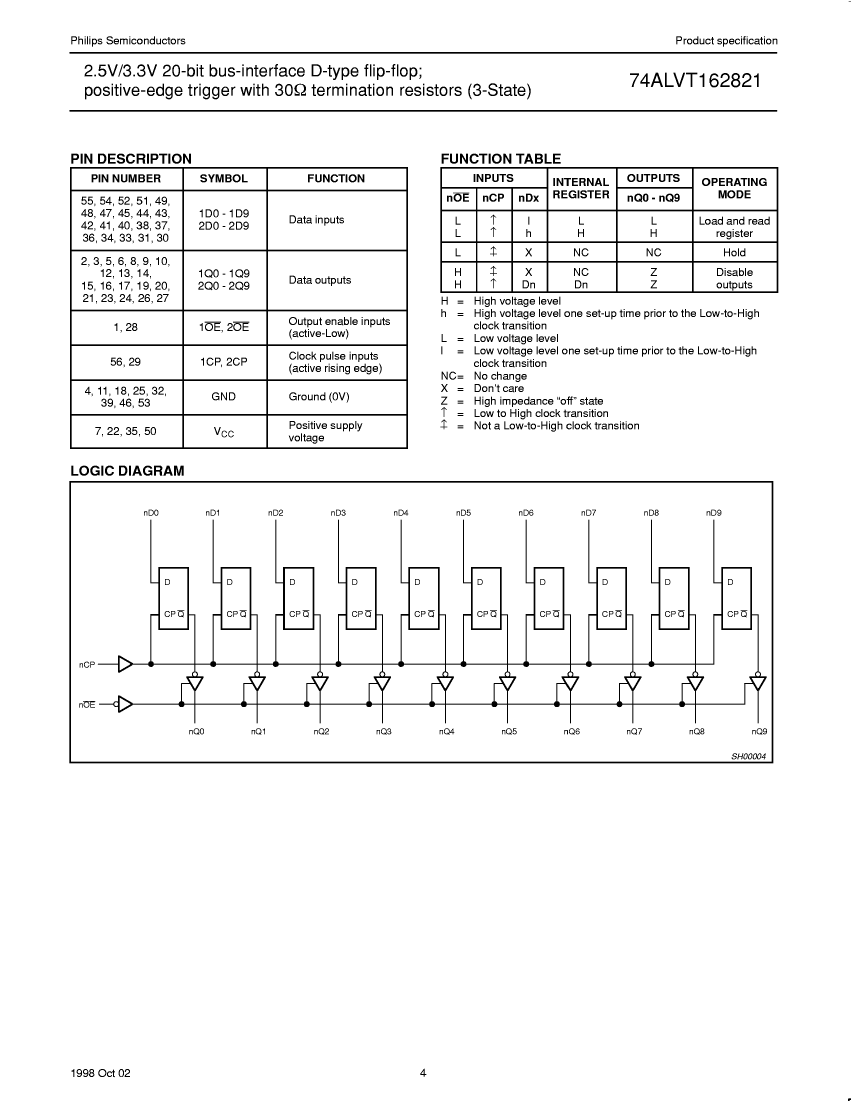

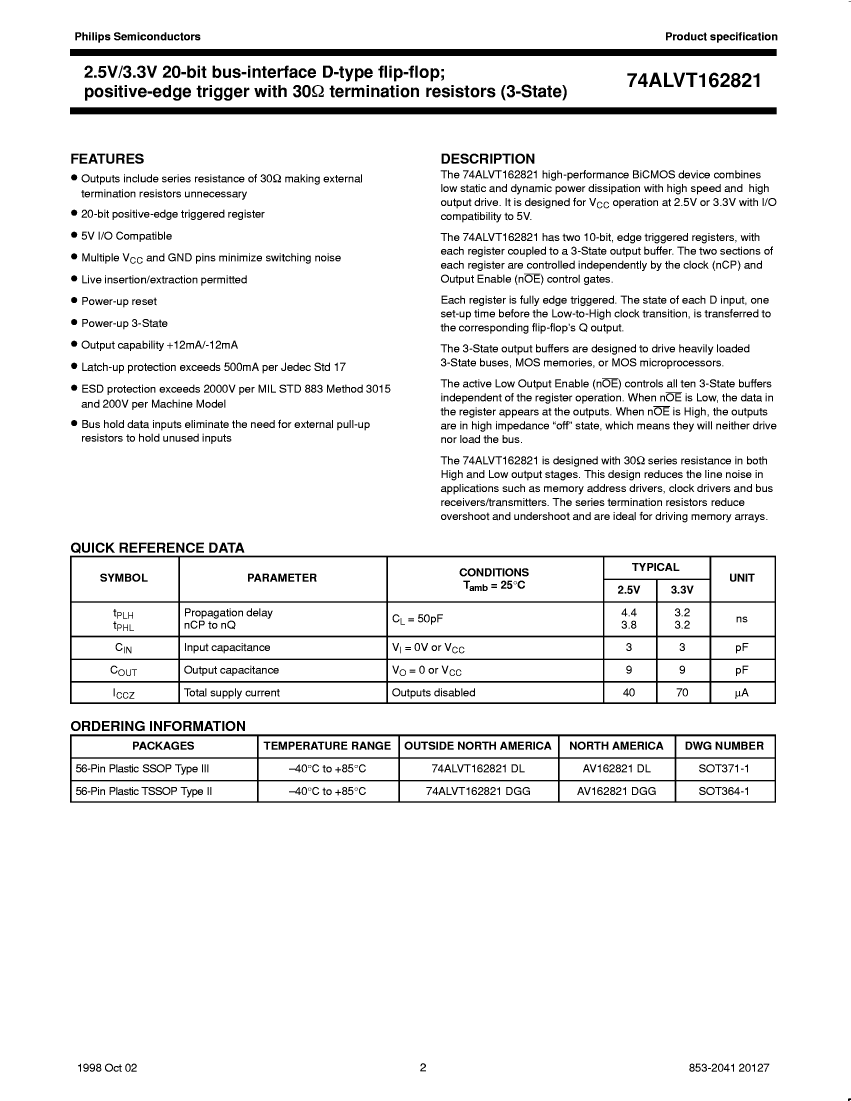

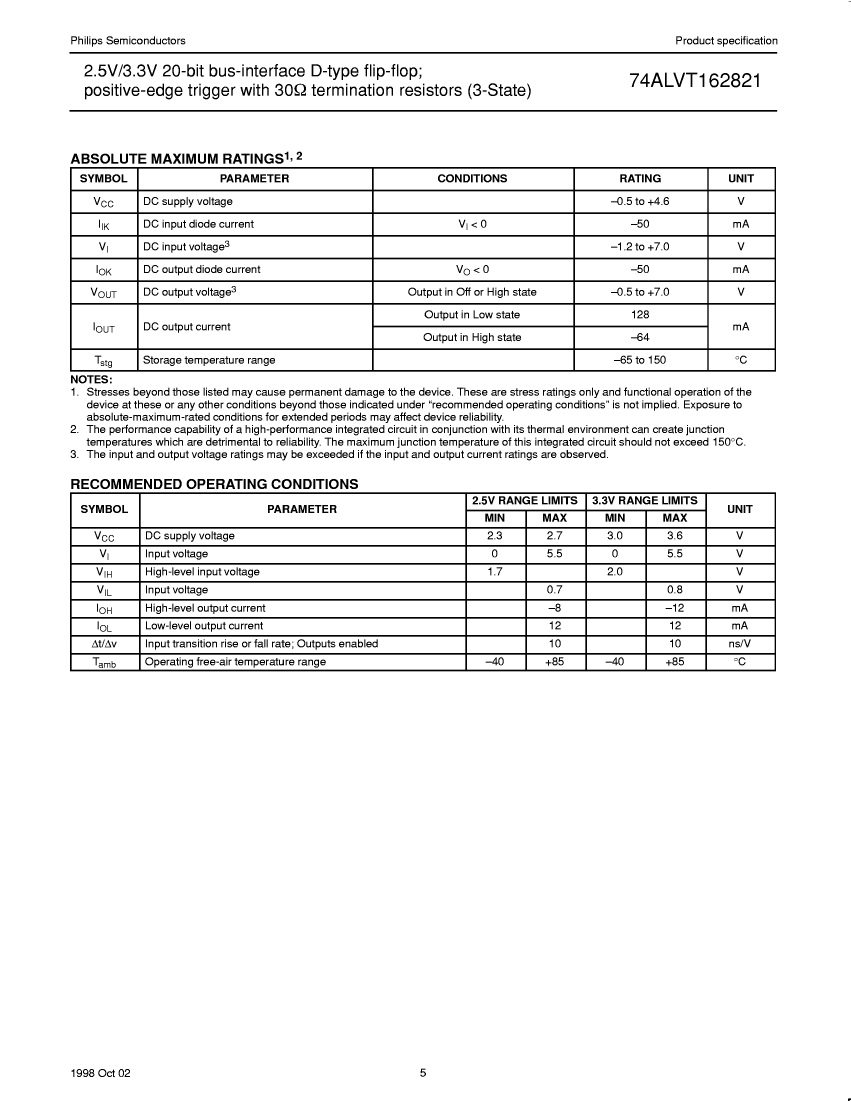

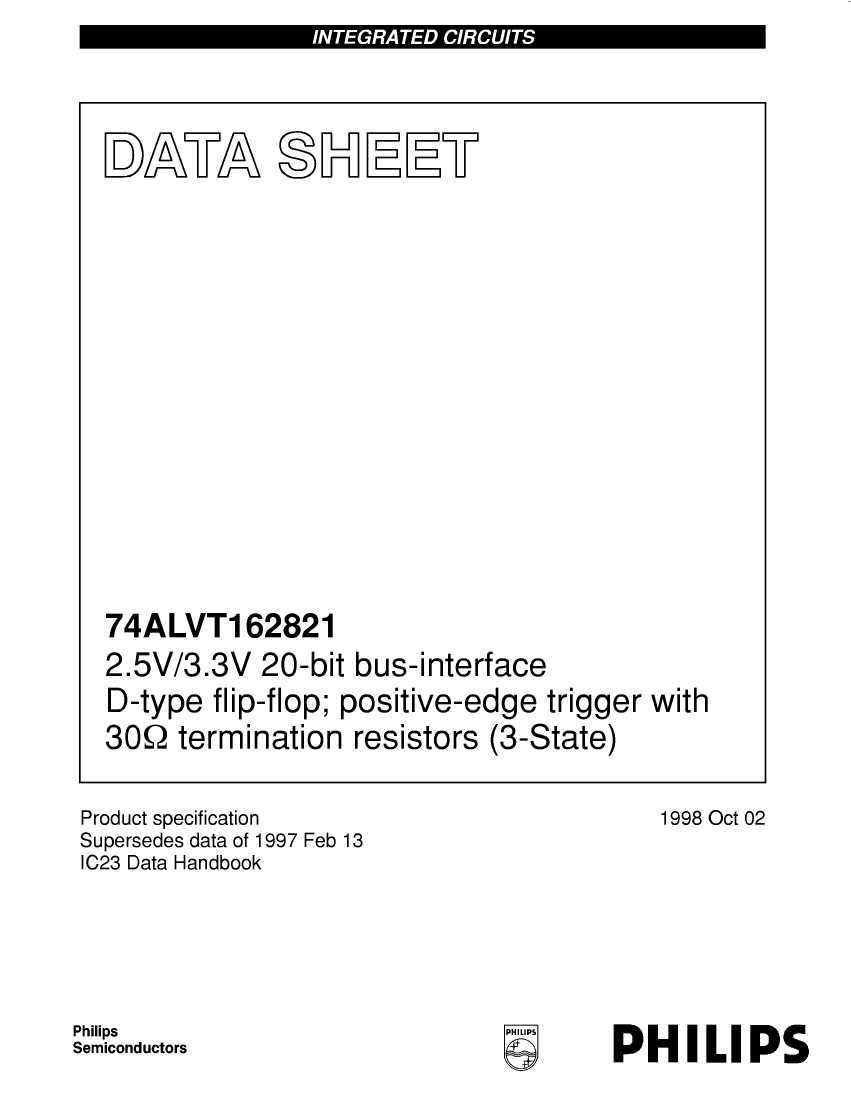

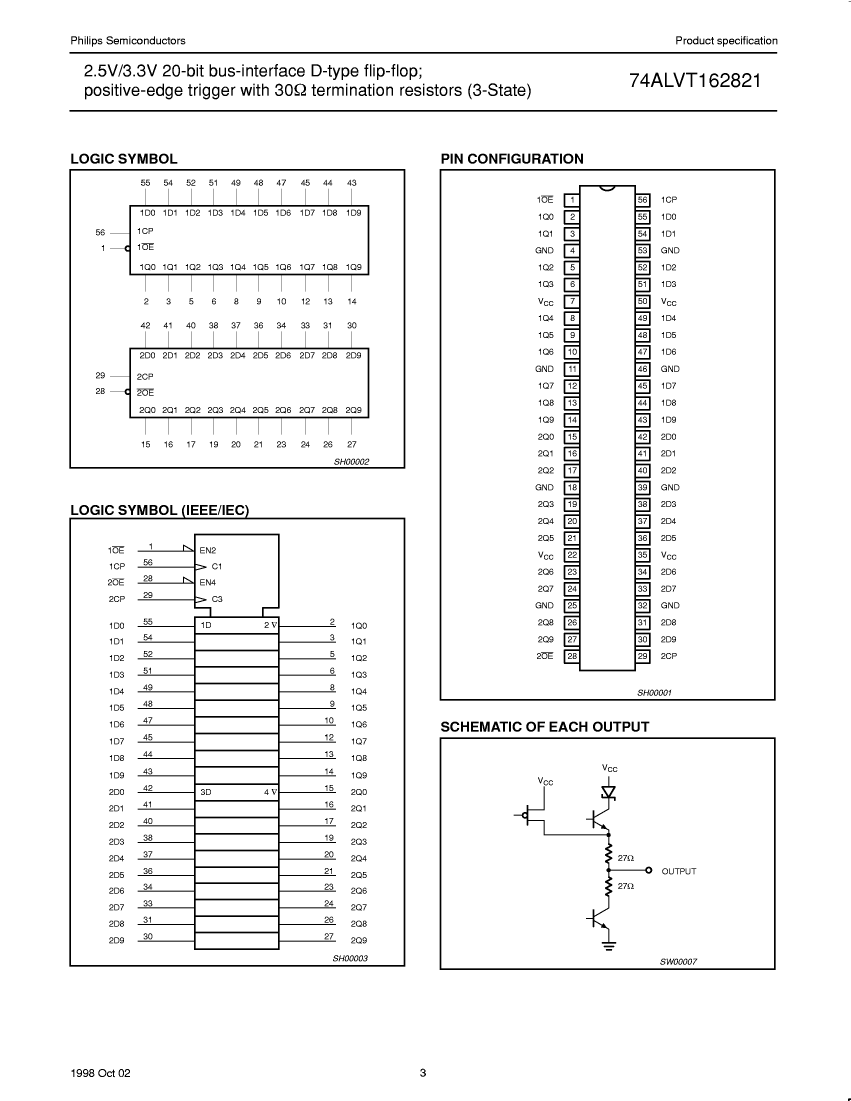

Preview

Download Datasheet

View All

935255450118 Related Products

	935255450118	935255460112	935255450112	935255460118
Description	IC ALVT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 7.50 MM, PLASTIC, MO-118AB, SOT-371-1, SSOP3-56, Bus Driver/Transceiver	ALVT SERIES, 18 1-BIT DRIVER, TRUE OUTPUT, PDSO56, 6.10 MM, PLASTIC, SOT-364-1, TSSOP2-56	ALVT SERIES, 18 1-BIT DRIVER, TRUE OUTPUT, PDSO56, 7.50 MM, PLASTIC, MO-118AB, SOT-371-1, SSOP3-56	ALVT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 6.10 MM, PLASTIC, SOT-364-1, TSSOP2-56
Is it Rohs certified?	incompatible	conform to	incompatible	conform to
Maker	NXP	NXP	NXP	NXP
Parts packaging code	SSOP	TSSOP	SSOP	TSSOP
package instruction	SSOP,	TSSOP,	SSOP,	TSSOP,
Contacts	56	56	56	56
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	USER SELECTABLE 3.3V VCC	USER SELECTABLE 3.3V VCC	USER SELECTABLE 3.3V VCC	USER SELECTABLE 3.3V VCC
series	ALVT	ALVT	ALVT	ALVT
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
length	18.425 mm	14.15 mm	18.425 mm	14.15 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	10	1	1	10
Number of functions	2	18	18	2
Number of ports	2	2	2	2
Number of terminals	56	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
propagation delay (tpd)	7 ns	7 ns	7 ns	7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.8 mm	1.2 mm	2.8 mm	1.2 mm
Maximum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V	2.3 V	2.3 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.5 mm	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	6.25 mm	7.5 mm	6.25 mm
Is it lead-free?	-	Lead free	Contains lead	Lead free
