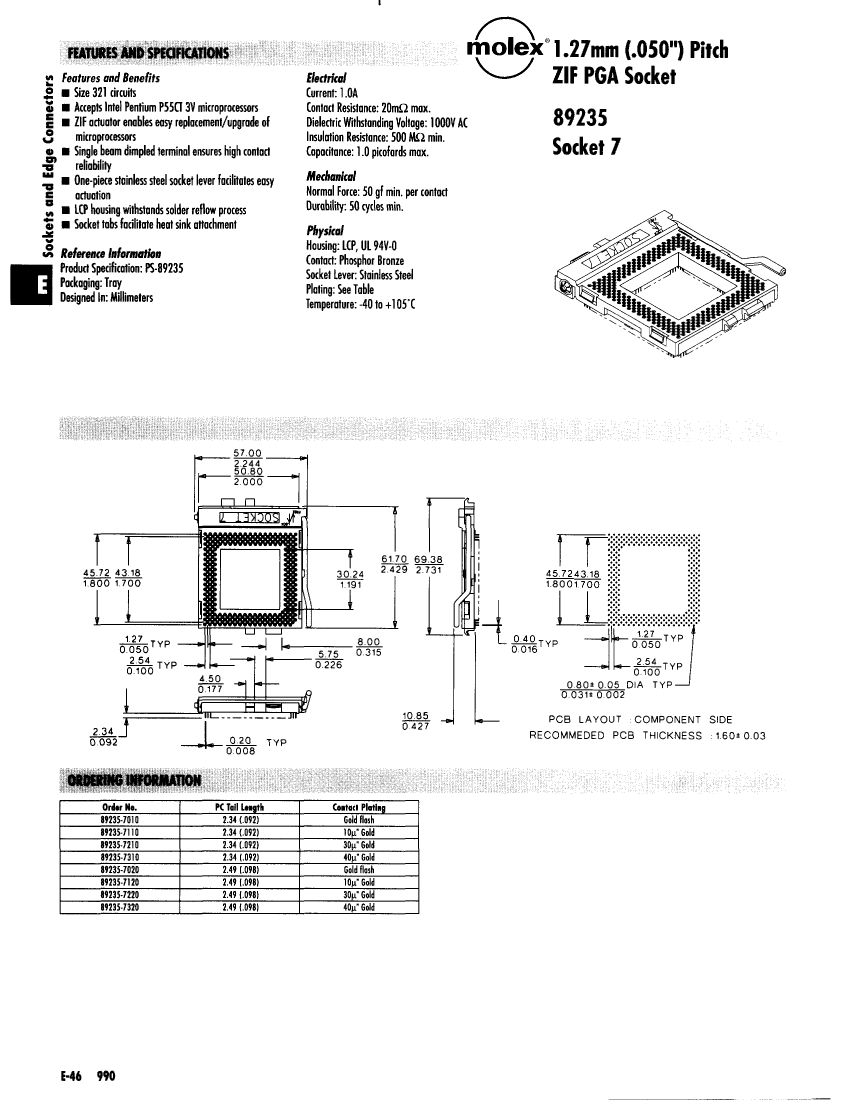

89235-7320: DescriptionIC Socket, PGA321, 321 Contact(s), 1.27mm Term Pitch, 0.05inch Row Spacing, Solder; CategoryThe connector socket; File Size110KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

89235-7320 Overview

IC Socket, PGA321, 321 Contact(s), 1.27mm Term Pitch, 0.05inch Row Spacing, Solder

89235-7320 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	WITH ZIF ACTUATOR
body width	1.122 inch
subject depth	0.421 inch
body length	2.731 inch
Contact structure	19X19
Contact to complete cooperation	AU
Contact material	P-CUSN
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PGA321
Dielectric withstand voltage	1000VAC V
Shell material	LIQUID CRYSTAL POLYMER
Insulation resistance	500000000 Ω
Manufacturer's serial number	89235
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Number of contacts	321
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	INTER
PCB contact row spacing	0.05 mm
Terminal pitch	1.27 mm
Termination type	SOLDER
Base Number Matches	1
