LC5863HQIP80A: DescriptionMicrocontroller, 4-Bit, MROM, 4MHz, CMOS, PQFP80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，47 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC5863HQIP80A Overview

Microcontroller, 4-Bit, MROM, 4MHz, CMOS, PQFP80

LC5863HQIP80A Parametric

Parameter Name	Attribute value
Maker	SANYO
package instruction	QFP,
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
boundary scan	NO
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PQFP-G80
low power mode	YES
Number of DMA channels
Number of external interrupt devices	1
Number of I/O lines	64
Number of serial I/Os	1
Number of terminals	80
Number of timers	2
On-chip data RAM width	4
On-chip program ROM width	16
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	3000
ROM programmability	MROM
speed	4 MHz
Maximum supply voltage	6 V
Minimum supply voltage	2 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

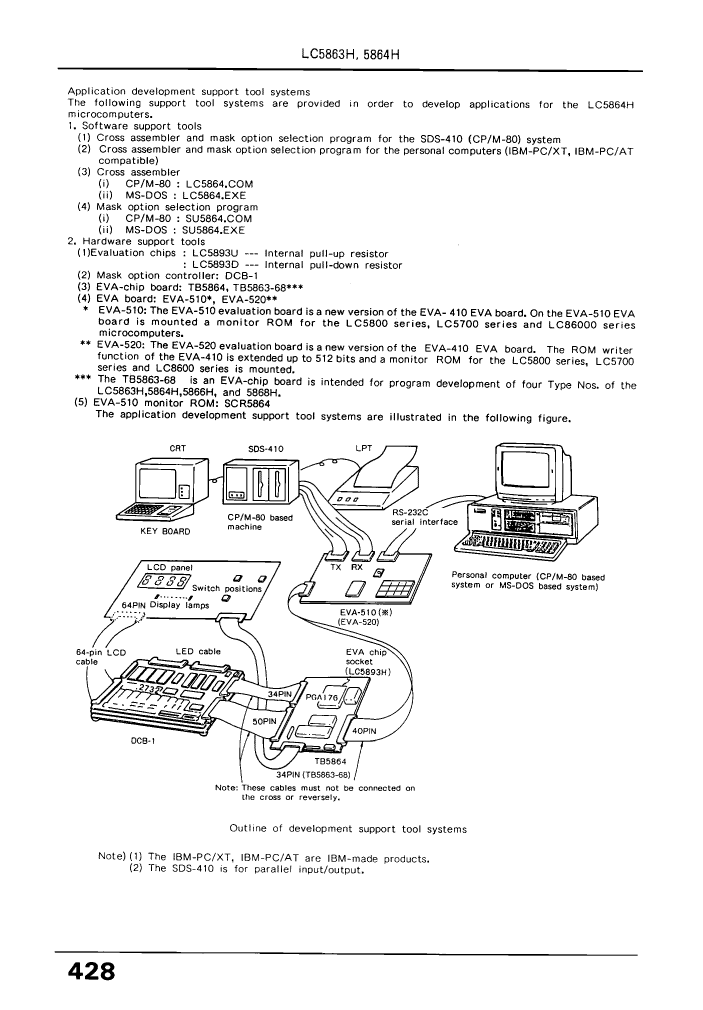

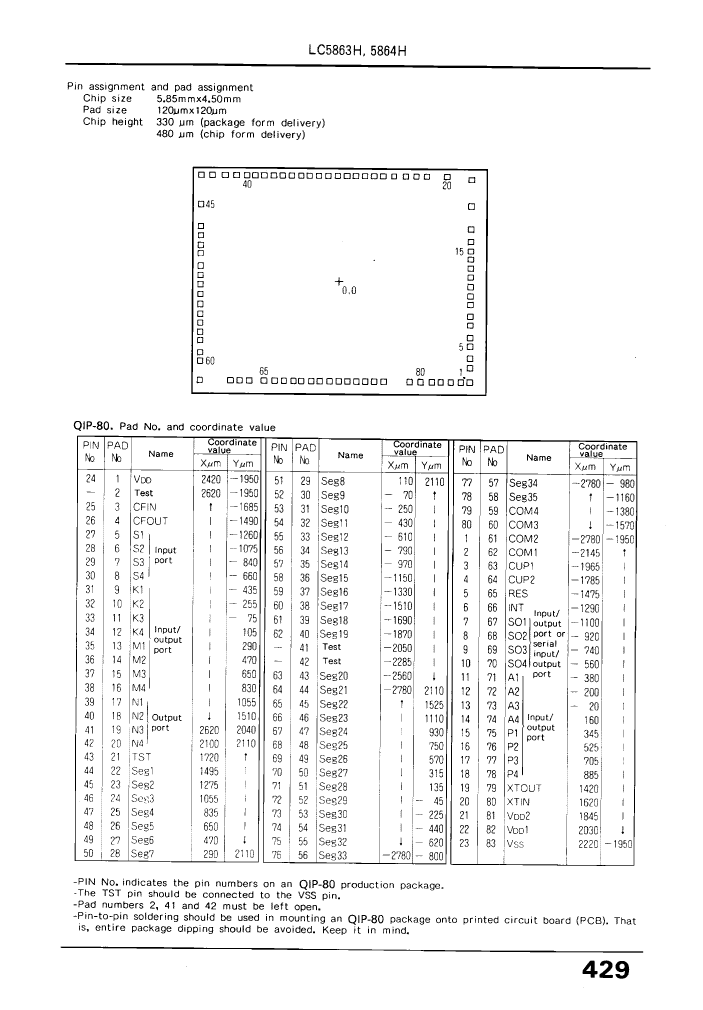

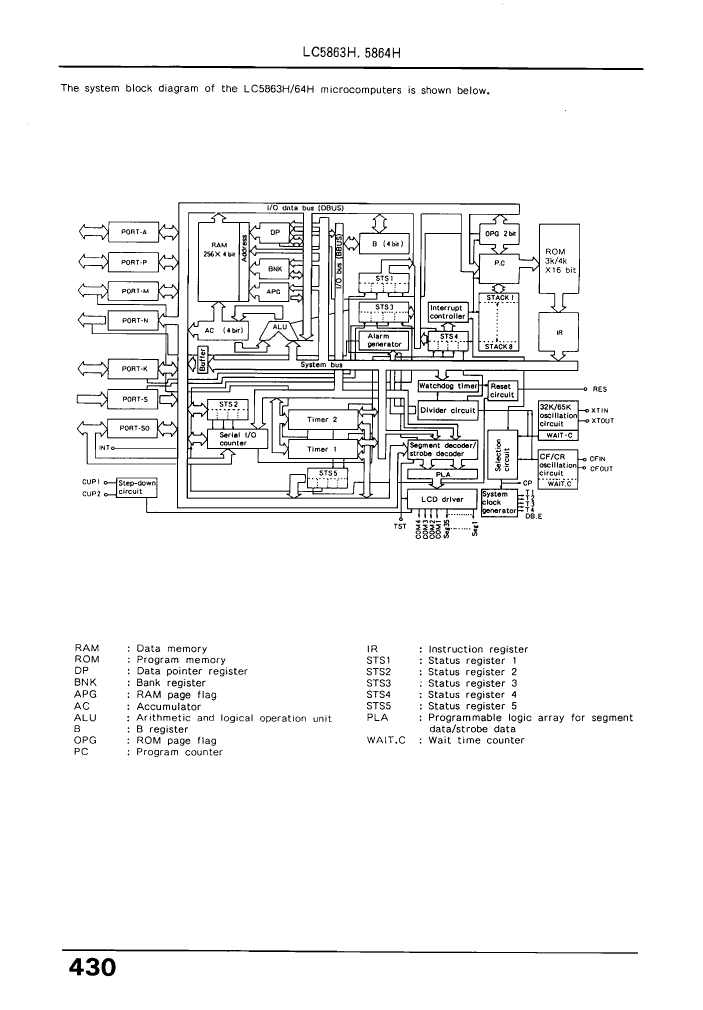

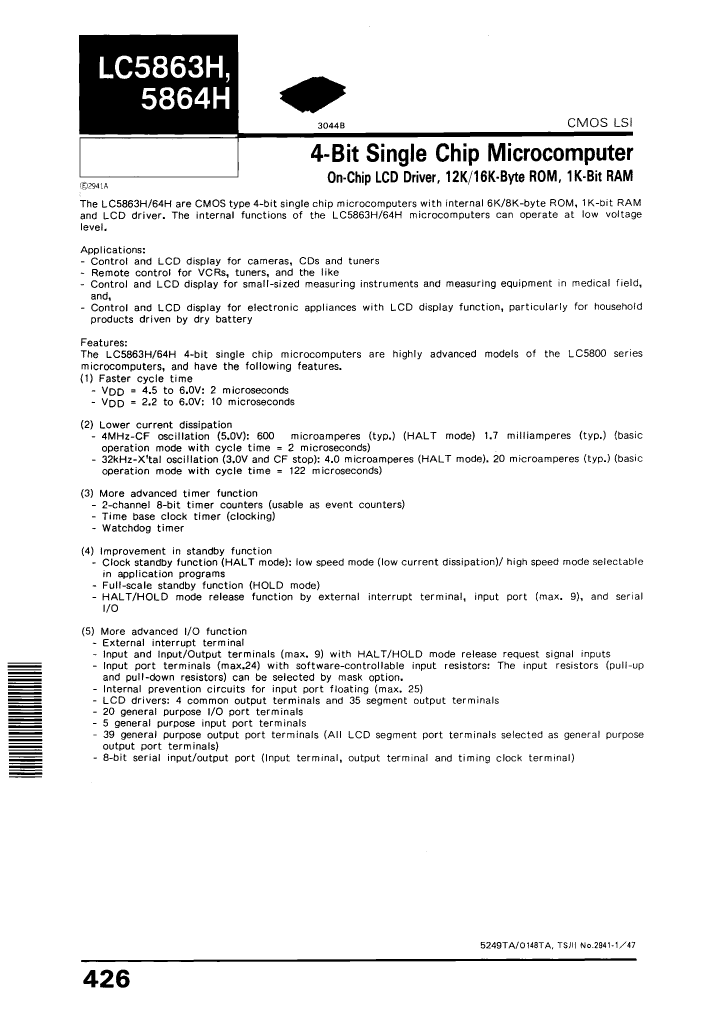

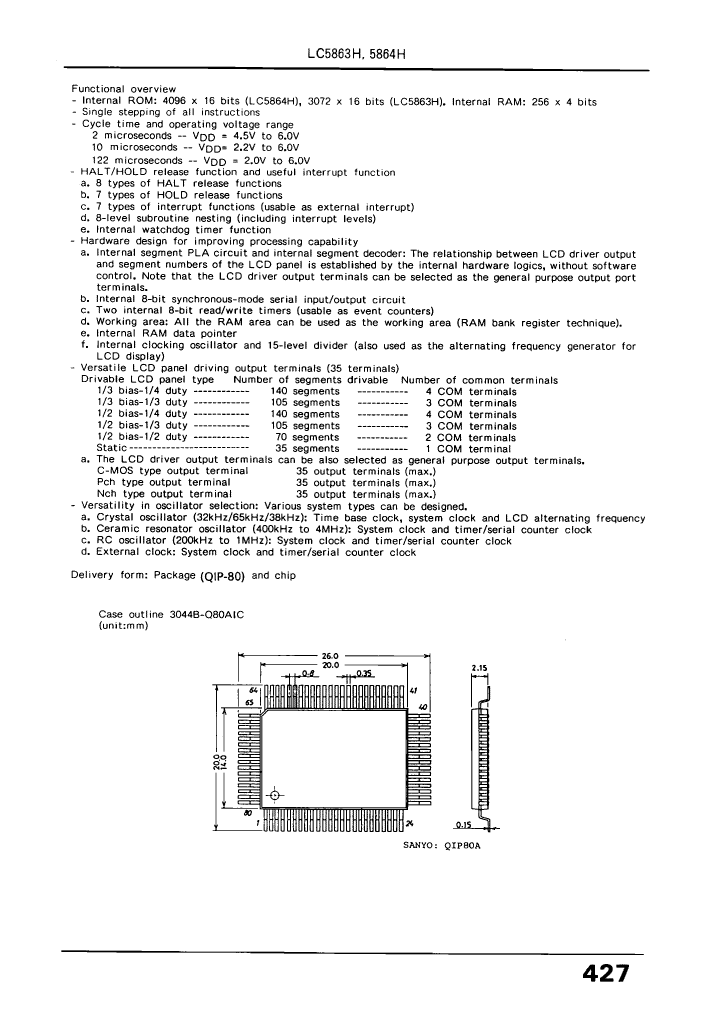

Preview

Download Datasheet

View All

LC5863HQIP80A Related Products

	LC5863HQIP80A	LC5864HCHIP	LC5864HQIP80A	LC5863HCHIP
Description	Microcontroller, 4-Bit, MROM, 4MHz, CMOS, PQFP80	Microcontroller, 4-Bit, MROM, 4MHz, CMOS	Microcontroller, 4-Bit, MROM, 4MHz, CMOS, PQFP80	Microcontroller, 4-Bit, MROM, 4MHz, CMOS
Maker	SANYO	SANYO	SANYO	SANYO
package instruction	QFP,	DIE,	QFP,	DIE,
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO
bit size	4	4	4	4
boundary scan	NO	NO	NO	NO
maximum clock frequency	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	R-PQFP-G80	X-XUUC-N83	R-PQFP-G80	X-XUUC-N83
low power mode	YES	YES	YES	YES
Number of external interrupt devices	1	1	1	1
Number of I/O lines	64	64	64	64
Number of serial I/Os	1	1	1	1
Number of terminals	80	83	80	83
Number of timers	2	2	2	2
On-chip data RAM width	4	4	4	4
On-chip program ROM width	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	QFP	DIE	QFP	DIE
Package shape	RECTANGULAR	UNSPECIFIED	RECTANGULAR	UNSPECIFIED
Package form	FLATPACK	UNCASED CHIP	FLATPACK	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	256	256	256	256
rom(word)	3000	4000	4000	3000
ROM programmability	MROM	MROM	MROM	MROM
speed	4 MHz	4 MHz	4 MHz	4 MHz
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	2 V	2 V	2 V	2 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	NO LEAD	GULL WING	NO LEAD
Terminal location	QUAD	UPPER	QUAD	UPPER
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
