LC5866HCHIP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> LC5866HCHIP

LC5866HCHIP: DescriptionMicrocontroller, 4-Bit, MROM, 4MHz, CMOS; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，46 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC5866HCHIP Overview

Microcontroller, 4-Bit, MROM, 4MHz, CMOS

LC5866HCHIP Parametric

Parameter Name	Attribute value
Maker	SANYO
package instruction	DIE,
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
boundary scan	NO
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	X-XUUC-N82
low power mode	YES
Number of DMA channels
Number of external interrupt devices	1
Number of I/O lines	64
Number of serial I/Os	1
Number of terminals	82
Number of timers	2
On-chip data RAM width	4
On-chip program ROM width	16
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	6000
ROM programmability	MROM
speed	4 MHz
Maximum supply voltage	6 V
Minimum supply voltage	2 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	NO LEAD
Terminal location	UPPER
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

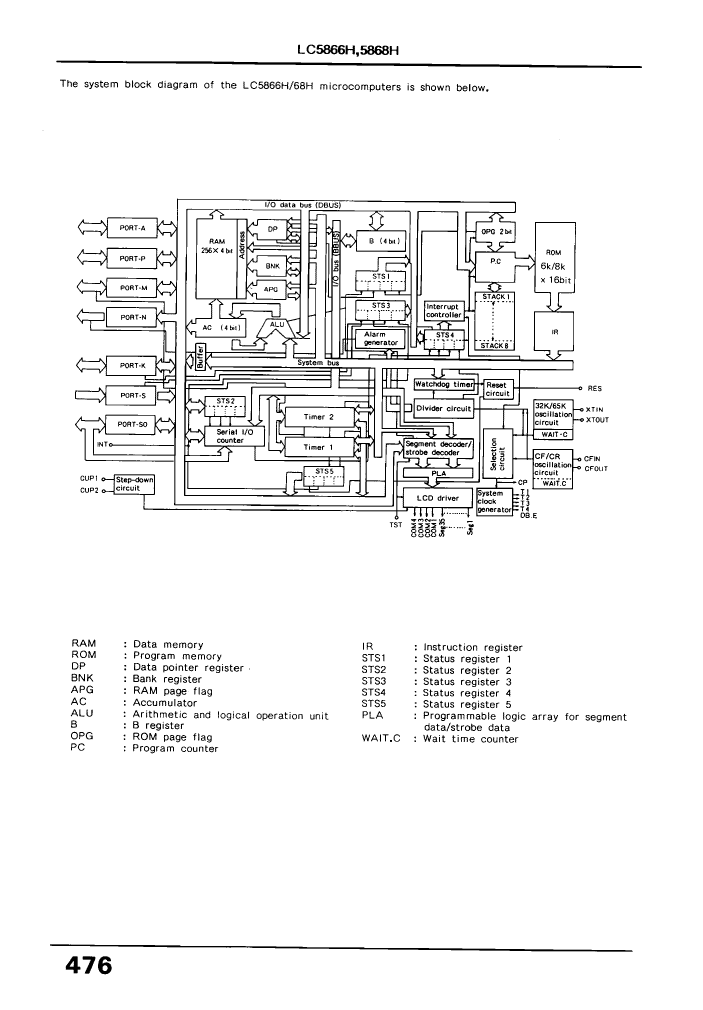

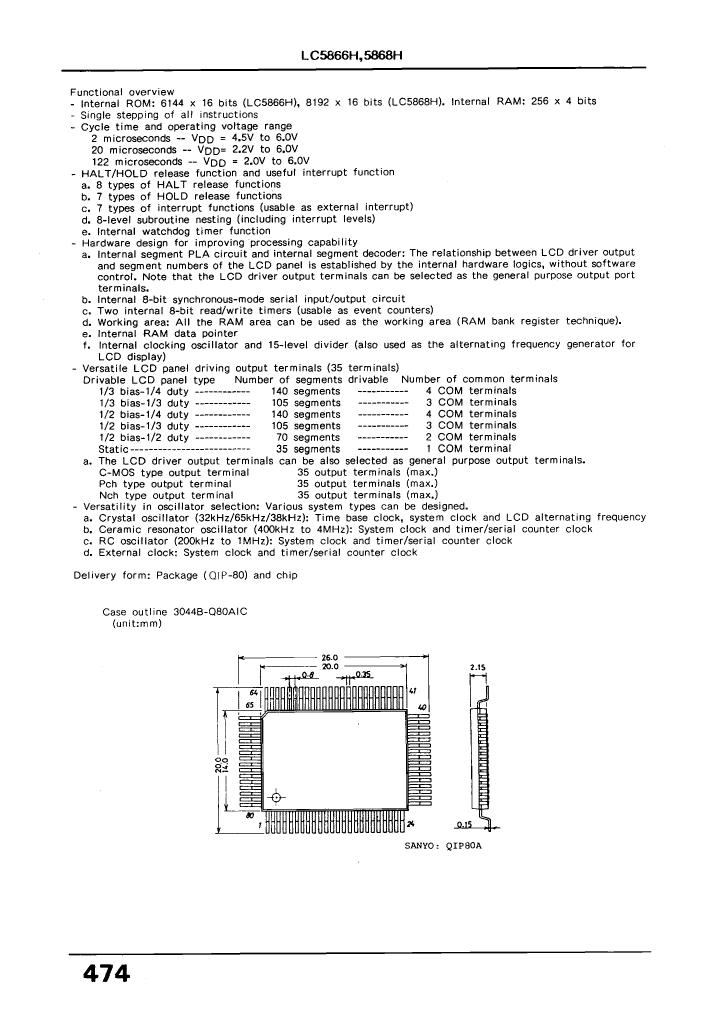

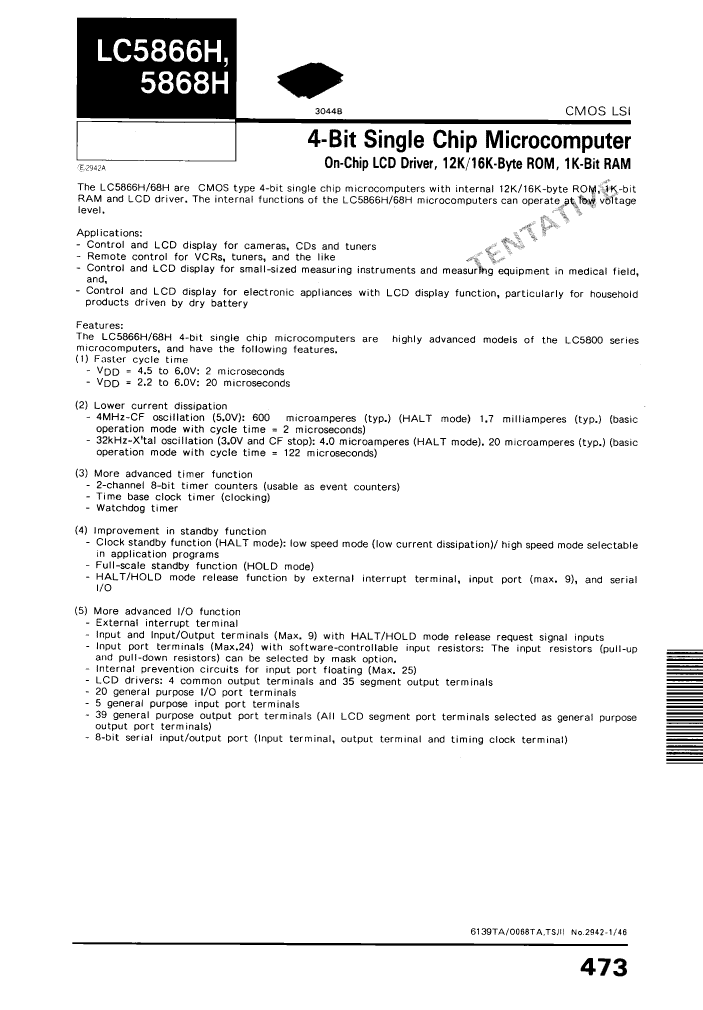

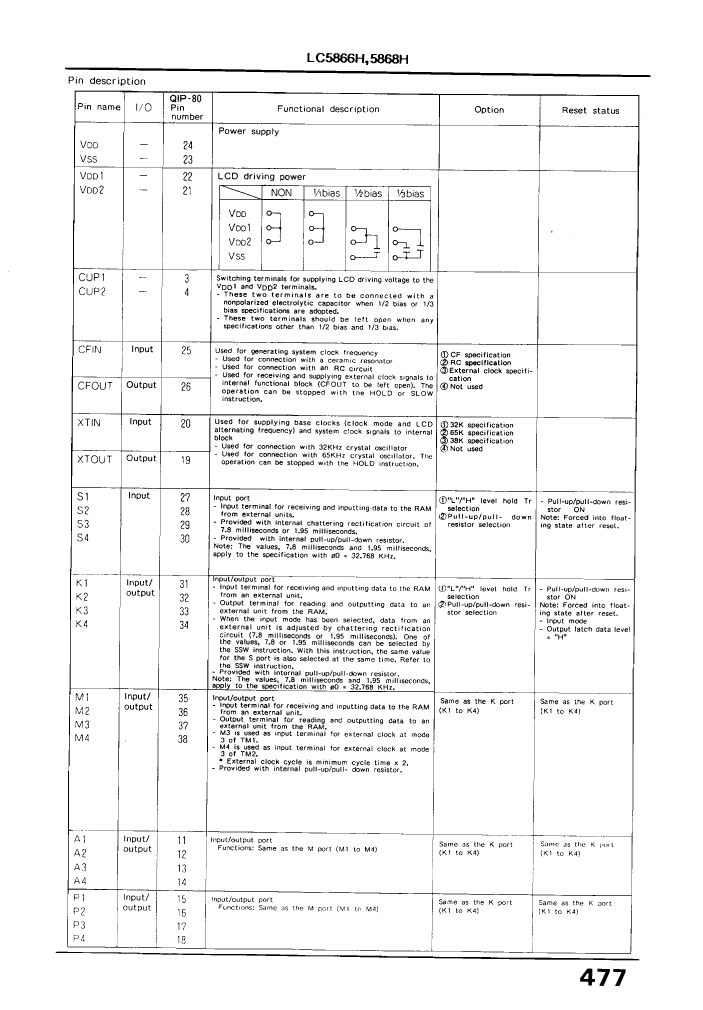

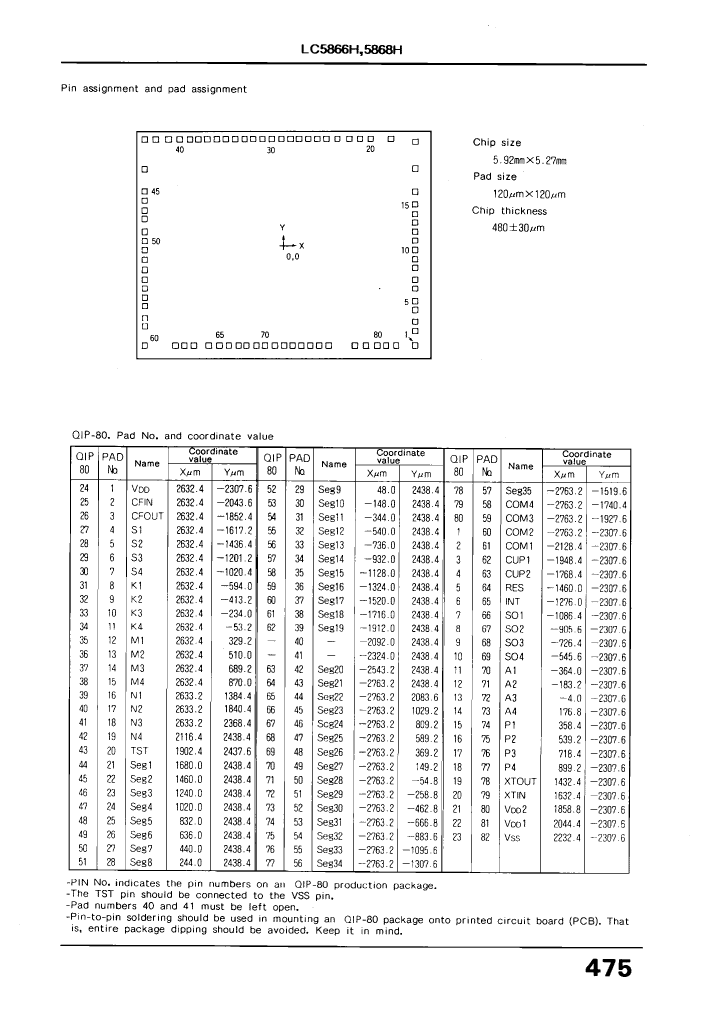

Preview

Download Datasheet

View All

LC5866HCHIP Related Products

	LC5866HCHIP	LC5866HQIP80A	LC5868HQIP80A	LC5868HCHIP
Description	Microcontroller, 4-Bit, MROM, 4MHz, CMOS	Microcontroller, 4-Bit, MROM, 4MHz, CMOS, PQFP80	Microcontroller, 4-Bit, MROM, 4MHz, CMOS, PQFP80	Microcontroller, 4-Bit, MROM, 4MHz, CMOS
package instruction	DIE,	QFP,	QFP,	DIE,
Reach Compliance Code	unknown	unknown	unknown	unknow
Has ADC	NO	NO	NO	NO
bit size	4	4	4	4
boundary scan	NO	NO	NO	NO
maximum clock frequency	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	X-XUUC-N82	R-PQFP-G80	R-PQFP-G80	X-XUUC-N82
low power mode	YES	YES	YES	YES
Number of external interrupt devices	1	1	1	1
Number of I/O lines	64	64	64	64
Number of serial I/Os	1	1	1	1
Number of terminals	82	80	80	82
Number of timers	2	2	2	2
On-chip data RAM width	4	4	4	4
On-chip program ROM width	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C
PWM channel	NO	NO	NO	NO
Package body material	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	DIE	QFP	QFP	DIE
Package shape	UNSPECIFIED	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	UNCASED CHIP	FLATPACK	FLATPACK	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	256	256	256	256
rom(word)	6000	6000	8000	8000
ROM programmability	MROM	MROM	MROM	MROM
speed	4 MHz	4 MHz	4 MHz	4 MHz
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	2 V	2 V	2 V	2 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	NO LEAD	GULL WING	GULL WING	NO LEAD
Terminal location	UPPER	QUAD	QUAD	UPPER
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	SANYO	-	SANYO	SANYO
