S3006A6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> S3006A6

S3006A6: DescriptionATM/SONET/SDH Receiver, 1-Func, CQFP68, 0.050 INCH PITCH, CERAMIC, LDCC-68; CategoryWireless rf/communication Telecom circuit; File Size1MB，28 Pages; ManufacturerApplied Micro Circuits (MACOM)

Download Datasheet Parametric Compare View All

S3006A6 Overview

ATM/SONET/SDH Receiver, 1-Func, CQFP68, 0.050 INCH PITCH, CERAMIC, LDCC-68

S3006A6 Parametric

Parameter Name	Attribute value
Maker	Applied Micro Circuits (MACOM)
Parts packaging code	QFP
package instruction	QFF, QFL68,.95SQ
Contacts	68
Reach Compliance Code	unknown
JESD-30 code	S-CQFP-F68
length	24.13 mm
Negative supply voltage rating	-4.5 V
Number of functions	1
Number of terminals	68
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFF
Encapsulate equivalent code	QFL68,.95SQ
Package shape	SQUARE
Package form	FLATPACK
power supply	5,-4.5 V
Certification status	Not Qualified
Maximum seat height	3.302 mm
Nominal supply voltage	5 V
surface mount	YES
Telecom integrated circuit types	ATM/SONET/SDH RECEIVER
Temperature level	INDUSTRIAL
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.13 mm

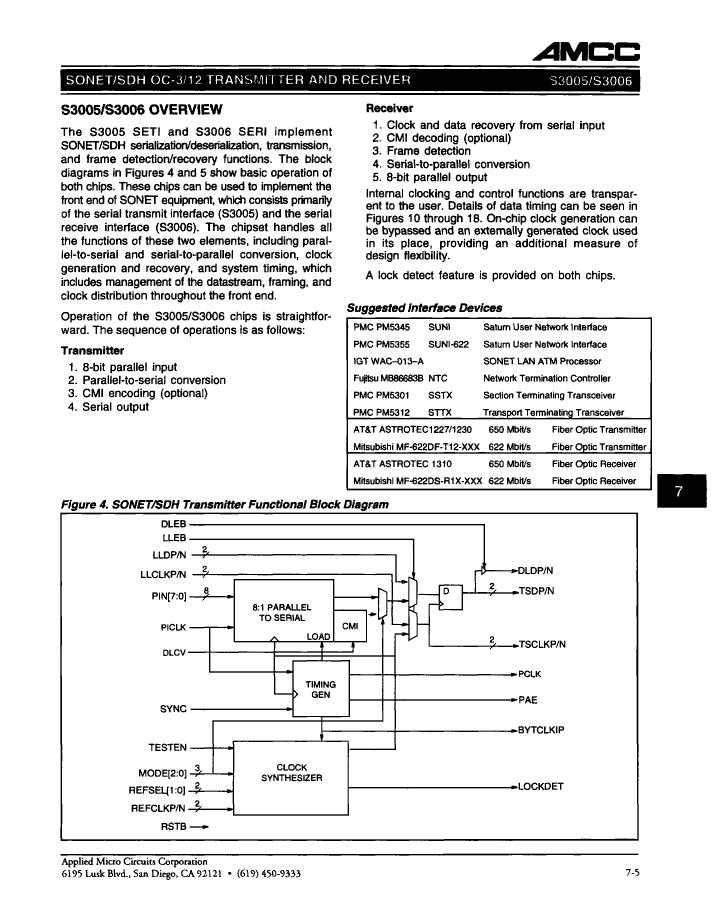

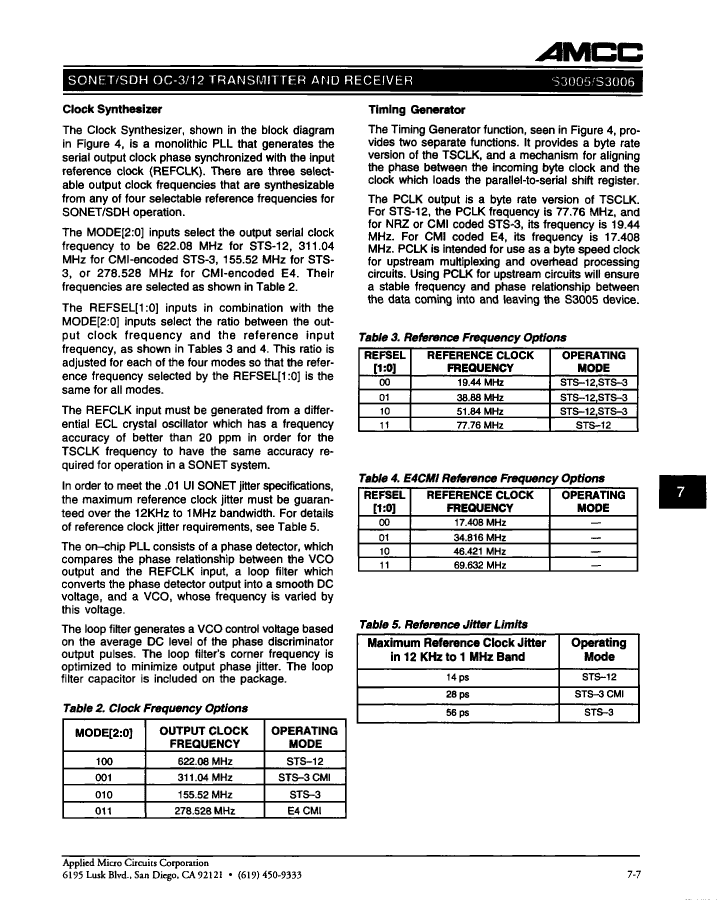

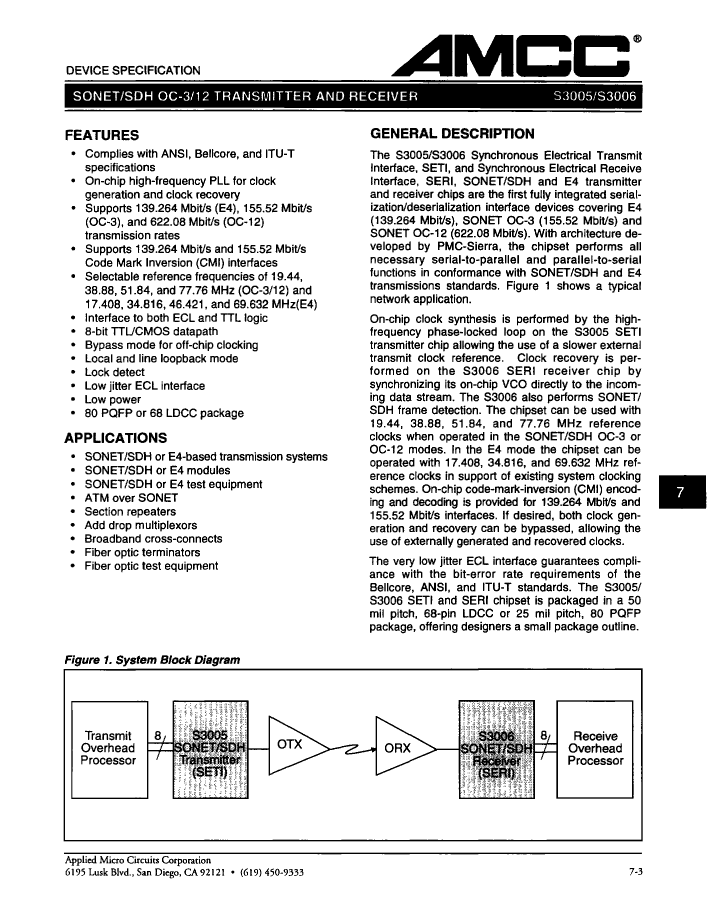

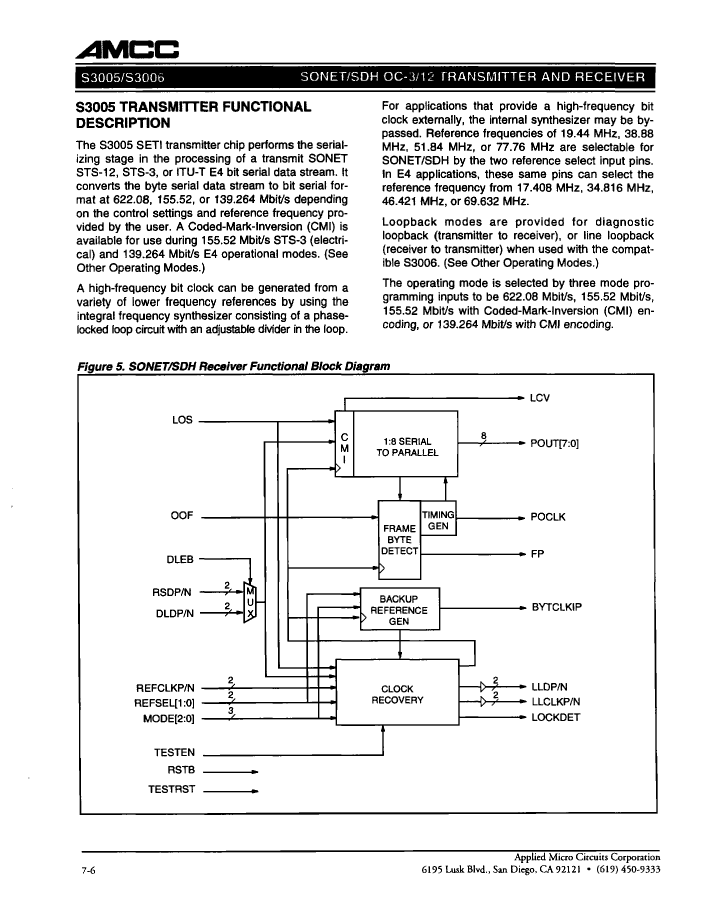

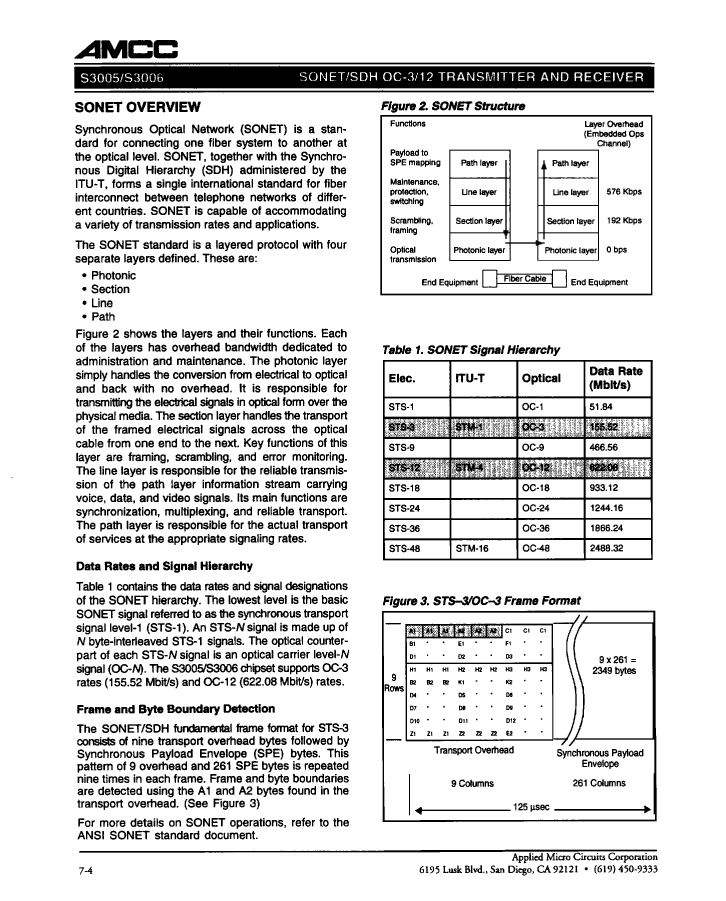

Preview

Download Datasheet

View All

S3006A6 Related Products

	S3006A6	S3006B6	S3006B1	S3006D6	S3006D1	S3006C6	S3006C1	S3006A1	S3005D1	S3005D6
Description	ATM/SONET/SDH Receiver, 1-Func, CQFP68, 0.050 INCH PITCH, CERAMIC, LDCC-68	Receiver, 1-Func, DIE	Receiver, 1-Func, DIE	ATM/SONET/SDH Receiver, 1-Func, PQFP80, 0.025 INCH PITCH, HEAT SINK, PLASTIC, QFP-80	ATM/SONET/SDH Receiver, 1-Func, PQFP80, 0.025 INCH PITCH, HEAT SINK, PLASTIC, QFP-80	ATM/SONET/SDH Receiver, 1-Func, CQFP68, 0.050 INCH PITCH, CERAMIC, LDCC-68	ATM/SONET/SDH Receiver, 1-Func, CQFP68, 0.050 INCH PITCH, CERAMIC, LDCC-68	ATM/SONET/SDH Receiver, 1-Func, CQFP68, 0.050 INCH PITCH, CERAMIC, LDCC-68	ATM/SONET/SDH Transmitter, 1-Func, PQFP80, 0.025 INCH PITCH, HEAT SINK, PLASTIC, QFP-80	ATM/SONET/SDH Transmitter, 1-Func, PQFP80, 0.025 INCH PITCH, HEAT SINK, PLASTIC, QFP-80
Maker	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)
Parts packaging code	QFP	DIE	DIE	QFP	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	QFF, QFL68,.95SQ	DIE,	DIE,	HQFP, QFP80,.7SQ	HQFP, QFP80,.7SQ	QFP, QFP68,1.2SQ,50	QFP, QFP68,1.2SQ,50	QFF, QFL68,.95SQ	HQFP, QFP80,.7SQ	HQFP, QFP80,.7SQ
Contacts	68	70	70	80	80	68	68	68	80	80
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
JESD-30 code	S-CQFP-F68	R-XUUC-N70	R-XUUC-N70	S-PQFP-G80	S-PQFP-G80	S-CQFP-G68	S-CQFP-G68	S-CQFP-F68	S-PQFP-G80	S-PQFP-G80
Negative supply voltage rating	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	68	70	70	80	80	68	68	68	80	80
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFF	DIE	DIE	HQFP	HQFP	QFP	QFP	QFF	HQFP	HQFP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	UNCASED CHIP	UNCASED CHIP	FLATPACK, HEAT SINK/SLUG	FLATPACK, HEAT SINK/SLUG	FLATPACK	FLATPACK	FLATPACK	FLATPACK, HEAT SINK/SLUG	FLATPACK, HEAT SINK/SLUG
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Telecom integrated circuit types	ATM/SONET/SDH RECEIVER	ATM/SONET/SDH RECEIVER	ATM/SONET/SDH RECEIVER	ATM/SONET/SDH RECEIVER	ATM/SONET/SDH RECEIVER	ATM/SONET/SDH RECEIVER	ATM/SONET/SDH RECEIVER	ATM/SONET/SDH RECEIVER	ATM/SONET/SDH TRANSMITTER	ATM/SONET/SDH TRANSMITTER
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	FLAT	NO LEAD	NO LEAD	GULL WING	GULL WING	GULL WING	GULL WING	FLAT	GULL WING	GULL WING
Terminal location	QUAD	UPPER	UPPER	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
length	24.13 mm	-	-	14 mm	14 mm	24.13 mm	24.13 mm	24.13 mm	14 mm	14 mm
Encapsulate equivalent code	QFL68,.95SQ	-	-	QFP80,.7SQ	QFP80,.7SQ	QFP68,1.2SQ,50	QFP68,1.2SQ,50	QFL68,.95SQ	QFP80,.7SQ	QFP80,.7SQ
power supply	5,-4.5 V	-	-	5,-4.5 V	5,-4.5 V	5,-4.5 V	5,-4.5 V	5,-4.5 V	5,-4.5 V	5,-4.5 V
Maximum seat height	3.302 mm	-	-	2.8 mm	2.8 mm	-	-	3.302 mm	2.8 mm	2.8 mm
Terminal pitch	1.27 mm	-	-	0.65 mm	0.65 mm	1.27 mm	1.27 mm	1.27 mm	0.65 mm	0.65 mm
width	24.13 mm	-	-	14 mm	14 mm	24.13 mm	24.13 mm	24.13 mm	14 mm	14 mm
