ECQE4394 Overview

Metallized Polyester Film Capacitor

Plastic Film Capacitors

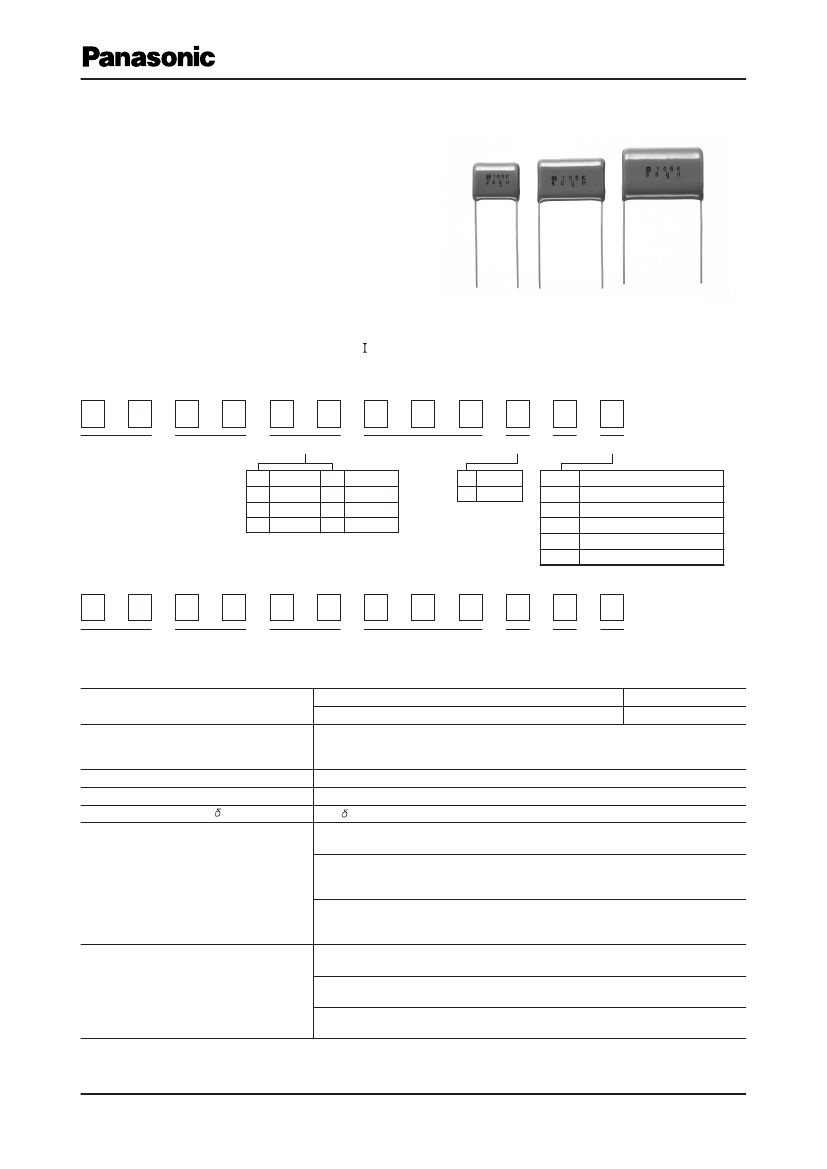

Metallized Polyester Film Capacitor
Type:
ECQE(F)
Non-inductive construction using metallized Polyester
film with flame retardant epoxy resin coating
■Features
Self-healing property
Excellent electrical characteristics
Flame retardant epoxy resin coating
RoHS directive compliant
■Recommended
Applications
General purpose usage
1
2
3
❈Please
contact us when applications are CD , ignitor etc.
4
5
6
7
8
9
10
11
12
■Explanation
of Part Numbers
E
C
Q
E
Rated volt.
1
2
4
6
100 VDC
250 VDC
400 VDC
630 VDC
10
12
1A
2A
Capacitance
1000 VDC
1250 VDC
125 VAC
250 VAC
J
K
F
Cap. Tol. Suffix
±5 %
±10 %
Suffix
Blank
B
Z
3
6
Suffix

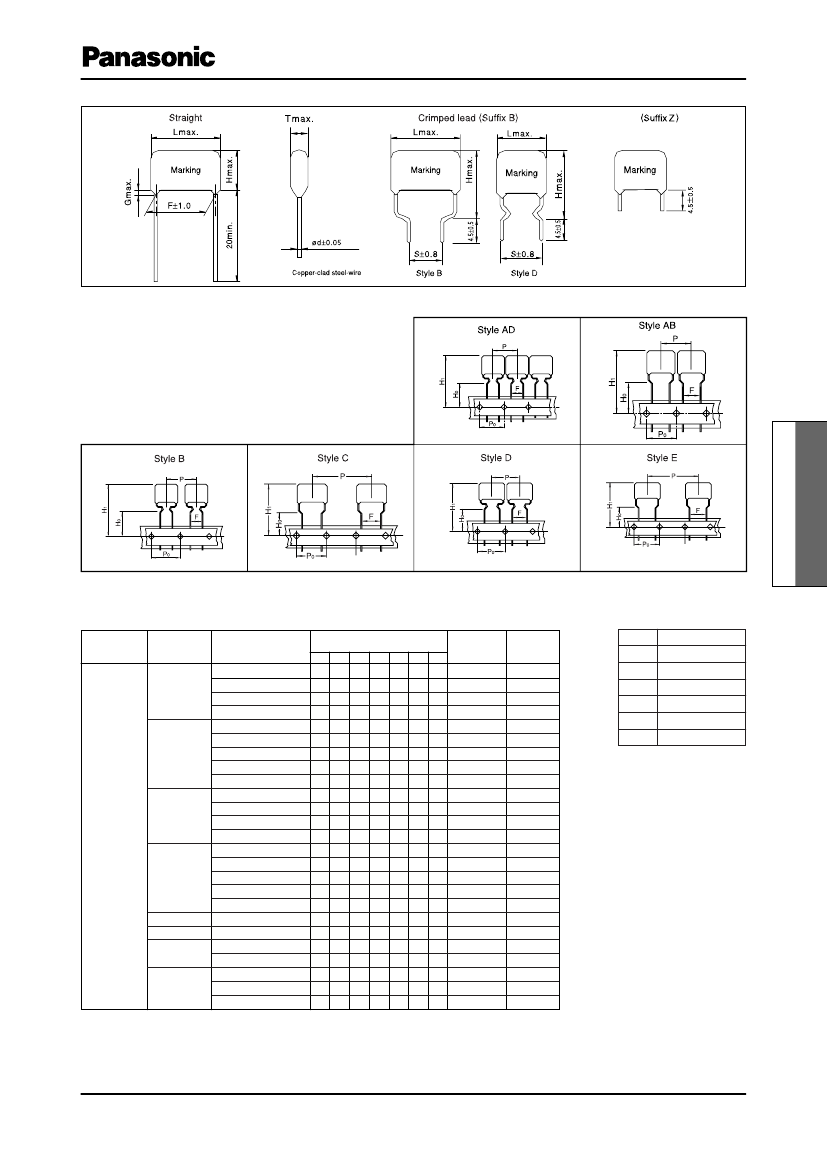

Lead Form
Straight
Crimped lead
Cut lead
Crimped taping (Ammo)
Crimped taping (Ammo)
Product code
Dielectric &
construction
Explanation of Part Number for Odd Size Taping
E
C
Q
E
Rated volt.
Capacitance
R
F
Product code
Dielectric &
construction
Suffix Cap. Tol. Suffix
■Specifications
100 VDC, 250 VDC,400 VDC, 630 VDC, 1000 VDC, 1250 VDC, – 40 ˚C to + 105 ˚C
125 VAC, 250 VAC
– 40 ˚C to + 105 ˚C
100 VDC, 250 VDC, 400 VDC, 630 VDC, 1000 VDC, 1250 VDC,
(Derating of rated voltage by 1.25 %/˚C at more than 85 ˚C)
Rated voltage
125 VAC, 250 VAC
0.0010 µF to 10 µF (E12)
Capacitance range
±5 %(J), ±10 %(K)
Capacitance tolerance
tan
<
1.0 % (20 ˚C, 1 kHz)
Dissipation factor (tan )
=
Rated volt. 100 V to 630 VDC
Between terminals : Rated volt.(VDC)
150 % 60 s
Rated volt. 1000 VDC, 1250 VDC
Between terminals : Rated volt. (VDC)
175 % 2 s to 5 s or 1000 VAC 60 s
Withstand voltage
Between terminals to enclosure : 1500 VAC 60 s
Rated volt. 125 VAC, 250 VAC
Between terminals : Rated volt.(VAC)
230 % 60 s
Between terminals to enclosure : 1500 VAC 60 s
>
100 V to 630 VDC:
C
<
0.33 µF : IR=9000 MΩ (20 ˚C, 100 VDC, 60 s)
=
>
C > 0.33 µF : IR=3000 MΩ . µF
>
1000 VDC, 1250 VDC: IR=10000 MΩ (20 ˚C, 100 VDC, 60 s)
Insulation resistance (IR)
>
IR=2000 MΩ (20 ˚C, 500 VDC, 60 s)
>
125 VAC, 250 VAC:
C
<
0.47 µF : IR=2000 MΩ
(20
˚C,
500 VDC, 60 s)
=
>
C > 0.47 µF : IR=3000 MΩ . µF (20
˚C,
100 VDC, 60 s)
In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage, please
refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.
Voltage to be applied to ECQE1A (F) & ECQE2A (F) is only sine wave (50 Hz or 60 Hz).
Category temp. range
(Including temperature-rise on unit surface)
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
− FC32 −
