UT54ACS193-PQXR datasheet, PDF

Datasheet> All Categories > logic> logic> UT54ACS193-PQXR

UT54ACS193-PQXR: DescriptionBinary Counter, AC Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16, DIP-16; Categorylogic logic; File Size312KB，7 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

UT54ACS193-PQXR Overview

Binary Counter, AC Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDIP16, DIP-16

UT54ACS193-PQXR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Cobham PLC
package instruction	DIP-16
Reach Compliance Code	unknown
Counting direction	BIDIRECTIONAL
series	AC
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
length	19.05 mm
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	56000000 Hz
MaximumI(ol)	0.0001 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	24 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	56 MHz

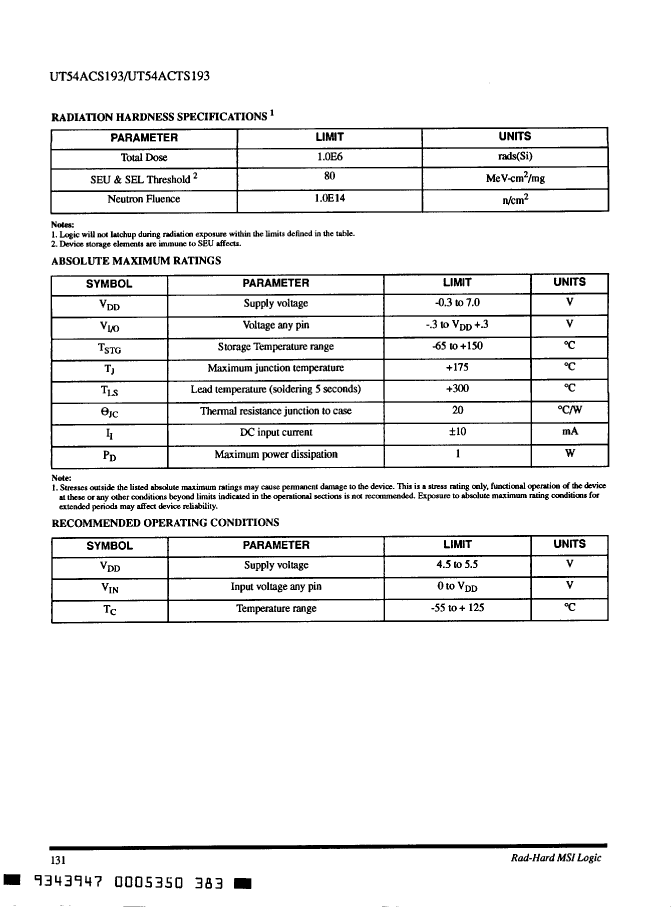

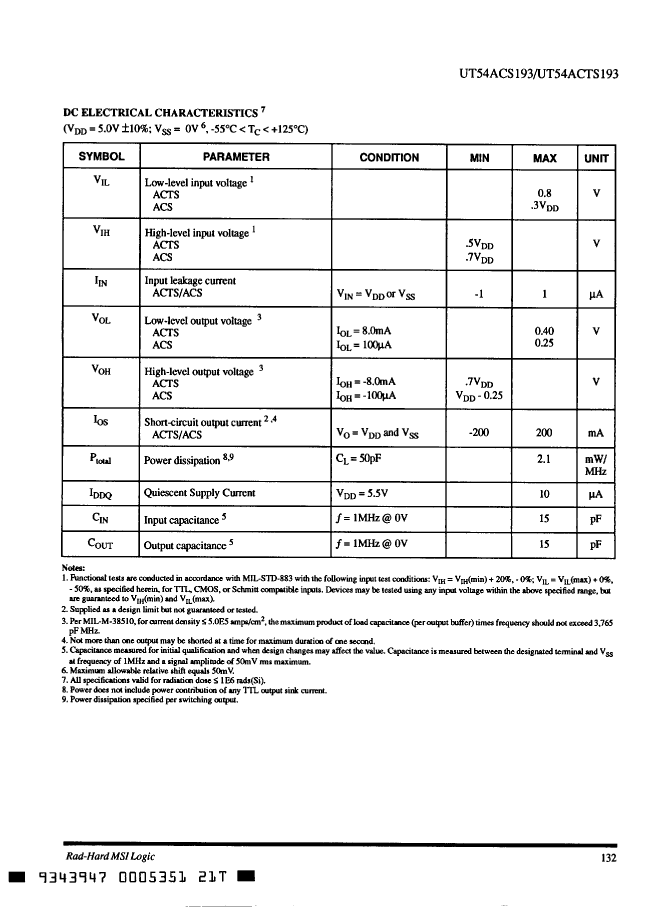

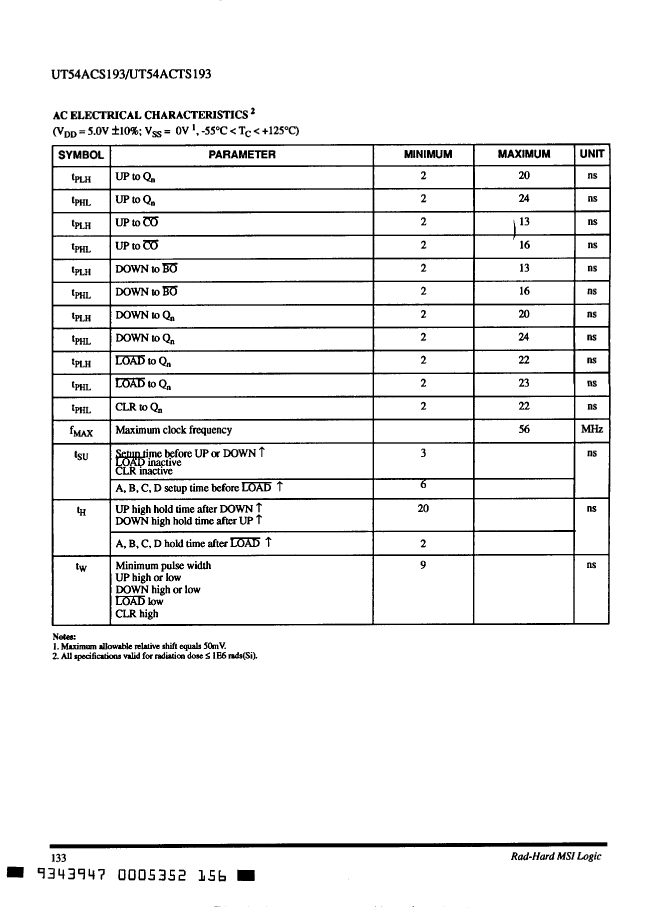

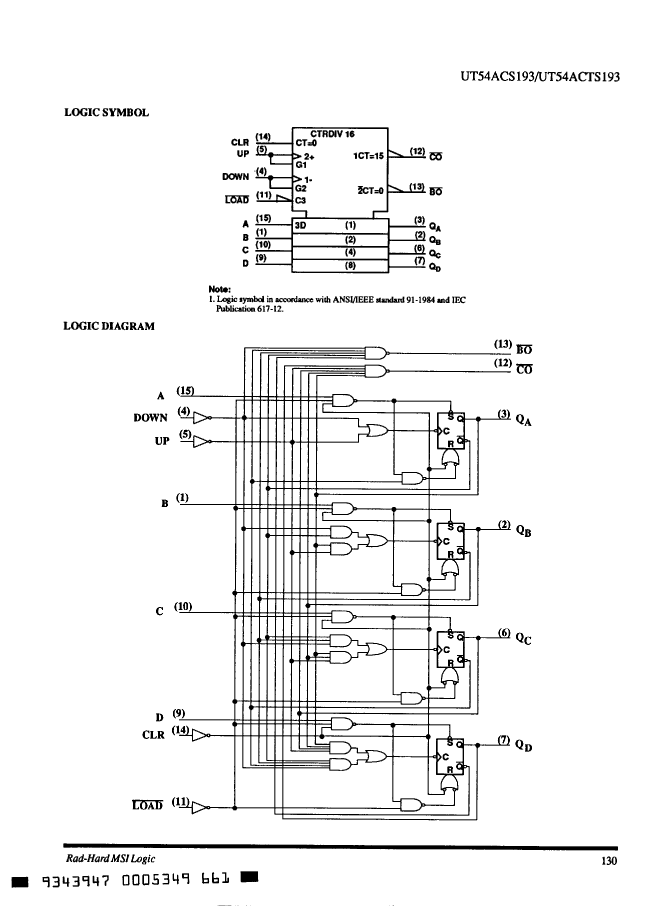

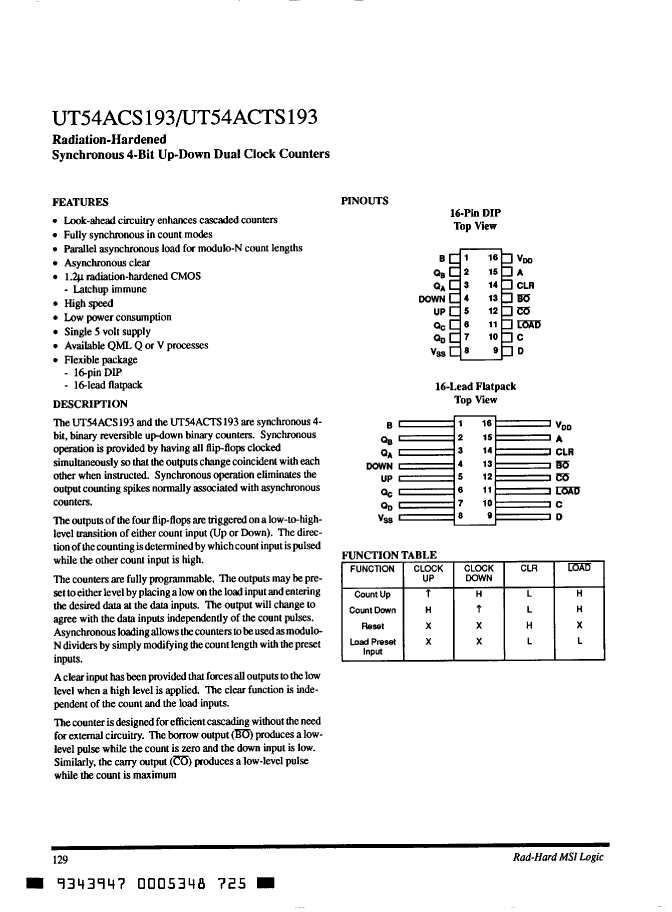

Preview

Download Datasheet

View All
