BZT52C2V0S - BZT52C39S
SURFACE MOUNT ZENER DIODE
Features
Planar Die Construction
Small Surface Mount Package
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOD323
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
(Lead Free Plating).
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.0049 grams (Approximate)
SOD323
Top View
Ordering Information
(Note 5)
Part Number
(Type Number)-7-F*
(Type Number)Q-7-F*
Notes:
Qualification
Commercial
Automotive
Case
SOD323
SOD323
Packaging
3,000/Tape & Reel
3,000/Tape & Reel
*Add “-7-F” to the appropriate type number in Electrical Characteristics Table, example: 6.2V Zener – BZT52C6V2S-7-F.
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Products manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
XX
XX = Product Type Marking Code for
SAT (Shanghai Assembly / Test site)
(See Electrical Characteristics Table)
XX
XX = Product Type Marking Code for
CAT (Chengdu Assembly / Test site)
(See Electrical Characteristics Table)
BZT52C2V0S - BZT52C39S
Document number: DS30093 Rev. 20 - 2
1 of 5
www.diodes.com
February 2017
© Diodes Incorporated
BZT52C2V0S - BZT52C39S
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Forward Voltage (Note 6)
@I
F
= 10mA
Symbol
V
F
Value
0.9
Unit
V
Thermal Characteristics
Characteristic
Power Dissipation (Note 7)
Thermal Resistance, Junction to Ambient Air (Note 7)
Operating and Storage Temperature Range
Symbol
P
D
R
JA
T
J
,
T
STG
Value
200
625
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
Marking
Code
(@T
A
= +25°C, unless otherwise specified.)
Zener Voltage
Range (Note 4)
V
Z
@I
ZT
I
ZT
Max (V)
2.09
2.60
2.9
3.2
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32.0
35.0
38.0
41.0
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
Maximum Zener Impedance
f = 1kHz
Z
ZT
@I
ZT
Ω
100
100
100
95
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
600
600
600
600
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
300
300
325
350
350
Z
ZK
@I
ZK
I
ZK
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
Maximum
Reverse Current
(Note 6)
I
R
uA
150
50
20
10
5
5
3
3
2
1
3
2
1
0.7
0.5
0.2
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
@V
R
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.1
25.2
27.3
Temperature
Coefficient of
Zener Voltage
@I
ZT =
5mA
mV/°C
Min
Max
-3.5
0
-3.5
0
-3.5
0
-3.5
0
-3.5
0
-3.5
0
-3.5
0
-3.5
0
-3.5
0.2
-2.7
1.2
-2.0
2.5
0.4
3.7
1.2
4.5
2.5
5.3
3.2
6.2
3.8
7.0
4.5
8.0
5.4
9.0
6.0
10.0
7.0
11.0
9.2
13.0
10.4
—
12.4
—
14.4
—
16.4
—
18.4
—
21.4
—
24.4
—
27.4
—
30.4
—
33.4
—
Type Number
BZT52C2V0S
BZT52C2V4S
BZT52C2V7S
BZT52C3V0S
BZT52C3V3S
BZT52C3V6S
BZT52C3V9S
BZT52C4V3S
BZT52C4V7S
BZT52C5V1S
BZT52C5V6S
BZT52C6V2S
BZT52C6V8S
BZT52C7V5S
BZT52C8V2S
BZT52C9V1S
BZT52C10S
BZT52C11S
BZT52C12S
BZT52C13S
BZT52C15S
BZT52C16S
BZT52C18S
BZT52C20S
BZT52C22S
BZT52C24S
BZT52C27S
BZT52C30S
BZT52C33S
BZT52C36S
BZT52C39S
Notes:
WY
WX
W1
W2
W3
W4
W5
W6
W7
W8
W9
WA
WB
WC
WD
WE
WF
WG
WH
WI
WJ
WK
WL
WM
WN
WO
WP
WQ
WR
WS
WT
Nom (V) Min (V)
2.0
1.91
2.4
2.20
2.7
2.5
3.0
2.8
3.3
3.1
3.6
3.4
3.9
3.7
4.3
4.0
4.7
4.4
5.1
4.8
5.6
5.2
6.2
5.8
6.8
6.4
7.5
7.0
8.2
7.7
9.1
8.5
10
9.4
11
10.4
12
11.4
13
12.4
15
13.8
16
15.3
18
16.8
20
18.8
22
20.8
24
22.8
27
25.1
30
28.0
33
31.0
36
34.0
39
37.0
6. Short duration pulse test used to minimize self-heating effect.
7. Part mounted on FR-4 PC board with recommended pad layout, as per http://www.diodes.com/package-outlines.html.
BZT52C2V0S - BZT52C39S
Document number: DS30093 Rev. 20 - 2
2 of 5
www.diodes.com
February 2017
© Diodes Incorporated
BZT52C2V0S - BZT52C39S
300
Note 7
50
T
J
= 25°C
C2V7
C2V0
C3V9
C5V6
C6V8
C3V3
C4V7
P
D
, POWER DISSIPATION (mW)
40
I
Z
, ZENER CURRENT (mA)
C8V2
200
30
20
Test Current I
Z
5.0mA
100
10
0
0
120
160
40
80
T
A
, AMBIENT TEMPERATURE, °C

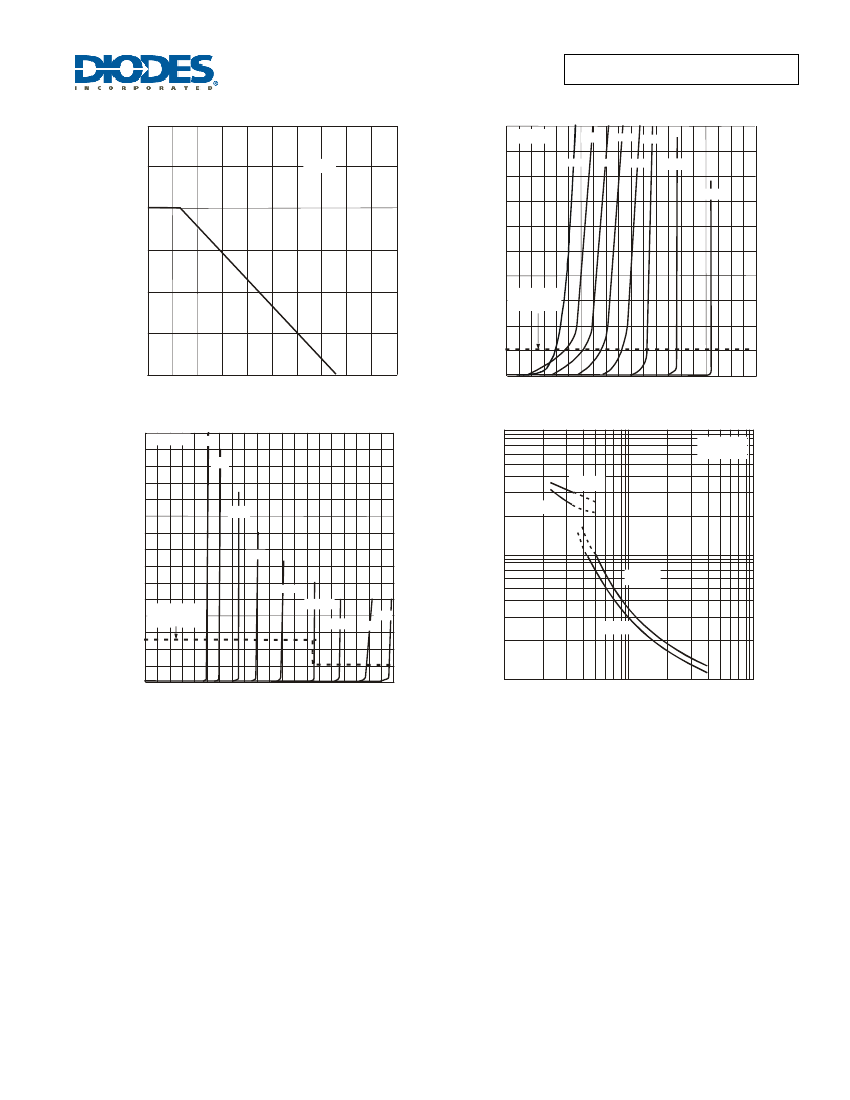

Fig. 1 Power Derating Curve
T
J
= 25°C
C10
C12
200
0
0
3
4
5
6
8
9 10
7
V
Z
, ZENER VOLTAGE (V)
Fig. 2 Typical Zener Breakdown Characteristics
1
2
30
1,000
T
J
= 25 °C
C
T
, TOTAL CAPACITANCE (pF)
V
R
= 1V
V
R
= 2V
I
Z
, ZENER CURRENT (mA)
20
C15
C18
100
V
R
= 1V
10
Test current I
Z
5mA
C22
C27
C33
C39
C36
V
R
= 2V
0
0
10
20
30
40
V
Z
, ZENER VOLTAGE (V)
Fig. 3 Typical Zener Breakdown Characteristics
10
100
V
Z
, NOMINAL ZENER VOLTAGE (V)
Fig. 4 Typical Total Capacitance vs. Nominal Zener Voltage
10
1
BZT52C2V0S - BZT52C39S
Document number: DS30093 Rev. 20 - 2
3 of 5
www.diodes.com
February 2017
© Diodes Incorporated
BZT52C2V0S - BZT52C39S
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOD323
A2
A1
a
c
He
E
L
b
D
SOD323
Dim Min Max Typ
A1
--
0.10 0.05
A2
1.00 1.10 1.05
b
0.25 0.35 0.30
c
0.10 0.15 0.11
D
1.20 1.40 1.30
E
1.60 1.80 1.70
He
2.30 2.70 2.50
L
0.20 0.40 0.30
a
0º
8º
--
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOD323
X1
Y
X
Dimensions Value (in mm)
X
0.590
X1
2.700
Y
0.450
BZT52C2V0S - BZT52C39S
Document number: DS30093 Rev. 20 - 2
4 of 5
www.diodes.com
February 2017
© Diodes Incorporated
BZT52C2V0S - BZT52C39S
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2017, Diodes Incorporated
www.diodes.com
BZT52C2V0S - BZT52C39S
Document number: DS30093 Rev. 20 - 2
5 of 5
www.diodes.com
February 2017
© Diodes Incorporated
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BZT52C15S-7 Related Products

BZT52C15S-7 BZT52C2V4SQ-7-F
Description Zener Diode, 15V V(Z), 6.12%, 0.2W, Silicon, Unidirectional, ULTRA SMALL, PLASTIC PACKAGE-2 Zener Diode, 2.4V V(Z), 8.33%, 0.2W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-2
Is it lead-free? Contains lead Lead free
Is it Rohs certified? incompatible conform to
Maker Diodes Incorporated Diodes Incorporated
package instruction R-PDSO-G2 GREEN, PLASTIC PACKAGE-2
Reach Compliance Code not_compliant compliant
ECCN code EAR99 EAR99
Configuration SINGLE SINGLE
Diode component materials SILICON SILICON
Diode type ZENER DIODE ZENER DIODE
Maximum dynamic impedance 30 Ω 100 Ω
JESD-30 code R-PDSO-G2 R-PDSO-G2
JESD-609 code e0 e3
Humidity sensitivity level 1 1
Number of components 1 1
Number of terminals 2 2
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 235 260
polarity UNIDIRECTIONAL UNIDIRECTIONAL
Maximum power dissipation 0.2 W 0.2 W
Nominal reference voltage 15 V 2.4 V
surface mount YES YES
technology ZENER ZENER
Terminal surface Tin/Lead (Sn80Pb20) Matte Tin (Sn)
Terminal form GULL WING GULL WING
Terminal location DUAL DUAL
Maximum time at peak reflow temperature 10 40
Maximum voltage tolerance 6.12% 8.33%
Working test current 5 mA 5 mA

Recommended Resources

Use HFC3040 to make a six-way lantern controller

Static electricity detection circuit composed of LM324

Thermocouple 10-bit serial I/O data acquisition system circuit

Planar gas discharge tube static drive circuit

Block diagram of high frequency switching charging power supply

Incandescent light bulb cleverly used as transformer circuit

bs18b20 program for g2553
That brother has the bs18b20 program for g2553 but didn't send me one....
w504491134 Microcontroller MCU
iPhone 6 violent disassembly--EEWORLD University Hall
iPhone 6 violent disassembly : https://training.eeworld.com.cn/course/2194[color=Red][size=4]iPhone 6 Plus violent disassembly, explore the internal hardware, and some differences from iPhone 6. [/siz...
chenyy Mobile and portable
news
[i=s]This post was last edited by jameswangsynnex on 2015-3-3 20:00[/i] News: The 2006 China International Consumer Electronics Expo (SINOCES) to be held in Qingdao on July 7 has shown its strong appe...
lorant Mobile and portable
It’s better to be a moderator in EEWORLD
It is safer to be a moderator in EEWORLD:lol Pornographic website moderator company white-collar worker gets suspended sentence 2010-01-17 15:00 [url=http://www.fawan.com/][color=#0000ff]Legal Evening...
向农 Talking about work
The microcontroller register problem is urgent...I have been working on it for two days
MCU connection diagram: AT89C51RC P0 AD0~AD7 P2.0(A8) A0(MCX314) P2.1(A9) A1(MCX314) P2.2(A10) A2(MCX314) P2.3(A11) A3(MCX314) P2.4(A12) Laser switch signal control I/O P2.5(A13) A(74LS138) P2.6(A14) ...
stdio_h_0 Embedded System
[Low Power] Low-Power Routing Algorithm for Programmable Logic Arrays to Reduce Glitches
...
常见泽1 FPGA/CPLD
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. 2SC4895C7
  2. SDS60045JEDVKU1
  3. MD15F302GTX
  4. 7108SHV71GES
  5. CDLL757E3
  6. UMA02040G2052AA000
  7. MFP207PBCFK243R
  8. D10-CRCW04021001R801%P0-PB
  9. C4201HMA-2x6P-V0
  10. C3030WRA-F-2x6P
  11. A7921WVA-9P-52-C
  12. S7D12.288000D20F30T

Popular Articles

  1. Simulation of the world: Switching characteristics of 650V hybrid SiC single tube
  2. Silicon Labs has set up a dedicated team to study global semiconductor supply chain shortages
  3. Learn about "Automotive Driving Automation Classification" (GB/T 40429-2021) in one article
  4. Design of proteus simulation program for humidifier based on 51 single chip microcomputer DHT11
  5. xMEMS launches Montara Pro micro speaker with integrated DynamicVent
  6. OVC III Power Supply
  7. Teledyne e2v is now delivering its space-grade DDR4 memory solutions
  8. Researching 6G technology to create a more sustainable future
  9. STMicroelectronics introduces new 5V op amps to its high-performance family, offering space-saving, low-offset 20MHz devices
  10. Introduction of Medical Appliance Safety Tester

Technical ResourceMore

  1. Fall Detection Application Based on 3-Axis Accelerometer ADXL345
  2. Sheet metal stamping process tips and sheet metal parts design and manufacturing technology methods and atlas model practical manual
  3. Bluetooth Antenna Design
  4. Class D amplifier principle and design
  5. Laker Full Custom IC Design Platform
  6. Traffic lights and frequency meters
  7. Thyristor and Triac Applications
  8. MAX3051 Data Sheet
  9. Design of integrated wiring system based on copper cable
  10. Design of freshman registration system based on B/S structure

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1892  2654  1801  1745  2613  39  54  37  36  53
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
