051/053 PEC-PW
Vishay BCcomponents
Aluminum Capacitors
Power Economic Printed Wiring
FEATURES
•
Polarized aluminum
non-solid electrolyte
electrolytic
capacitors,
•
Large types with reduced dimensions, cylindrical
aluminum case, insulated with a blue sleeve
•
Provided with keyed polarity
•
Long useful life: 12 000 hours at 85 °C
•
High ripple current capability
•
High resistance to shock and vibration
Fig.1 Component outlines
high
ripple
current
RoHS
COMPLIANT
APPLICATIONS
162/163
PLL-PW
050/052
PED-PW
051/053
PEC-PW
long life
105
°C
•
General purpose, industrial, medical and audio/video
systems
•
Standard and switched mode power supplies
•
Energy storage in pulse systems
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
(Ø D x L in mm)
Rated capacitance range
(E6 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 85 °C
Useful life at 85 °C
Useful life at 40 °C,
1.4 x I
R
applied
Shelf life at 0 V, 85 °C
Based on sectional
specification
Climatic category IEC 60068
VALUE
051
25 x 30
to 40 x 100
680 µF to
150 000 µF
± 20 %
10 V to 100 V
200 V to 400 V
- 40 °C to + 85 °C
5000 hours
12 000 hours
200 000 hours
500 hours
IEC 60384-4/EN130300
40/085/56
68 µF to
2200 µF
053
MARKING
The capacitors are marked (where possible) with the
following information:
•
Rated capacitance (in µF)
•
Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
•
Rated voltage (in V)
•
Date code (YYMM)
•
Name of manufacturer
•
Code for factory of origin
•
Polarity of the terminals and ‘−’ sign to indicate the
negative terminal, visible from the top and/or side of the
capacitor
•
Code number
•
Climatic category in accordance with IEC 60068
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
68
100
150
220
330
470
680
1000
1500
2200
U
R
(V)
10
-
-
-
-
-
-
-
-
-
-
-
-
16
-
-
-
-
-
-
-
-
-
-
-
-
25
-
-
-
-
-
-
-
-
-
-
-
-
40
-
-
-
-
-
-
-
-
-
-
-
-
63
-
-
-
-
-
-
-
-
-
-
-
25 x 30
100
-
-
-
-
-
-
-
25 x 30
-
25 x 40
30 x 40
35 x40
200
-
-
25 x 30
25 x 40
30 x 40
-
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
385
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
400
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
www.vishay.com
1
Document Number: 28346
Revision: 14-Aug-08
For technical questions, contact: aluminumcaps2@vishay.com
051/053 PEC-PW
Vishay BCcomponents
Aluminum Capacitors
Power Economic Printed
Wiring
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
3300
4700
6800
10 000
15 000
22 000
33 000
47 000
68 000
100 000
150 000
U
R
(V)
10
-
-
-
-
25 x 30
-
25 x 40
-
30 x 40
-
35 x 40
-
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
16
-
-
-
25 x 30
25 x 40
-
30 x 40
-
35 x 40
-
35 x 50
40 x 40
40 x 50
-
40 x 70
40 x 100
-
25
-
-
25 x 30
25 x 40
30 x 40
-
35 x 40
-
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-
40
25 x 30
-
25 x 40
30 x 40
35 x 40
-
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-
-
-
63
25 x 40
-
30 x 40
35 x 40
35 x 50
40 x 40
40 x 70
-
40 x 100
-
-
-
-
-
-
-
-
100
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
-
-
-
-
-
-
-
-
-
-
-
-
200
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
385
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
400
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

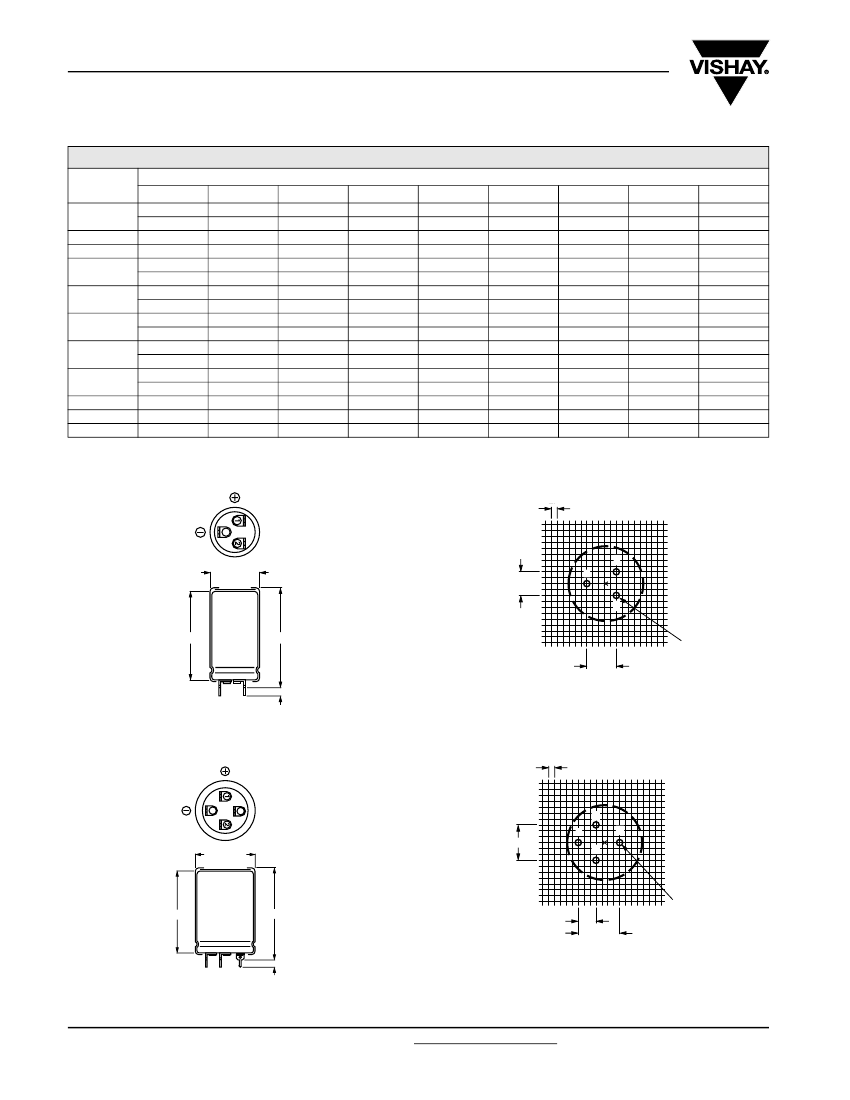

DIMENSIONS
in millimeters
AND AVAILABLE FORMS
2.5
Ø D + 1 max.
10 ± 0.1
-
2
-
1
L
L + 5 max.
12.5
± 0.1
4.9 ± 0.2
1.3
(3 x)
Case
∅
D = 25 mm
Fig.2 Printed wiring pin version
Case
∅
D = 25 mm
Fig.3 Mounting hole diagram viewed from component side
2.5
Ø D + 1 max.
-
3
2
-
3
15 ± 0.1
L
L + 5 max.
1.3
(4 x)
7.5 ± 0.1
17.5 ± 0.1
4.9 ± 0.2
Case
∅
D = 30 mm
Fig. 4 Printed wiring pin version
Case
∅
D = 30 mm
Fig.5
Mounting hole diagram viewed from component side
www.vishay.com
2
For technical questions, contact: aluminumcaps2@vishay.com
Document Number: 28346
Revision: 14-Aug-08
051/053 PEC-PW
Aluminum Capacitors
Power Economic Printed
Wiring

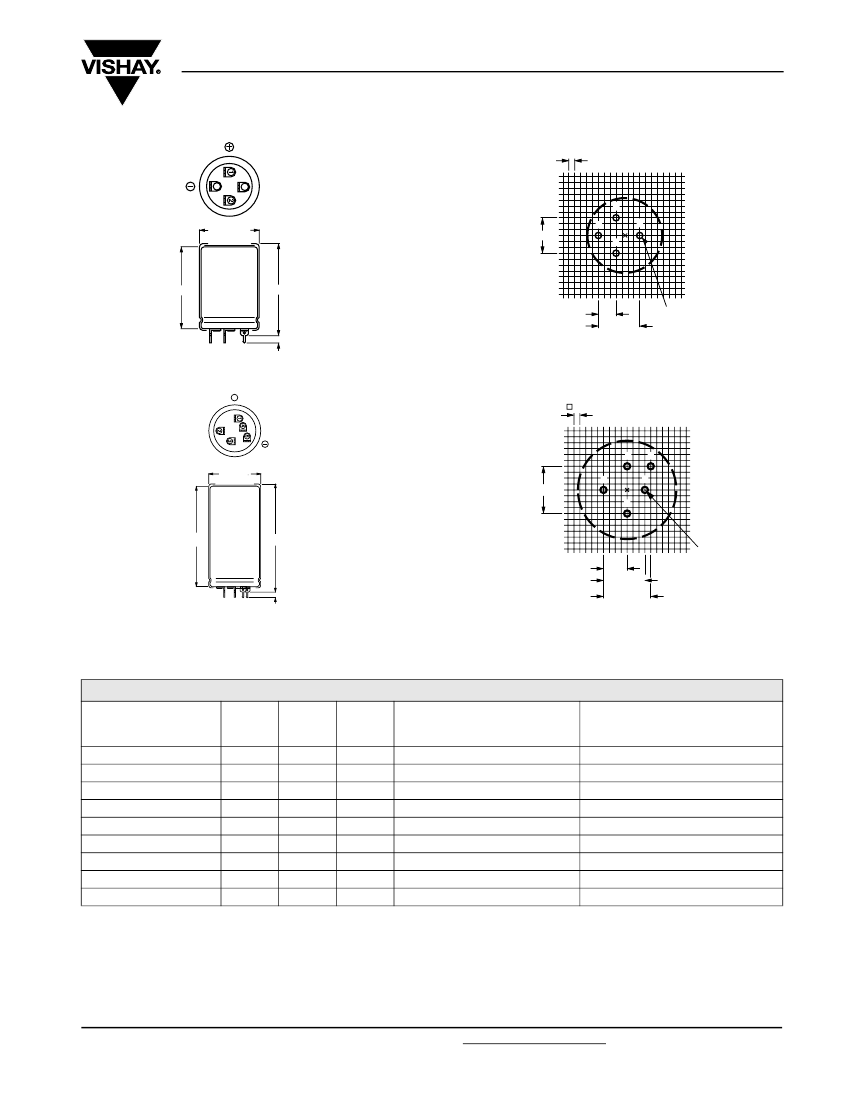

2.5
Vishay BCcomponents
Ø D + 1 max.
15 ± 0.1
-
3
2
-
1
3
L
L + 5 max.
7.5 ± 0.1
17.5 ± 0.1
4.9 ± 0.2
1.3
(4x)
MGB267-1
Case
∅
D = 35 mm
Fig.6 Printed wiring pin version
Case
∅
D = 35 mm
Fig. 7 Mounting hole diagram viewed from component side
2.5
3
-
4
Ø D + 1 max.
2
20 ± 0.1
1
L
L + 5 max.
10 ± 0.1
17.5 ± 0.1
5.1 ± 0.1
20 ± 0.1
1.3
(5 x)
Case
∅
D = 40 mm
Fig.8 Printed wiring pin version
Table 1
Case
∅
D = 40 mm
Fig.9 Mounting hole diagram viewed from component side
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
PW versions
NOMINAL
CASE SIZE
ØDxL
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
Ø D
max.
26
26
31
36
36
41
41
41
41
L
max.
35
45
45
45
55
45
55
75
105
MASS
(g)
≈
24
≈
28
≈
38
≈
51
≈
66
≈
78
≈
82
≈
110
≈
176
PACKAGING QUANTITIES
(units per box)
100
100
100
50
50
50
50
25
25
CARDBOARD
BOX DIMENSIONS
LxWxH
290 x 280 x 50
290 x 280 x 60
340 x 330 x 60
390 x 198 x 60
390 x 198 x 70
440 x 223 x 60
440 x 223 x 70
230 x 230 x 90
230 x 230 x 120
MOUNTING
When
a number of capacitors are connected in a bank, they must not be closer together than 15 mm, when no derating of ripple
current and/or temperature is applied.
Pin numbers 2, 3 and 4 (if present) must be free from the electrical circuit.
Document Number: 28346
Revision: 14-Aug-08
For technical questions, contact: aluminumcaps2@vishay.com
www.vishay.com
3
051/053 PEC-PW
Vishay BCcomponents
.
Aluminum Capacitors
Power Economic Printed
Wiring
ORDERING EXAMPLE
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L1
I
L5
ESR
Z
Note
1. Unless otherwise specified, all electrical values in Tables 2 and 3
apply at T
amb
= 20
°C,
P = 86 kPa to 106 kPa, RH = 45 % to 75 %
Table 2
DESCRIPTION
rated capacitance at 100 Hz
rated RMS ripple current at 100 Hz,
85 °C or at 20 kHz, 70 °C
max. leakage current after 1 minute at U
R
max. leakage current after 5 minutes at U
R
max. equivalent series resistance at 100 Hz
max. impedance at 10 kHz
Electrolytic capacitor 051 series
10 000 µF/25 V; ± 20 %
Nominal case size: Ø 30 mm x 40 mm
Ordering code: MAL2 051 56103 E3
Former 12NC: 2222 051 56103
ELECTRICAL DATA AND ORDERING INFORMATION 051 SERIES
U
R
(V)
C
R
100 Hz
(µF)
10 000
15 000
22 000
33 000
47 000
47 000
68 000
100 000
150 000
6800
10 000
15 000
22 000
33 000
33 000
47 000
68 000
100 000
4700
6800
10 000
15 000
22 000
22 000
33 000
47 000
68 000
3300
4700
6800
10 000
15 000
15 000
22 000
33 000
47 000
NOMINAL
CASE SIZE
ØDxL
(mm)
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
I
R
100 Hz
85 °C
(A)
3.1
4.1
5.0
5.5
6.8
5.8
7.1
9.2
12.0
3.1
4.0
5.0
5.5
6.7
5.7
7.0
9.2
12.0
2.9
3.9
4.8
5.3
6.5
5.7
7.0
9.2
12.0
2.9
3.8
4.7
5.2
6.3
5.6
5.8
7.8
10.4
I
R
20 kHz
70 °C
(A)
5.9
7.8
9.5
10.4
12.9
10.4
13.5
17.4
22.7
5.9
7.6
9.5
10.4
12.7
10.8
13.3
17.4
22.7
5.5
7.4
9.1
10.0
12.3
10.8
13.3
17.4
22.7
5.5
7.2
8.9
9.8
11.9
10.6
11.0
14.8
19.7
I
L1
1 MIN.
(mA)
0.60
0.90
1.32
1.98
2.82
2.82
4.08
6.00
9.00
0.65
0.96
1.44
2.12
3.17
3.17
4.52
6.53
9.60
0.71
1.02
1.50
2.25
3.30
3.30
4.95
7.05
10.20
0.80
1.13
1.64
2.40
3.60
3.60
5.28
7.92
11.28
I
L5
5 MIN.
(mA)
0.20
0.30
0.44
0.66
0.94
0.94
1.36
2.00
3.00
0.22
0.32
0.48
0.71
1.06
1.06
1.51
2.18
3.20
0.24
0.34
0.50
0.75
1.10
1.10
1.65
2.35
3.40
0.27
0.38
0.55
0.80
1.20
1.20
1.76
2.64
3.76
ESR
100 Hz
(mΩ)
51
37
30
28
23
29
24
19
16
53
39
31
29
23
30
24
19
16
60
42
34
30
24
31
25
19
16
87
62
49
48
37
50
39
28
22
Z
10 kHz
(mΩ)
40
30
25
24
20
22
20
16
14
42
34
27
26
21
24
20
16
14
42
34
27
26
21
24
20
16
14
63
47
38
37
28
35
28
21
17
ORDERING CODE
MAL2051......
54103E3
54153E3
54223E3
54333E3
54473E3
44473E3
54683E3
54104E3
54154E3
55682E3
55103E3
55153E3
55223E3
55333E3
45333E3
55473E3
55683E3
55104E3
56472E3
56682E3
56103E3
56153E3
56223E3
46223E3
56333E3
56473E3
56683E3
57332E3
57472E3
57682E3
57103E3
57153E3
47153E3
57223E3
57333E3
57473E3
10
16
25
40
www.vishay.com
4
For technical questions, contact: aluminumcaps2@vishay.com
Document Number: 28346
Revision: 14-Aug-08
051/053 PEC-PW
Aluminum Capacitors
Power Economic Printed
Wiring
ELECTRICAL DATA AND ORDERING INFORMATION 051 SERIES
U
R
(V)
C
R
100 Hz
(µF)
2200
3300
4700
6800
10 000
10 000
15 000
22 000
680
1000
1500
2200
3300
3300
4700
6800
10 000
NOMINAL
CASE SIZE
ØDxL
(mm)
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
I
R
100 Hz
85 °C
(A)
2.5
3.3
4.1
4.5
5.4
4.6
7.5
10.0
1.74
2.34
2.95
3.69
4.37
4.16
5.21
6.97
9.50
I
R
20 kHz
70 °C
(A)
4.7
6.2
7.8
8.5
10.2
8.7
14.2
19.0
3.30
4.44
5.59
7.00
8.29
7.89
9.88
13.22
18.00
I
L1
1 MIN.
(mA)
0.84
1.25
1.78
2.57
3.78
3.78
5.67
8.32
0.41
0.60
0.90
1.32
1.98
1.98
2.82
4.08
6.00
I
L5
5 MIN.
(mA)
0.28
0.42
0.60
0.86
1.26
1.26
1.89
2.77
0.14
0.20
0.30
0.44
0.66
0.66
0.94
1.36
2.00
ESR
100 Hz
(mΩ)
83
58
49
48
37
52
29
22
190
130
95
71
55
64
49
35
26
Z
10 kHz
(mΩ)
62
42
38
37
28
37
24
19
130
90
67
53
41
48
38
28
21
ORDERING CODE
MAL2051......
58222E3
58332E3
58472E3
58682E3
58103E3
48103E3
58153E3
58223E3
59681E3
59102E3
59152E3
59222E3
59332E3
49332E3
59472E3
59682E3
59103E3
Vishay BCcomponents
63
100
Table 3
ELECTRICAL DATA AND ORDERING INFORMATION 053 SERIES
U
R
(V)
C
R
100 Hz
(µF)
150
220
330
470
680
680
1000
1500
2200
68
100
150
220
330
330
470
680
1000
68
100
150
220
330
330
470
680
1000
NOMINAL
CASE SIZE
ØDxL
(mm)
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
I
R
100 Hz
85 °C
(A)
0.70
0.94
1.27
1.66
2.19
2.17
2.86
3.81
5.20
0.47
0.64
0.90
1.15
1.53
1.52
1.96
2.70
3.70
0.54
0.73
0.98
1.28
1.67
1.67
2.12
2.90
4.05
I
R
20 kHz
70 °C
(A)
1.33
1.78
2.41
3.15
4.15
4.11
5.42
7.22
9.86
0.89
1.21
1.71
2.18
2.90
2.88
3.72
5.12
7.02
1.02
1.38
1.86
2.43
3.17
3.17
4.02
5.50
7.68
I
L1
1 MIN.
(mA)
0.18
0.26
0.40
0.57
0.82
0.82
1.20
1.80
2.64
0.16
0.23
0.35
0.51
0.77
0.77
1.09
1.58
2.31
0.16
0.24
0.36
0.52
0.79
0.79
1.12
1.63
2.40
I
L5
5 MIN.
(mA)
0.06
0.09
0.14
0.19
0.28
0.28
0.40
0.60
0.88
0.06
0.08
0.12
0.17
0.26
0.26
0.36
0.53
0.78
0.06
0.08
0.12
0.17
0.26
0.26
0.37
0.54
0.80
ESR
100 Hz
(mΩ)
1000
680
460
320
220
220
150
110
80
2200
1500
1000
680
450
450
320
220
180
2100
1400
950
650
480
480
340
235
160
Z
10 kHz
(mΩ)
770
525
360
250
170
170
115
85
60
1480
1020
700
480
340
340
260
190
140
1000
780
520
400
280
280
220
155
110
ORDERING CODE
MAL2053......
52151E3
52221E3
52331E3
52471E3
52681E3
42681E3
52102E3
52152E3
52222E3
58689E3
58101E3
58151E3
58221E3
58331E3
48331E3
58471E3
58681E3
58102E3
56689E3
56101E3
56151E3
56221E3
56331E3
46331E3
56471E3
56681E3
56102E3
200
385
400
Document Number: 28346
Revision: 14-Aug-08
For technical questions, contact: aluminumcaps2@vishay.com
www.vishay.com
5
京公网安备 11010802033920号
EEWORLD
