BLM15AG601PN1J

Description
Ferrite Chip, 1 Function(s), 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN
CategoryAnalog mixed-signal IC    filter
File Size457KB，27 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Parametric View All

BLM15AG601PN1J Overview

Ferrite Chip, 1 Function(s), 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN

BLM15AG601PN1J Parametric

Parameter NameAttribute value
MakerMurata
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresMONOLITHIC TYPE
Maximum DC resistance1.1 Ω
filter typeFERRITE CHIP
high0.5 mm
length1 mm
Manufacturer's serial numberBLM15
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output impedance600 OHM Ω
method of packingTAPE AND REEL
physical sizeL1XB0.5XH0.5 (mm)
Rated current0.05 A
width0.5 mm

BLM15AG601PN1J Preview

Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
C31E7.pdf 02.3.29
On-Board Type (DC) EMI Suppression Filters (EMIFILr)
Chip Ferrite Beads BLM15/BLM18/BLM21/BLM31/BLM41 Series
BLM15 Series (1005 Size)
0.25±0.1
1
1.0±0.1
0.5±0.1
in mm
Part Number
BLM15AG100SN1
BLM15AG700SN1
BLM15AG121SN1
BLM15AG221SN1
BLM15AG601PN1
BLM15AG102PN1
BLM15BB050SN1
BLM15BB100SN1
BLM15BB220SN1
BLM15BB470SN1
BLM15BB750SN1
BLM15BB121SN1
BLM15BB221SN1
BLM15BD421PN1
BLM15BD601PN1
BLM15BD102PN1
Impedance
(at 100MHz, 20 degree C)
(ohm)
10 (Typ.)
70 (Typ.)
120
±25%
220
±25%
600
±25%
1000
±25%
5
±25%
10
±25%
22
±25%
47
±25%
75
±25%
120
±25%
220
±25%
420
±25%
600
±25%
1000
±25%
Rated Current
(mA)
1000
500
500
300
50
50
500
300
300
300
300
300
200
50
50
50
DC Resistance (max.)
(ohm)
0.05
0.15
0.25
0.35
1.10
1.50
0.08
0.10
0.20
0.35
0.40
0.55
0.80
1.30
1.50
1.30
Operating
Temperature Range
(°C)
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
s
Equivalent Circuit
(Resistance element becomes dominant
at high frequencies.)
29
0.5±0.1
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
C31E7.pdf 02.3.29
1

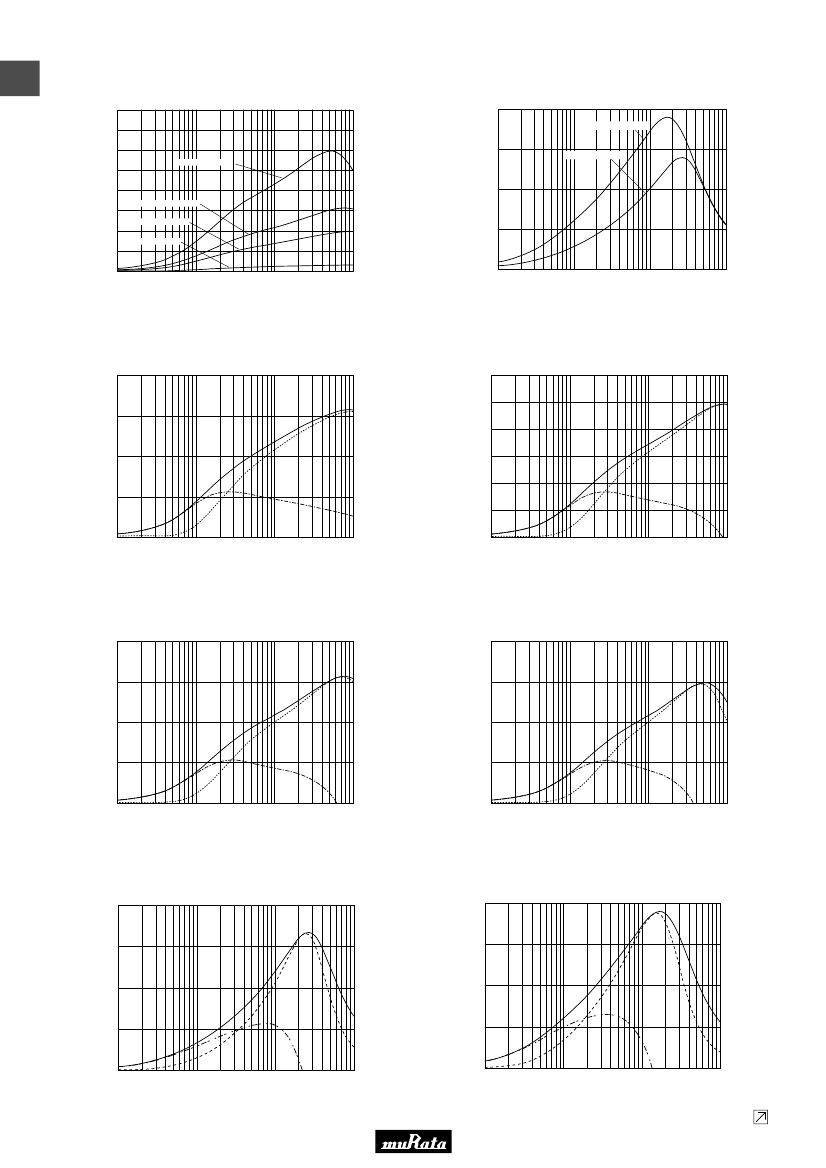

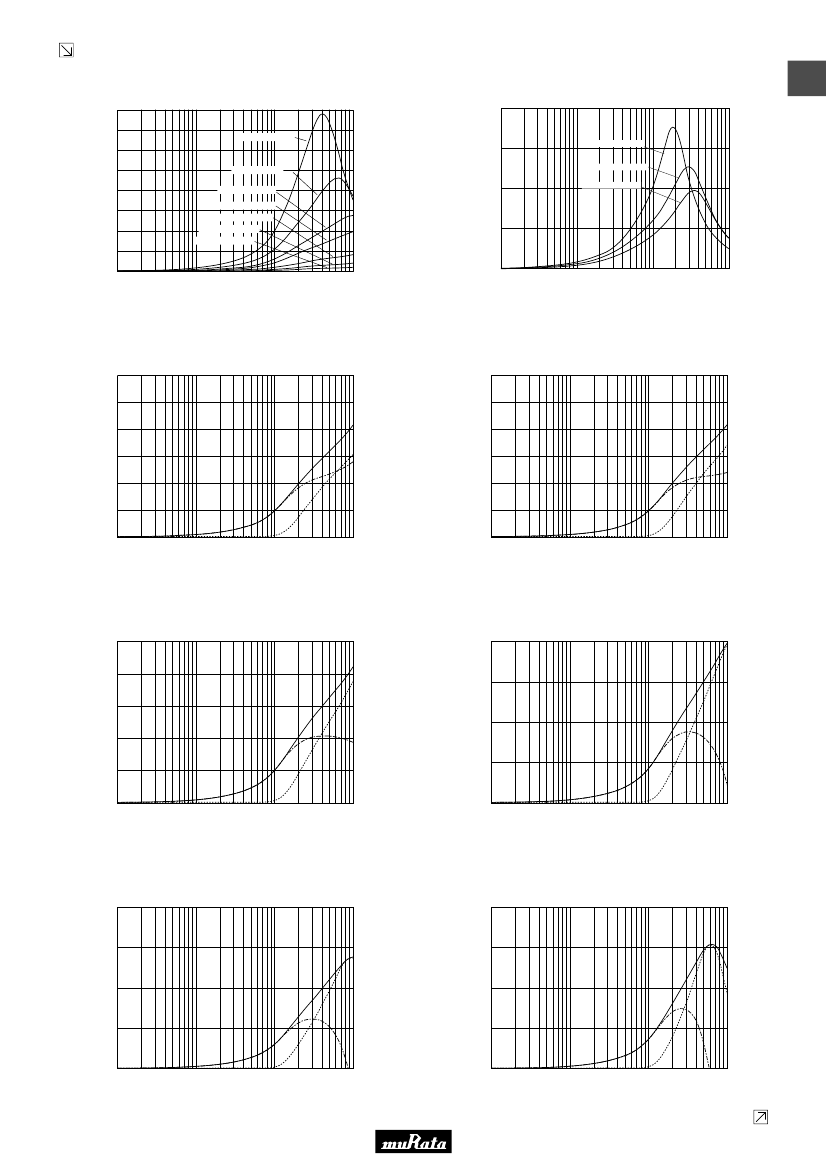

s
Impedance-Frequency (Typical)
BLM15A Series
400
350
300
Impedance (ohm)
250
200
BLM15AG121SN1
150
BLM15AG700SN1
100
BLM15AG100SN1
50
0
1
10
Frequency (MHz)
100
1000
0
1
10
100
Frequency (MHz)
1000
300
Impedance (Ω)
BLM15AG221SN1
900
BLM15AG601PN1
1200
BLM15AG102PN1
BLA15A Series
600

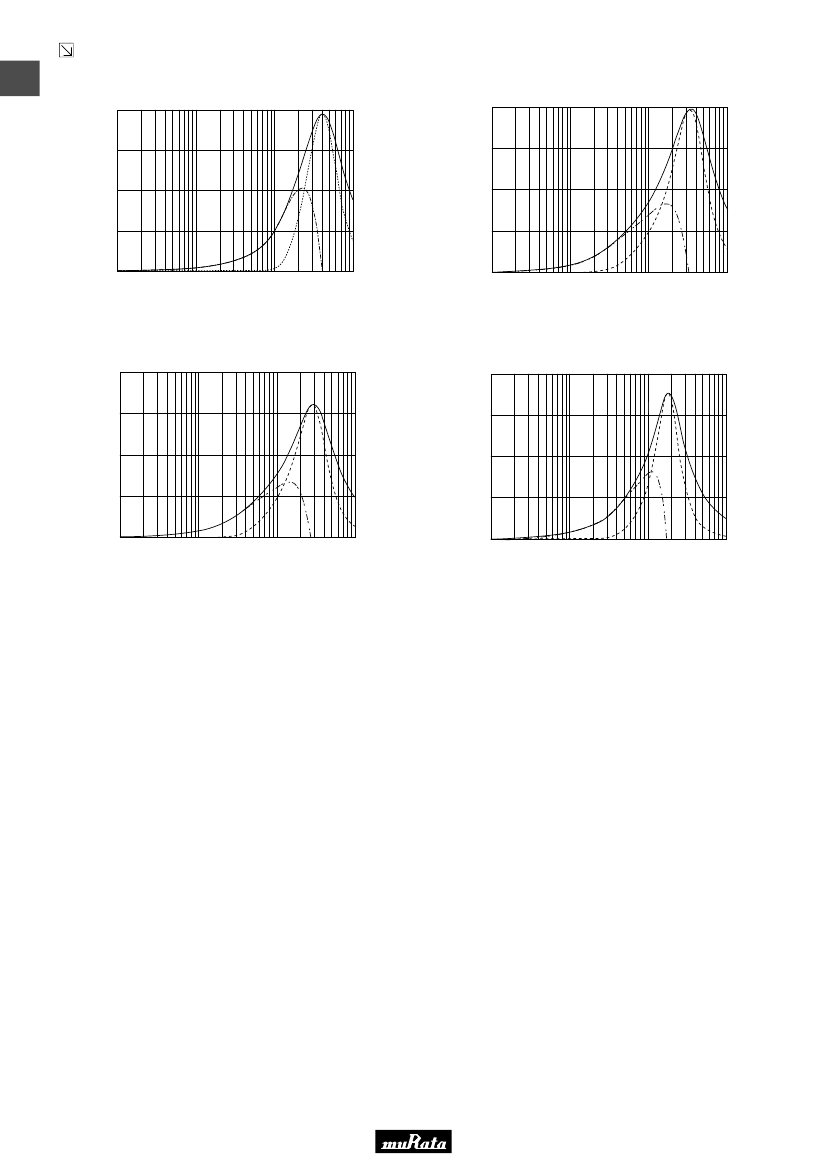

s
Impedance-Frequency Characteristics
BLM15AG100SN1
20
120
BLM15AG700SN1
100
15
Impedance (ohm)
Impedance (ohm)
Z
R
10
80
Z
R
60
40
5
X
20
X
0
1
10
Frequency (MHz)
100
1000
0
1
10
Frequency (MHz)
100
1000
BLM15AG121SN1
200
400
BLM15AG221SN1
150
Impedance (ohm)
Impedance (ohm)
Z
R
300
Z
R
100
200
50
X
100
X
0
1
10
Frequency (MHz)
100
1000
0
1
10
Frequency (MHz)
100
1000
BLM15AG601PN1
1000
1200
BLM15AG102PN1
Z
R
750
Z
Impedance (Ω)
Impedance (Ω)
900
R
500
600
250
X
300
X
0
1
10
100
Frequency (MHz)
1000
0
1
10
100
Frequency (MHz)
1000
Continued on the following page.
30
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
Continued from the preceding page.
C31E7.pdf 02.3.29
s
Impedance-Frequency (Typical)
BLA15B Series
800
700
BLM15BB221SN1
600
Impedance (ohm)
500
400
300
200
100
0
1
10
Frequency (MHz)
100
1000
0
BLM15BB121SN1
BLM15BB750SN1
BLM15BB470SN1
BLM15BB220SN1
BLM15BB100SN1
BLM15BB050SN1
500
Impedance (Ω)
1500
BLM15BD102PN1
BLM15BD601PN1
1000
BLM15BD421PN1
2000
BLA15B Series
1
1
10
100
Frequency (MHz)
1000
s
Impedance-Frequency Characteristics
BLM15BB050SN1
30
60
BLM15BB100SN1
25
50
Impedance (ohm)
20
Impedance (ohm)
40
15
Z
10
X
30
Z
20
X
10
R
0
5
R
0
1
10
Frequency (MHz)
100
1000
1
10
Frequency (MHz)
100
1000
BLM15BB220SN1
100
200
BLM15BB470SN1
80
150
Impedance (ohm)
Impedance (ohm)
60
Z
40
X
Z
100
X
50
20
R
R
0
1
10
Frequency (MHz)
100
1000
0
1
10
Frequency (MHz)
100
1000
BLM15BB750SN1
400
600
BLM15BB121SN1
300
Impedance (ohm)
Impedance (ohm)
450
200
Z
X
100
R
300
Z
X
150
R
0
1
10
Frequency (MHz)
100
1000
0
1
10
Frequency (MHz)
100
1000
Continued on the following page.
31
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
Continued from the preceding page.
C31E7.pdf 02.3.29
1
s
Impedance-Frequency Characteristics
BLM15BB221SN1
800
1000
BLM15BD421PN1
600
Impedance (ohm)
Impedance (Ω)
750
Z
R
Z
400
X
200
R
500
X
250
0
1
10
Frequency (MHz)
100
1000
0
1
10
100
Frequency (MHz)
1000
BLM15BD601PN1
1600
2000
BLM15BD102PN1
1200
Impedance (Ω)
Z
Impedance (Ω)
R
800
1500
Z
R
1000
X
500
X
400
0
1
10
100
Frequency (MHz)
1000
0
1
10
100
Frequency (MHz)
1000
32
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
C31E7.pdf 02.3.29
BLM18 Series (1608 Size)
0.4±0.2
1
1.6±0.15
0.8±0.15
in mm
Part Number
BLM18AG121SN1
BLM18AG151SN1
BLM18AG221SN1
BLM18AG331SN1
BLM18AG471SN1
BLM18AG601SN1
BLM18AG102SN1
BLM18BA050SN1
BLM18BA100SN1
BLM18BA220SN1
BLM18BA470SN1
BLM18BA750SN1
BLM18BA121SN1
BLM18BB050SN1
BLM18BB100SN1
BLM18BB220SN1
BLM18BB470SN1
BLM18BB600SN1
BLM18BB750SN1
BLM18BB121SN1
BLM18BB141SN1
BLM18BB151SN1
BLM18BB221SN1
BLM18BB331SN1
BLM18BB471SN1
BLM18BD121SN1
BLM18BD151SN1
BLM18BD221SN1
BLM18BD331SN1
BLM18BD421SN1
BLM18BD471SN1
BLM18BD601SN1
BLM18BD102SN1
BLM18BD152SN1
BLM18BD182SN1
BLM18BD222SN1
BLM18BD252SN1
BLM18PG300SN1
BLM18PG330SN1
BLM18PG600SN1
BLM18PG121SN1
BLM18PG181SN1
BLM18RK121SN1
Impedance
(at 100MHz, 20 degree C)
(ohm)
120
±25%
150
±25%
220
±25%
330
±25%
470
±25%
600
±25%
1000
±25%
5
±25%
10
±25%
22
±25%
47
±25%
75
±25%
120
±25%
5
±25%
10
±25%
22
±25%
47
±25%
60
±25%
75
±25%
120
±25%
140
±25%
150
±25%
220
±25%
330
±25%
470
±25%
120
±25%
150
±25%
220
±25%
330
±25%
420
±25%
470
±25%
600
±25%
1000
±25%
1500
±25%
1800
±25%
2200
±25%
2500
±25%
30 (Typ.)
33
±25%
60 (Typ.)
120
±25%
180
±25%
120
±25%
Rated Current
(mA)
200
200
200
200
200
200
100
500
500
500
300
300
200
700
500
500
500
200
200
200
200
200
200
200
50
200
200
200
200
200
200
200
100
50
50
50
50
1000
3000
500
2000
1500
200
DC Resistance (max.)
(ohm)
0.20
0.25
0.30
0.45
0.50
0.50
0.70
0.20
0.25
0.35
0.55
0.70
0.90
0.10
0.15
0.25
0.30
0.35
0.35
0.50
0.55
0.55
0.65
0.75
1.00
0.40
0.40
0.45
0.50
0.55
0.55
0.65
0.85
1.20
1.50
1.50
1.50
0.05
0.025
0.10
0.05
0.09
0.25
Operating
Temperature Range
(°C)
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
Continued on the following page.
33
0.8±0.15
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Cordless phone anti-theft circuit

Output adjustable voltage regulator circuit

Practical uninterruptible power supply circuit diagram

Positive and negative output voltage integrated regulated power supply circuit 2

Gain programmable isolation amplifier circuit

875p computer motherboard circuit diagram_105

Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. CD5248B
  2. MB9BF305NBBGL-GE1
  3. 0603CS-82NXGBC
  4. HMTSW-222-08-G-D-0200-RA
  5. RN1/4SC6193FH
  6. 79980-014
  7. L6-0-3055-9912-C-I
  8. 13522-13R3-AT90Q
  9. S2KGF
  10. ZMM5243D
  11. ZMM55-A18_R2_10001
  12. AFC25-S10WCC-00

Popular Articles

  1. 51 MCU-LCD screen code explanation
  2. Tesla's laser windshield wiper patent is authorized. Can you use laser to "wash your car"?
  3. Synopsys PrimeSim Reliability Analysis Solution Accelerates IC Design Super-Convergence
  4. STM8 ADC conversion mode ------- continuous scan mode
  5. Li Shufu enters the mobile phone field and claims to serve the world
  6. Aiming at quantum computing? AMD unveils a new quantum computing architecture
  7. Focusing on the development of high-precision 3D cameras, Zhixiang Optoelectronics completed a round B financing of tens of millions of yuan
  8. Pingtouge Xuantie 910 is the first in the world to be compatible with Android system and can run Chrome browser
  9. A single digital tube displays 0~F in a cycle
  10. Automatic identification of vehicle violations! Alipay releases new patent: Capture violations through driving recorders

Technical ResourceMore

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 880  589  2596  1116  1073  18  12  53  23  22
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
