MAAM-010617
RF Driver Amplifier
30 - 4000 MHz
Features
42.5 dBm Output IP3
31 dBm P1dB
Gain: 16 dB @ 30 MHz, 13 dB @ 2.1 GHz
Tunable over Wide Frequency Range
Class 2 HBM ESD Rating
Lead-Free SOT-89 Package
Halogen-Free “Green” Mold Compound
RoHS* Compliant and 260°C Reflow Compatible
Rev. V1
Functional Schematic
Description
The MAAM-010617 RF driver amplifier is a
GaAs MMIC which exhibits high linearity
performance over a wide input power range of more
than 20 dB. It’s tunable over a wide frequency range
to optimize the performance based on the end
application. The device is biased with a single
+5 volt supply and consumes 440 mA typically.
The MAAM-010617 is fabricated using a HBT
process to realize low current and high linearity. The
process features full passivation for increased
performance and reliability.
Pin Configuration
Pin No.
1
2
Function
RF Input
Ground
RF Output/Bias
Ordering Information
1,2
Part Number
MAAM-010617-000000
MAAM-010617-TR3000
MAAM-010617-001SMB
Package
Bulk Packaging
3000 piece reel
Sample Board
3
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAM-010617
RF Driver Amplifier
30 - 4000 MHz
Electrical Specifications: Freq. = 2140 MHz, T
A
= 25°C, V
CC
= +5 V, Z
0
= 50
Ω
Parameter
Gain
Noise Figure
Input Return Loss
Output Return Loss
Output P1dB
Output IP3
(P
IN
= +8.5 dBm/Tone, 1 MHz Spacing)
Quiescent Current
Current (P
IN
= +11.5 dBm)
Units
dB
dB
dB
dB
dBm
dBm
mA
mA
Min.
10
—
—
—
—
38
—
—
Typ.
13
4.5
18
18
31
42.5
420
430
Max.
—
—
—
—
—
—
—
550
Rev. V1
Maximum Operating Conditions
3
Parameter
Junction Temperature
4
RF Output Power
Operating Temperature
Maximum Operating
Conditions
170°C
31 dBm
-40°C to +85°C
Absolute Maximum Ratings
5,6
Parameter
RF Output Power
Voltage
Storage Temperature
Junction Temperature
Absolute Maximum
32 dBm
6 volts
-65°C to +150°C
210°C
4. Operating at nominal conditions with T
J
≤
+170°C will ensure
MTTF > 1 x 10
6
hours.
3. Junction Temperature (T
J
) = T
A
+
Өjc
* ((V * I) - (P
OUT
- P
IN
))
Typical thermal resistance (Өjc) = 26° C/W
a) For T
A
= 25°C,
T
J
= 74 °C @ 5 V, 430 mA, P
OUT
= 24.5 dBm, P
IN
= 11.5 dBm
b) For T
A
= 85°C,
T
J
= 130 °C @ 5 V, 390 mA, P
OUT
= 24 dBm, P
IN
= 11.5 dBm
5. Exceeding any one or combination of these limits may cause
permanent damage to this device.
6. M/A-COM Technology Solutions does not recommend
sustained operation near these survivability limits.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAM-010617
RF Driver Amplifier
30 - 4000 MHz

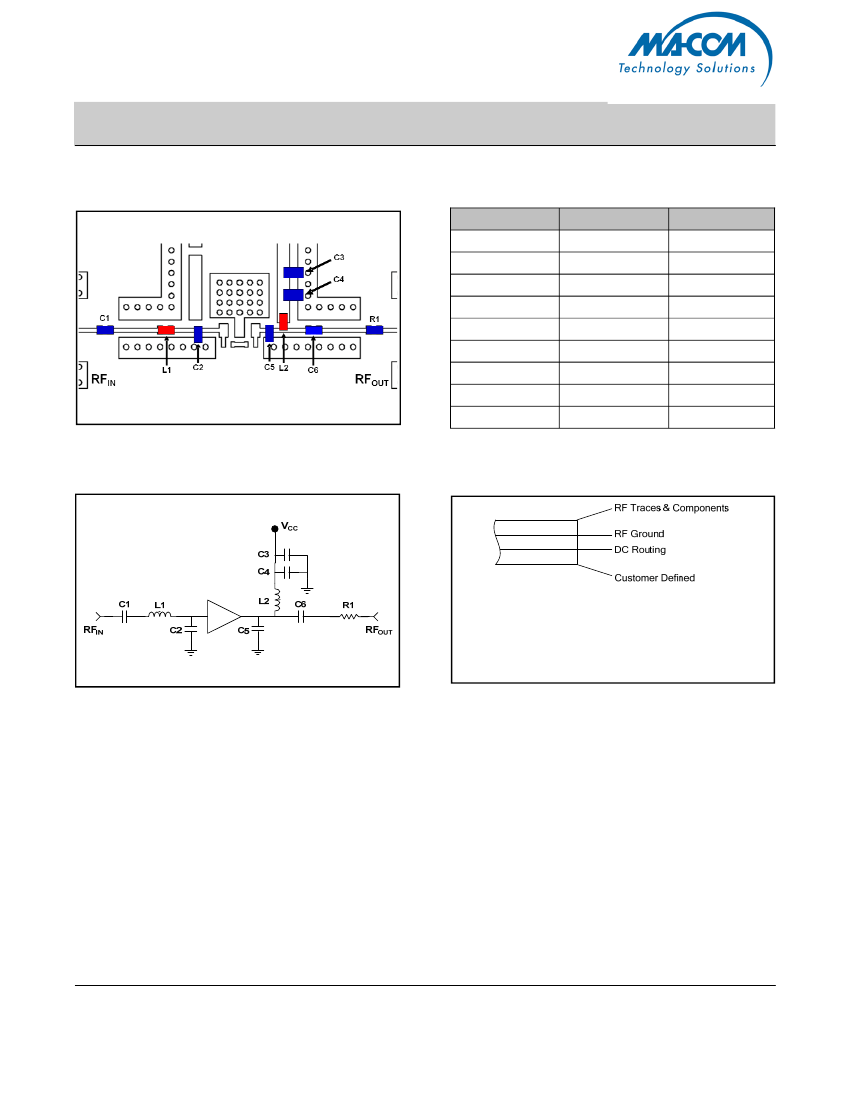

2140 MHz PCB Layout
2140 MHz Parts List
Part
C1
C2
C3
C4
C5
C6
L1
L2
R1
Value
39 pF
2.2 pF
0.1 µF
1000 pF
3 pF
39 pF
6.8 nH
8.2 nH
0
Ω
Case Style
0402
0402
0402
0402
0402
0402
0402
0402
0402
Rev. V1
2140 MHz Application Schematic
Cross Section View
The PCB dielectric between RF traces and RF ground layers
should be chosen to reduce RF discontinuities between 50
Ω
lines and package pins. M/A-COM Technologies Solutions
recommends an FR-4 dielectric thickness of 0.008” (0.20
mm) yielding a 50
Ω
line width of 0.015” (0.38 mm). The
recommended RF metalization is 1 ounce copper.
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAM-010617
RF Driver Amplifier
30 - 4000 MHz

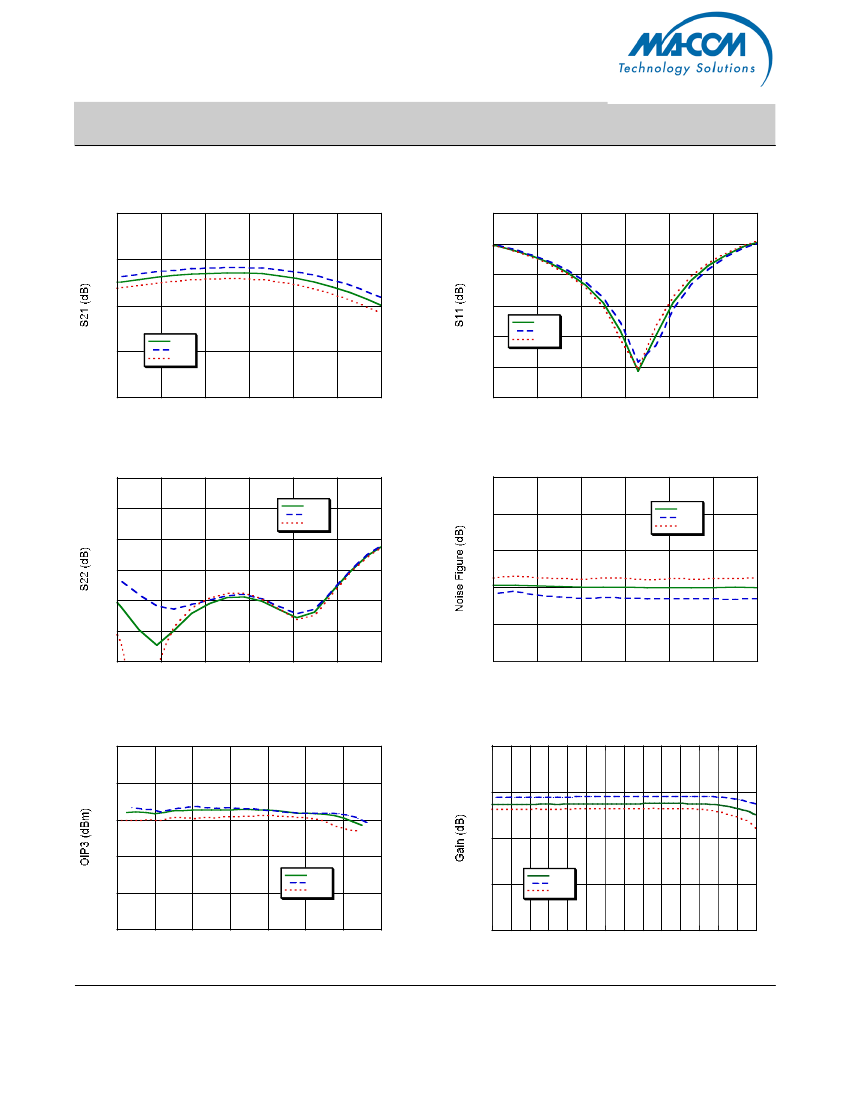

Typical Performance Curves
Gain
20
Rev. V1
Input Return Loss
0
-5
15
-10
10
-15
-20
-25
-30
2.00
+25 C
-40 C
+85 C
5
+25 C
-40 C
+85 C
0
2.00
2.05
2.10
2.15
2.20
2.25
2.30
2.05
2.10
2.15
2.20
2.25
2.30
Frequency (GHz)
Frequency (GHz)
Output Return Loss
0
-5
-10
+25 C
-40 C
+85 C
Noise Figure
10
+25 C
-40 C
+85 C
8
6
-15
4
-20
-25
-30
2.00
2
2.05
2.10
2.15
2.20
2.25
2.30
0
2.11
2.12
2.13
2.14
2.15
2.16
2.17
Frequency (GHz)
Frequency (GHz)
Output IP3
60
P1dB
20
50
15
40
10
30
+25 C
-40 C
+85 C
20
5
+25 C
-40 C
+85 C
10
0
4
8
12
16
20
24
28
0
4
6
8
10 12 14 16 18 20 22 24 26 28 30 32
Output Power /Tone (dBm)
Output Power (dBm)
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAAM-010617
RF Driver Amplifier
30 - 4000 MHz
Typical Performance Curves
Current
700
Rev. V1
Handling Procedures
600
+25 C
-40 C
+85 C
Please observe the following precautions to avoid
damage:
500
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
HBM Class 2 devices.
4
8
12
16
20
24
28
32
400
300
Output Power (dBm)
Lead Free

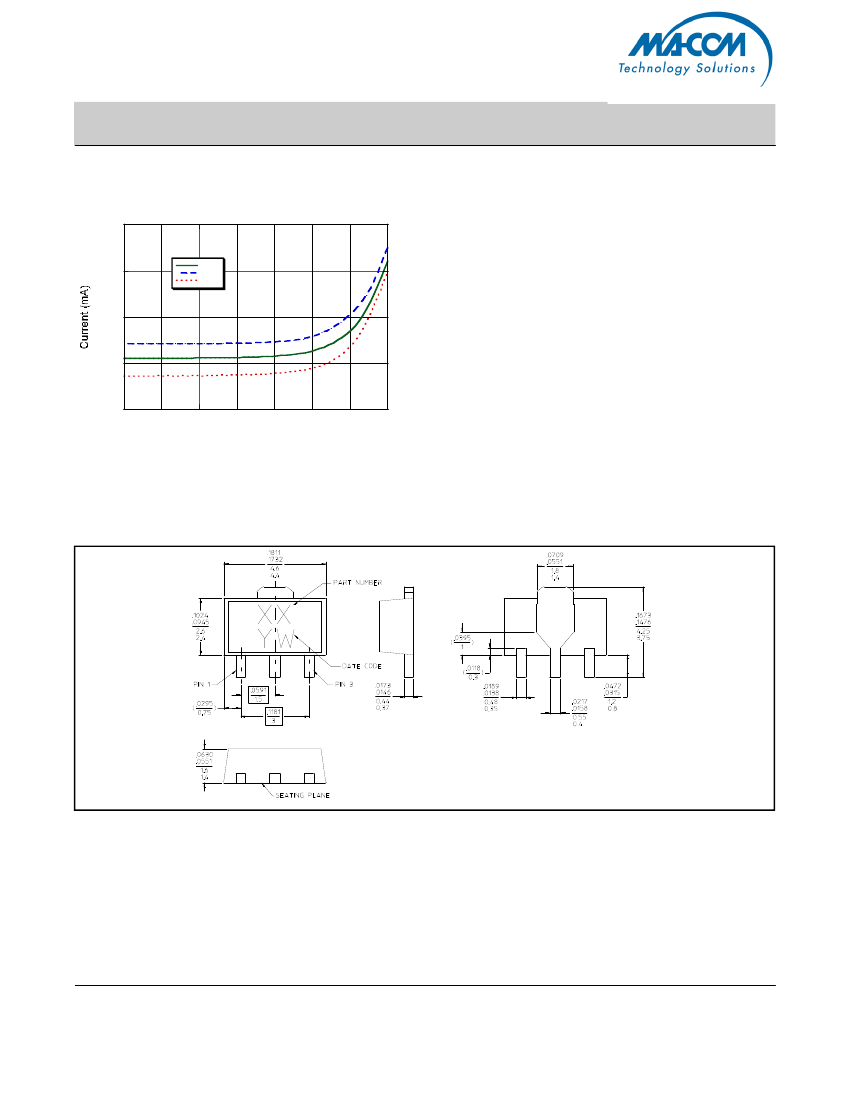

SOT-89 Plastic Package
†
NOTES
1. REFERENCE EIAJ SC-62 FOR ADDITIONAL DIMENSIONAL AND TOLERANCE INFORMATION.
2. REFERENCE M538 FOR PCB FOOTPRINT INFORMATION.
3. ALL DIMENTIONS SHOWN AS INCHS/MM.
†
Reference Application Note M538 for lead-free solder reflow recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
Plating is 100% matte tin over copper.
5
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
