54S253/BEA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54S253/BEA

54S253/BEA: DescriptionMultiplexer, 2-Func, 4 Line Input, TTL, CDIP16; Categorylogic logic; File Size274KB，6 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

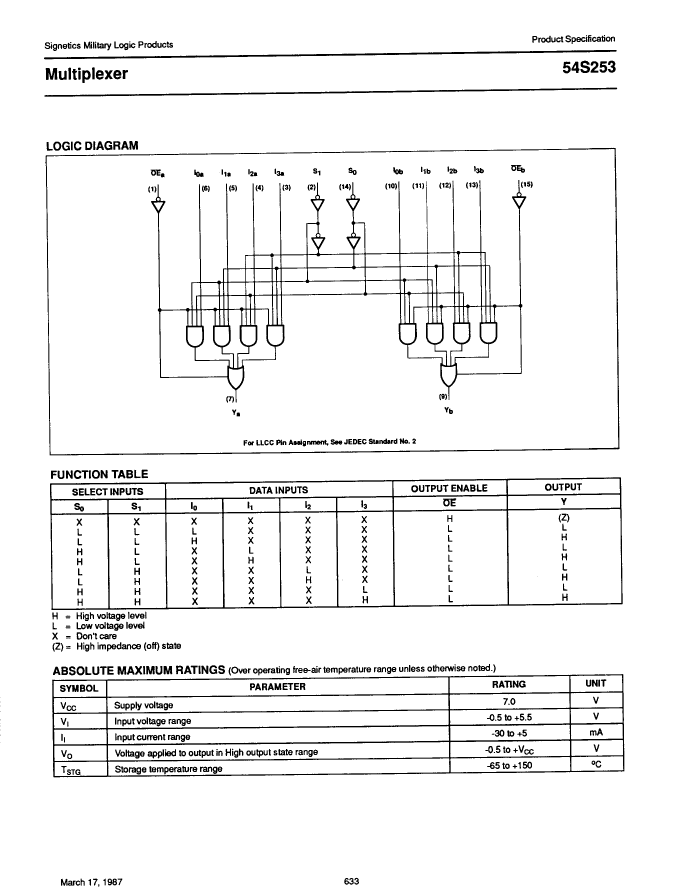

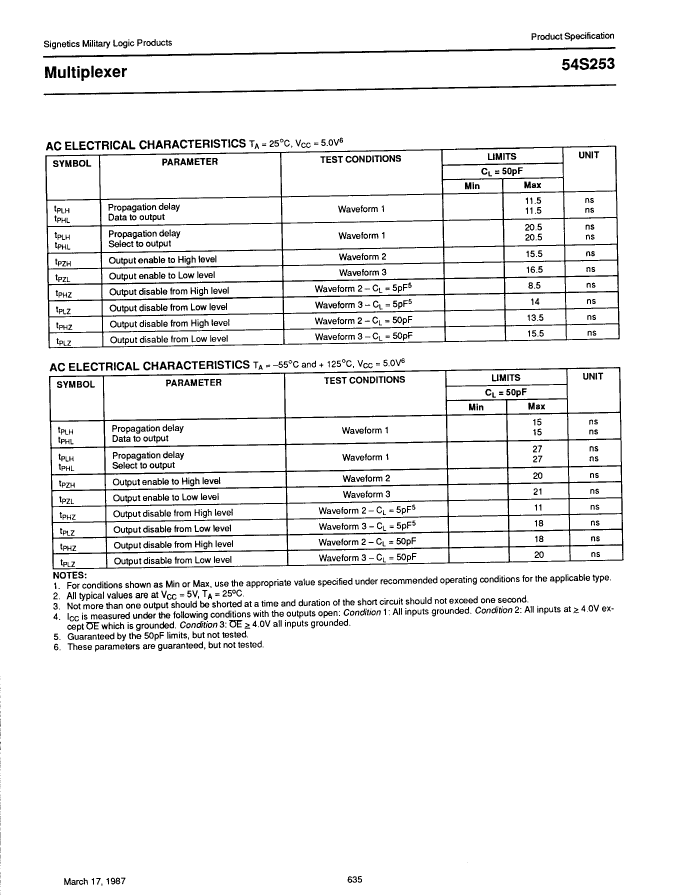

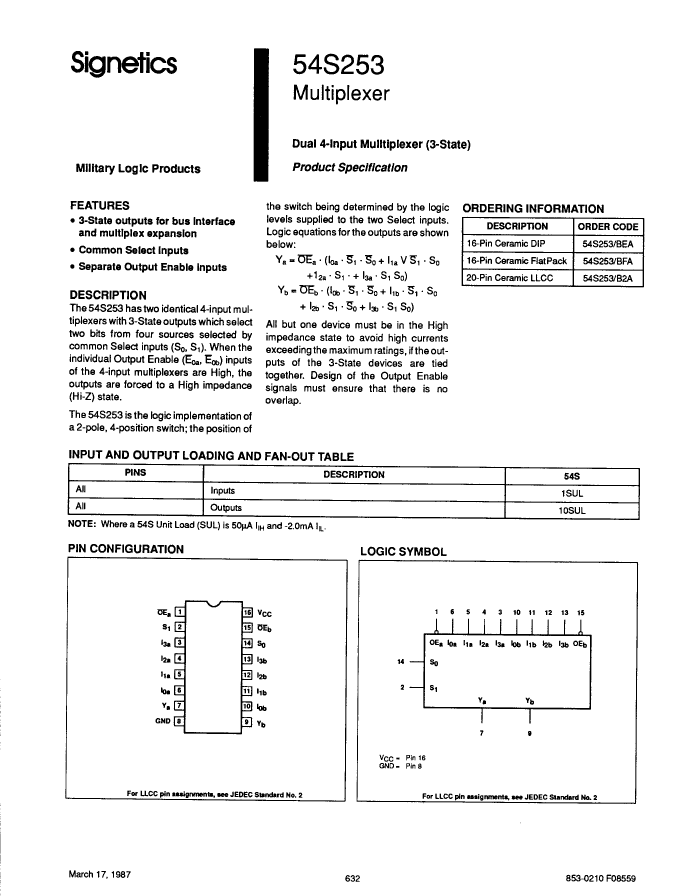

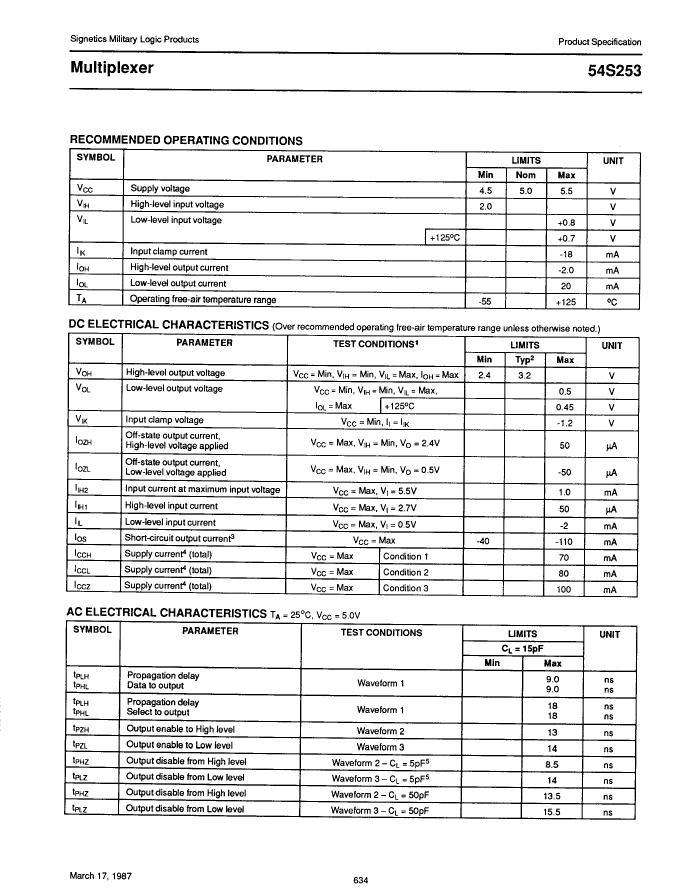

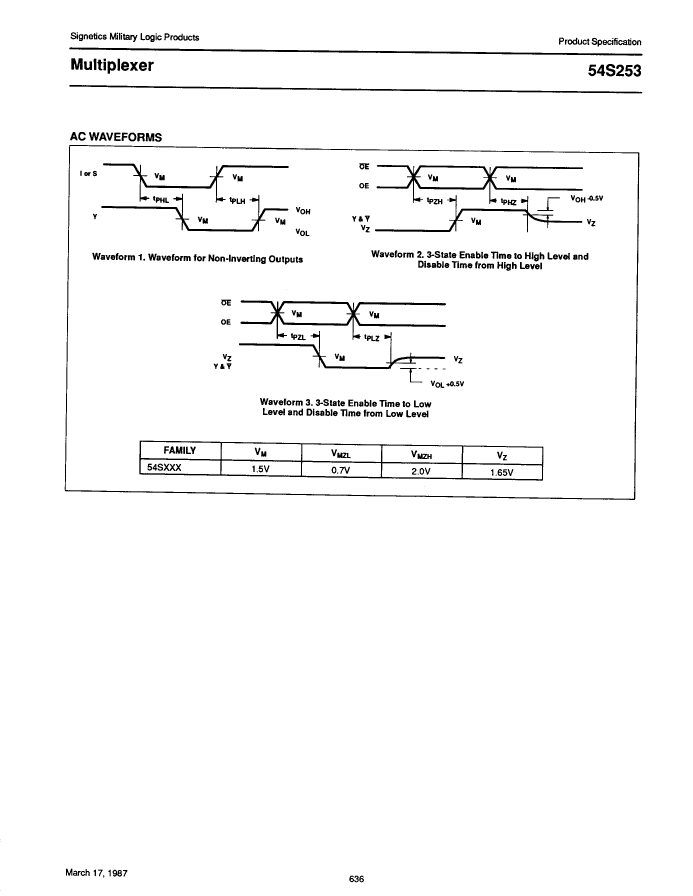

54S253/BEA Overview

Multiplexer, 2-Func, 4 Line Input, TTL, CDIP16

54S253/BEA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.02 A
Number of functions	2
Number of entries	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	100 mA
Prop。Delay @ Nom-Sup	18 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

54S253/BEA Related Products

	54S253/BEA	54S253/B2A	S54S253W/883B	S54S253F/883B	N74S253D	N74S253N
Description	Multiplexer, 2-Func, 4 Line Input, TTL, CDIP16	Multiplexer, 2-Func, 4 Line Input, TTL, CQCC20	Multiplexer, 2-Func, 4 Line Input, TTL, CDFP16	Multiplexer, 2-Func, 4 Line Input, TTL, CDIP16	Multiplexer, 2-Func, 4 Line Input, TTL, PDSO16	Multiplexer, 2-Func, 4 Line Input, TTL, PDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP16,.3	QCCN, LCC20,.35SQ	DFP, FL16,.3	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T16	S-XQCC-N20	R-XDFP-F16	R-XDIP-T16	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	2	2	2	2	2	2
Number of entries	4	4	4	4	4	4
Number of terminals	16	20	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCN	DFP	DIP	SOP	DIP
Encapsulate equivalent code	DIP16,.3	LCC20,.35SQ	FL16,.3	DIP16,.3	SOP16,.25	DIP16,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK	IN-LINE	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL
MaximumI(ol)	0.02 A	0.02 A	-	-	0.02 A	0.02 A
Maximum supply current (ICC)	100 mA	100 mA	-	-	70 mA	70 mA
Prop。Delay @ Nom-Sup	18 ns	18 ns	-	-	18 ns	18 ns
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	-	-
