MBM100480-15CZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MBM100480-15CZ

MBM100480-15CZ: Description16KX1 STANDARD SRAM, 15ns, CDIP20, CERDIP-20; Categorystorage storage; File Size231KB，11 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MBM100480-15CZ Overview

16KX1 STANDARD SRAM, 15ns, CDIP20, CERDIP-20

MBM100480-15CZ Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	15 ns
JESD-30 code	R-GDIP-T20
length	24.64 mm
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	1
Negative supply voltage rating	-4.5 V
Number of functions	1
Number of ports	1
Number of terminals	20
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature
organize	16KX1
Output characteristics	OPEN-EMITTER
Exportable	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.08 mm
surface mount	NO
technology	TTL
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

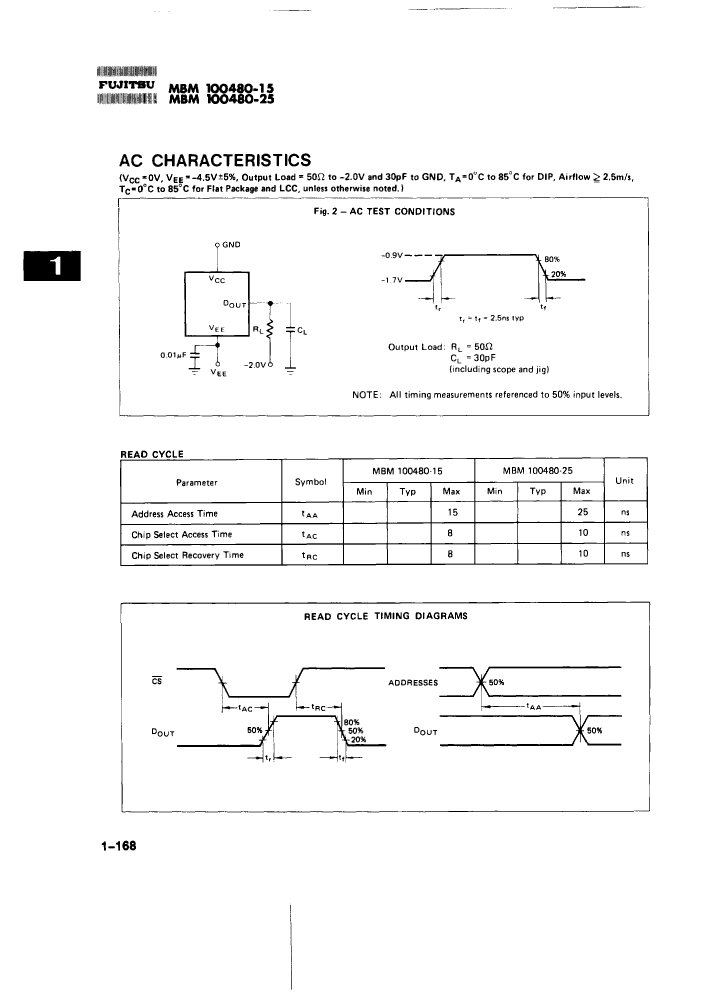

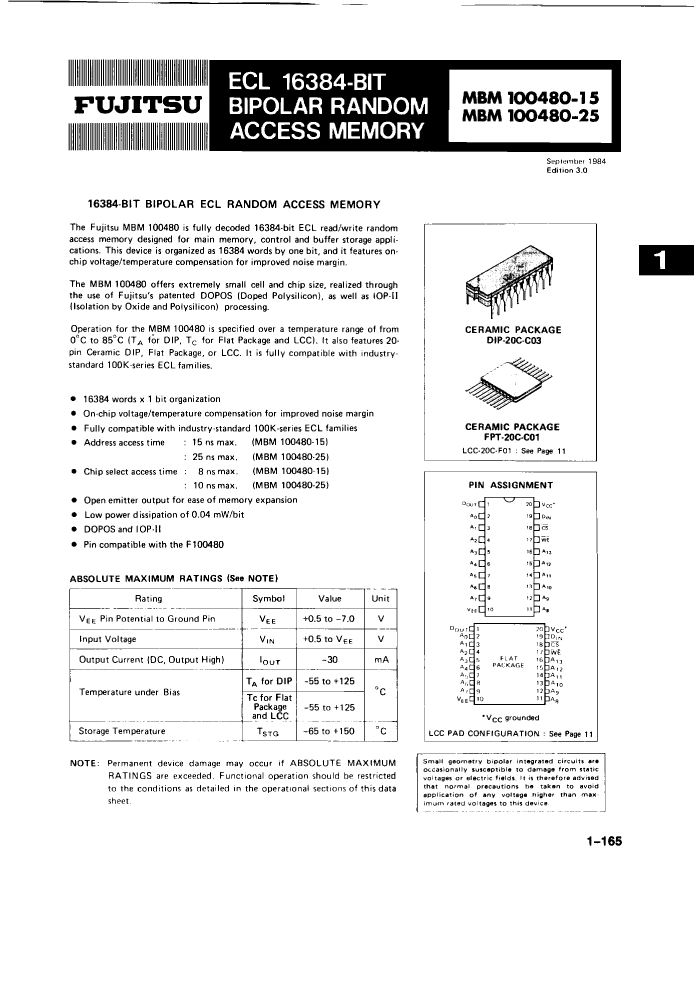

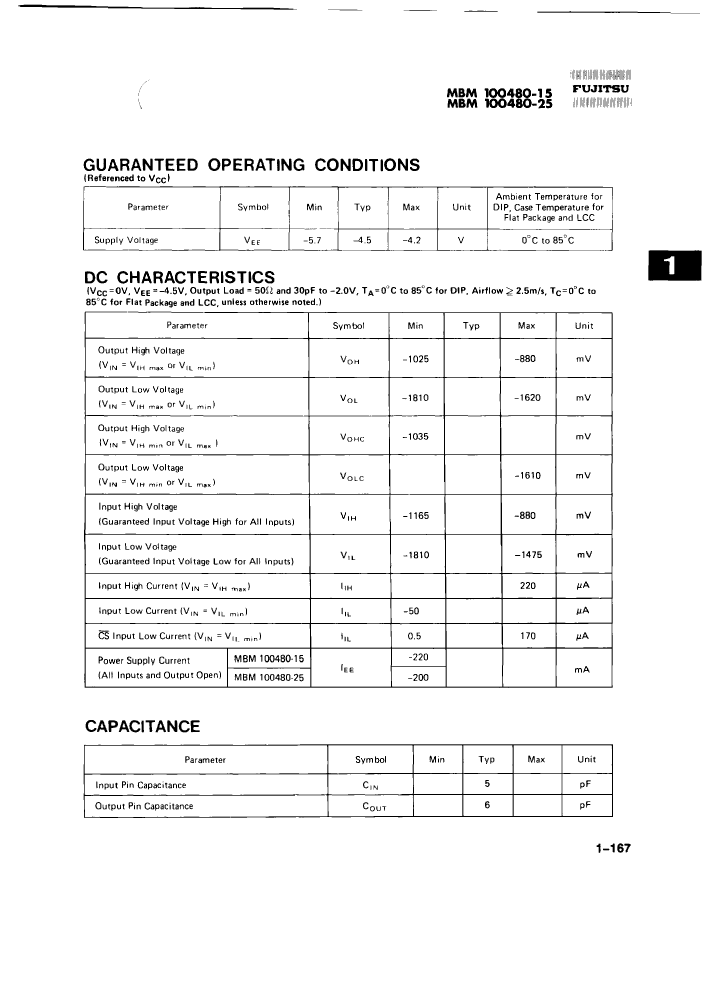

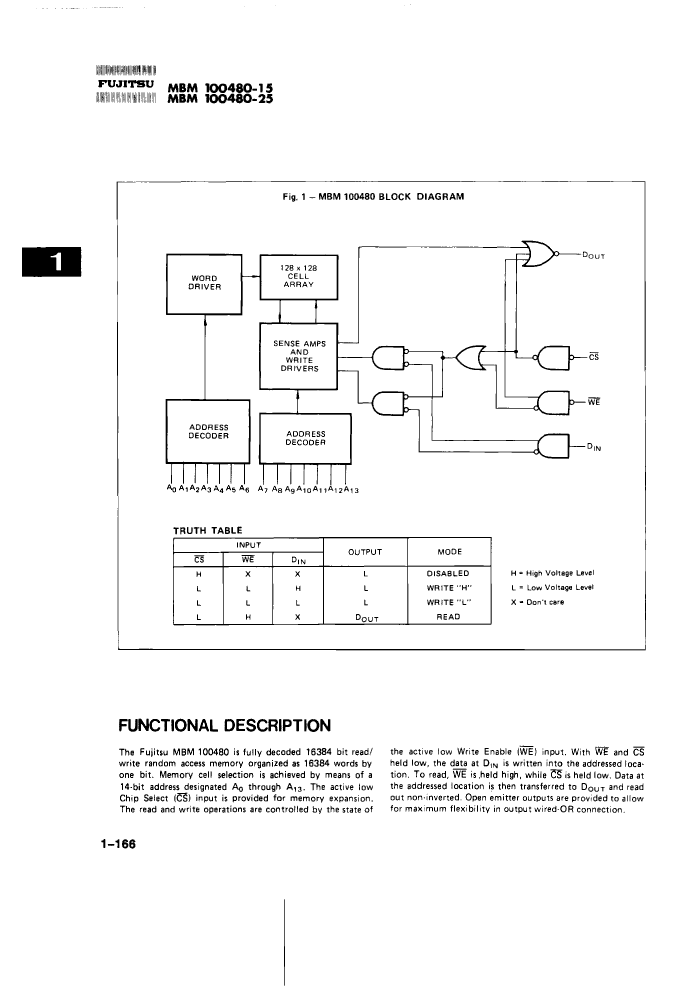

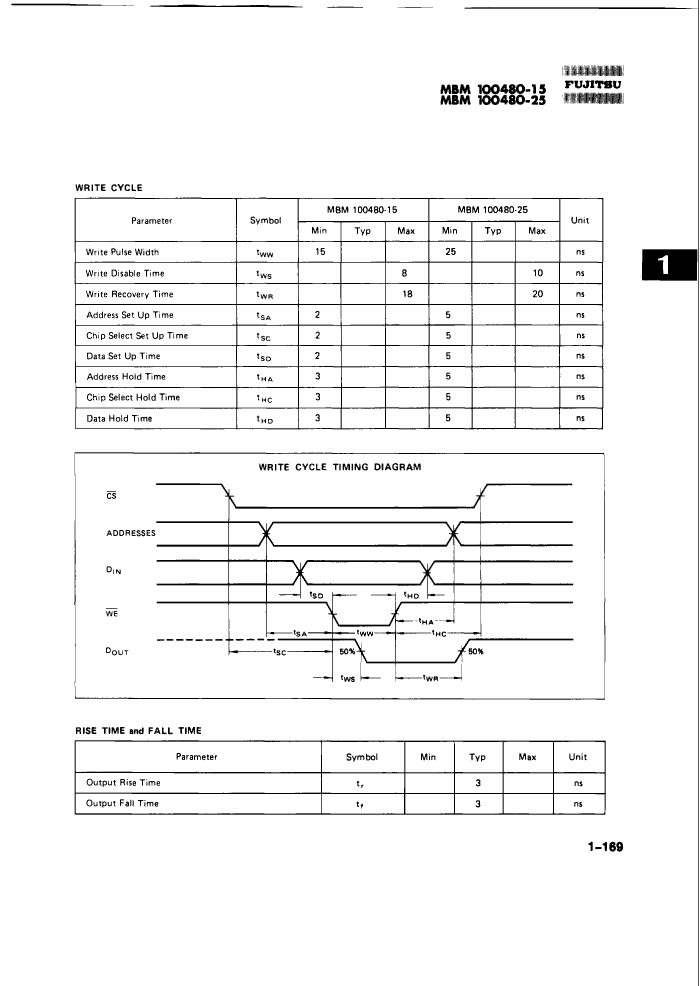

Preview

Download Datasheet

View All

MBM100480-15CZ Related Products

	MBM100480-15CZ	MBM100480-25ZF	MBM100480-15CV	MBM100480-25CV	MBM100480-25CZ	MBM100480-15ZF
Description	16KX1 STANDARD SRAM, 15ns, CDIP20, CERDIP-20	Standard SRAM, 16KX1, 25ns, ECL100K, CDFP20	Standard SRAM, 16KX1, 15ns, ECL100K, CQCC20	Memory IC	16KX1 STANDARD SRAM, 25ns, CDIP20, CERDIP-20	Standard SRAM, 16KX1, 15ns, ECL100K, CDFP20
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU
Parts packaging code	DIP	DFP	QLCC	QLCC	DIP	DFP
package instruction	DIP,	DFP, FL20,.3	QCCN, LCC20,.3X.43	,	DIP,	DFP, FL20,.3
Contacts	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	compliant	unknown	unknown
Maximum access time	15 ns	25 ns	15 ns	-	25 ns	15 ns
JESD-30 code	R-GDIP-T20	R-XDFP-F20	R-XQCC-N20	-	R-GDIP-T20	R-XDFP-F20
memory density	16384 bit	16384 bit	16384 bit	-	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	-	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1	-	1	1
Negative supply voltage rating	-4.5 V	-4.5 V	-4.5 V	-	-4.5 V	-4.5 V
Number of terminals	20	20	20	-	20	20
word count	16384 words	16384 words	16384 words	-	16384 words	16384 words
character code	16000	16000	16000	-	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	85 °C
organize	16KX1	16KX1	16KX1	-	16KX1	16KX1
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	-	OPEN-EMITTER	OPEN-EMITTER
Package body material	CERAMIC, GLASS-SEALED	CERAMIC	CERAMIC	-	CERAMIC, GLASS-SEALED	CERAMIC
encapsulated code	DIP	DFP	QCCN	-	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	CHIP CARRIER	-	IN-LINE	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	-	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
surface mount	NO	YES	YES	-	NO	YES
technology	TTL	ECL100K	ECL100K	-	TTL	ECL100K
Temperature level	OTHER	OTHER	OTHER	-	OTHER	OTHER
Terminal form	THROUGH-HOLE	FLAT	NO LEAD	-	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	-	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	-	DUAL	DUAL
