P14RG-xxxxE/Z4:1LF
PMBW-SERIES
Rev.04-2009
3 Watt
4:1
Ultra Wide Input
Reg. Single and Dual
Output
1.5 kV
DC I/O Isolation
SIP9
case
On/Off Control
Contin. Short Circuit Protection
Input Specifications
Voltage Range
Input Filter
Input Reflected Ripple Current¹
Start-up Time
Output Specifications
Voltage Accuracy
Short Circuit Protection
Line Regulation
Load Regulation
(0% - 100%)
Cross Regulation
(Dual Output)
Ripple and Noise
(20Mhz bandwidth)
Temperature Coefficient
Transient Recovery Time
3
Transient Response Deviation
3
General Specifications
I/O Isolation Voltage
(3 sec.)
I/O Isolation Capacity
I/O Isolation Resistance
Switching Frequency
Humidity
Reliability Calculated MTBF
(MIL-HDBK-217F)
Physical Specifications
Case Material
Potting Material
Weight
Environment Specifications
Operating Temperature
Maximum Case Temperature
Storage Temperature
Cooling
RoHS Conform
Mainzer Straße 151–153
D-55299 Nackenheim
Tel. +49 6135 7026-0
Fax: +49 6135 931070
www.peak-electronics.de
peak@peak-electronics.de
The PMBW 3Watt series is a family of cost effective DCDC converters with
4:1 ultra wide input, 3W single and dual output DC/DC converters with
control Pin. These converters are encapsulated in an ultra miniature SIP9
plastic case. High performance features: continuous / long time short circuit
protection with automatic restart and tight line / load regulation, high
efficiency operation and output voltage accuracy of ±2% maximum.
All specifications typical at Ta=25° nominal input voltage and full load unless otherwise specified
C,
4:1 Ultra Wide Input
(see table)
Capacitor
20 mA pk-pk
10 mS, typ.
± 1%
Indefinite
(hiccup, Automatic Recovery)
± 0.5%
± 0.5%, max.
(<10% load: ±1% for 3.3Vout and 5Vout)
± 5%
50 mV pk-pk
± 0.02% / °
C
300 us, typ.
± 3%, max.
1500 VDC
500 pF, max.
1000 M Ohm
250 kHz
95% rel H
> 1.212 Mhrs
Non Conductive Black Plastic
(UL94V-0 rated)
Epoxy
(UL94V-0 rated)
~ 6.5 g, typ.
-40 to +75°
(ambient)
C
100°
C
-40 to +125°
C
Free Air Convection
(10mm distance required)
Soldering 260° max.
(1.5mm from case 10s.)
C,
PMBW-Series – P14RG-xxxxE/Z4:1LF – Single / Dual Output – SIP9 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 1/4
Selection Guide
Single/Dual
Output
A)
)
)
m A)
d (m
ad (
(mA ad (mA
a
o
C)
)
o
oad
ll L o
n. L
uF)²
(VD
VDC nt No L nt Full L
t Mi
t Fu
(
)
n
n
ad (
ge
e
a
re
re
y (% citor Lo
rre
rre
ltag
V o lt
Cur
Cur
ienc
t Vo
t Cu put Cu
a
put
put
put
In p u
In p u
In
O ut
O ut
O ut
E ffic
Cap
Order #
SINGLE OUTPUT
P14RG-243R3E4:1LF
P14RG-2405E4:1LF
P14RG-2412E4:1LF
P14RG-2415E4:1LF
P14RG-483R3E4:1LF
P14RG-4805E4:1LF
P14RG-4812E4:1LF
P14RG-4815E4:1LF
9-36
9-36
9-36
9-36
18-72
18-72
18-72
18-72
10
10
10
10
5
5
5
5
125
153
149
148
65
78
75
75
3.3
5
12
15
3.3
5
12
15
0
0
0
0
0
0
0
0
700
600
250
200
700
600
250
200
77
82
84
85
75
81
84
84
2200
1000
165
100
2200
1000
165
100
Order #
A)
)
m A)
d (m
m A ) a d (m A
(
ad (
oa
d
o
Lo
DC)
C)
in . L
Loa
ull L
uF)²
(VD
Ful l
No
e (V
)
nt M
nt F
ad (
t
t
g
e
urre
urre
o lta
rre n
y (% citor Lo
rre n
ltag
ut C
ut C
ut V
ienc
t Vo
t Cu put Cu
a
p
p
p
In p u
In p u
In
O ut
O ut
O ut
E ffic
Cap
DUAL OUTPUT
P14RG-2405Z4:1LF
P14RG-2412Z4:1LF
P14RG-2415Z4:1LF
P14RG-4805Z4:1LF
P14RG-4812Z4:1LF
P14RG-4815Z4:1LF
9-36
9-36
9-36
18-72
18-72
18-72
10
10
10
5
5
5
155
149
149
78
75
76
±5
± 12
± 15
±5
± 12
± 15
0
0
0
0
0
0
± 300
± 125
± 100
± 300
± 125
± 100
81
84
84
81
84
83
± 470
± 100
± 47
± 470
± 100
± 47
If you need other specifications, please enquire.
PMBW-Series – P14RG-xxxxE/Z4:1LF – Single / Dual Output – SIP9 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 2/4

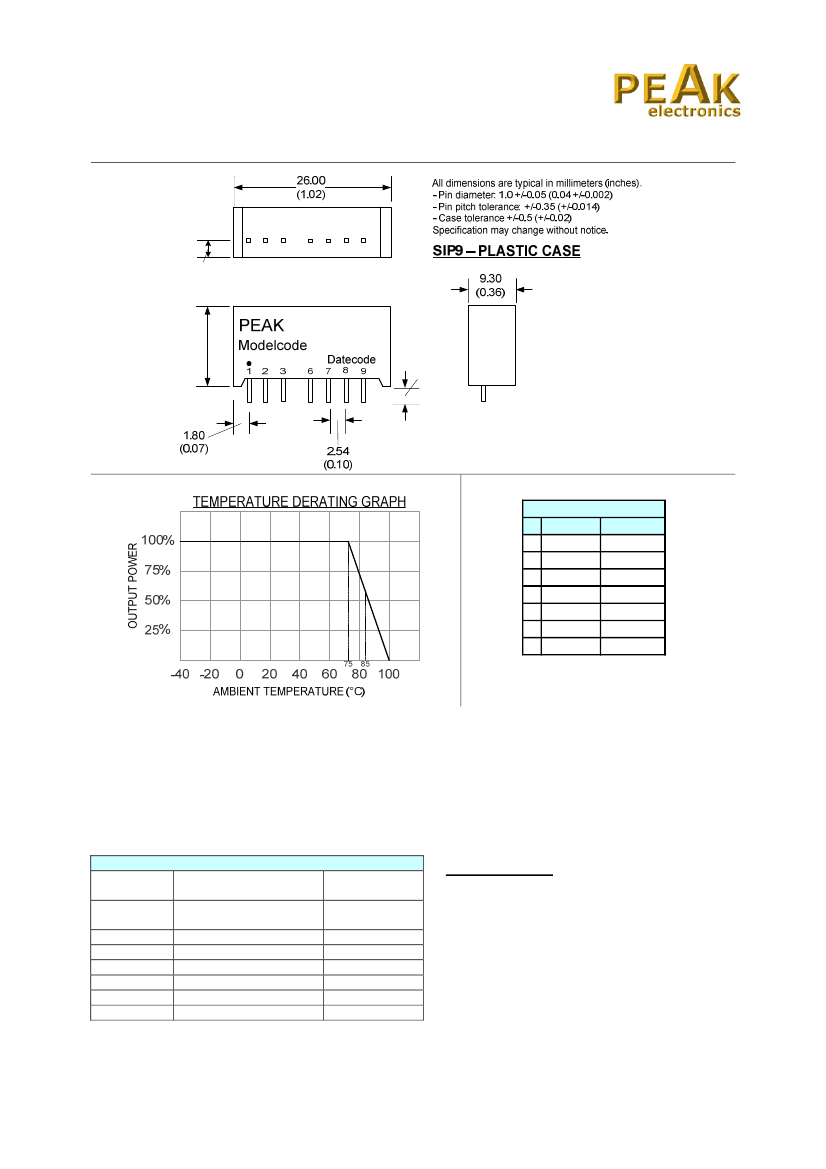

Package / Pinning / Derating
12.50
(0.49)
2.90
(0.11)
4.00
(0.16)
PIN CONNECTIONS
# SINGLE DUAL
1 - Vin
- Vin
2 +Vin
+Vin
3 Ctrl.
Ctrl.
6 +Vout
+Vout
7 N.C.
Common
8 N.C.
N.C.
9 - Vout
- Vout
App Notes:
1
2
=
Measured Input reflected ripple current with a simulated source inductance of 12uH
=
Tested by nominal Vin and constant resistive load.
3
= Test by normal Vin and 100%-25% load,25% Ioad step change; If Vout is 3.3V then the Transient Response Deviation is ±5%.
4
= Input filter components are required to help meet conducted emission class A
5
=
An external filter capacitor is required to meet EN61000-4-4 and EN61000-4-5. (e.g. Nippon-chemi-con KY series, 220uF/100V)
EMC SPECIFICATIONS
Conducted
4
Emissions
Radiated
Emissions
ESD
RS
5
EFT
5
Surge
CS
PFMF
EN 55022
EN 55022
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
CLASS A
CLASS A
Perf. Criteria B
Perf. Criteria A
Perf. Criteria B
Perf. Criteria B
Perf. Criteria A
Perf. Criteria A
Remote ON/OFF
The MCU Pin Voltage is referenced to –Vin (Pin1)
ON:
0 – 0.6 VDC or open circuit
OFF: 2.7 - 15 VDC
OFF stand by input current: 5mA, max.
PMBW-Series – P14RG-xxxxE/Z4:1LF – Single / Dual Output – SIP9 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 3/4
App Notes

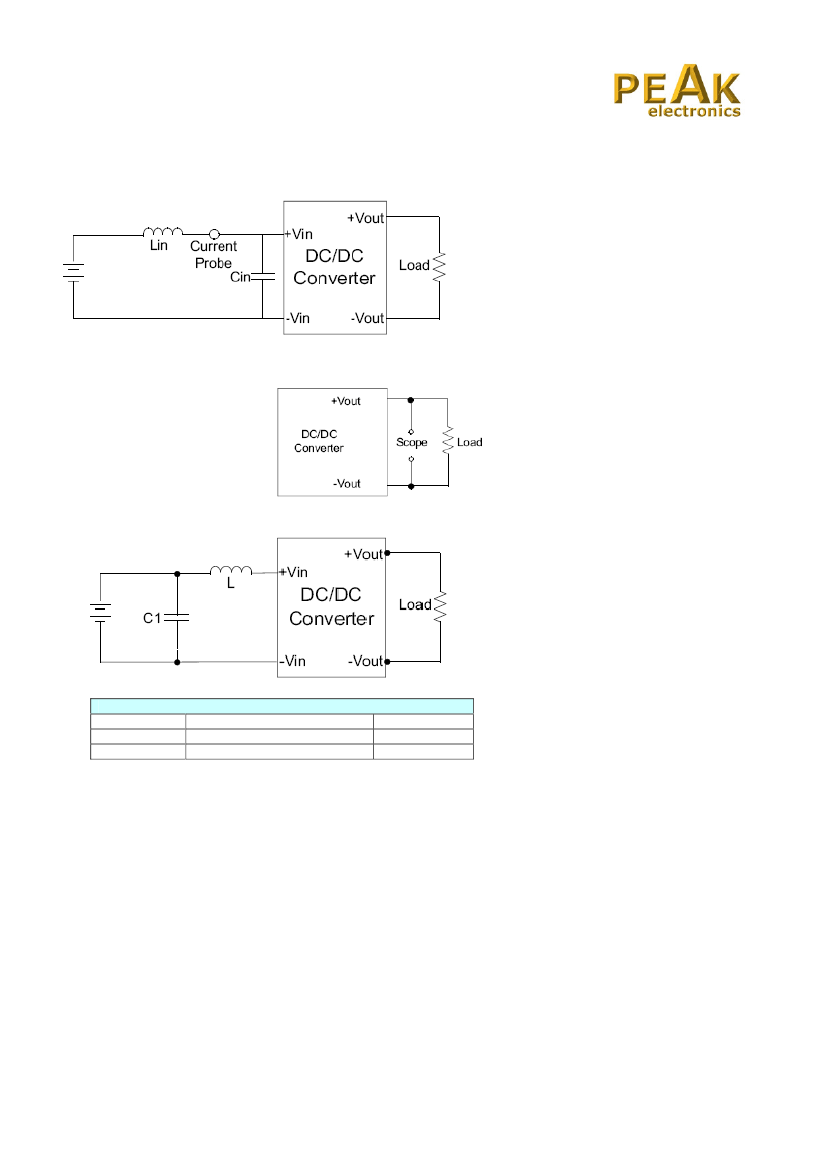

Test Configurations
Input Reflected Ripple Current
Test Step
Input reflected ripple current is measured
through a source inductor Lin(12uH) and a
source capacitor Cin(47uF, ESR<1.Ohm
at
100KHz) at nominal input and full load.
Output Ripple & Noise
Measurement Test
The Scope measurement bandwidth is
20MHz.
EMI Filter
Input filter components (C1, L) are used to
help meet conducted emissions
equirement for the module. These
components should be mounted as close
as possible to the module; and all leads
should be minimized to decrease radiated
noise.
Input Components
C1
1210, 225k/100V,X7R (2pcs)
1210,105k/100V,X7R
P14RG-24xx
P14RG-48xx
L
6.8 uH
56 uH
PMBW-Series – P14RG-xxxxE/Z4:1LF – Single / Dual Output – SIP9 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 4/4
