6048-X-333-D-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 6048-X-333-D-2

Preview

6048-X-333-D-2: DescriptionMains Power Connector, 15A, 250VAC, Male, Solder Terminal, Socket; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/

Download Datasheet Parametric View All

6048-X-333-D-2 Overview

Mains Power Connector, 15A, 250VAC, Male, Solder Terminal, Socket

6048-X-333-D-2 Parametric

Parameter Name	Attribute value
Maker	SCHURTER
Reach Compliance Code	compliant
Other features	STANDARD: IEC 60320-1; EN 60320-1; UL 94V-0; CSA; VDE
Body/casing type	SOCKET
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL/TIN
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	15A, 250VAC
Manufacturer's serial number	6048
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	PA6
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

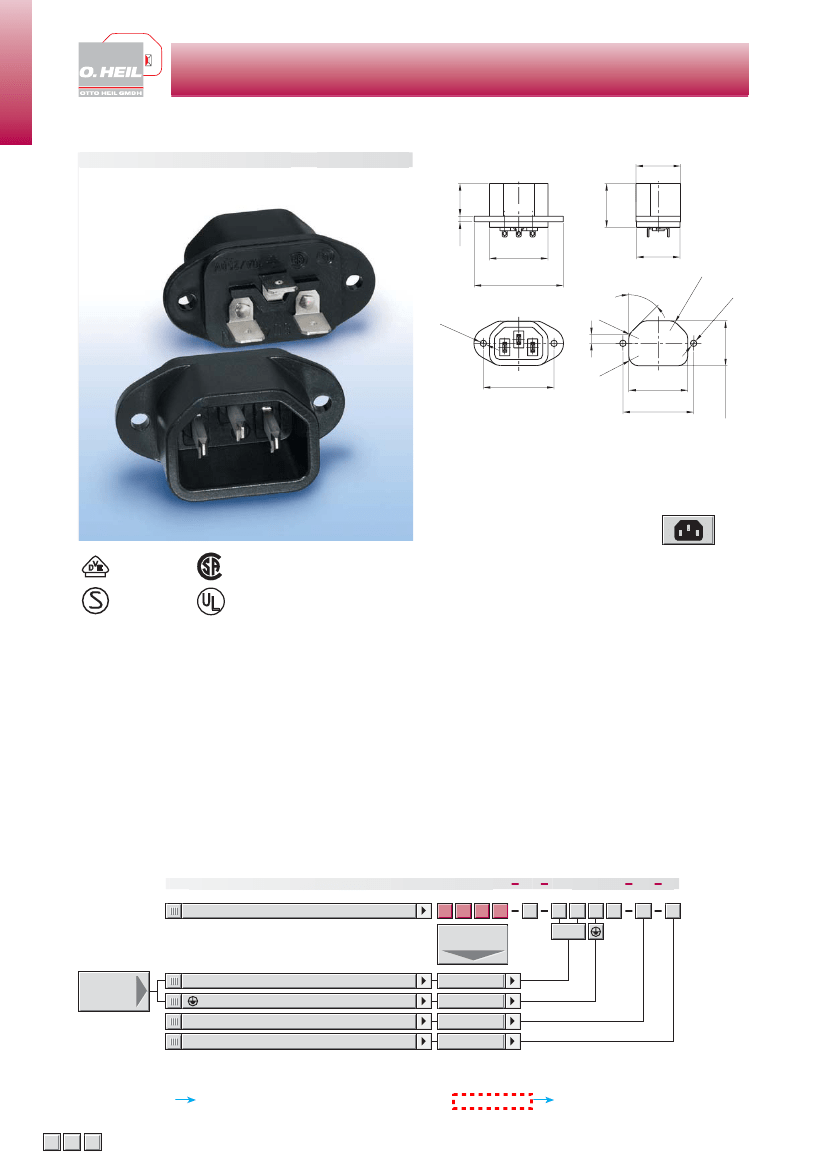

GERÄTESTECKER T 70°C

appliance inlet

No. 6048

C14

16,5

22

22.4

3

29,1

44.7

21.8

45º

R5

Ø

3

4.4

,2

35.5

Montageausbruch

panel cutout

Geräteschutzklasse I / equipment class I

IEC 60320-1 / EN 60320-1 / VDE 0625-1

10A/250Vac

15A/250Vac

socket:

Polyamide PA6 – UL94V-0

terminals:

copper alloy, tin-plated

or nickel-plated

Sockel:

Polyamid PA6 – UL94V-0

Anschlüsse:

Kupferlegierung, verzinnt

oder vernickelt

Gängiger Artikel/selling article

Artikel-Nr. /article-code

6 0 4 8

Varianten

choose from

X

2 2 2 0

0

L

N

A

2

Anschlüsse

terminals

L, N

2, 3, 7 - 9, A

Farbe/colour

Bauform/design

A, B, D

2, 7

Bitte beachten Sie unsere passenden Gegenstücke auf den Seiten 56-57

Artikelnummernsystem

Ausklappseite in unserem Katalog

please note our mating parts on pages 56-57

article code system

folding page in our cataloque

0 3 2

22.6

+0.2

0

35.5

R5

29.6

+0.2

0

3,

2

C14
