74F648L1C datasheet, PDF - EEWORLD Datasheet

74F648L1C: DescriptionRegistered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28, CERAMIC, LCC-28; Categorylogic logic; File Size85KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

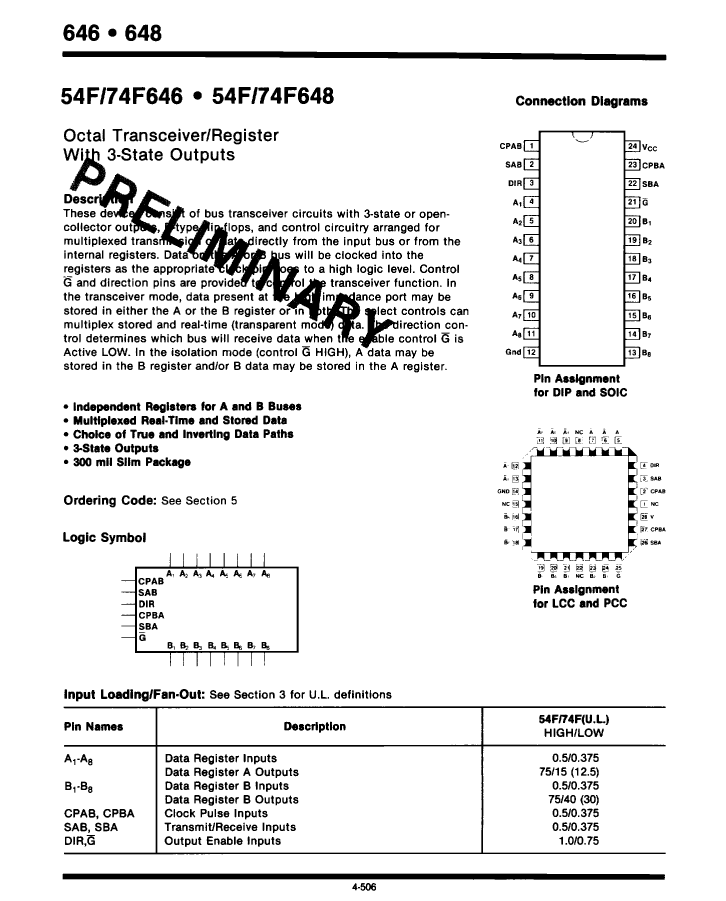

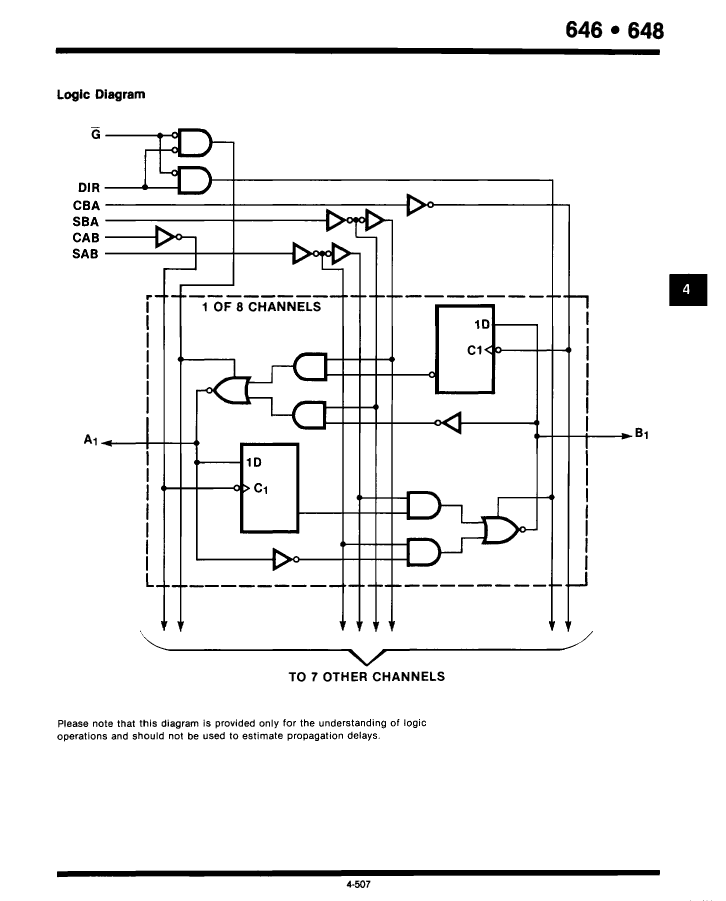

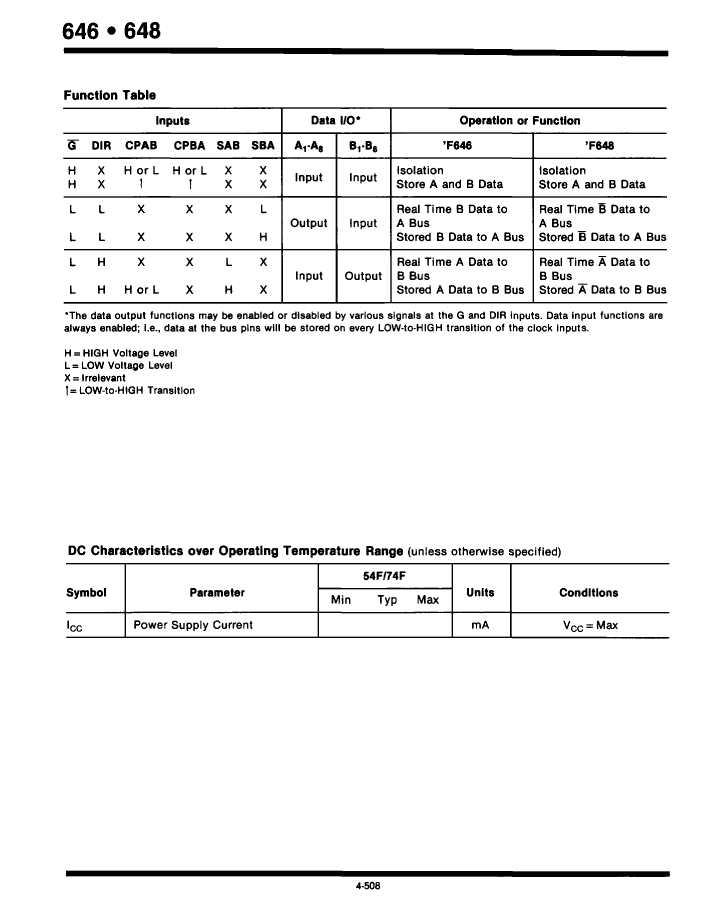

74F648L1C Overview

Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28, CERAMIC, LCC-28

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	28
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL
series	F/FAST
JESD-30 code	S-CQCC-N28
length	11.43 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER

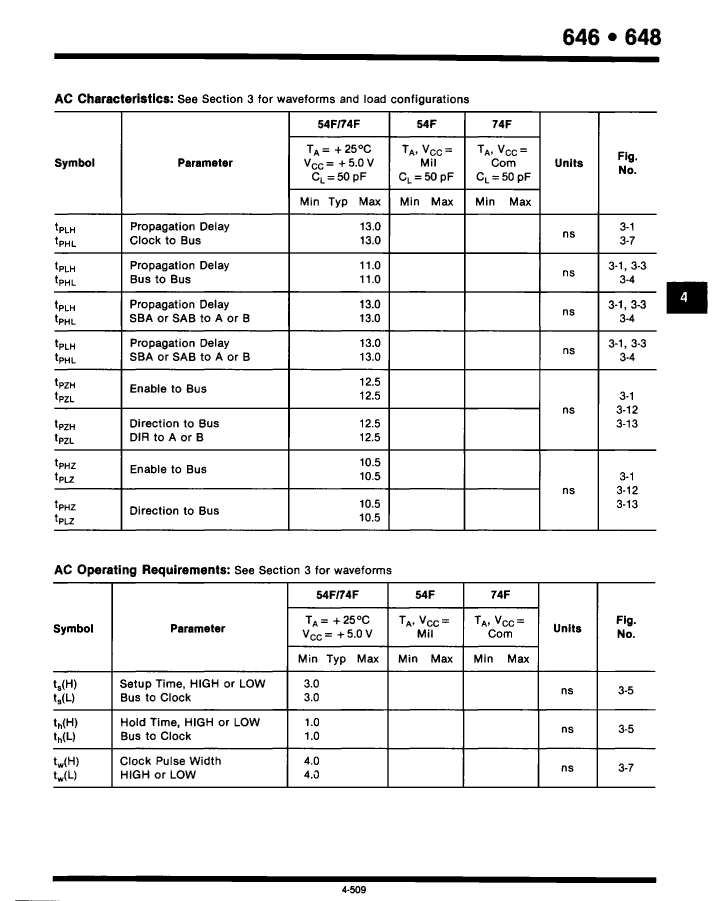

propagation delay (tpd)	13 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
