MC74F243N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC74F243N

MC74F243N: DescriptionIC,BUS TRANSCEIVER,SINGLE,4-BIT,F-TTL,DIP,14PIN,PLASTIC; Categorylogic logic; File Size180KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC74F243N Overview

IC,BUS TRANSCEIVER,SINGLE,4-BIT,F-TTL,DIP,14PIN,PLASTIC

MC74F243N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
MaximumI(ol)	0.064 A
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	90 mA
Prop。Delay @ Nom-Sup	6.5 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

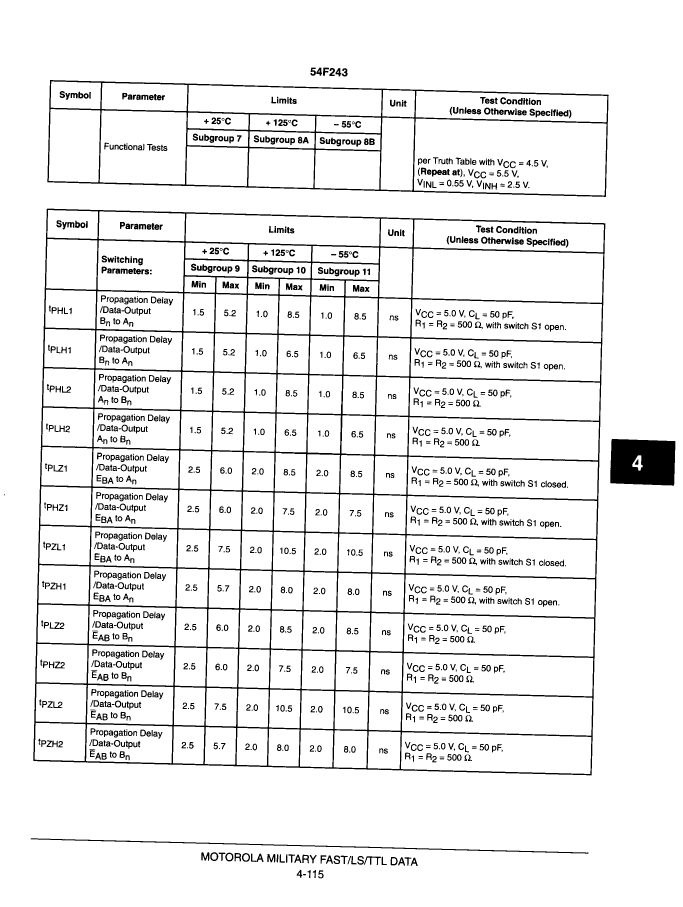

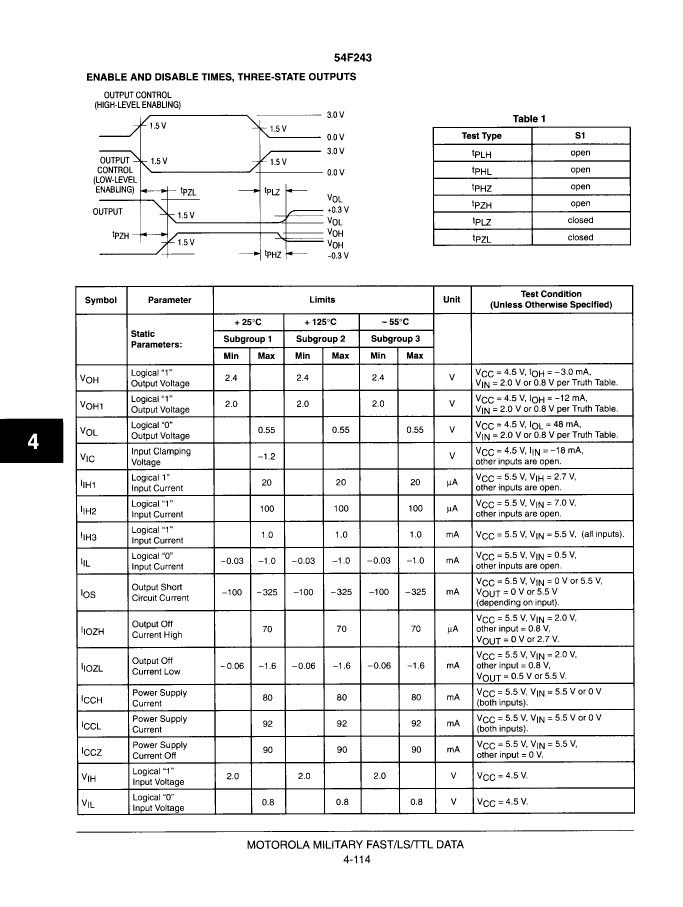

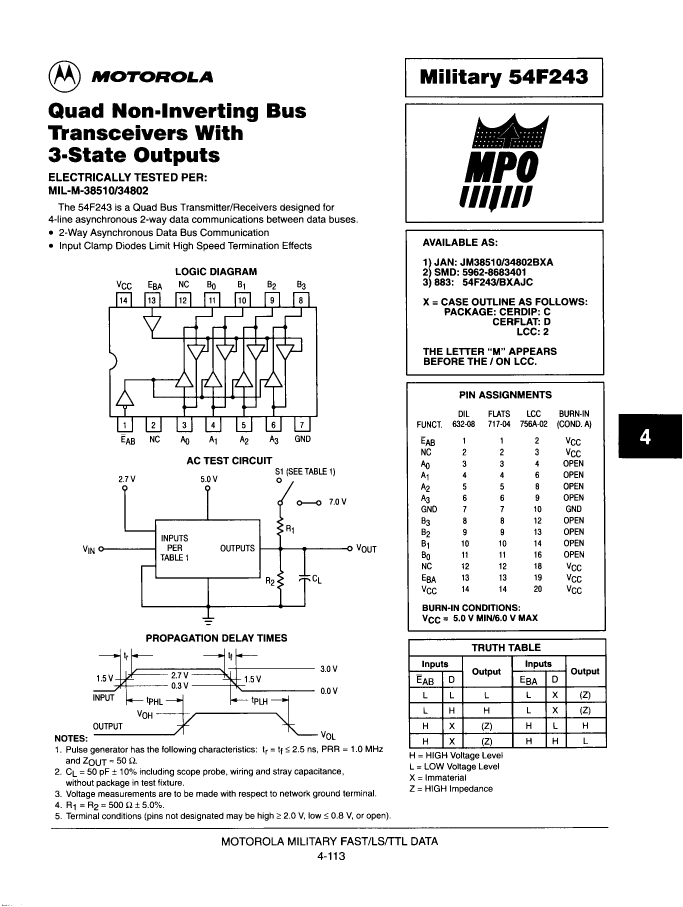

Preview

Download Datasheet

View All

MC74F243N Related Products

	MC74F243N	MC54F243J	MC74F243J	MC74F243NDS
Description	IC,BUS TRANSCEIVER,SINGLE,4-BIT,F-TTL,DIP,14PIN,PLASTIC	IC,BUS TRANSCEIVER,SINGLE,4-BIT,F-TTL,DIP,14PIN,CERAMIC	IC,BUS TRANSCEIVER,SINGLE,4-BIT,F-TTL,DIP,14PIN,CERAMIC	IC,BUS TRANSCEIVER,SINGLE,4-BIT,F-TTL,DIP,14PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP	NXP
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-PDIP-T14	R-XDIP-T14	R-XDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0
MaximumI(ol)	0.064 A	0.048 A	0.064 A	0.064 A
Number of digits	4	4	4	4
Number of functions	1	1	1	1
Number of terminals	14	14	14	14
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	90 mA	90 mA	90 mA	90 mA
Prop。Delay @ Nom-Sup	6.5 ns	8.5 ns	6.5 ns	6.5 ns
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	Not Qualified	-
