UT54ACTS365PCA datasheet, PDF - EEWORLD Datasheet

UT54ACTS365PCA: DescriptionACT SERIES, 6-BIT DRIVER, TRUE OUTPUT, CDIP16, SIDE BRAZED, DIP-16; Categorylogic logic; File Size85KB，4 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

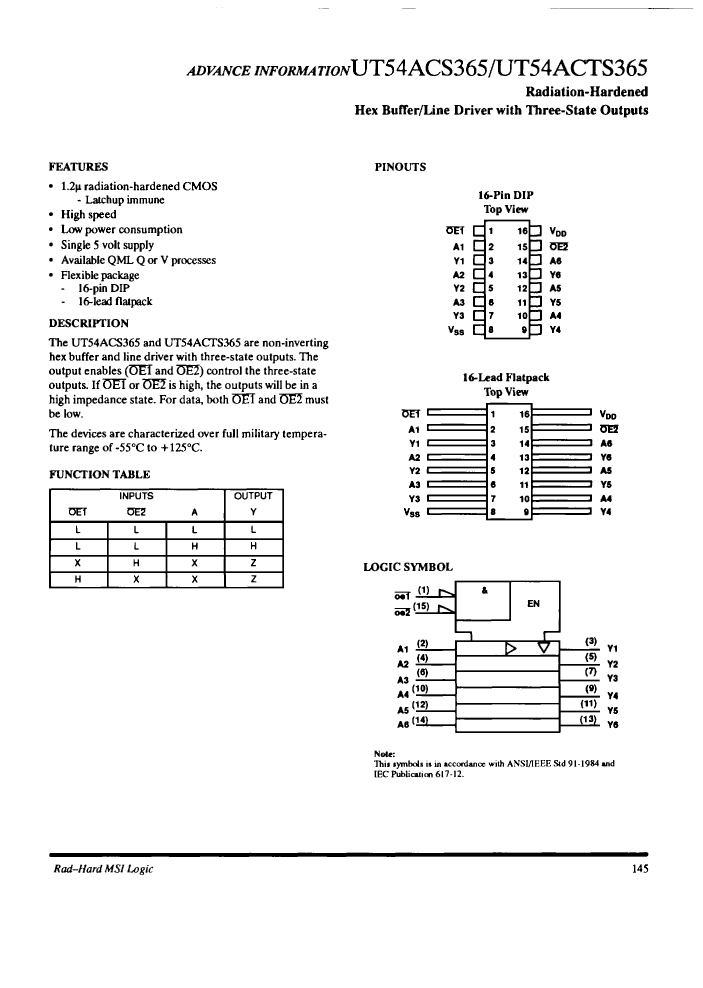

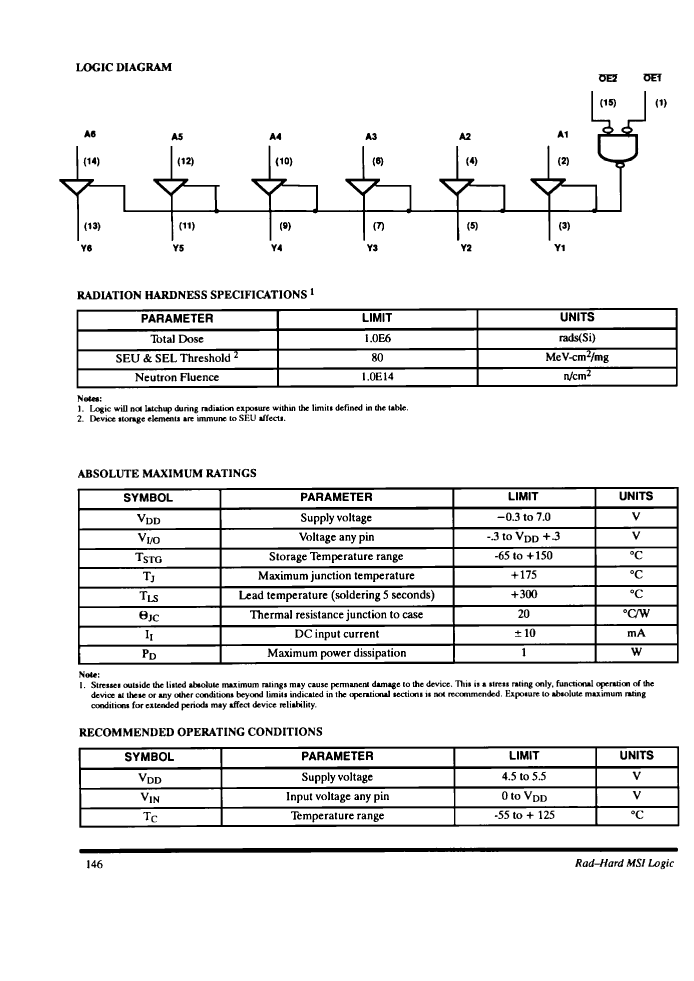

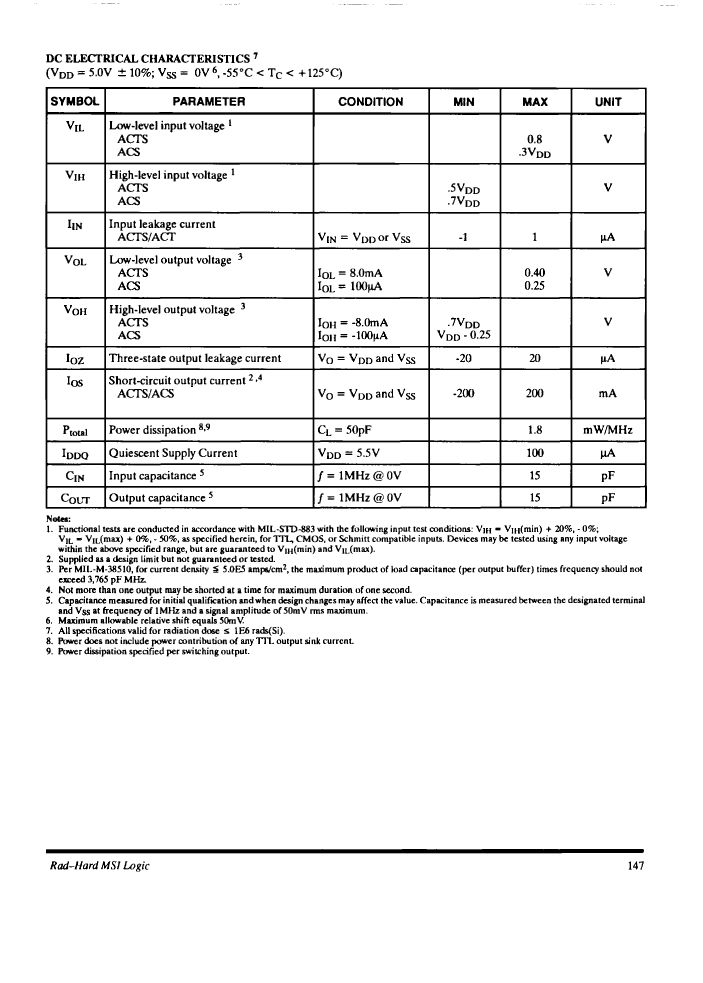

UT54ACTS365PCA Overview

ACT SERIES, 6-BIT DRIVER, TRUE OUTPUT, CDIP16, SIDE BRAZED, DIP-16

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Cobham Semiconductor Solutions
Parts packaging code	DIP
package instruction	SIDE BRAZED, DIP-16
Contacts	16
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	ACT
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
length	19.05 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	19 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
