Fuses
https://www.schurter.com /PG01_2
ASO 10.3x38
Midget Fuse, 10.3 x 38 mm, 1000 VDC, Photovoltaic, gPV
Standard
PCB version
1000 VDC · gPV
Description
-
-
-
-
-
See below:
Approvals and Compliances
Applications
-
-
-
-
-
All photovoltaic applications
Inverters
Battery charge controllers
In-line protection
String fuses
Meets the new UL and IEC photovoltaic standards
UL Recognized for 1000 VDC
High breaking capacity of 20 kA @ 1000 VDC
Low min. interrupting rating of 1.35 x In
Meets the requirements of IEC 61730-2 for PV module safety
References
Weblinks
Corresponding Fuseholder
FSO; CSO; 231660
Corresponding Cover
ESO 10.3x38
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Accessories, Detailed request for
product
Technical Data
Rated Voltage
Rated current
Breaking Capacity
Characteristic
Mounting
Admissible Ambient Air Temp.
Unit Weight
Storage Conditions
Product Marking
1000 VDC
1 - 30 A
20 kA
gPV
Insert, PCB/THT
-50 °C to 125 °C
8.3 g
0 °C to 60 °C, max. 70% r.h.
, Type, Rated current, Rated Voltage,
Breaking Capacity, Characteristic, Ap-
provals
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: ASO 10.3x38
Approval Logo
Certificates
UL Approvals
Certification Body
UL
Description
UL File Number: E345791
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Fuses
1
ASO 10.3x38
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
https://www.schurter.com /PG01_2
Fuses
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Dimension [mm]
Standard
10.3 mm
Panel cut-out for front mounting
1.0
3.6
1.5
7.1
ø 10.3
3
12.7
38
3
0.5
38.9
10
Derating Curves
80
60
Percentage of Rating [%]
40
20
0
-20
-40
-60
-80
-60
-40
-20
0
20
40
60
80
100 120 140
Ambient Temperature [°C]
Pre-Arcing Time
Rated Current In
1 A - 30 A
1.0 x In min.
60 min
1.13 x In min. 1.35 x In max. 1.45 x In max.
60 min
60 min
60 min
2.0 x In max.
4 min
2
Fuses
ASO 10.3x38
Rated Cur-
rent [A]
Mounting
Rated Vol-
tage [VDC]
Breaking
Capacity
Power Dissi-
pation 1.0 I
n
typ. [mW]
Melting I²t 20 Order Number
kA typ. [A²s]
https://www.schurter.com /PG01_2
Fuses
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/
Stock-Check-SCHURTER
1) 20 kA @ 1000 VDC, L/R < 2ms
Packaging Unit
Standard version
PCB version
Bulk (10 pcs.)
Bulk (100 pcs.)

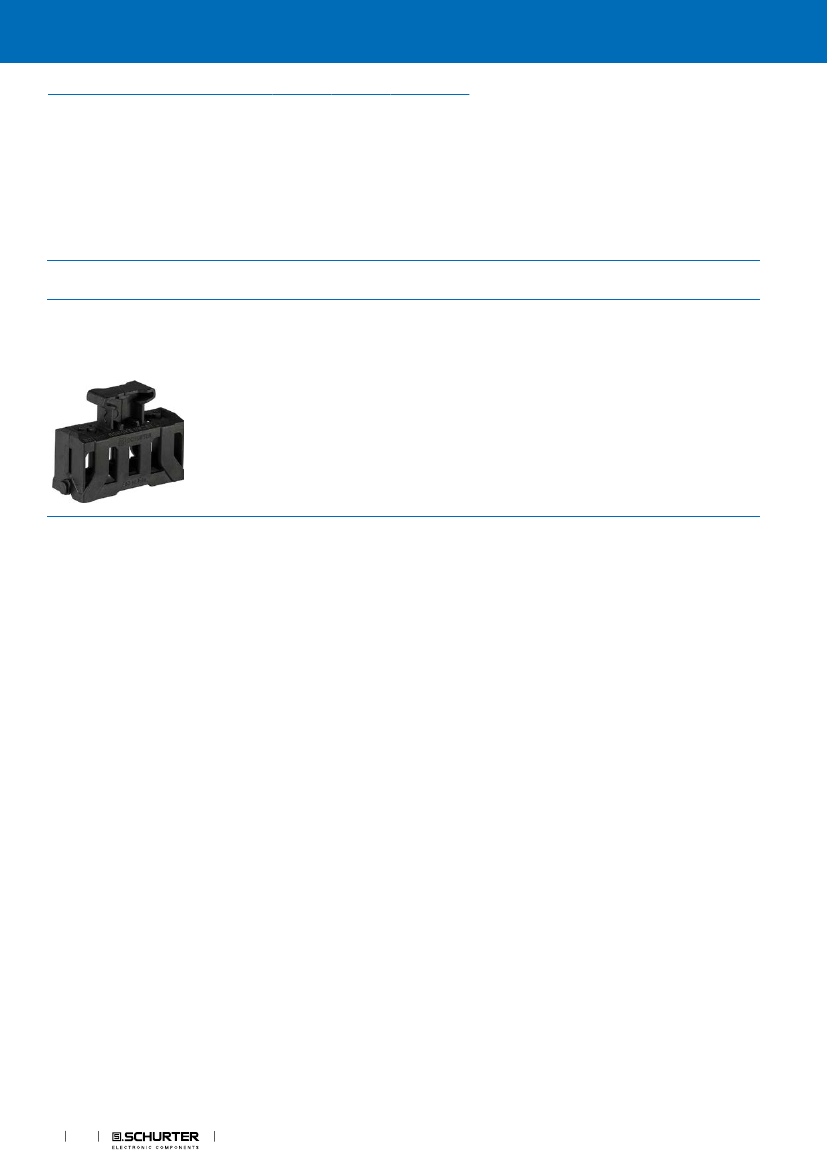

Zubehör
Description
ESO 10.3x38
Fuse Inserter/Extractor with Cover Function for 10.3x38 mm Fuses in Clips, Patent Pending
4
Fuses
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
26.02.2018
