78047-1073

Description
Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.059 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator
CategoryThe connector    The connector
File Size386KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

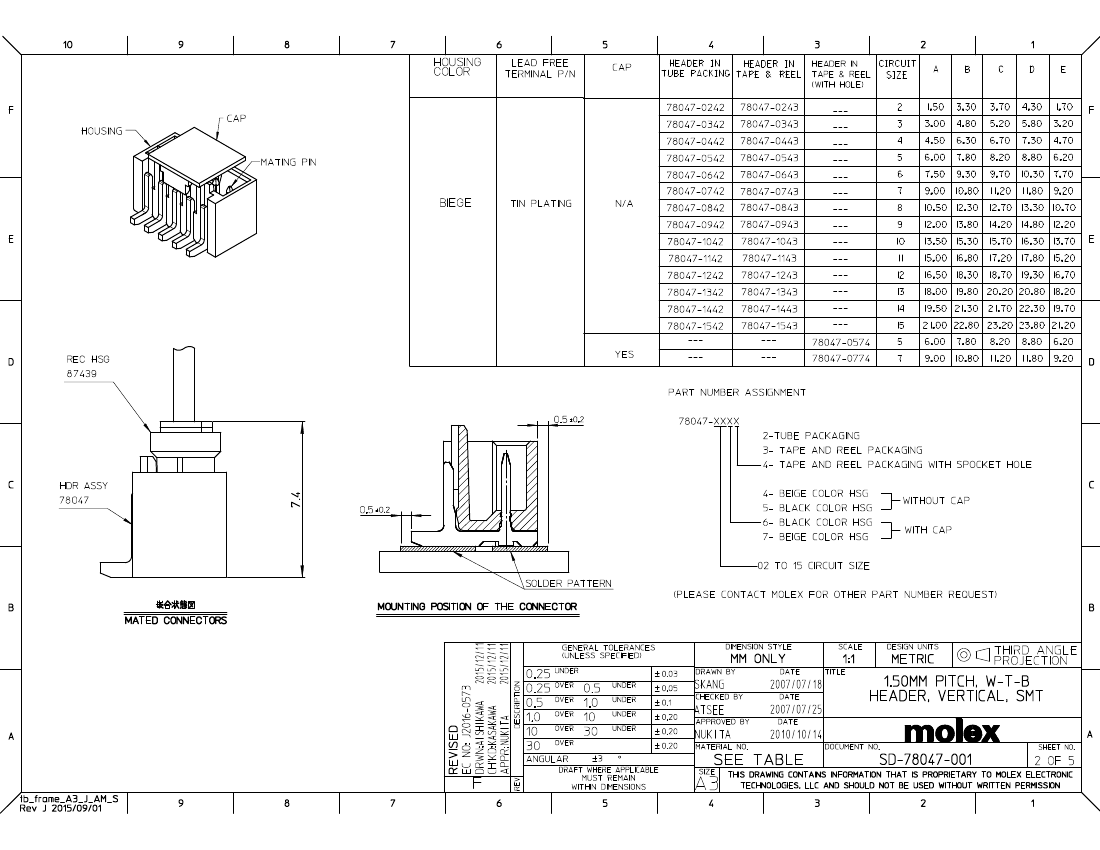

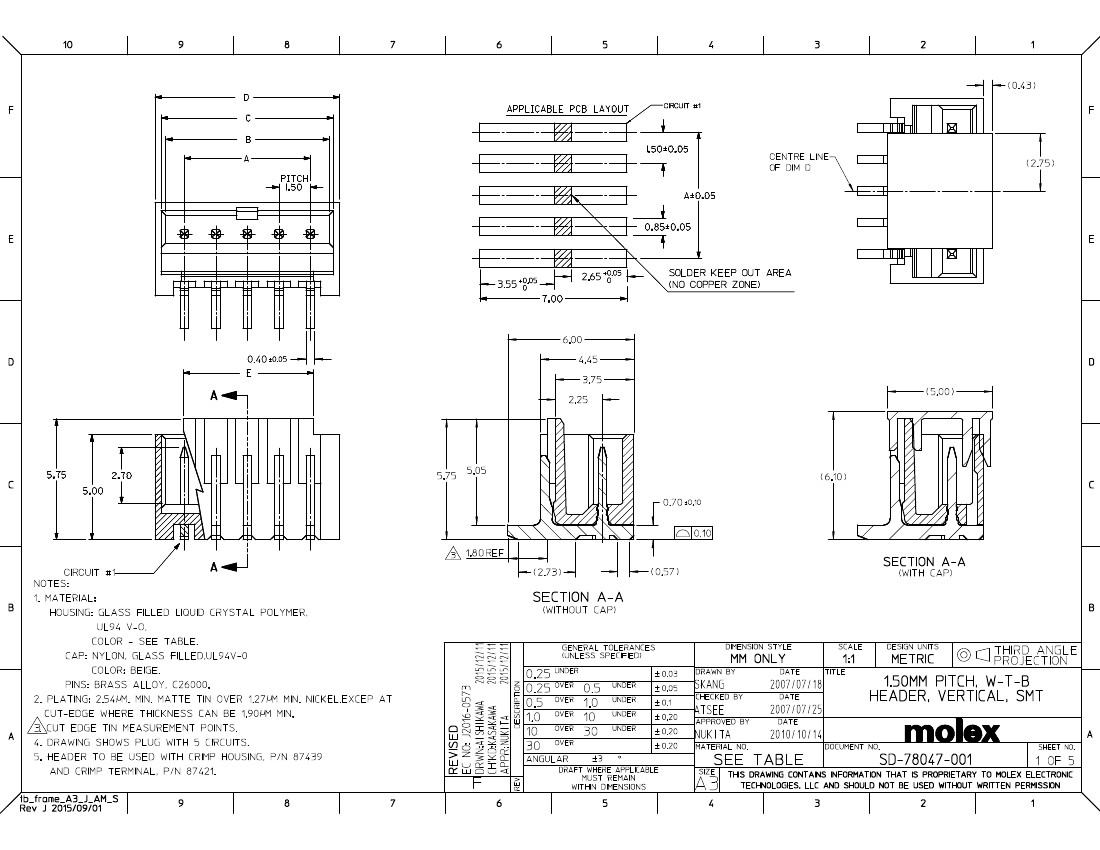

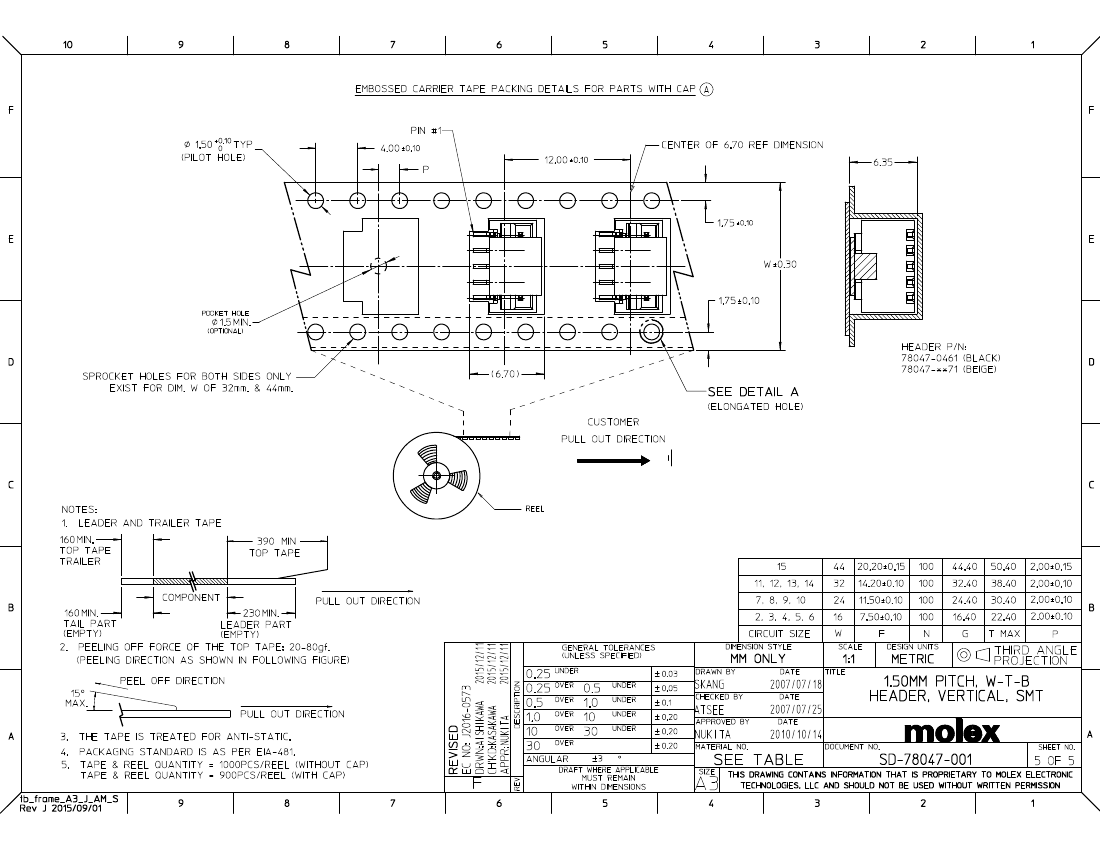

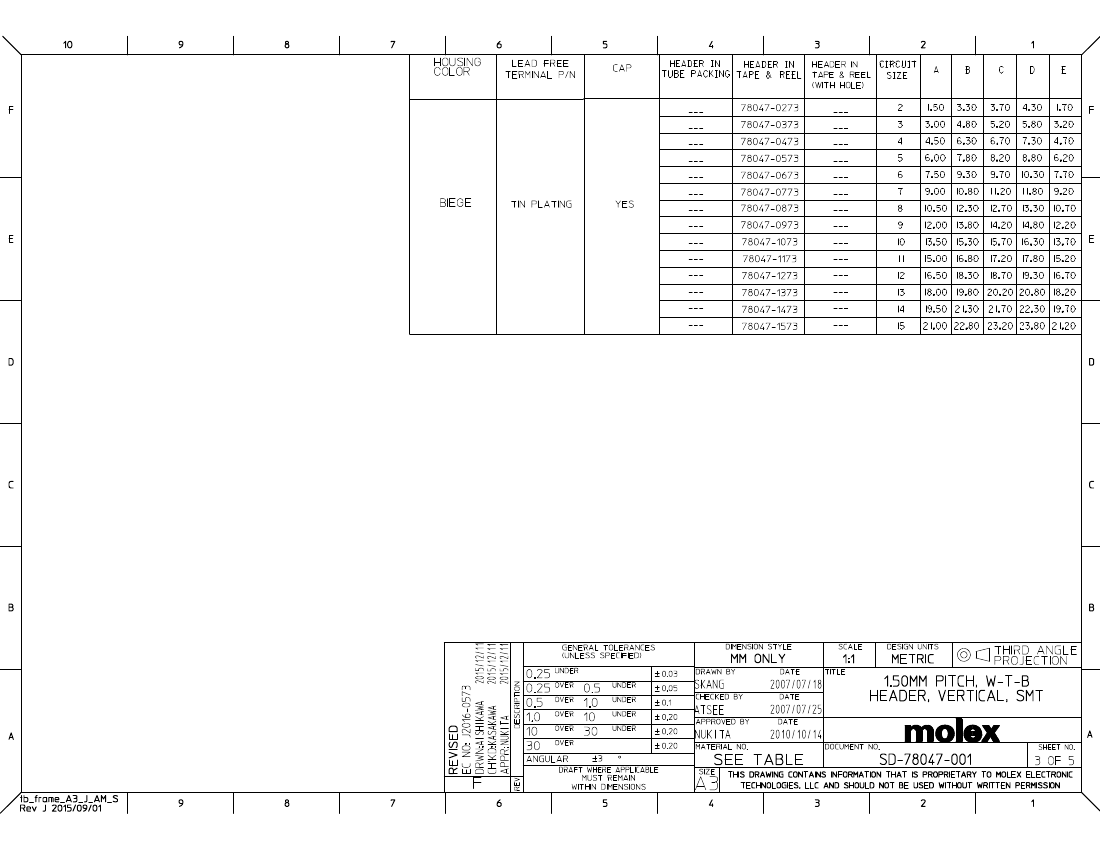

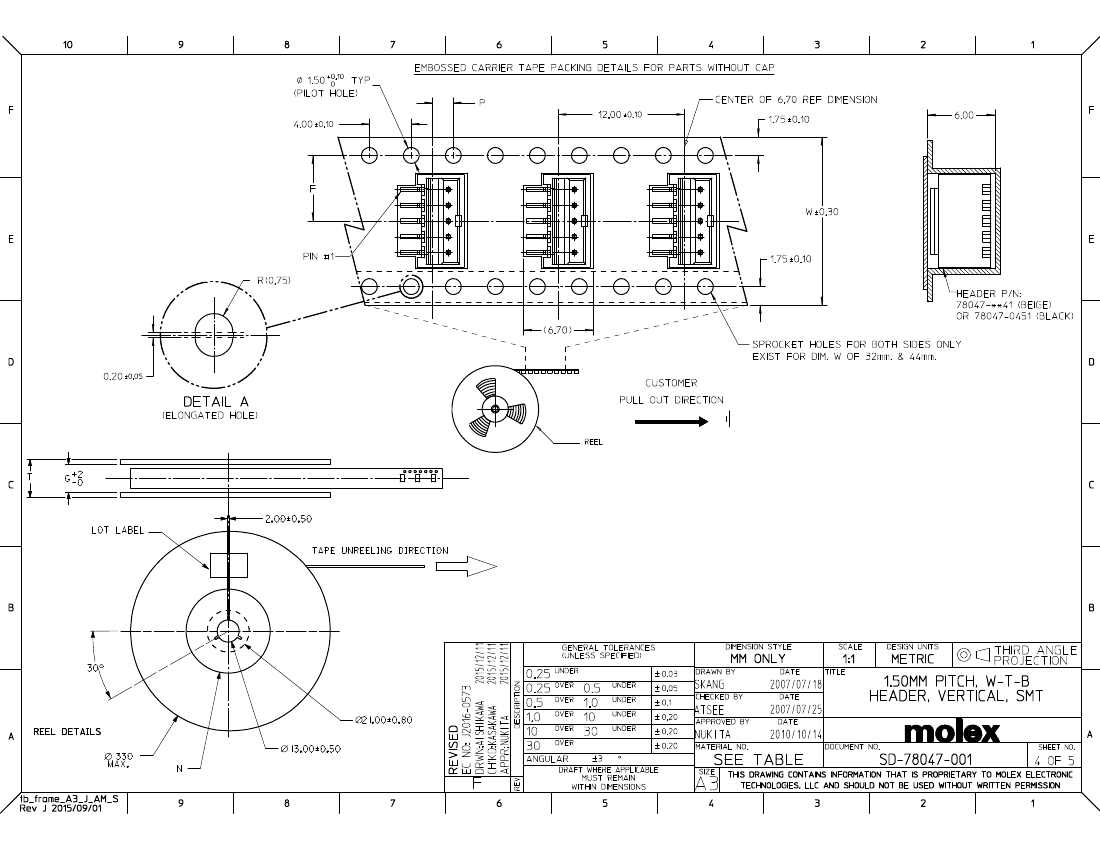

78047-1073 Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.059 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator

78047-1073 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
body width0.175 inch
subject depth0.226 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Durability10 Cycles
Insulator colorBEIGE
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number78047
Plug contact pitch0.059 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
PCB contact patternRECTANGULAR
Plating thickness100u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)2.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1.4986 mm
Termination typeSURFACE MOUNT
Total number of contacts10
