PEN4-xxxxE/Z4:1LF
PEN-SERIES
Rev.09-2009
3-4 Watt
4:1
Ultra Wide Input
Reg.
Single
and
Dual
Output
DIP24 Metal
Case
1.5 kV
DC I/O Isolation
Continuous Short Circuit Prot.
Mainzer Straße 151–153
D-55299 Nackenheim
Tel. +49 6135 7026-0
Fax: +49 6135 931070
www.peak-electronics.de
peak@peak-electronics.de
All specifications typical at Ta=25° nominal input voltage and full load unless otherwise specified
C,
Input Specifications
Voltage Range
Input Filter
Input Reflected Ripple Current¹
Output Specifications
Voltage Accuracy
Short Circuit Protection
Line Regulation
Load Regulation
Ripple and Noise
(20Mhz bandwidth)
Temperature Coefficient
General Specifications
Efficiency
I/O Isolation Voltage
(3 sec.)
I/O Isolation Capacity
I/O Isolation Resistance
Switching Frequency
(typical)
Humidity
Reliability Calculated MTBF
(MIL-HDBK-217F)
Physical Specifications
Case Material
Potting Material
Weight
Environment Specifications
Operating Temperature
Maximum Case Temperature
Storage Temperature
Cooling
RoHS Conform
4:1 Ultra Wide Input
Pi Type
35 mA pk-pk
± 1%
Indefinite
(automatic recovery)
± 0.5%
± 0.5% / ± 1.5%
(only 3.3 / ±3.3 Vout Models)
60 mV pk-pk
± 0.02% / °
C
See Table
1500 VDC
500 pF, typ.
1000 MOhm
266 kHz, typ.
95% rel H
> 1.121 Mhrs
Nickel Coated Copper
Epoxy
(UL94V-0 rated)
~ 17g, typ.
-40 to +85°
(ambient)
C
100°
C
-40 to +125°
C
Free Air Convection
(10mm distance required)
Soldering 260° max.
(1.5mm from case 10s.)
C,
PEN-Series – PEN4-xxxxE/Z4:1LF – Single and Dual Output – DIP24 - Metal Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 1/3
Selection Guide
Single/Dual
Output
L
C)
C)
uF)²
(VD nt Full
(VD
)
ad (
ge
e
e
o
a
r
%
g
or L
V o lt u t C u r
cy (
olta
a c it
p
put
cien
ut V
Inp
O ut
Out
Effi
Ca p
A)
d (m
oa
Order #
t
Wat
SINGLE OUTPUT
PEN4-243R3E4:1LF
PEN4-2405E4:1LF
PEN4-247R2E4:1LF
PEN4-2412E4:1LF
PEN4-2415E4:1LF
PEN4-483R3E4:1LF
PEN4-4805E4:1LF
PEN4-487R2E4:1LF
PEN4-4812E4:1LF
PEN4-4815E4:1LF
DUAL OUTPUT
PEN4-243R3Z4:1LF
PEN4-2405Z4:1LF
PEN4-247R2Z4:1LF
PEN4-2412Z4:1LF
PEN4-2415Z4:1LF
PEN4-483R3Z4:1LF
PEN4-4805Z4:1LF
PEN4-487R2Z4:1LF
PEN4-4812Z4:1LF
PEN4-4815Z4:1LF
3
3.3
4
4
4
3
3.3
4
4
4
9 - 36
9 - 36
9 - 36
9 - 36
9 - 36
18 - 72
18 - 72
18 - 72
18 - 72
18 - 72
3.3
5
7.2
12
15
3.3
5
7.2
12
15
900
660
555
330
265
900
660
555
330
265
77
81
79
83
83
78
82
82
85
85
680
100
100
100
220
680
1000
470
1000
47
4
3
4
4
4
4
3
4
4
4
9 - 36
9 - 36
9 - 36
9 - 36
9 - 36
18 - 72
18 - 72
18 - 72
18 - 72
18 - 72
± 3.3
±5
± 7.2
± 12
± 15
± 3.3
±5
± 7.2
± 12
± 15
± 606
± 300
± 277
± 165
± 130
± 606
± 300
± 277
± 165
± 130
75
80
79
83
83
78
82
79
85
85
± 470
± 220
± 47
± 47
± 10
± 680
± 220
± 47
± 100
± 100
If you need other specifications, please enquire.
PEN-Series – PEN4-xxxxE/Z4:1LF – Single and Dual Output – DIP24 - Metal Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 2/3

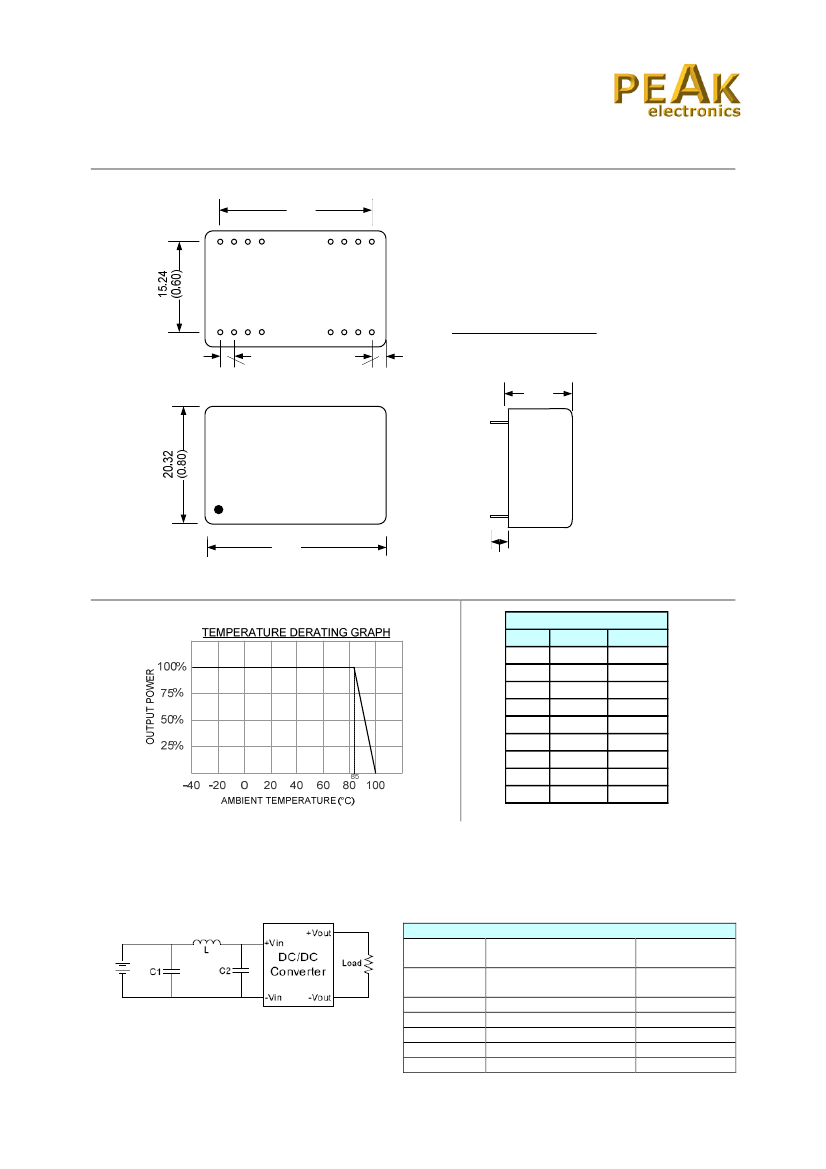

Package / Pinning / Derating
27.94
(1.10)
All dimensions are typical in millimeters (inches).
- Pin diameter: 0.5 +/-0.05 (0.02 +/-0.002)
- Pin pitch tolerance: +/-0.35 (+/-0.014)
- Case tolerance +/-0.5 (+/-0.02)
Standard Drawing
For exact pinning please see connection table!
Specification may change without notice.
1
12
Bottom View
24
13
DIP24 – METAL CASE
2.54
(0.10)
2.00
(0.08)
10.16
(0.40)
PE
A
K
Modelcode
Datecode
31.75
(1.25)
3.05
(0.12)
PIN CONNECTIONS
#
SINGLE DUAL
2
- Vin
- Vin
3
- Vin
- Vin
9
Omitted Common
11
N.C.
- Vout
14
+Vout
+Vout
16
- Vout
Common
22
+Vin
+Vin
23
+Vin
+Vin
others Omitted Omitted
App Notes:
¹ =
Measured Input reflected ripple current with a simulated source inductance of 12uH.
² = Test by nominal input voltage and constant resistor load.
³ = It’s recommended to add C1(68mF), C2(33mF), L(12mH) in input end to achieve EN55022 conducted Class A.
EMC SPECIFICATIONS
Radiated
Emissions
Conducted
Emissions³
ESD
RS
EFT
CS
PFMF
EN 55022
EN 55022
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-6
IEC 61000-4-8
CLASS A
CLASS A
Perf. Criteria B
Perf. Criteria A
Perf. Criteria B
Perf. Criteria A
Perf. Criteria A
PEN-Series – PEN4-xxxxE/Z4:1LF – Single and Dual Output – DIP24 - Metal Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 3/3
