N74F547D-T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> N74F547D-T

Preview

N74F547D-T: DescriptionDecoder/Driver, TTL, PDSO20; Categorylogic logic; File Size273KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

N74F547D-T Overview

Decoder/Driver, TTL, PDSO20

N74F547D-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP20,.4
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
Logic integrated circuit type	OTHER DECODER/DRIVER
MaximumI(ol)	0.02 A
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power supply	5 V
Maximum supply current (ICC)	25 mA
Prop。Delay @ Nom-Sup	15 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

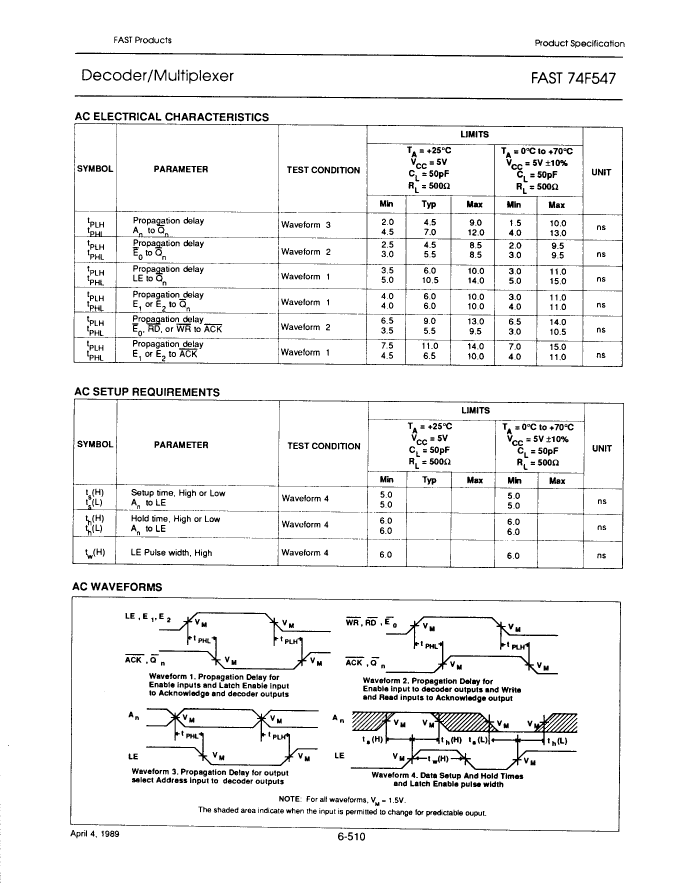

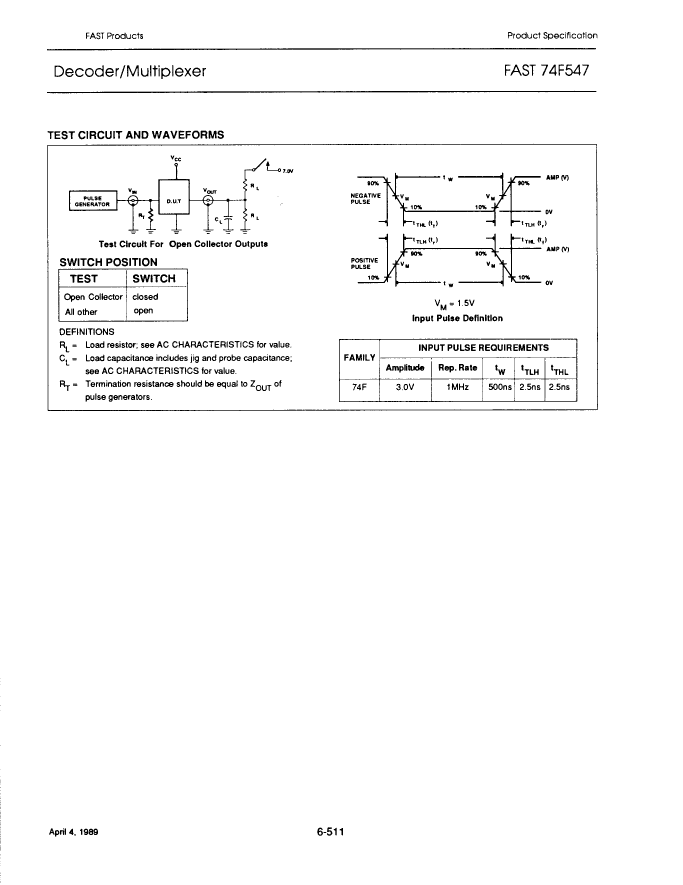

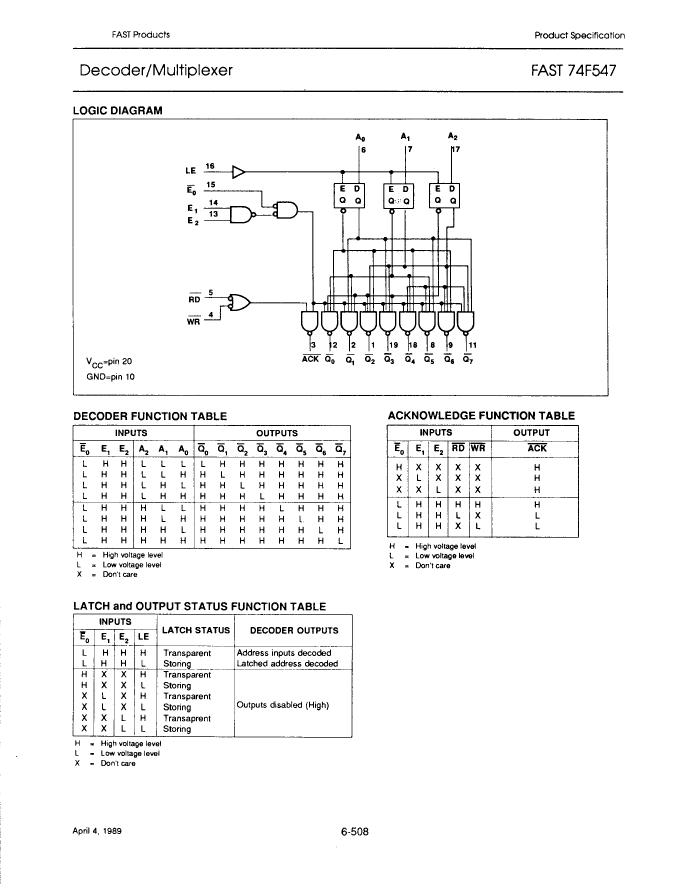

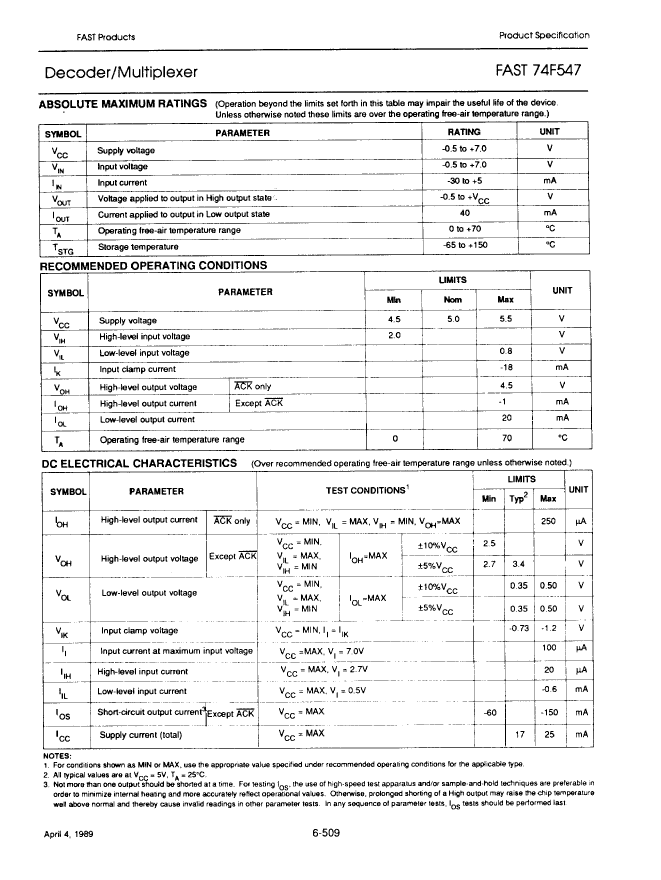

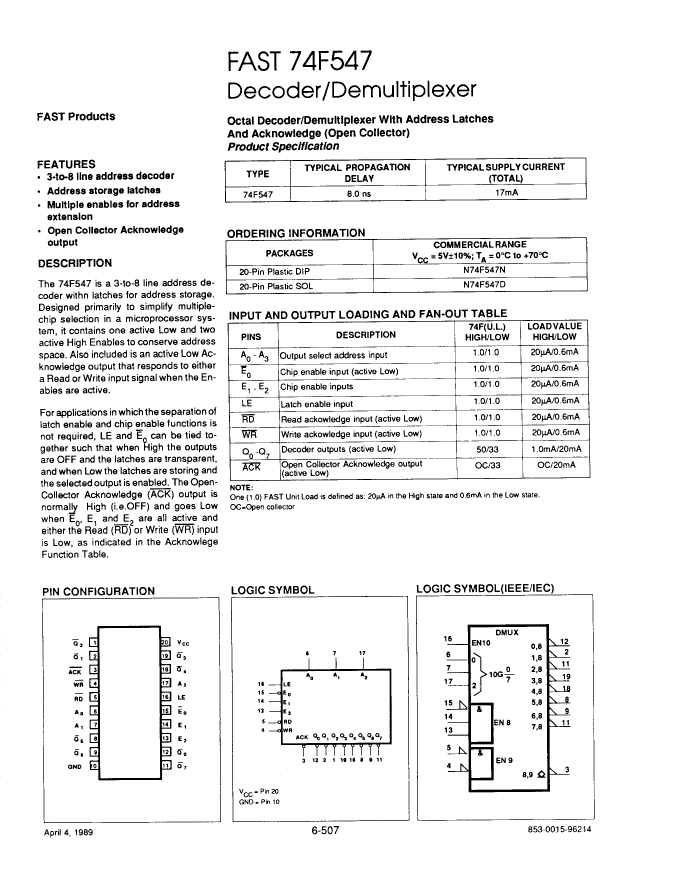

N74F547D-T Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

N74F547D-T Related Products

	N74F547D-T	N74F547D	N74F547N	N74F547N-B
Description	Decoder/Driver, TTL, PDSO20	Decoder/Driver, TTL, PDSO20	Decoder/Driver, TTL, PDIP20	Decoder/Driver, TTL, PDIP20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP20,.4	SOP, SOP20,.4	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
MaximumI(ol)	0.02 A	0.02 A	0.02 A	0.02 A
Number of functions	1	1	1	1
Number of terminals	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP	DIP
Encapsulate equivalent code	SOP20,.4	SOP20,.4	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	25 mA	25 mA	25 mA	25 mA
Prop。Delay @ Nom-Sup	15 ns	15 ns	15 ns	15 ns
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	Not Qualified	-
