Power entry modules without line filter
www.schurter.com/PG05

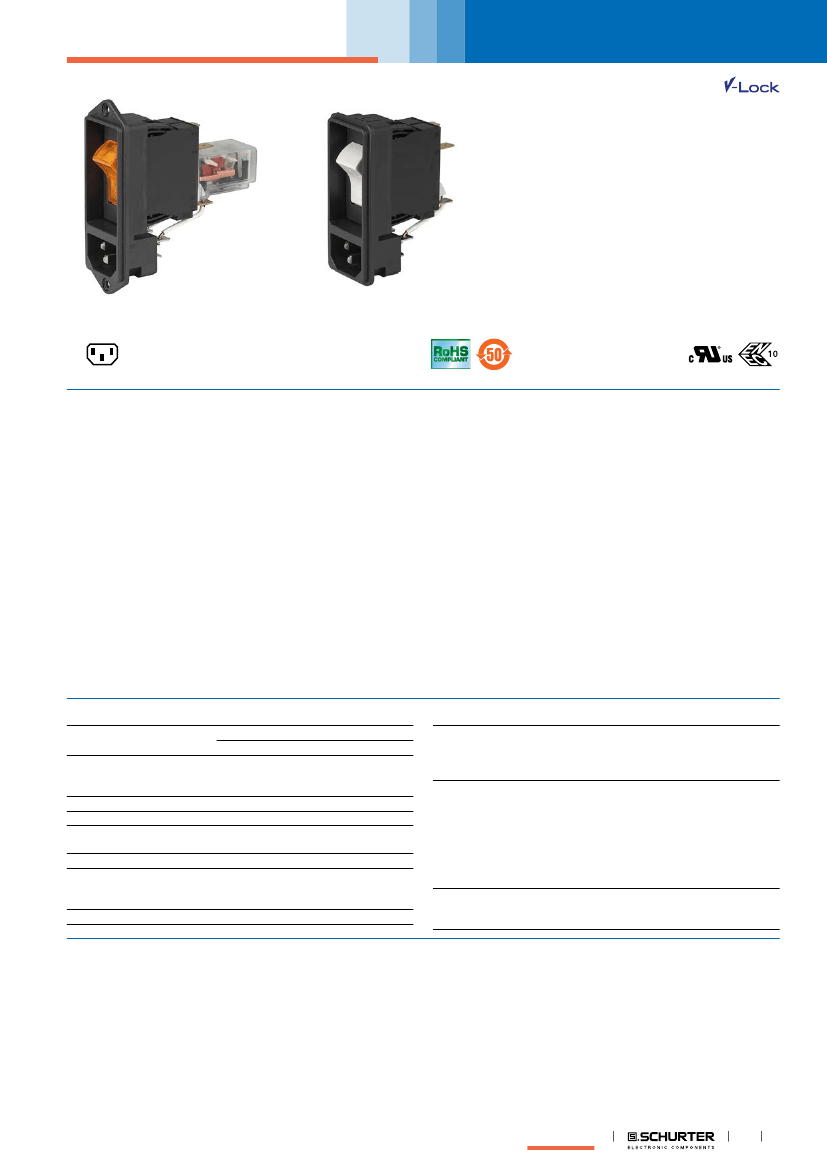

IEC Appliance Inlet C14 with recessed Circuit Breaker TA45
DF11
C14
70° C
Description
- Panel Mount:
Screw-on version from front or rear side, snap-in version from front
side
- 2 Functions:
Appliance Inlet Protection class I, circuit breaker type TA45 2-pole
- Quick connect terminals 6.3 x 0.8 mm
Characteristics
- All single elements are already wired
- Switch non-illuminated or illuminated
Thermal overload protection
Optional with undervoltage- or remote trip release
- Suitable for use in equipment according to IEC/UL 60950
Other versions on request
-
-
-
-
Approvals
- VDE Certificate Number: 40011305
- UL File Number: E96454
Unwired versions
Line switch 1-pole
Other rocker marking
Variant with notch for V-Lock mating Cordsets
References
Weblinks
Alternative: version with line filter
DF12
Substitute for type
6145
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, Mating Connectors,
e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-
Drawings, Accessories, Detailed request for product
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
1 - 15 A / 250 VAC; 60 Hz
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
-10 °C to 55 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 1/1.5/2/2.5/3 mm
Thermoplastic, black, UL 94V-0
Appliance Inlet
C14 acc. to IEC 60320,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
10 A, Protection Class I
Acc. IEC/EN 60934, UL 1077, CSA
22.2 no. 235
2-pole rocker switch, illuminated or
non-illuminated. Optional with undervol-
tage- or remote trip release
Short circuit capacity Icn:
at In < 3A/240VAC : 10 x In
at In
≥
3A/240VAC : 300A
Rocker switch 2-pole, non-illuminated
or illuminated, acc. to IEC 61058-1
Technical Details
Circuit Breakers
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Line Switch
Material: Housing
Connectors
1
DF11

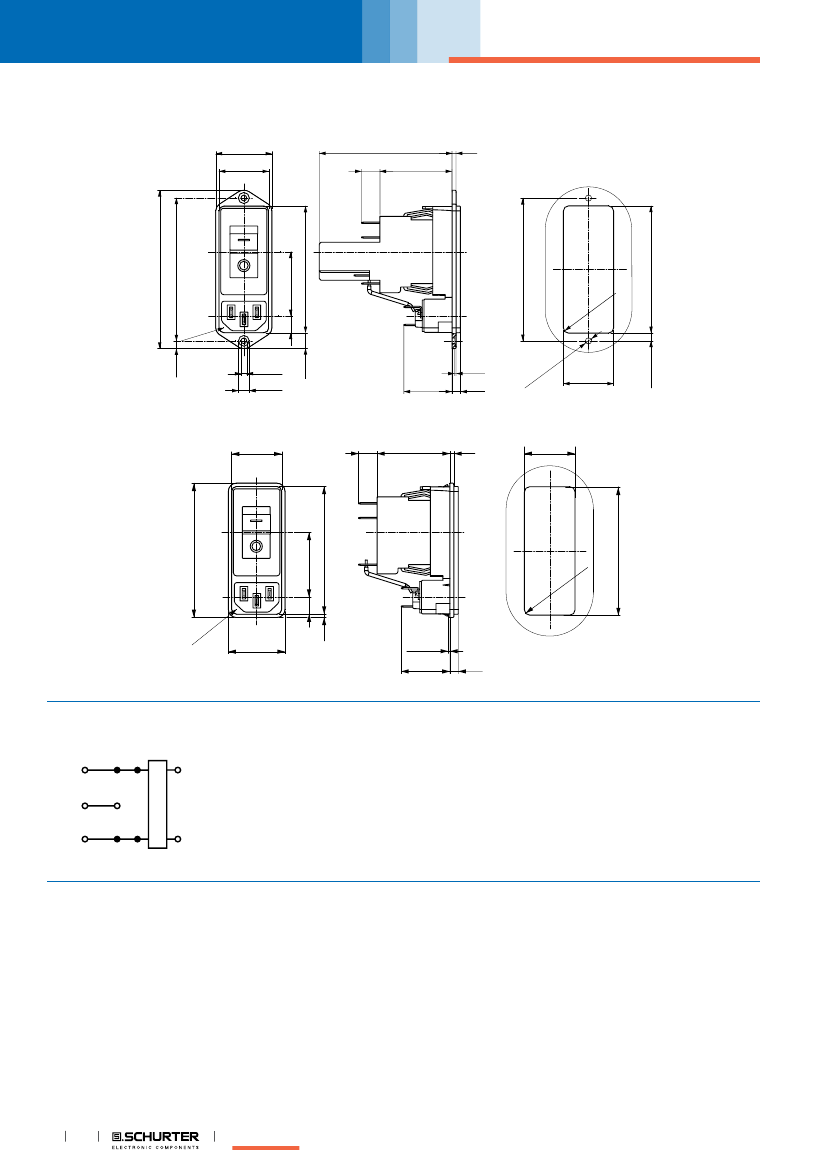

Dimensions
Screw-on Version
32.5
28.7
76.7
10.6
41.7
2.3
Power entry modules without line filter
www.schurter.com/PG05
91.5
82.5
73.2
±0.10
37.1
82.5
8
R 2.
9.7
R
2
.95
.05
±0
9.15
4.5
Ø 3.3
Ø 6.4
0.8
27.9
4.8
Ø
3.6
/M
3
29
±0.10
Snap-in Version
28.7
10.6
41.7
2.3
29
±0.10
73.2
77
37.1
R
2.9
5
.0
±0
5
R
1.9
8
2.
9.7
32.5
S ±0,05
27.9
4.8
Diagrams
Diagram
L
1)
PE
N
PE'
L' P
1
2)
N' P
2
1) Line␍2) Load
2
Connectors
73.5
±0.10
(4.5
±0.05
)
73.5
±0.10

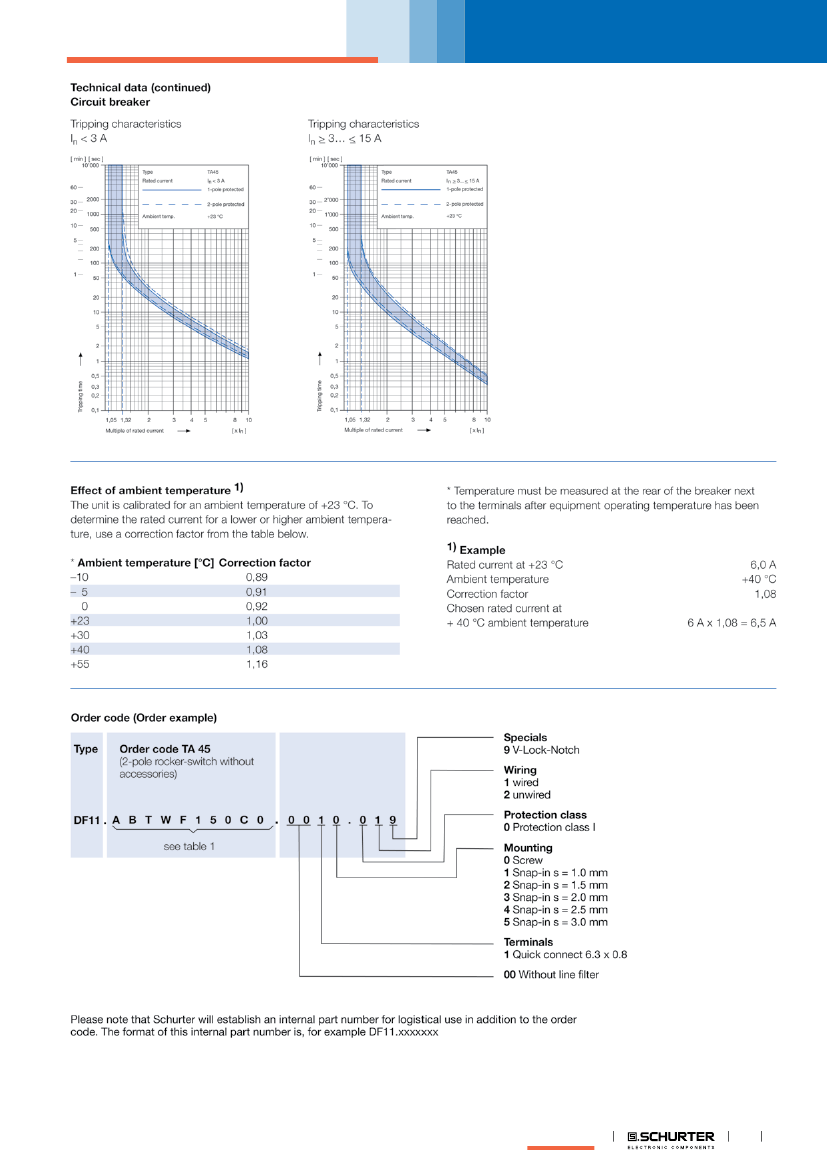

Power entry modules without line filter
www.schurter.com/PG05
DF11
Connectors
3

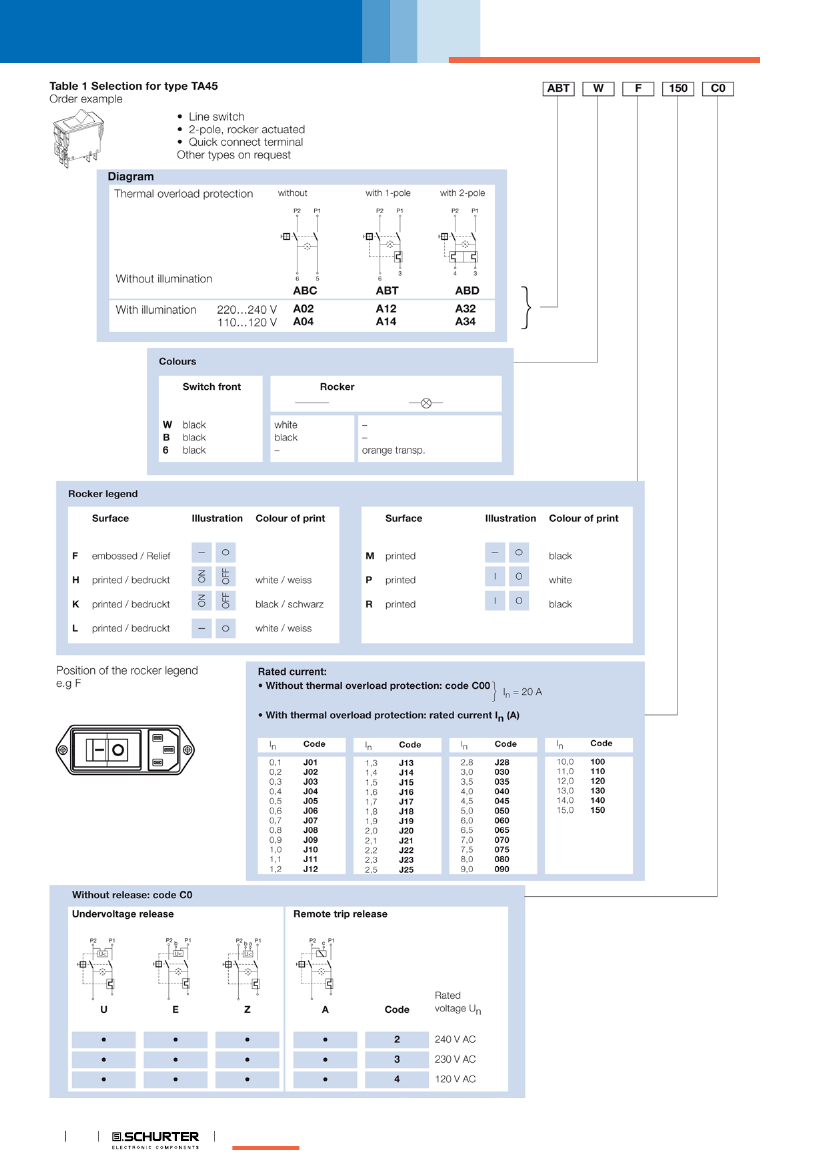

DF11
Power entry modules without line filter
www.schurter.com/PG05
4
Connectors
Power entry modules without line filter
www.schurter.com/PG05
Packaging unit

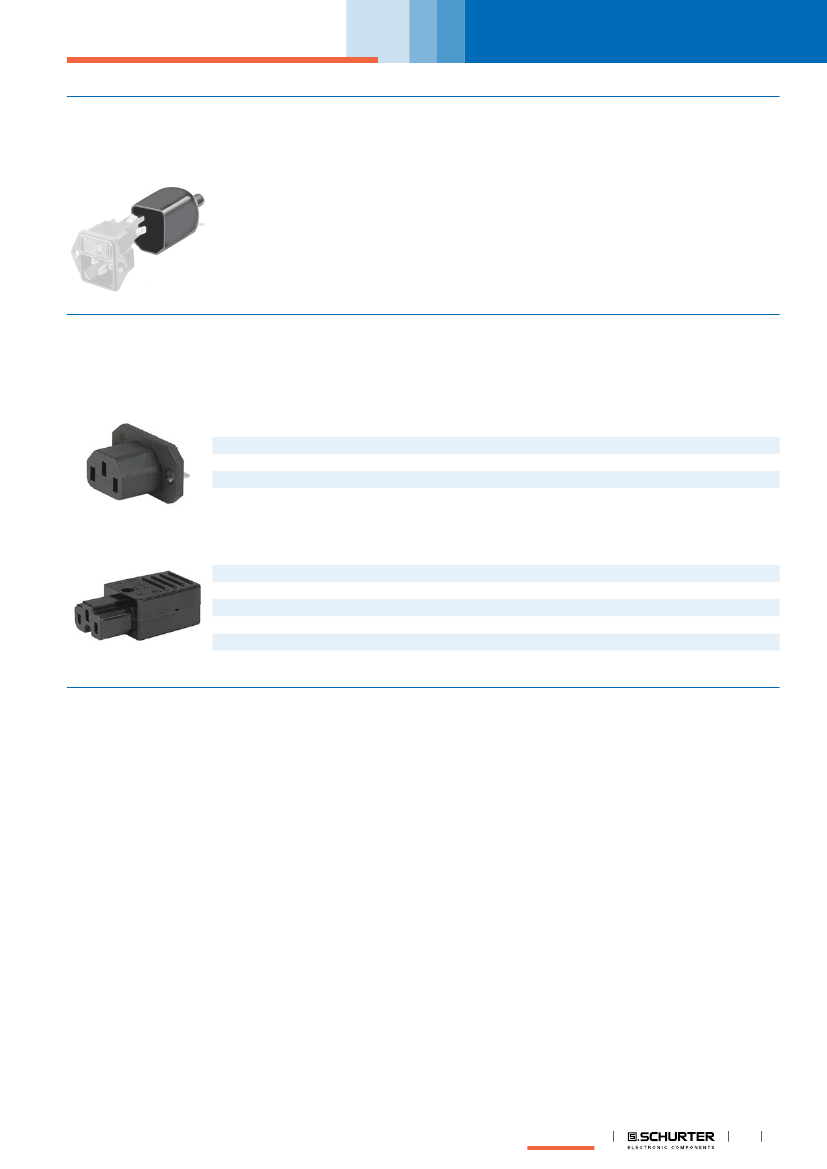

Accessories
Description
DF11
20 Pcs
Assorted Covers
Rear Cover
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to DF11
4787
4788
5091
Connector Overview complete
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
IEC Connector C13, Rewireable, Straight
Connector further types to DF11
0102
0102-G
0112
4012
4022
...
