Circuit Breaker for Equipment thermal, Rocker actuation, 3 poles

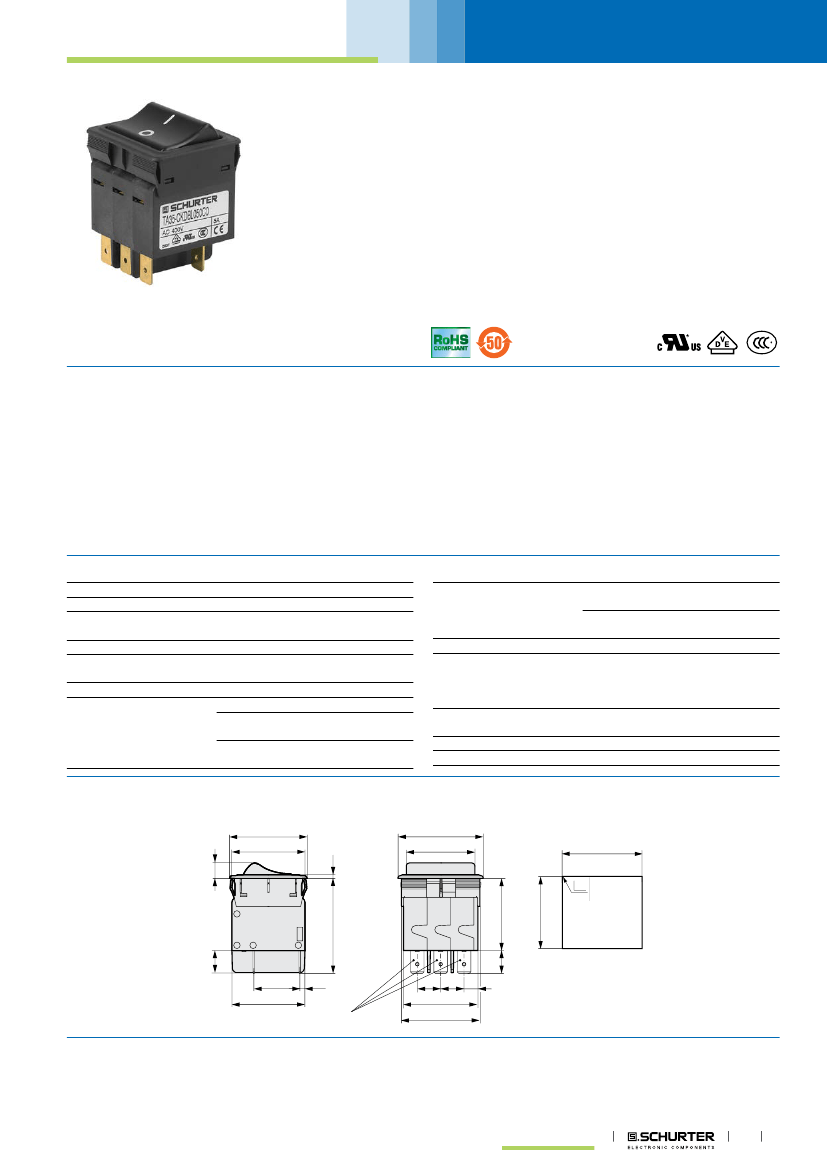

TA35 Rocker 3Pole
Description
-
-
-
-
-
-
-
-
-
-
-
Thermal circuit breaker
3-pole
Snap-in version
Positively trip-free release
Different rocker colours
High configurability
Wide current range
IEC 60934
UL 1077
CSA C22.2 235
GB 17701
Characteristics
-
-
-
-
-
Power tools
Industrial appliances
Equipment for construction
Cleaning equipment
Commercial and household kitchen appliances
Weblinks
Standards
pdf-datasheet, html-datasheet, General Product Information,
Approvals, CE declaration of conformity, RoHS, CHINA-RoHS, e-Shop,
SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for
product
Technical Data
Rated Voltage AC
Rated current range AC
Conditional short circuit ca-
pacity
Degree of Protection
Dielectric Strength
Insulation resistance
Endurance typical
␣
␣
415 Y / 240 V; 50/60 Hz
0.05 - 12 A
0.05...12 A: 2 kA @ 415 VAC
from front side IP 40 acc. to IEC 60529
50 Hz: > 2.5 kV
Impulse 1.2/50
μs:
> 4 kV
500 VDC > 100 MΩ
mechanical: 50'000 switching cycles
AC: 1 x Ir, cos
φ
0.6:
50'000 switching cycles
DC: 1 x Ir, L/R = 2 - 3 ms:
50'000 switching cycles
Overload
␣
Ambient temperature
Vibration Resistance
IEC: min. 40 trips
@ 6 x Ir, cos
φ
0.6
UL / CSA: min. 50 trips
@ 1.5 x Ir, cos
φ
0.75
-30 °C to 60 °C
± 0.75 mm @ 10 - 60 Hz
acc. to IEC 60068-2-6, test Tc
10 G @ 60 - 500 Hz
acc. to IEC 60068-2-6, test Tc
30 G / 18 ms
acc. to IEC 60068-2-27, test Ea
Thermal
43.0 - 45.0 g
Shock Resistance
Tripping Type
Weight
Dimension
36
34
7.2
1.7
40.5
31.9
37.5
+0.2
0
+0.3
+0.2
0
33.5
10.5
LINE
44.1
L
10.6
34
Panel 1.0 − 4.0 mm
21.3
33.8
2.3
11
11 6.1
37.4
34.5
6.3 x 0.8 mm
Circuit Breakers
1
TA35 Rocker 3Pole
Diagrams
3-pole, 0 bimetal, illuminated
1)
P1
P2
P3
P1
Thermal (T- and TA-Line)
www.schurter.com/PG17_18_19
3-pole, 0 bimetal, non illuminated
1)
P2
P3
3-pole, 3 bimetal, illuminated
1)
P1
P2
P3
3-pole, 3 bimetal, non illuminated
1)
P1
P2
P3
7
8
9
7
8
9
4
5
6
4
5
6
2)
2)
2)
2)
1) Line, 2) Load
Codepos AAA = CK1
1) Line, 2) Load
Codepos AAA = CKC, CLC
1) Line, 2) Load
Codepos AAA = CD1
1) Line, 2) Load
Codepos AAA = CKD, CLD
The keys / codepos are listed in the key table of the basic function for selection.
Approvals
Approval
UL 1077
CSA C22.2
235
IEC 60934
Rated current
0.05...12 A
0.05...12 A
0.05...12 A
Rated voltage AC
415 Y/ 240 V
415 Y/ 240 V
415 Y/ 240 V
Rated voltage DC
-
-
-
GB 17701
0.05...12 A
415 Y/ 240 V
-
Typical internal resistance
Rated Current [A]
0.05
0.1
0.5
1.0
1.5
2.0
2.5
2.8
3.0
4.0
5.0
6.0
7.0
8.0
10.0
12.0
13.0
14.0
15.0
16.0
18.0
20.0
Internal Resistance [Ω]
200.000
70.000
2.750
0.720
0.340
0.187
0.115
0.089
0.059
0.059
0.044
0.028
0.0142
0.0142
0.0109
0.0086
0.0072
0.0072
0.0056
0.0056
0.0052
0.0052
TA35 Rocker 3-poles max. 12 A
2
Circuit Breakers
Thermal (T- and TA-Line)
www.schurter.com/PG17_18_19
TA35 Rocker 3Pole
Time-Current-Curves
[min] [sec ]
10'000
TA35
<3A (TC-1, TC-2)
1, 2 pole
3 pole
[min] [sec ]
10'000
TA35
>3-20A (TC-1, TC-2)
(3 pole
max. 12A)
1, 2, 3 pole
60
30
20
10
5
200
2`000
1`000
500
60
30
20
10
5
200
2`000
1`000
500
Time in Seconds
1
Time in Seconds
100
50
100
1
50
20
10
5
2
1
0,5
0,3
0,2
0,1
1,05 1,35
2
3
4
5
8
10
20
10
5
2
1
0,5
0,3
0,2
0,1
1,05 1,35
2
3
4
5
8
10
Multiple of Rated Current In
Reference Temperature +23°
Multiple of Rated Current In
Reference Temperature +23°
Effect of ambient temperature
The units are calibrated for an ambient temperature of +23°C. To determine the rated cur-
rent for a lower or higher ambient temperature, use a correction factor (typical value) from
the table below:
Ambient temperature [°C]
-30
-20
0
+23
+40
+50
+60
Correction factor
0.76
0.81
0.90
1.00
1.06
1.10
1.14
Example: Rated current = 5 A; Environmental temperature = 50 °C; --> Correction factor =
1.10; Resulting current = 5.2 A --> Fount to next higher rated current: 6 A
Config. Code
TA35
|
-
|
AAA
|
B
|
C
|
120
|
-
|
CZMXX
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
TA35
|
-
|
AAA
|
B
|
C
|
120
|
-
|
CZMXX
|
= Basic function
Basic function
3-pole, 3 bimetal, illuminated 415 V
3-pole, whithout bimetal, illuminated 415 V
3-pole, whithout bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, whithout bimetal, momentary switch, without illumination
3-pole, 3 bimetal, momentary switch, without illumination
Configuration
key
CD1
CK1
CKC
CKD
CLC
CLD
Rocker colour
Clear transparent
Red transparent
Green transparent
Orange transparent
Blue transparent
Black
Green
Red
White
Configuration
key
1
3
4
6
7
B
G
R
W
TA35
|
-
|
AAA
|
B
|
C
|
120
|
-
|
CZMXX
|
= Rocker colour
Circuit Breakers
3
TA35 Rocker 3Pole
Rocker colour
Orange
Yellow
Configuration
key
X
Y
Rated current
0.3 A
0.4 A
0.5 A
Thermal (T- and TA-Line)
www.schurter.com/PG17_18_19
Configuration
key
J03
J04
J05
J08
J10
J12
J15
J20
J25
030
035
040
050
060
070
080
100
120
TA35
|
-
|
AAA
|
B
|
C
|
120
|
-
|
CZMXX
|
= Legend
Legend
Configuration
key
F
0.8 A
1.0 A
1.2 A
1.5 A
2.0 A
2.5 A
3.0 A
3.5 A
4.0 A
5.0 A
6.0 A
7.0 A
8.0 A
10.0 A
12.0 A
Other rated currents on request
embossed
white printed
OFF
ON
0
I
H
black printed
OFF
ON
K
white printed
L
black printed
0
I
M
TA35
|
-
|
AAA
|
B
|
C
|
120
|
-
|
CZMXX
|
= Rated current
Rated current
without thermal overload protection
0.05 A
0.1 A
0.2 A
Other rated currents on request
Configuration
key
C00
Z05
J01
J02
0
I
TA35
|
-
|
AAA
|
B
|
C
|
120
|
-
|
CZMXX
|
= Accessories
Factory mounted accessories
Without cover
For subsequent fitting accessories see:
http://www.schurter.ch/accessory_cbe
Configuration
key
Variants
Basic function
Rocker colour
Legend
Rated current
Accessories
Config. Code
Order Number
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
Black
White
Black
White
Black
Black
white printed
embossed
white printed
embossed
white printed
white printed
2.5 A
3.0 A
4.0 A
5.0 A
5.0 A
6.0 A
Without cover
Without cover
Without cover
Without cover
Without cover
Without cover
TA35-CKDBHJ25C0
TA35-CKDWF030C0
TA35-CKDBH040C0
TA35-CKDWF050C0
TA35-CKDBH050C0
TA35-CKDBH060C0
4435.0229
4435.0025
4435.0232
4435.0044
4435.0048
4435.0233
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, illuminated 415 V
3-pole, whithout bimetal, without
illumination
3-pole, whithout bimetal, without
illumination
White
Black
White
Red transparent
Black
White
embossed
white printed
embossed
white printed
embossed
black printed
10.0 A
10.0 A
12.0 A
12.0 A
without thermal
overload protection
without thermal
overload protection
Without cover
Without cover
Without cover
Without cover
Without cover
Without cover
TA35-CKDWF100C0
TA35-CKDBH100C0
TA35-CKDWF120C0
TA35-CD13L120C0
TA35-CKCBFC00C0
TA35-CKCWMC00C0
4435.0050
4435.0235
4435.0017
4435.0414
4435.0288
4435.0411
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging Unit
10 Pcs
4
Circuit Breakers
Thermal (T- and TA-Line)
www.schurter.com/PG17_18_19
TA35 Rocker 3Pole
Accessories
Description
TA35 Accessories
Screw-on collar with cover, IP65
