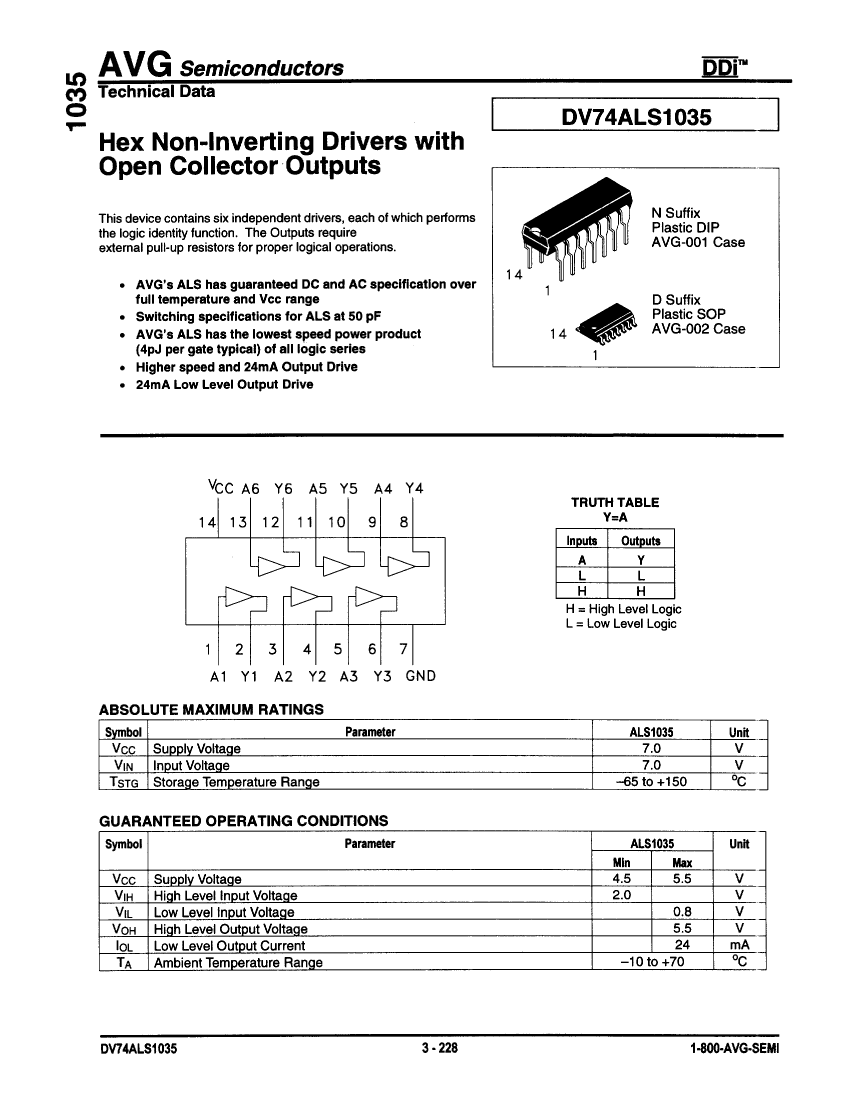

DV74ALS1035D datasheet, PDF - EEWORLD Datasheet

DV74ALS1035D: DescriptionBuffer, ALS Series, 6-Func, 1-Input, TTL, PDSO14, PLASTIC, SOP-14; Categorylogic logic; File Size79KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

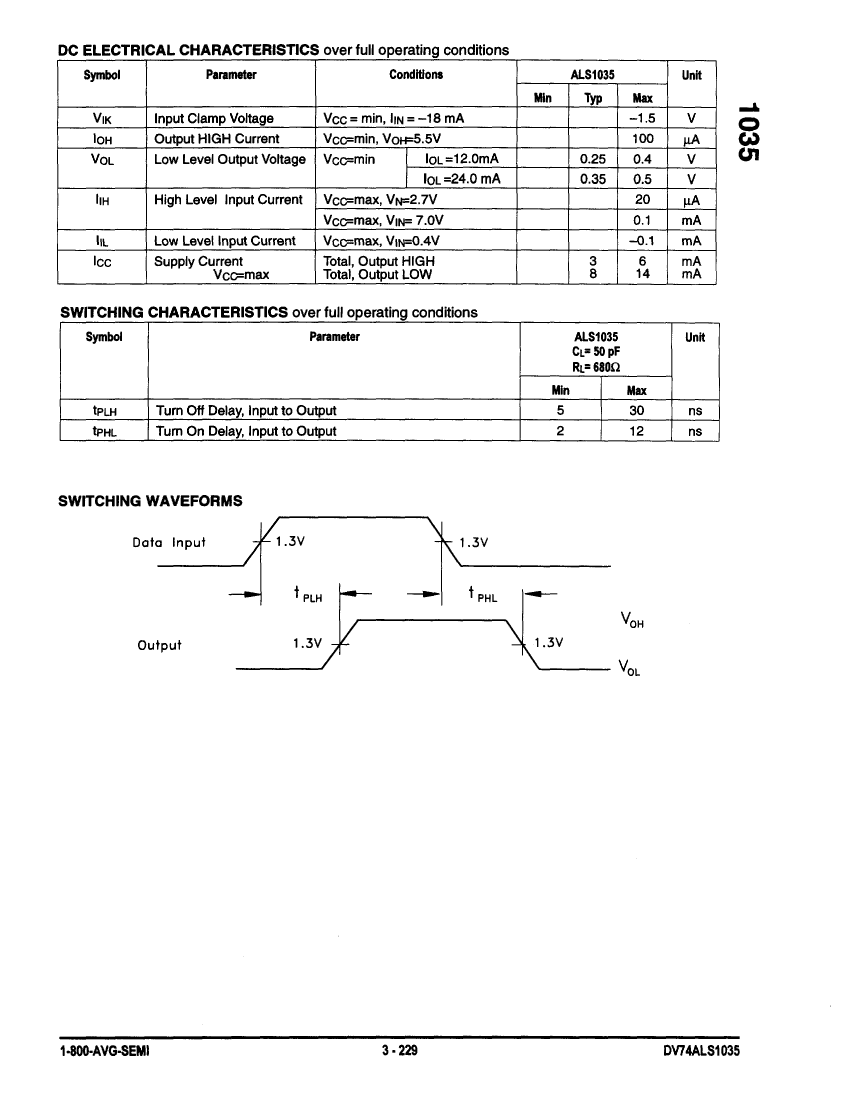

DV74ALS1035D Overview

Buffer, ALS Series, 6-Func, 1-Input, TTL, PDSO14, PLASTIC, SOP-14

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	PLASTIC, SOP-14
Contacts	14
Reach Compliance Code	unknown
series	ALS
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUFFER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	14 mA
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

	DV74ALS1035D	DV74ALS1035N
Description	Buffer, ALS Series, 6-Func, 1-Input, TTL, PDSO14, PLASTIC, SOP-14	Buffer, ALS Series, 6-Func, 1-Input, TTL, PDIP14, PLASTIC, DIP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	DIP
package instruction	PLASTIC, SOP-14	DIP,
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	ALS	ALS
JESD-30 code	R-PDSO-G14	R-PDIP-T14
length	8.65 mm	18.86 mm
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	BUFFER	BUFFER
Number of functions	6	6
Number of entries	1	1
Number of terminals	14	14
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Maximum supply current (ICC)	14 mA	14 mA
propagation delay (tpd)	30 ns	30 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	4.69 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
width	3.9 mm	7.62 mm
