2B10UM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 2B10UM

2B10UM: DescriptionV-EA-Series - UL508 Manual Motor Controller; CategoryCircuit protection Circuit protection; File Size624KB，2 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

2B10UM Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2B10UM	-	-	View	Buy Now

2B10UM Overview

V-EA-Series - UL508 Manual Motor Controller

2B10UM Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Circuit protection type	THERMAL MAGNETIC
Base Number Matches	1

Preview

Download Datasheet

View All

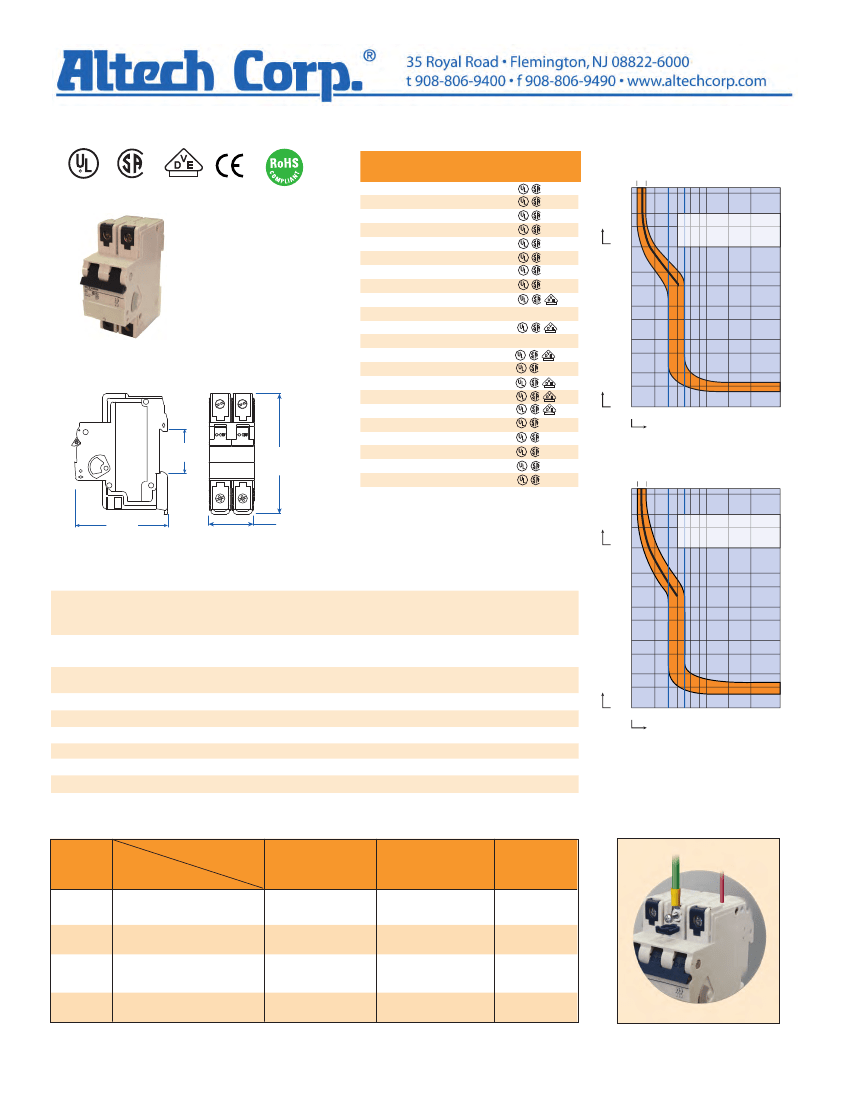

V-EA-Series - UL508 Manual Motor Controller -

2 pole B-Trip

UL508 Listed

Minutes

E137938

Standard Pack:

Weight:

0.3A - 32A

1.8kg (3.97 lb.)

40A - 63A

1.98kg (4.37 lb.)

Two Pole

35 mm

(1.38 in.)

93.3 mm

(3.67 in.)

Rated

Current

1.0A

1.6A

2.0A

2.5A

3.0A

3.5A

4.0A

5.0A

6.0A

8.0A

10A

12A

13A

15A

16A

20A

25A

30A

32A

40A

50A

60A

63A

Type/

Cat. No.

2B1UM

2B1.6UM

2B2UM

2B2.5UM

2B3UM

2B3.5UM

2B4UM

2B5UM

2B6UM

2B10UM

2B13UM

2B15UM

2B16UM

2B20UM

2B25UM

2B30UM

2B32UM

2B40UM

2B50UM

2B60UM

2B63UM

Approvals

V-EA-B Trip

1.0A Through 10A Rated Current

1.13-1.45xI

Thermal Overload

“Must Trip” < 1 hr = 145% RC

“Must Not Trip” > 1 hr = 113% RC

Tripping time t

0.4

-1

4x10

-2

Seconds

-2

4x10

-3

6 8 10

100

Multiple of Rated Current

V-EA-B Trip

13A Through 63A Rated Current

1.13-1.45xI

Minutes

74.7 mm

(2.94 in.)

35 mm

(1.38 in.)

Thermal Overload

“Must Trip” < 1 hr = 145% RC

“Must Not Trip” > 1 hr = 113% RC

Tripping time t

0.4

-1

4x10

-2

Voltage Rating

Short Circuit Withstand Rating

(UL/CSA - Ratings)

Group Short Circuit Withstand Rating

(UL/CSA - Ratings)

Interrupting Capacity (VDE - Ratings)

Calibration Temperature

Operating Temperature

Storage Temperature

Terminal Size Acceptability

Terminal Torque

Terminal Protection Degree

480Y/277VAC

0.3-25A: 1 pole - 42VDC; 2 Pole - 80VDC

30-60A: 1 pole - 24VDC; 2 Pole - 60VDC

0.3-60A (RC): 10kA with UL-listed

RK5 back-up fuse or MCCB

0.3-10A (RC): 10kA; 13-60A (RC): 5kA

no branch circuit protection required

0.3-63A (RC): 10kA

40°C (104°F)

-25°C to 55°C (-13°F to 131°F)

-40°C to 70°C (-40°F to 158°F)

Top: 18-3 AWG; Bottom: 18-2 AWG (Line/Load reversible)

20 lb.in.

IP20

Seconds

-2

4x10

-3

6 8 10

100

Multiple of Rated Current

Standard Dual

Connection Terminal

All parts are ring tongue compatible.

short circuit Withstand ratings for v-ea manual motor controller

Trip

Curve

all

Backup

Protection

Amp Range

0.3 - 10A

12 - 30/32A

40 - 50A

60 / 63A

UL-Listed

RK5-Fuse

up to 10kA

4xRC*

min 15A, max 70A

4xRC*

max 125A

4xRC*

max 200A

4xRC*

max 250A

UL-Listed

MCCB

up to 10kA

4xRC*

min 15A, max 70A

4xRC*

max 125A

4xRC*

max 200A

4xRC*

max 250A

No BCP

Required

up to:

10kA

5kA

Ring

tongue

Box

clamp

*up to nearest rated current

2B10UM Related Products

	2B10UM	2B1.6UM	2B2.5UM	2B3.5UM
Description	V-EA-Series - UL508 Manual Motor Controller	V-EA-Series - UL508 Manual Motor Controller	V-EA-Series - UL508 Manual Motor Controller	V-EA-Series - UL508 Manual Motor Controller
Reach Compliance Code	unknow	unknow	unknow	-
Circuit protection type	THERMAL MAGNETIC	THERMAL MAGNETIC	THERMAL MAGNETIC	-
Base Number Matches	1	1	1	-
