CD7FA331J03

Description
CAPACITOR, MICA, 100 V, 0.00033 uF, THROUGH HOLE MOUNT, RADIAL LEADED
CategoryPassive components    capacitor
File Size239KB，3 Pages
ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]
Download Datasheet Parametric View All

CD7FA331J03 Overview

CAPACITOR, MICA, 100 V, 0.00033 uF, THROUGH HOLE MOUNT, RADIAL LEADED

CD7FA331J03 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerCDE [ CORNELL DUBILIER ELECTRONICS ]
Reach Compliance Codeunknown

Preview

Download Datasheet

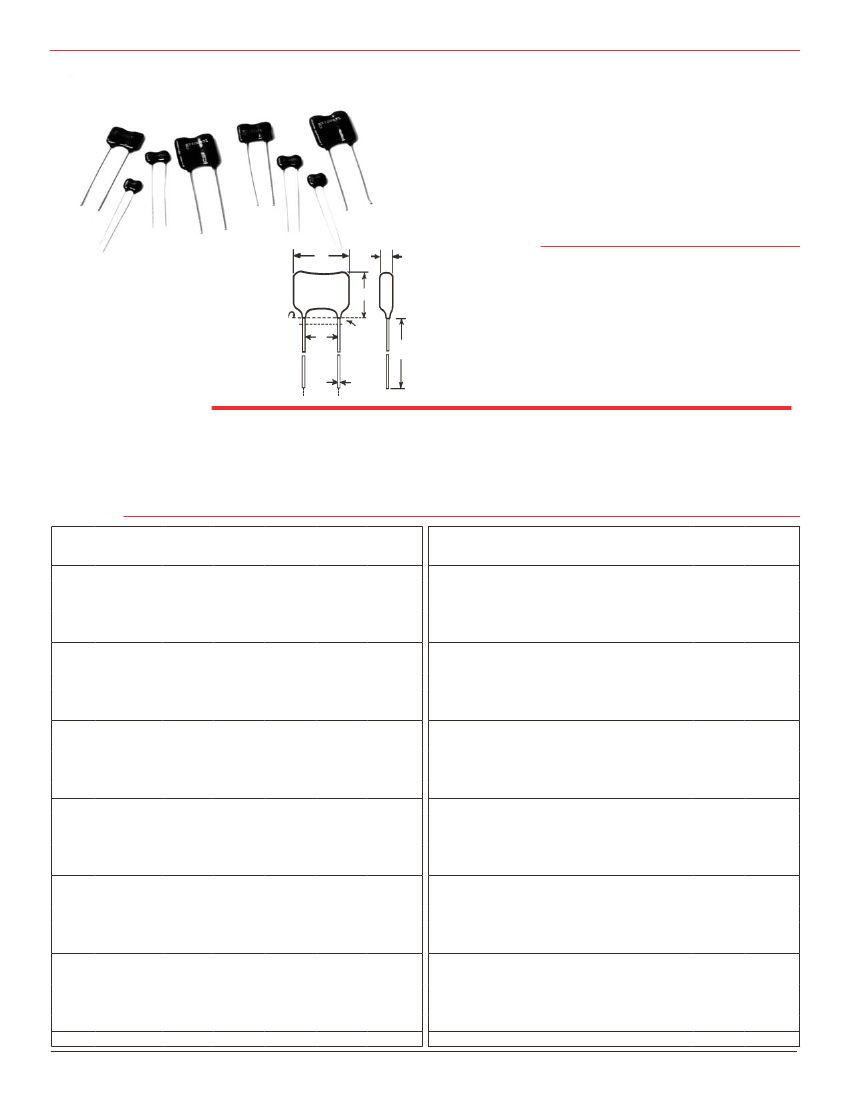

Mica Capacitors
Miniature Dipped
Types CD5, CD6, CD7, CDS5, CDS10, D7, CDS15, CDS19, CDS30
Small cases for tight places is what you get with CDE
miniature dipped silver mical capacitors. Like the stan-
dard dipped mica capacitor, the miniature dipped product
offers the same stability and rugged performance in low
and moderate-humidity applications.
L
Max.
T
Max.
Highlights
♦
♦
♦
♦
♦
H Max.
Measured at point
where phenolic
cone becomes a
cylinder
±
.031.
S
.078. Max.
no solder
1.
Min.
d
MIL-C-5 military styles available
Reel packaging available
Dimensions meet EIA RS153B specification
20,000 V/µs dV/dt pulse capability minimum
Non-flammable units that meet IEC 695-2-2 are
available
Specifications
Ratings
Cap Volts
(pF)
1
1
1
1
1
2
2
2
2
2
3
3
3
3
3
4
4
4
4
4
5
5
5
5
5
6
6
6
6
6
7
Catalog
(Vdc) Part Number
300 CD5CC010D03
300 CDS5CC010D03
500 CD6CD010D03
500 CDS10CD010D03
500 CDS15CD010D03
300 CD5CC020D03
300 CDS5CC020D03
500 CD6CD020D03
500 CDS10CD020D03
500 CDS15CD020D03
300 CD5CC030D03
300 CDS5CC030D03
500 CD6CD030D03
500 CDS10CD030D03
500 CDS15CD030D03
300 CD5CC040D03
300 CDS5CC040D03
500 CD6CD040D03
500 CDS10CD040D03
500 CDS15CD040D03
300 CD5CC050D03
300 CDS5CC050D03
500 CD6CD050D03
500 CDS10CD050D03
500 CDS15CD050D03
300 CD5CC060D03
300 CDS5CC060D03
500 CD6CD060D03
500 CDS10CD060D03
500 CDS15CD060D03
300 CD5CC070D03
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Temperature Range:
Dielectric Strength Test:
L
inches (mm)
0.270 ( 6.9)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
1 pF to 40,000 pF
50 Vdc to 500 Vdc
±1/2 pF (D), ±1 pF (C), ±1/2% (E), ±1% (F), ±2% (G), ±5% (J)
–55 ºC to +125 ºC
200% of rated voltage
S
d
Cap Volts
(pF)
7
7
7
7
8
8
8
8
8
9
9
9
9
9
10
10
10
10
10
11
11
11
11
11
12
12
12
12
12
15
15
Catalog
H
inches (mm)
0.190 (4.8)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
T
inches (mm)
0.110 (2.8)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.110 (2.8)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.110 (2.8)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.110 (2.8)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.110 (2.8)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.110 (2.8)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.110 (2.8)
L
inches (mm)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
0.250 ( 6.4)
0.275 ( 7.0)
0.310 ( 7.9)
0.430 (10.9)
0.270 ( 6.9)
0.250 ( 6.4)
H
inches (mm)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
0.160 (4.1)
0.175 (4.4)
0.260 (6.6)
0.280 (7.1)
0.190 (4.8)
0.170 (4.3)
T
inches (mm)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.110 (2.8)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.110 (2.8)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.110 (2.8)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.110 (2.8)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.110 (2.8)
0.090 (2.3)
0.095 (2.4)
0.120 (3.0)
0.140 (3.6)
0.120 (3.0)
0.100 (2.5)
S
d
inches (mm) inches (mm)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
(Vdc) Part Number
300 CDS5CC070D03
500 CD6CD070D03
500 CDS10CD070D03
500 CDS15CD070D03
300 CD5CC080D03
300 CDS5CC080D03
500 CD6CD080D03
500 CDS10CD080D03
500 CDS15CD080D03
300 CD5CC090D03
300 CDS5CC090D03
500 CD6CD090D03
500 CDS10CD090D03
500 CDS15CD090D03
300 CD5CC100J03
300 CDS5CC100J03
500 CD6CD100D03
500 CDS10CD100J03
500 CDS15CD100J03
300 CD5CC110J03
300 CDS5CC110J03
500 CD6CD110D03
500 CDS10CD110J03
500 CDS15CD110J03
300 CD5CC120J03
300 CDS5CC120J03
500 CD6CD120J03
500 CDS10CD120J03
500 CDS15CD120J03
300 CD5CC150J03
300 CDS5CC150J03
inches (mm) inches (mm)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
0.172 (4.4) 0.016 (.4)
0.141 (3.6) 0.016 (.4)
0.234 (5.9) 0.025 (.6)
0.120 (3.0) 0.016 (.4)
0.120 (3.0) 0.016 (.4)
Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com

Recommended Resources

BL50462 (TV) infrared remote control transmitter circuit

Dimming circuit using trigger diode

Music controlled color lighting circuit

Electric kiln temperature control circuit

555 wide range programmable timer circuit

Multi-channel buffer amplifier circuit

P87LPC778 OTP MCU Data Sheet
The P87LPC778 is a 20-pin packaged microcontroller that can achieve highly integrated, low-cost solutions under a wide range of performance requirements. As a member of the Philips small package serie...
rain MCU
Please give me some advice on how to draw a triangle button in Wince
The CreatePolygonRgn() API is no longer available. How can I get a triangle's HRGN type? Please give me some advice. I'd be very grateful....
airmoon Embedded System
Raspberry Pi 2 Model B Review (I) - A Commercial Victory of Universal Sentiment
[align=center][size=4]Teardown Boy vs Raspberry Pi (Part 1)[/size][/align][align=left][size=3] I would like to thank the EEWORLD community for providing me with an opportunity to teardown the Raspberr...
freebsder Robotics Development
Design experience summary
Summary of digital logic design : Pipeline and reusePipeline : Each level does its own work, and each processing process has its own exclusive hardware resources. The previous level is done, and the n...
eeleader FPGA/CPLD
Super simple, 100 points [Circuit diagram and program for computer-controlled 12 LED marquee! ]
Computer controlled 12 led marquee circuit diagram and program! Thank you!...
xiangbing Embedded System
The phenomenon that LM358 is used as a comparator is against common sense~~~
As shown in the figure, the LM358 is powered by a single 15V power supply, the voltage of the 6th pin (-) is 1.66V, and the 5th pin (+) is pulled high or low through the output pin of the IC. The phen...
banana Analog electronics
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. AM27512-25DE
  2. 75875-301-07
  3. AR121012R7+-0.1%TCR50
  4. HE752R0510
  5. CRCW08053303F100RT1
  6. VJ2225Y125MFCAT5H
  7. PRT605ACAG5A
  8. CRMV1210BE1K15FLSW
  9. FMMT619
  10. MMBD354_R1_00001
  11. A3961PT-L1199
  12. QR2010D180KE04

Popular Articles

  1. Mobile phone chip supply cycle extended to 12 months, RF front-end demand increased by more than 50%
  2. Global Gaming Laptop Shipments Forecast to Reach 14.79 Million Units in 2021
  3. TI's integrated transformer module technology helps further extend driving time for hybrid and electric vehicles
  4. Mi Rabbit Children's Phone Watch 5C Disassembly: Domestic children's watches of course use domestic chips
  5. 51 MCU-Timer & Digital Tube Scanning Display
  6. Huami releases third-generation product, the smartwatch market is still uncertain
  7. ANCA Academy is now available on Bilibili. Welcome to follow us
  8. Review of Micron's NAND development history
  9. Saiwei Electronics: Beijing FAB3 is promoting the development of multiple MEMS chip processes
  10. Introduction to High-Fidelity Audio Amplifier Chip

Technical ResourceMore

  1. Design and simulation of octave electronic piano based on Multisim
  2. A realization of uart algorithm based on VHDL
  3. ASP.NET Programming Basics and Applications Electronic Lesson Plan
  4. Design of Bluetooth temperature sensor
  5. Graduation Project Management Platform Based on SSH
  6. Research and design of vehicle anti-collision monitoring and warning system
  7. Frequency calculation method analysis and error analysis
  8. Test Signal Analysis and Processing Technology of Virtual Instrument
  9. Camera circuit schematic diagram
  10. Design of Circularly Polarized Microstrip Array Antenna

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 336  1579  1075  2513  1990  7  32  22  51  41
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
