2C2.5UM: DescriptionV-EA-Series - UL508 Manual Motor Controller; CategoryCircuit protection Circuit protection; File Size545KB，2 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

2C2.5UM Overview

V-EA-Series - UL508 Manual Motor Controller

2C2.5UM Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Circuit protection type	THERMAL MAGNETIC
Base Number Matches	1

Preview

Download Datasheet

View All

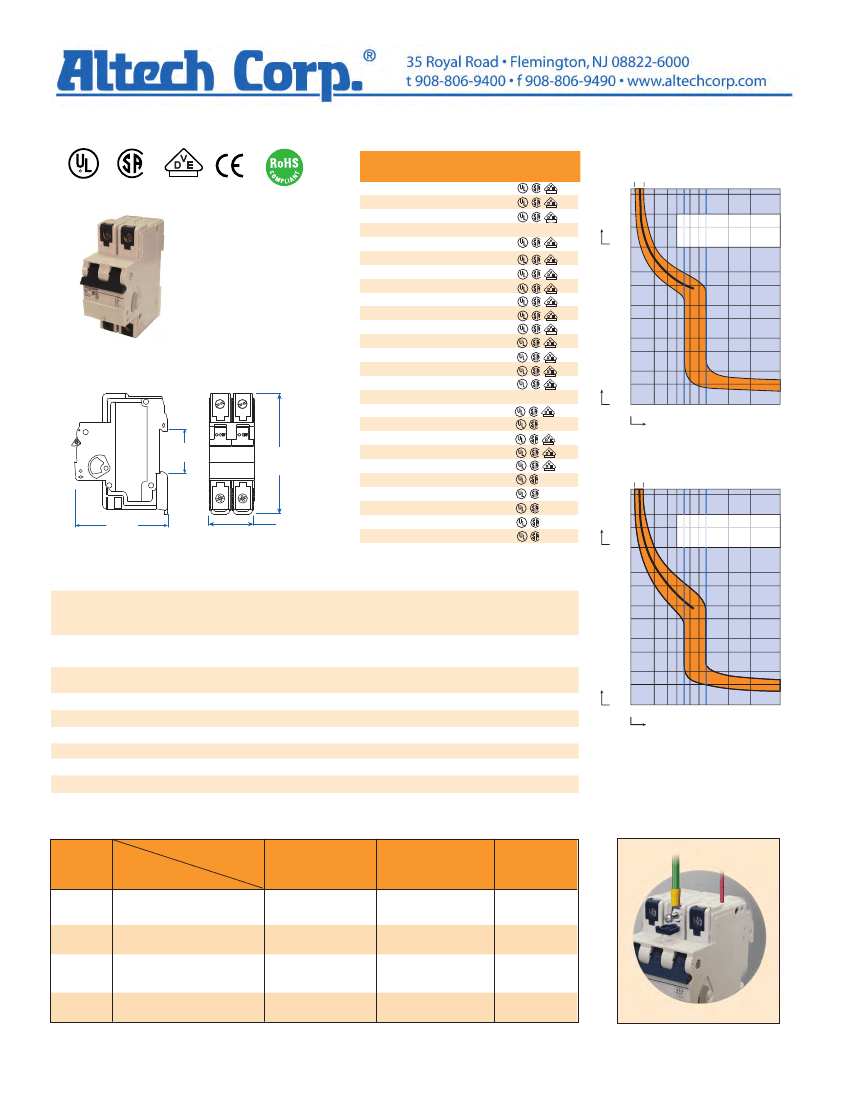

V-EA-Series - UL508 Manual Motor Controller -

2 pole C-Trip

UL508 Listed

E137938

Standard Pack:

6

Weight:

0.3A - 32A

1.8kg (3.97 lb.)

40A - 63A

1.98kg (4.37 lb.)

Two Pole

35 mm

(1.38 in.)

93.3 mm

(3.67 in.)

74.7 mm

(2.94 in.)

35 mm

(1.38 in.)

Rated

Current

0.3A

0.5A

0.75A

0.8A

1.0A

1.6A

2.0A

2.5A

3.0A

3.5A

4.0A

5.0A

6.0A

8.0A

10A

12A

13A

15A

16A

20A

25A

30A

32A

40A

50A

60A

63A

Type/

Cat. No.

2C03UM

2C05UM

2C075UM

NA

2C1UM

2C1.6UM

2C2UM

2C2.5UM

2C3UM

2C3.5UM

2C4UM

2C5UM

2C6UM

2C8UM

2C10UM

NA

2C13UM

2C15UM

2C16UM

2C20UM

2C25UM

2C30UM

2C32UM

2C40UM

2C50UM

2C60UM

2C63UM

Approvals

V-EA-C Trip

0.3A Through 10A Rated Current

1.13-1.45xI

N

60

40

Minutes

10

4

1

Thermal Overload

“Must Trip” < 1 hr = 145% RC

“Must Not Trip” > 1 hr = 113% RC

Tripping time t

10

4

1

0.4

10

-1

4x10

-2

Seconds

10

-2

4x10

-3

10

-3

1

2

3 4

5

6 8

10

20

40

100

Multiple of Rated Current

V-EA-C Trip

13A Through 63A Rated Current

1.13-1.45xI

N

60

40

Minutes

10

4

1

Thermal Overload

“Must Trip” < 1 hr = 145% RC

“Must Not Trip” > 1 hr = 113% RC

Tripping time t

10

4

1

0.4

10

-1

4x10

-2

Voltage Rating

Short Circuit Withstand Rating

(UL/CSA - Ratings)

Group Short Circuit Withstand Rating

(UL/CSA - Ratings)

Interrupting Capacity (VDE - Ratings)

Calibration Temperature

Operating Temperature

Storage Temperature

Terminal Size Acceptability

Terminal Torque

Terminal Protection Degree

480Y/277VAC

0.3-25A: 1 pole - 42VDC; 2 Pole - 80VDC

30-60A: 1 pole - 24VDC; 2 Pole - 60VDC

0.3-60A (RC): 10kA with UL-listed

RK5 back-up fuse or MCCB

0.3-10A (RC): 10kA; 13-60A (RC): 5kA

no branch circuit protection required

0.3-63A (RC): 10kA

40°C (104°F)

-25°C to 55°C (-13°F to 131°F)

-40°C to 70°C (-40°F to 158°F)

Top: 18-3 AWG; Bottom: 18-2 AWG (Line/Load reversible)

20 lb.in.

IP20

Seconds

10

-2

4x10

-3

10

-3

1

2

3 4

5

6 8

10

20

40

100

Multiple of Rated Current

Standard Dual

Connection Terminal

All parts are ring tongue compatible.

short circuit Withstand ratings for v-ea manual motor controller

Trip

Curve

all

Backup

Protection

Amp Range

0.3 - 10A

12 - 30/32A

40 - 50A

60 / 63A

UL-Listed

RK5-Fuse

up to 10kA

4xRC*

min 15A, max 70A

4xRC*

max 125A

4xRC*

max 200A

4xRC*

max 250A

UL-Listed

MCCB

up to 10kA

4xRC*

min 15A, max 70A

4xRC*

max 125A

4xRC*

max 200A

4xRC*

max 250A

No BCP

Required

up to:

10kA

5kA

Ring

tongue

Box

clamp

*up to nearest rated current
