Z84C0106FEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z84C0106FEC

Z84C0106FEC: DescriptionMicroprocessor, 8-Bit, 6.17MHz, CMOS, PQFP44, QFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size651KB，31 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z84C0106FEC Overview

Microprocessor, 8-Bit, 6.17MHz, CMOS, PQFP44, QFP-44

Z84C0106FEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	QFP
package instruction	QFP, QFP44,.57SQ,32
Contacts	44
Reach Compliance Code	unknown
Other features	DRAM REFRESH COUNTER
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	6.17 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
length	10 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	44
On-chip data RAM width
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.57SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	2.5 mm
speed	6.17 MHz
Maximum slew rate	30 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

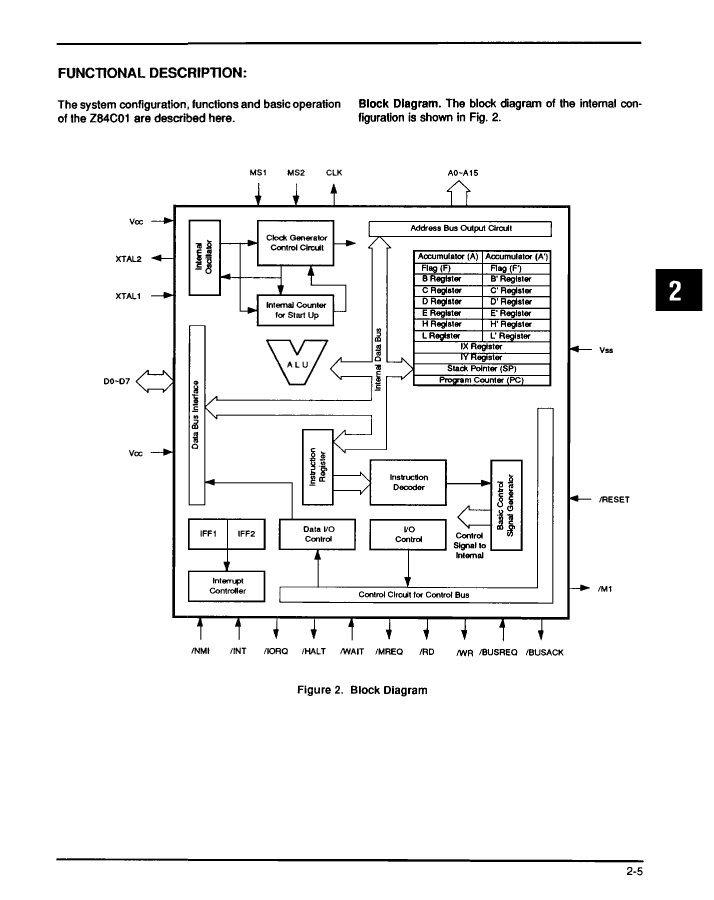

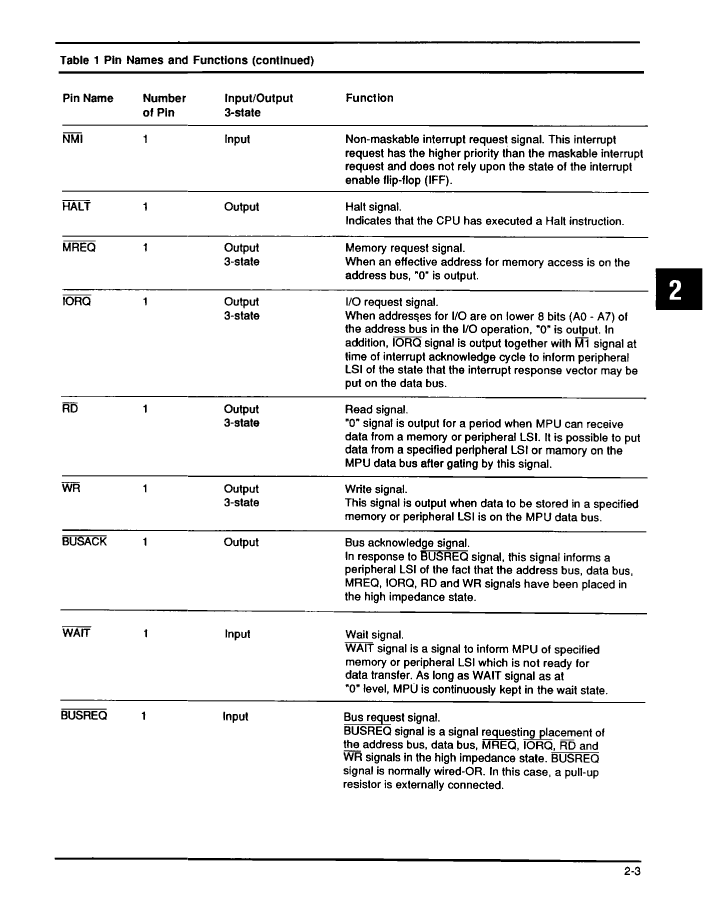

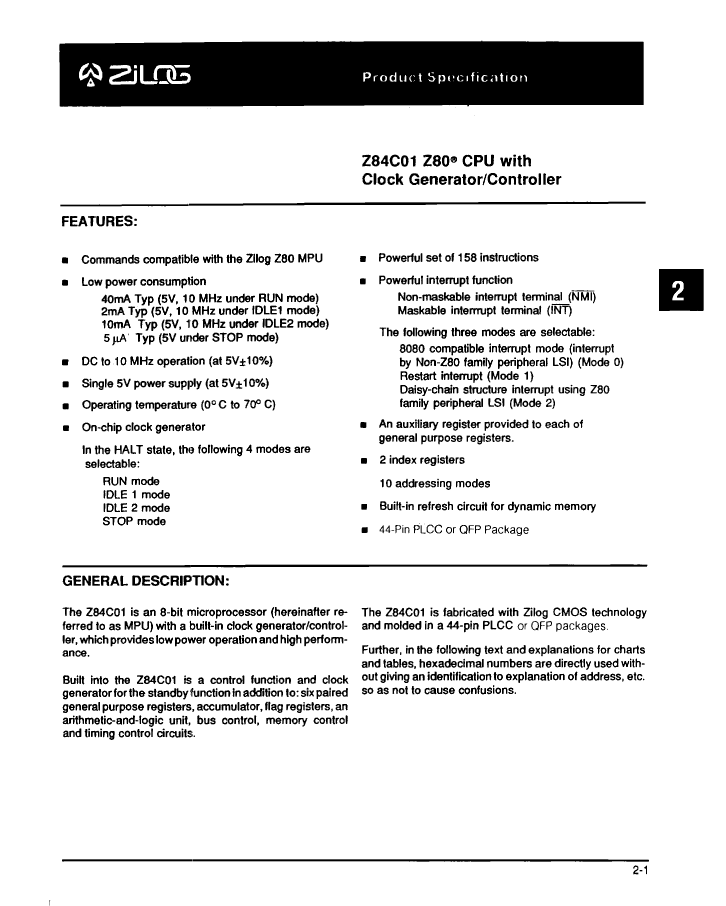

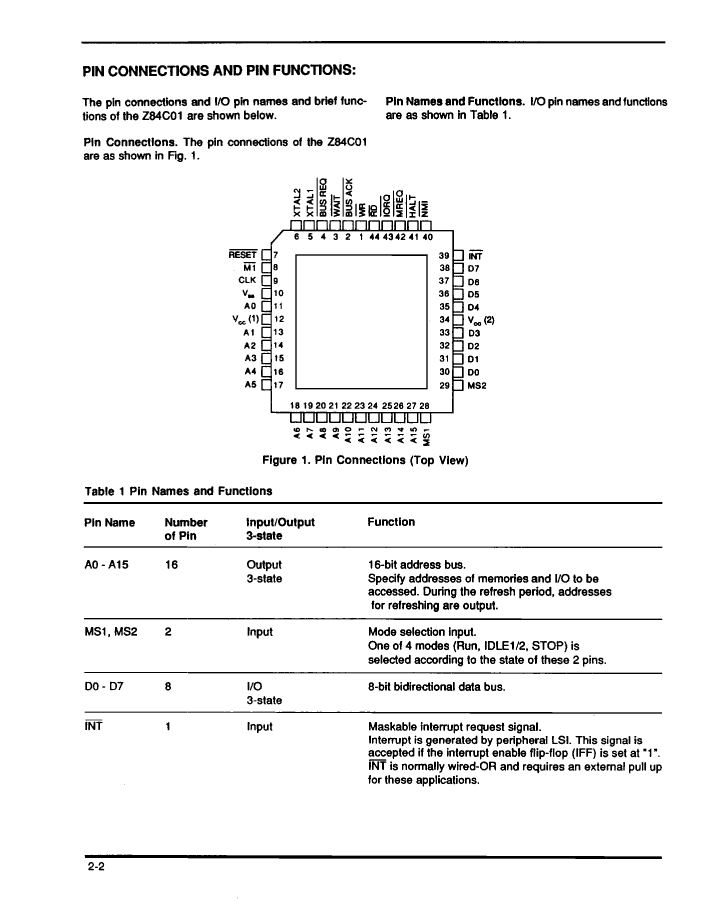

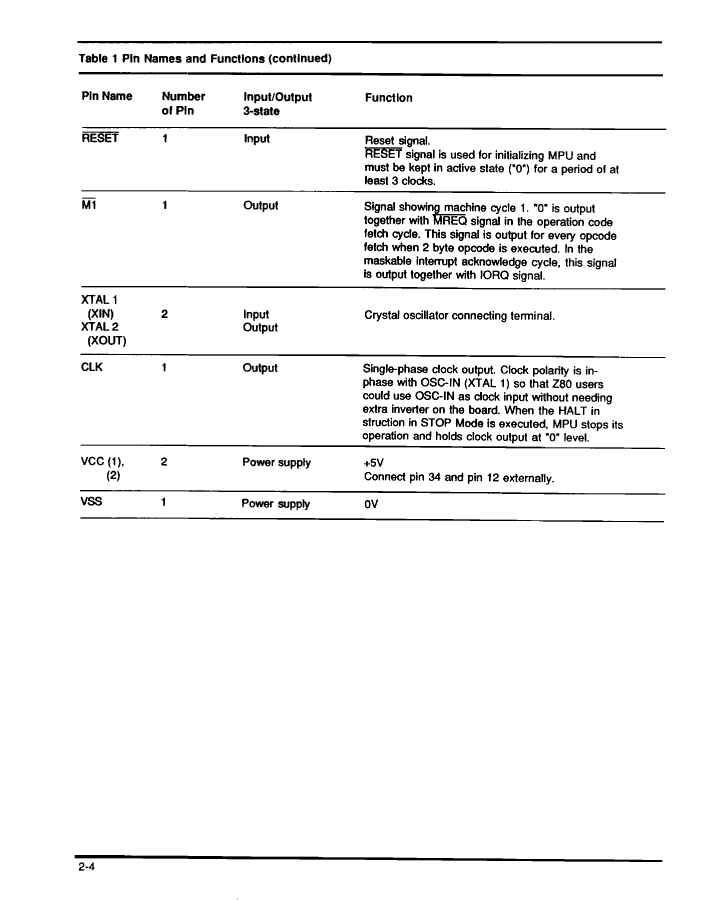

Preview

Download Datasheet

View All

Z84C0106FEC Related Products

	Z84C0106FEC	Z84C0106VSC	Z84C0110FEC	Z84C0106FSC	Z84C0106VEC	Z84C0110VEC
Description	Microprocessor, 8-Bit, 6.17MHz, CMOS, PQFP44, QFP-44	Microprocessor, 8-Bit, 6.17MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microprocessor, 8-Bit, 10MHz, CMOS, PQFP44, QFP-44	Microprocessor, 8-Bit, 6.17MHz, CMOS, PQFP44, QFP-44	Microprocessor, 8-Bit, 6.17MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microprocessor, 8-Bit, 10MHz, CMOS, PQCC44, PLASTIC, LCC-44
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	QFP	LCC	QFP	QFP	LCC	LCC
package instruction	QFP, QFP44,.57SQ,32	QCCJ,	QFP, QFP44,.57SQ,32	QFP,	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ
Contacts	44	44	44	44	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	DRAM REFRESH COUNTER	DRAM REFRESH COUNTER	DRAM REFRESH COUNTER	DRAM REFRESH COUNTER	DRAM REFRESH COUNTER	DRAM REFRESH COUNTER
Address bus width	16	16	16	16	16	16
bit size	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	6.17 MHz	6.17 MHz	10 MHz	6.17 MHz	6.17 MHz	10 MHz
External data bus width	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQFP-G44	S-PQCC-J44	S-PQFP-G44	S-PQFP-G44	S-PQCC-J44	S-PQCC-J44
length	10 mm	16.5862 mm	10 mm	10 mm	16.5862 mm	16.5862 mm
low power mode	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	2	2	2	2	2	2
Number of terminals	44	44	44	44	44	44
Maximum operating temperature	100 °C	70 °C	100 °C	70 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-	-40 °C	-	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QCCJ	QFP	QFP	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.5 mm	4.57 mm	2.5 mm	2.5 mm	4.57 mm	4.57 mm
speed	6.17 MHz	6.17 MHz	10 MHz	6.17 MHz	6.17 MHz	10 MHz
Maximum slew rate	30 mA	30 mA	50 mA	30 mA	30 mA	50 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	J BEND	GULL WING	GULL WING	J BEND	J BEND
Terminal pitch	0.8 mm	1.27 mm	0.8 mm	0.8 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	10 mm	16.5862 mm	10 mm	10 mm	16.5862 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
Is it Rohs certified?	incompatible	-	incompatible	-	incompatible	incompatible
JESD-609 code	e0	-	e0	-	e0	e0
Encapsulate equivalent code	QFP44,.57SQ,32	-	QFP44,.57SQ,32	-	LDCC44,.7SQ	LDCC44,.7SQ
power supply	5 V	-	5 V	-	5 V	5 V
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
