2DU63 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 2DU63

2DU63: DescriptionV-EA-Series - UL508 Manual Motor Controller; CategoryCircuit protection Circuit protection; File Size223KB，2 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

2DU63 Overview

V-EA-Series - UL508 Manual Motor Controller

2DU63 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Circuit protection type	THERMAL CIRCUIT BREAKER
Base Number Matches	1

Preview

Download Datasheet

View All

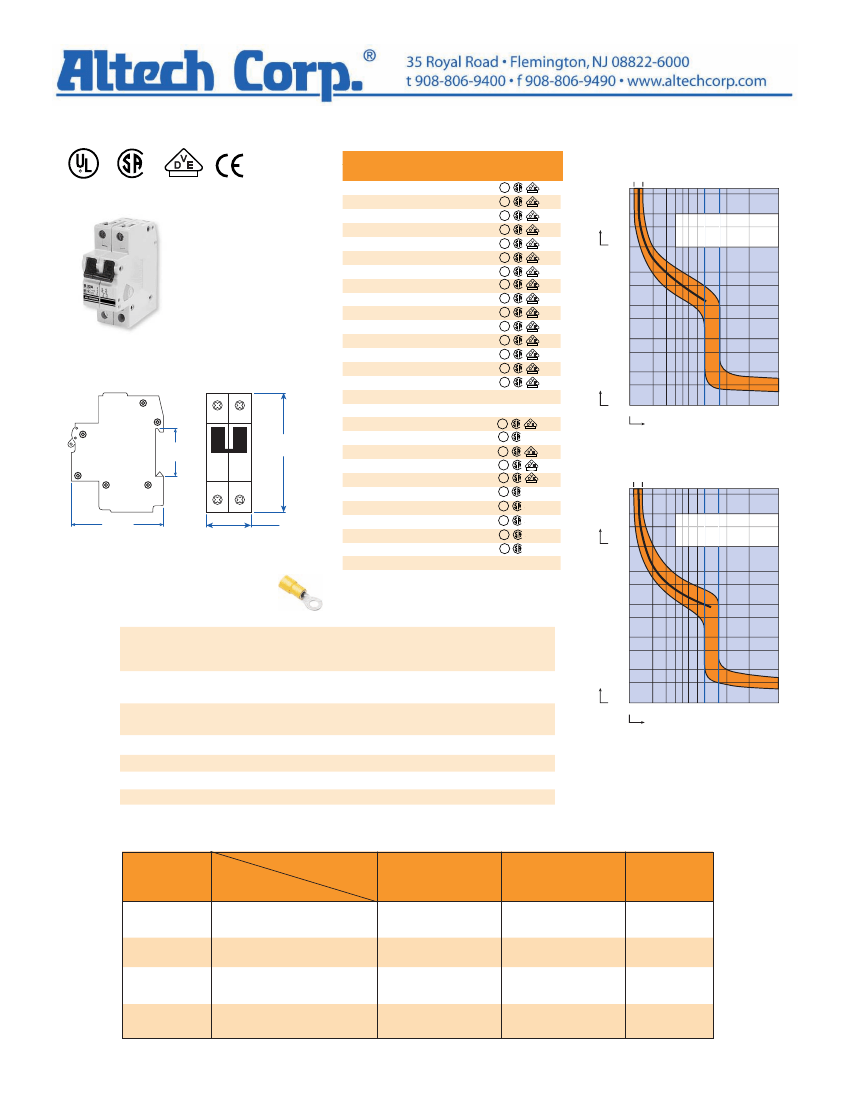

V-EA-Series - UL508 Manual Motor Controller -

2 pole D-Trip

UL508 Listed

Minutes

E137938

Standard Pack:

Weight:

0.3A - 63A

1.68kg (3.7 lb.)

Two Pole

35 mm

(1.38 in.)

91.5 mm

(3.60 in.)

70 mm

(2.76 in.)

35 mm

(1.38 in.)

Rated

Current

0.3A

0.5A

0.75A

0.8A

1.0A

1.6A

2.0A

2.5A

3.0A

3.5A

4.0A

5.0A

6.0A

8.0A

10A

12A

12.5A

13A

15A

16A

20A

25A

30A

32A

40A

50A

60A

63A

Type/

Cat. No.

2DU03

2DU05

2DU075

2DU1

2DU1.6

2DU2

2DU2.5

2DU3

2DU3.5

2DU4

2DU5

2DU6

2DU8

2DU10

2DU13

2DU15

2DU16

2DU20

2DU25

2DU30

2DU32

2DU40

2DU50

2DU60

2DU63

Approvals

V-EA-D Trip

0.3A Through 10A Rated Current

1.13-1.45xI

Thermal Overload

“Must Trip” < 1 hr = 145% RC

“Must Not Trip” > 1 hr = 113% RC

Tripping time t

0.4

-1

4x10

-2

Seconds

-2

4x10

-3

3 4 5 6 8

10 16

100

Multiple of Rated Current

V-EA-D Trip

13A Through 63A Rated Current

1.13-1.45xI

Minutes

Thermal Overload

“Must Trip” < 1 hr = 145% RC

“Must Not Trip” > 1 hr = 113% RC

For ring tongue terminal version, replace “U”

with “R” in part number. For example

1BR20

instead of

1BU20.

Tripping time t

0.4

-1

4x10

-2

Voltage Rating

Seconds

480Y/277VAC

0.3-25A: 1 pole - 42VDC; 2 Pole - 80VDC

30-60A: 1 pole - 24VDC; 2 Pole - 60VDC

0.3-60A (RC): 10kA with UL-listed

RK5 back-up fuse or MCCB

0.3-10A (RC): 10kA; 12-60A (RC): 5kA

no branch circuit protection required

0.3-63A (RC): 10kA

40°C (104°F)

Top: 18-3 AWG; Bottom: 18-2 AWG

20 lb.in.

IP20

-2

4x10

-3

Short Circuit Withstand Rating

(UL/CSA - Ratings)

Group Short Circuit Withstand Rating

(UL/CSA - Ratings)

Interrupting Capacity (VDE - Ratings)

Calibration Temperature

Terminal Size Acceptability

Terminal Torque

Terminal Protection Degree

3 4 5 6 8

10 16

100

Multiple of Rated Current

short circuit Withstand ratings for v-ea manual motor controller

Trip

Curve

all

*up to nearest rated current

Backup

Protection

Amp Range

0.3 - 10A

12 - 30/32A

40 - 50A

60 / 63A

UL-Listed

RK5-Fuse

up to 10kA

4xRC*

min 15A, max 70A

4xRC*

max 125A

4xRC*

max 200A

4xRC*

max 250A

UL-Listed

MCCB

up to 10kA

4xRC*

min 15A, max 70A

4xRC*

max 125A

4xRC*

max 200A

4xRC*

max 250A

No BCP

Required

up to:

10kA

5kA

2DU63 Related Products

	2DU63	2DU1.6	2DU2.5
Description	V-EA-Series - UL508 Manual Motor Controller	V-EA-Series - UL508 Manual Motor Controller	V-EA-Series - UL508 Manual Motor Controller
Reach Compliance Code	unknow	unknow	unknow
Circuit protection type	THERMAL CIRCUIT BREAKER	THERMAL CIRCUIT BREAKER	THERMAL CIRCUIT BREAKER
Base Number Matches	1	1	1
