3DU1.6L: DescriptionL-Series - UL489 Miniature Molded Case Circuit Breaker; CategoryCircuit protection Circuit protection; File Size1MB，2 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

3DU1.6L Overview

L-Series - UL489 Miniature Molded Case Circuit Breaker

3DU1.6L Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Circuit protection type	THERMAL MAGNETIC
Base Number Matches	1

Preview

Download Datasheet

View All

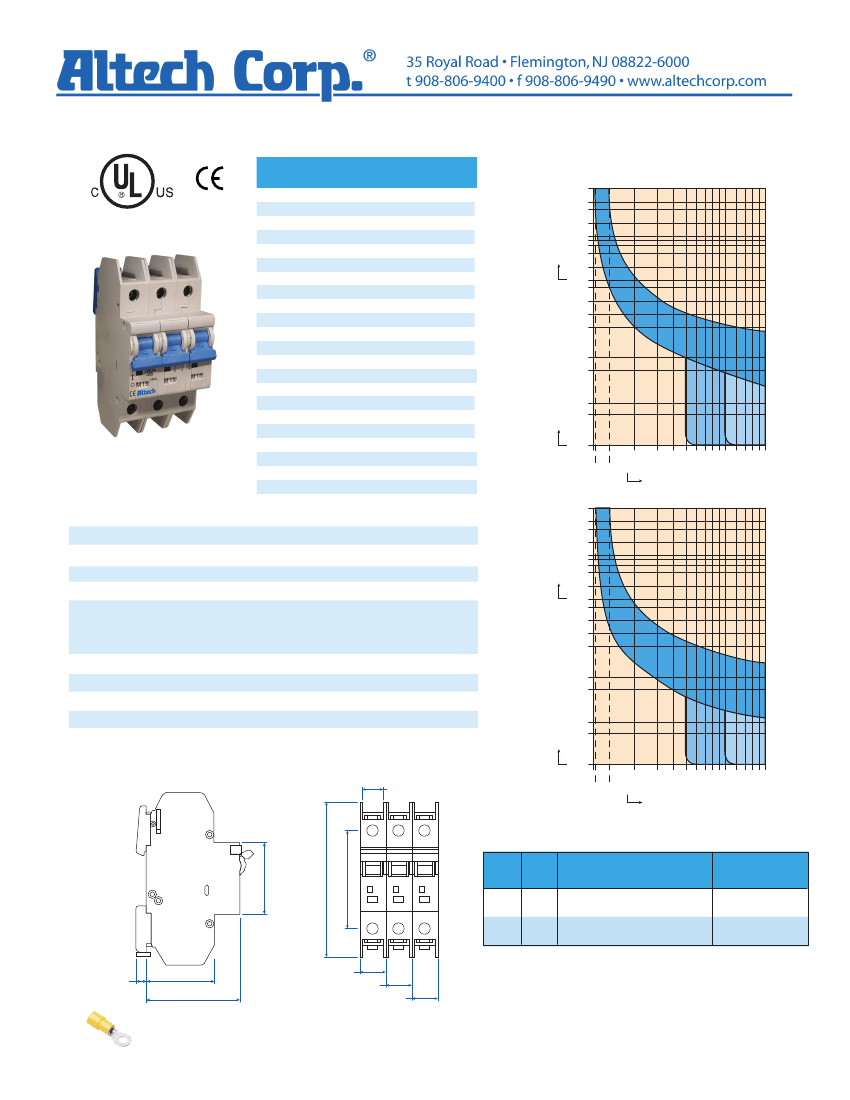

L-Series - UL489 Miniature Molded Case Circuit Breaker -

3 pole D-Trip

Rated

Current

0.2A

0.5A

1.0A

1.6A

2.0A

3.0A

4.0A

5.0A

6.0A

8.0A

10A

12A

13A

15A

16A

20A

25A

30A

32A

40A

50A

60A

63A

Type/

Cat. No.

3DU02L

3DU05L

3DU1L

3DU1.6L

3DU2L

3DU3L

3DU4L

3DU5L

3DU6L

3DU8L

3DU10L

3DU12L

3DU13L

3DU15L

3DU16L

3DU20L

3DU25L

3DU30L

3DU32L

3DU40L

3DU50L

3DU60L

3DU63L

C and D Trip, Less than 10A

120

60

40

20

Minutes

LISTED

E305318

10

8

6

4

2

1

40

20

10

5

Tripping time t

1

0.5

Seconds

0.05

0.1

Three Pole

Standard Pack:

4

Weight:

1.7kg (3.74 lb.)

0.01

C

1

2

3

4

Multiple of Rated Current

D

5 6 7 8 9 10 12 14 16 20

1.05 1.3

C and D Trip, 10A and higher

7200

3600

2400

1200

Minutes

Tripping time t

AC Version Current/ Voltage Rating

0.2-63A/240VAC, 0.2-32A/480Y/277VAC*

Calibration Temperature

Operating Temperature

Storage Temperature

Terminal Size Acceptability:

Solid Wire

Stranded Wire

Terminal Torque

Terminal Protection Degree

Electrical Life

Mechanical Life

Wire Connection

*One

device dual voltage ratings.

14.5mm (0.57 in.)

40°C (104°F)

-25° to 60°C (-13° to 140°F)

-25° to 75°C (-13° to 167°F)

18 AWG -10 AWG

18 AWG -6 AWG

2.8 Nm (25 lb-in.)

IP20

6000 cycles on/off

100000 cycles on/off

copper wire only 60/75°C

600

480

360

240

120

60

40

20

10

5

1

0.5

Seconds

0.05

0.1

0.01

C

1

2

3

4

Multiple of Rated Current

D

5 6 7 8 9 10 12 14 16 20

1.05 1.3

109mm (4.29 in.)

AC

- short CirCuit interruptinG rAtinG

69mm (2.72 in.)

45mm (1.77 in.)

No.

Poles

1

2-4

Type

AC

0.2-32A

10kA@120, 240, 277V

33-63A

10kA@120, 240V

10kA@120, 240V, 480Y/277V 10kA@120, 240V

6.5mm

(0.26 in.)

17.5mm (0.69 in.)

44mm (1.73 in.)

60mm (2.36 in.)

35mm (1.38 in.)

52.5mm (2.07 in.)

For ring tongue terminal version, replace “U” with “R” in part number. For example

1CR20L

instead of

1CU20L.
