74HC366DB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74HC366DB

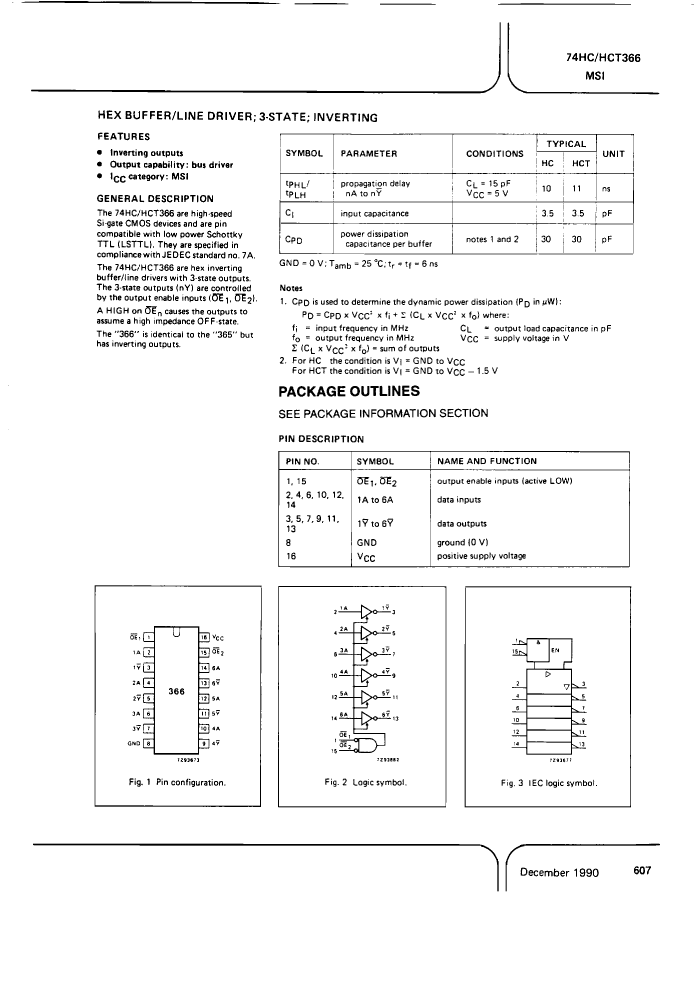

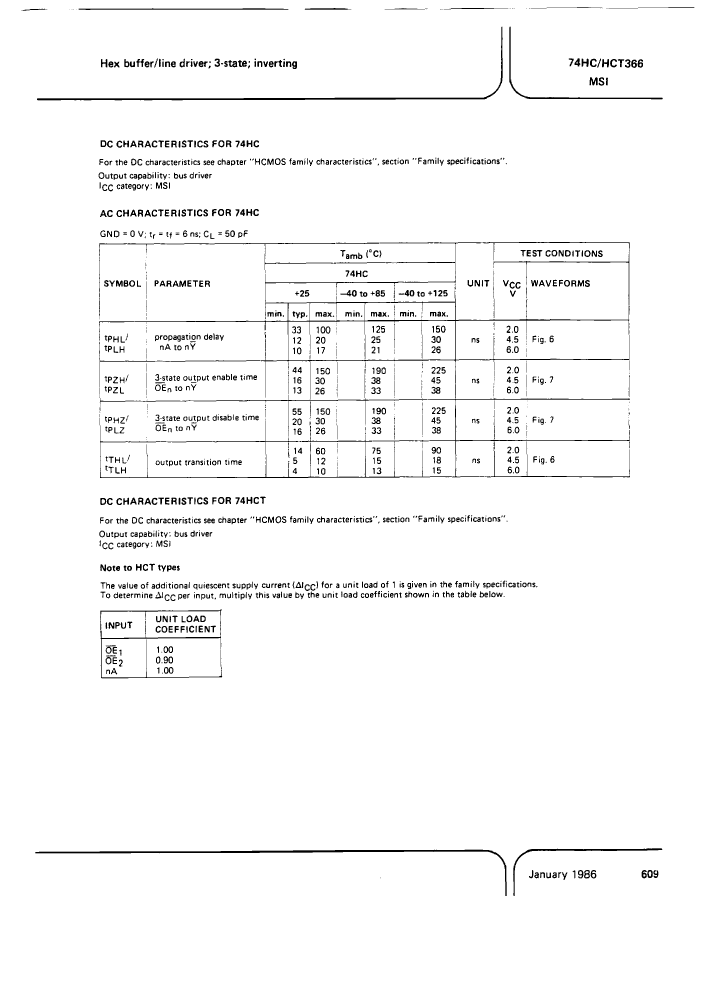

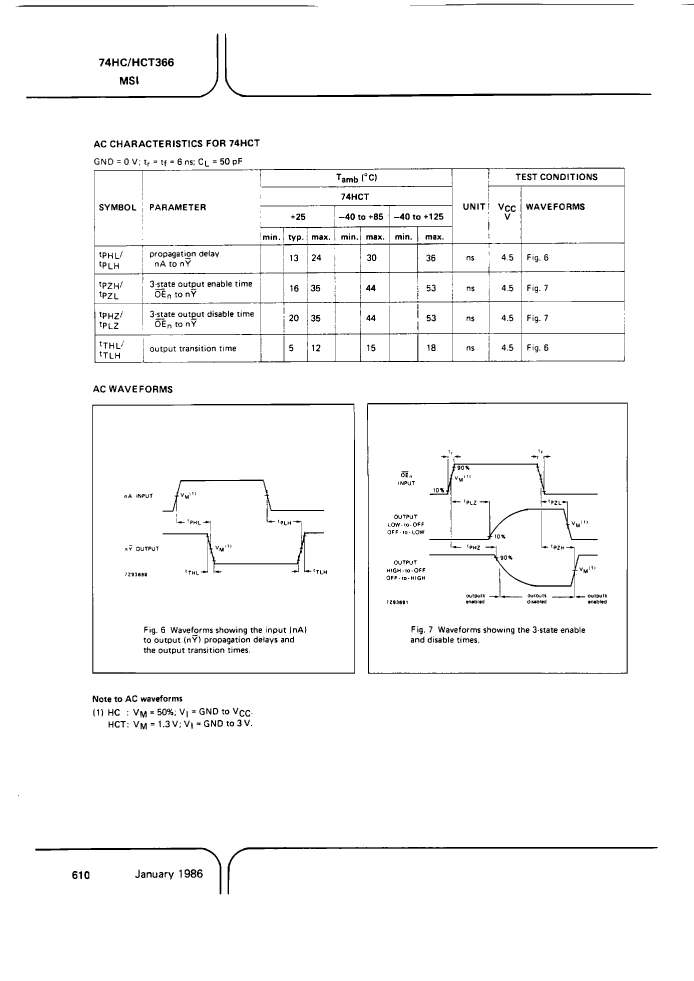

74HC366DB: DescriptionIC HC/UH SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDSO16, Bus Driver/Transceiver; Categorylogic logic; File Size78KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74HC366DB Overview

IC HC/UH SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDSO16, Bus Driver/Transceiver

74HC366DB Parametric

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	HC/UH
JESD-30 code	R-PDSO-G16
length	6.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm

Preview

Download Datasheet

View All

74HC366DB Related Products

	74HC366DB	74HC366DB-T	74HC366NB	74HCT366NB
Description	IC HC/UH SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDSO16, Bus Driver/Transceiver	IC HC/UH SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDSO16, Bus Driver/Transceiver	HC/UH SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDIP16	HCT SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDIP16
Maker	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
series	HC/UH	HC/UH	HC/UH	HCT
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16
length	6.2 mm	6.2 mm	19.025 mm	19.025 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	6	6	6	6
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	IN-LINE	IN-LINE
propagation delay (tpd)	30 ns	30 ns	30 ns	36 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	2 mm	4.2 mm	4.2 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	0.65 mm	0.65 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	5.3 mm	5.3 mm	7.62 mm	7.62 mm
