LST0805-TBCT
Surface Mount Device LED
Features:
•
•
•
•
Top view, wide view angle, single color chip LED.
Compatible with automatic Pick & Place equipment.
Compatible with Infrared and Wave soldering reflow solder processes.
EIA STD package.
Ordering Information:
•
•
Package in 8mm tape on 7" diameter reels.
Tape quantity: 3000 pcs per reel with part number suffix "-T1"

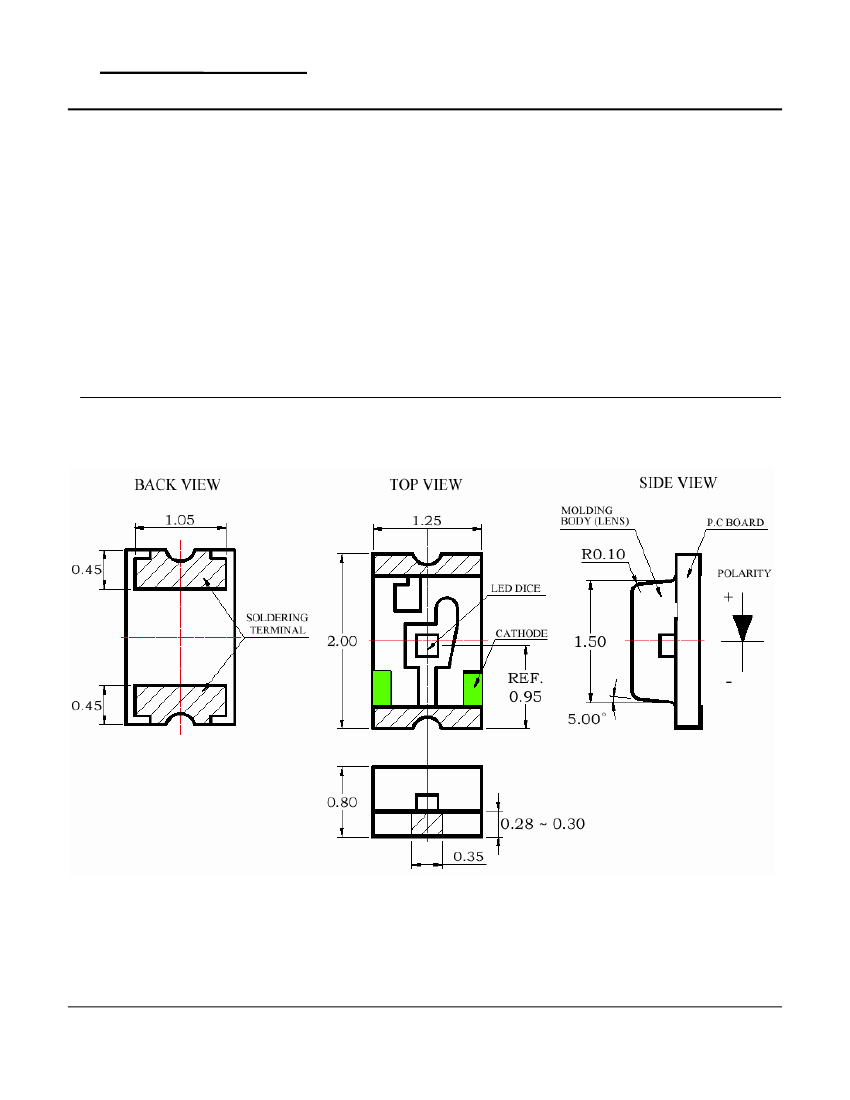

Mechanical Dimensions: In mm
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ± 0.1 mm (.004") unless otherwise noted.
•
221 West Industry Court
Deer Park, NY 11729-4681
(631) 586-7600 FAX (631) 242-9798
•
•
World Wide Web Site - http://www.sensitron.com
•
E-Mail Address - sales@sensitron.com
•
SENSITRON
SEMICONDUCTOR
Technical Data
Data Sheet 3629, Rev. -
LST0805-TBCT
Absolute Maximum Ratings (T
A
= 25
°C)
Parameter
Power Dissipation
Peak Forward Current (1/10
Duty Cycle, f = 1kHz)
Continuous Forward Current
Reverse Voltage
Electrostatic Discharge
Threshold(HBM)
Note A
Derating Linearly from 25
°C
Operating Temperature Range
Storage Temperature Range
Wave Soldering Condition
(Two times Max)
Infrared Soldering Condition
(Two times Max)
Symbol
P
AD
I
PF
I
AF
V
R
ESD
-
T
opr
T
stg
-
-
Parameters
100
100
25
5
150
0.25
-40 ~ +85
-40 ~ +85
260
±
5 (for 5 seconds)
240
±
5 (for 5 seconds)
Unit
mW
mA
mA
V
V
mA/°C
°C
°C
°C
°C
Electro-Optical Characteristic (T
A
= 25
°C)
Parameter
Dice Material
Light Color
Lens Color
Luminous Intensity
@I
F
= 20 mA
Viewing Angle
@Note2
Peck Emission Wavelength
Measurement@Peak
Dominant Wavelength
@I
F
= 5 mA
Spectral Line Half-Width
Forward Voltage
@I
F
= 20 mA
Max. Reverse Current @ 5V
Symbol
-
-
-
I
V
2θ
1/2
λ
p
λ
D
△
λ
V
F
I
R
Parameters
InGaN
Super Blue
Water Clear
16.0 (Typ.)
6.3 (Min)
130
468
470
25
3.1 (Max)
2.8 (Typ.)
50
Unit
-
-
-
mcd
Degree
nm
nm
nm
V
µA
•
