SMAJ58A-13

Description
Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN
CategoryDiscrete semiconductor    diode
File Size68KB，4 Pages
ManufacturerDiodes Incorporated
Download Datasheet Parametric Compare View All

SMAJ58A-13 Online Shopping

Suppliers Part Number Price MOQ In stock
SMAJ58A-13 - - View Buy Now

SMAJ58A-13 Overview

Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN

SMAJ58A-13 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDiodes Incorporated
package instructionR-PDSO-C2
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresEXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage71.2 V
Minimum breakdown voltage64.4 V
Breakdown voltage nominal value67.8 V
Maximum clamping voltage93.6 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 codeR-PDSO-C2
JESD-609 codee0
Humidity sensitivity level1
Maximum non-repetitive peak reverse power dissipation400 W
Number of components1
Number of terminals2
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)235
polarityUNIDIRECTIONAL
Maximum power dissipation1 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage58 V
surface mountYES
technologyAVALANCHE
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formC BEND
Terminal locationDUAL
Maximum time at peak reflow temperature10

SMAJ58A-13 Preview

SMAJ5.0(C)A - SMAJ170(C)A
400W SURFACE MOUNT TRANSIENT VOLTAGE
SUPPRESSOR
Features
·
·
·
·
·
·
·
400W Peak Pulse Power Dissipation
5.0V - 170V Standoff Voltages
Glass Passivated Die Construction
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Material: UL Flammability
Classification Rating 94V-0
B
Dim
SMA
Min
2.29
4.00
1.27
0.15
4.80
0.10
0.76
2.01
Max
2.92
4.60
1.63
0.31
5.59
0.20
1.52
2.62
A
C
A
B
C
D
E
G
H
J
Mechanical Data
·
·
·
·
·
·
·
Case: SMA, Transfer Molded Epoxy
Terminals: Solderable per MIL-STD-202,
Method 208
Also Available in Lead Free Plating (Matte Tin
Finish). Please see Ordering Information,
Note 5, on Page 4
Polarity Indicator: Cathode Band
(Note: Bi-directional devices have no polarity
indicator.)
Marking: Date Code and Marking Code
See Page 3
Weight: 0.064 grams (approx.)
Ordering Info: See Page 3
@ T
A
= 25°C unless otherwise specified
Symbol
P
PK
I
FSM
PM
(AV)
@ I
PP
= 35A
V
F
T
j
T
STG
Value
400
40
1.0
3.5
-55 to +150
-55 to +175
D
J
H
G
E
All Dimensions in mm
Maximum Ratings
Characteristic
Peak Pulse Power Dissipation
(Non repetitive current pulse derated above T
A
= 25°C) (Note 1)
Peak Forward Surge Current, 8.3ms Single Half Sine Wave
Superimposed on Rated Load (JEDEC Method) (Notes 1, 2, & 3)
Steady State Power Dissipation @ T
L
= 75°C
Instantaneous Forward Voltage
(Notes 1, 2, & 3)
Operating Temperature Range
Storage Temperature Range
Notes:
Unit
W
A
W
V
°C
°C
1. Valid provided that terminals are kept at ambient temperature.
2. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum.
3. Unidirectional units only.
DS19005 Rev. 10 - 2
1 of 4
www.diodes.com
SMAJ5.0(C)A - SMAJ170(C)A
ã
Diodes Incorporated
Part Number
Add C For
Bi-Directional
(Note 4)
SMAJ5.0(C)A
SMAJ6.0(C)A
SMAJ6.5(C)A
SMAJ7.0(C)A
SMAJ7.5(C)A
SMAJ8.0(C)A
SMAJ8.5(C)A
SMAJ9.0(C)A
SMAJ10(C)A
SMAJ11(C)A
SMAJ12(C)A
SMAJ13(C)A
SMAJ14(C)A
SMAJ15(C)A
SMAJ16(C)A
SMAJ17(C)A
SMAJ18(C)A
SMAJ20(C)A
SMAJ22(C)A
SMAJ24(C)A
SMAJ26(C)A
SMAJ28(C)A
SMAJ30(C)A
SMAJ33(C)A
SMAJ36(C)A
SMAJ40(C)A
SMAJ43(C)A
SMAJ45(C)A
SMAJ48(C)A
SMAJ51(C)A
SMAJ54(C)A
SMAJ58(C)A
SMAJ60(C)A
SMAJ64(C)A
SMAJ70(C)A
SMAJ75(C)A
SMAJ78(C)A
SMAJ85(C)A
SMAJ90(C)A
SMAJ100(C)A
SMAJ110(C)A
SMAJ120(C)A
SMAJ130(C)A
SMAJ150(C)A
SMAJ160(C)A
SMAJ170(C)A
Notes:
Reverse
Standoff
Voltage
V
RWM
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
Breakdown
Voltage
V
BR
@ I
T
(Note 5)
Min (V)
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47.8
50.0
53.3
56.7
60.0
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
133
144
167
178
189
Max (V)
7.25
7.37
7.98
8.60
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86.0
92.1
95.8
104
111
123
135
147
159
185
197
209
Test
Current
I
T
(mA)
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Max. Reverse
Leakage @
V
RWM
(Note 6)
I
R
(mA)
800
800
500
200
100
50
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Max. Clamping
Voltage @ I
pp
V
C
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
243
259
275
Max. Peak Pulse
Current
I
pp
(A)
43.5
38.8
35.7
33.3
31.0
29.4
27.7
26.0
23.5
22.0
20.1
18.6
17.2
16.4
15.3
14.5
13.7
12.3
11.2
10.3
9.5
8.8
8.3
7.5
6.9
6.2
5.7
5.5
5.2
4.9
4.6
4.3
4.1
3.9
3.5
3.3
2.2
2.9
2.7
2.5
2.3
2.0
1.9
1.6
1.5
1.4
Marking Code
BI-
TE
TG
TK
TM
TP
TR
TT
TV
TX
TZ
UE
UG
UK
UM
UP
UR
UT
UV
UX
UZ
VE
VG
VK
VM
VP
VR
VT
VV
VX
VZ
WE
WG
WK
WM
WP
WR
WT
WV
WX
WZ
XE
XG
XK
XM
XP
XR
UNI-
HE
HG
HK
HM
HP
HR
HT
HV
HX
HZ
IE
IG
IK
IM
IP
IR
IT
IV
IX
IZ
JE
JG
JK
JM
JP
JR
JT
JV
JX
JZ
RE
RG
RK
RM
RP
RR
RT
RV
RX
RZ
SE
SG
SK
SM
SP
SR
4. Suffix C denotes Bi-directional device.
5. V
BR
measured with I
T
current pulse = 300ms
6. For Bi-Directional devices having V
RWM
of 10V and under, the I
R
is doubled.
DS19005 Rev. 10 - 2
2 of 4
www.diodes.com
SMAJ5.0(C)A - SMAJ170(C)A
100
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
10000
T
j
= 25°C
75
C
T
, JUNCTION CAPACITANCE (pF)
Unidirectional
1000
50
Bidirectional
100
25
10 X 1000 Waveform
as defined by REA
0
0
25
50
75
100 125 150 175 200
T
A
, AMBIENT TEMPERATURE (°C)

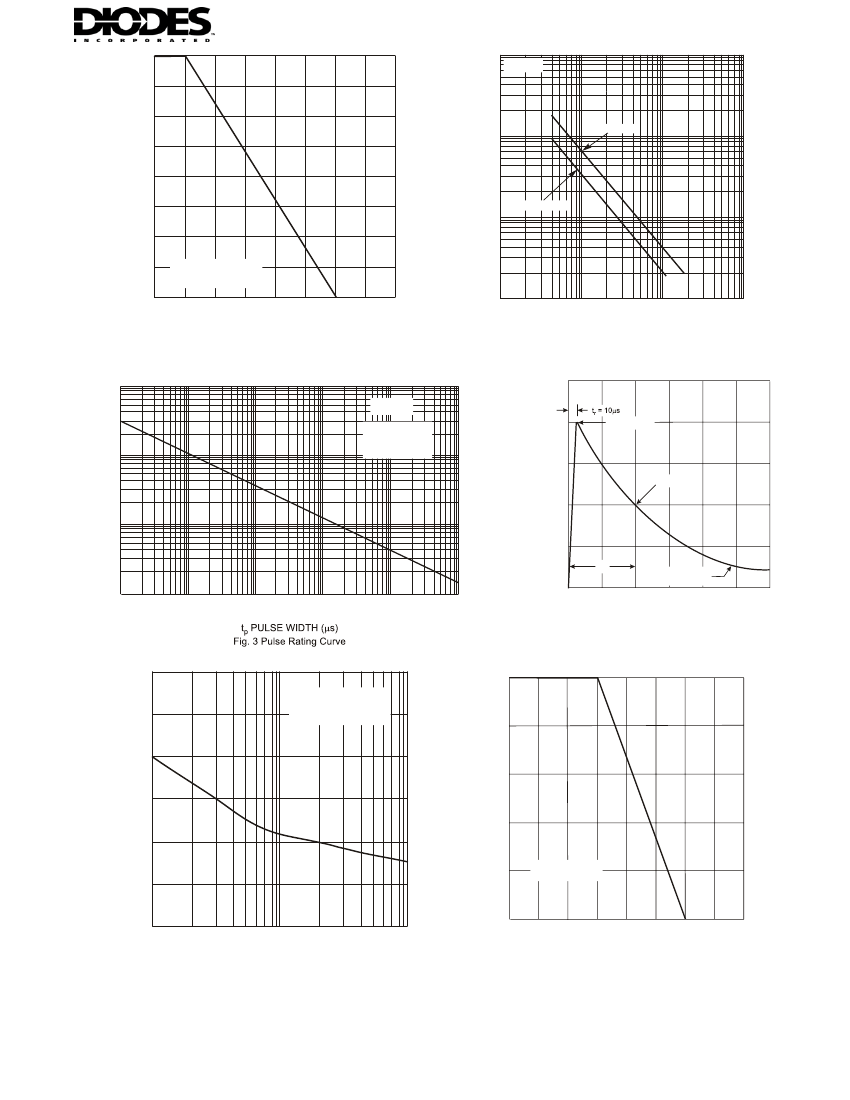

Fig. 1 Pulse Derating Curve
100
10
1
10
100
1000
V
WM
, STANDOFF VOLTAGE (V)
Fig. 2 Typical Total Capacitance
I
P
, PEAK PULSE CURRENT (%I
pp
)
P
d
, PEAK PULSE POWER (kW)
T
j
= 25°C
Non Repetitive
Pulse Waveform
Shown in Fig. 4
100
Peak Value I
pp
10
Half Value I
pp
/2
50
1.0
t
p
0.1
0.1
1.0
10
100
1000
10000
0
10 X 1000 Waveform
as defined by R.E.A.
0
1
2
3
t, TIME (ms)
Fig. 4 Pulse Waveform
PM
(AV),
STEADY STATE POWER DISSIPATION (W)
60
PEAK FORWARD SURGE CURRENT, (A)
Pulse Width 8.3ms
Single Half-Sine-Wave
(JEDEC METHOD)
1.0
50
0.8
40
0.6
30
0.4
20
0.2
60Hz Resistive or
Inductive Load
10
0
1
2
5
10
20
50
100
NUMBER OF CYCLES AT 60Hz
Fig. 5 Maximum Non-Repetitive Surge Current
0.0
0
25
50
75
100
125
150
175
200
T
L
, LEAD TEMPERATURE (°C)
Fig. 6 Steady State Power Derating Curve
DS19005 Rev. 10 - 2
3 of 4
www.diodes.com
SMAJ5.0(C)A - SMAJ170(C)A
Ordering Information
Device
SMAJXXX(C)A-13
Notes:
(Note 4)
Packaging
SMA
Shipping
5000/Tape & Reel
4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
5. For Lead Free version (with Lead Free terminal finish) part number, please add "-F" suffix to part number above.
Example: SMAJ170A-13-F.
Marking Information
YWW
XX
XX = Product type marking code (See Page 2)
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year ex: 2 for 2002
WW = Week code 01 to 52
DS19005 Rev. 10 - 2
4 of 4
www.diodes.com
SMAJ5.0(C)A - SMAJ170(C)A
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

SMAJ58A-13 Related Products

SMAJ58A-13 SMAJ14CA-13-F SMAJ51A-13 SMAJ22CA-13-F SMAJ13A-13 SMAJ58CA-13
Description Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN Trans Voltage Suppressor Diode, 400W, 14V V(RWM), Bidirectional, 1 Element, Silicon, GREEN, PLASTIC, SMA, 2 PIN Trans Voltage Suppressor Diode, 400W, 51V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN Trans Voltage Suppressor Diode, 400W, 22V V(RWM), Bidirectional, 1 Element, Silicon, GREEN, PLASTIC, SMA, 2 PIN Trans Voltage Suppressor Diode, 400W, 13V V(RWM), Unidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, SMA, 2 PIN
Is it Rohs certified? incompatible conform to incompatible conform to incompatible incompatible
Maker Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated
package instruction R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2
Contacts 2 2 2 2 2 2
Reach Compliance Code unknown not_compliant unknown not_compliant unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features EXCELLENT CLAMPING CAPABILITY EXCELLENT CLAMPING CAPABILITY EXCELLENT CLAMPING CAPABILITY EXCELLENT CLAMPING CAPABILITY EXCELLENT CLAMPING CAPABILITY EXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage 71.2 V 17.2 V 62.7 V 26.9 V 15.9 V 71.2 V
Minimum breakdown voltage 64.4 V 15.6 V 56.7 V 24.4 V 14.4 V 64.4 V
Breakdown voltage nominal value 67.8 V 16.4 V 59.7 V 25.65 V 15.15 V 67.8 V
Maximum clamping voltage 93.6 V 23.2 V 82.4 V 35.5 V 21.5 V 93.6 V
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON
Diode type TRANS VOLTAGE SUPPRESSOR DIODE TRANS VOLTAGE SUPPRESSOR DIODE TRANS VOLTAGE SUPPRESSOR DIODE TRANS VOLTAGE SUPPRESSOR DIODE TRANS VOLTAGE SUPPRESSOR DIODE TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2 R-PDSO-C2
JESD-609 code e0 e3 e0 e3 e0 e0
Humidity sensitivity level 1 1 1 1 1 1
Maximum non-repetitive peak reverse power dissipation 400 W 400 W 400 W 400 W 400 W 400 W
Number of components 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 235 260 235 260 235 235
polarity UNIDIRECTIONAL BIDIRECTIONAL UNIDIRECTIONAL BIDIRECTIONAL UNIDIRECTIONAL BIDIRECTIONAL
Maximum power dissipation 1 W 1 W 1 W 1 W 1 W 1 W
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 58 V 14 V 51 V 22 V 13 V 58 V
surface mount YES YES YES YES YES YES
technology AVALANCHE AVALANCHE AVALANCHE AVALANCHE AVALANCHE AVALANCHE
Terminal surface Tin/Lead (Sn/Pb) Matte Tin (Sn) Tin/Lead (Sn/Pb) Matte Tin (Sn) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form C BEND C BEND C BEND C BEND C BEND C BEND
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature 10 40 10 40 10 10

Recommended Resources

Integrated circuit BTL amplifier 03

Inverting input feedback amplifier circuit

Small transistorized light flasher

SCA demodulator

Differential Amplifier Circuit Allowing 100V Common Mode Input Voltage

UC3842 pulse width modulator internal block diagram

Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. APW7079-45DI-TRL
  2. MS17345C36C10P
  3. M55342E12B597AC-W
  4. M3021--100144-035BG
  5. WBC-T0303AS-03-8662-BD
  6. SLRM2180000DCBDG
  7. PCF0402-15-604RLI
  8. ABLS3-32.000MHZ-S-LH5R-F-T
  9. P4SMAJ14CAT/R7
  10. D2541H-25P-RD
  11. A2547H-21P
  12. A2001H-8P-OR

Popular Articles

  1. What are the advantages and disadvantages of magnetic flap level gauge
  2. Some analysis on monthly data of power batteries
  3. Simulation of the world: parallel current sharing characteristics of SiC MOSFET single tube
  4. WPG World Peace Group launches power supply solution for epidemic prevention medical equipment based on Onsemi products
  5. ST releases 8x8 zone ranging time-of-flight sensor to enable application innovation
  6. Softing launches new software module to connect Modbus TCP controllers to the Industrial Internet of Things
  7. CoreWing Information Technology completed a round B financing of approximately RMB 500 million
  8. iTOP-4412 development board-QtE4.7-usb3G network card transplantation tutorial
  9. atmega8 example: timer T1 normal mode
  10. Keysight Technologies and Source Photonics Demonstrate Single-Wavelength 200G PAM4 EML Laser Performance

Technical ResourceMore

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1652  982  1675  2102  2774  34  20  43  56  51
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
