P5DU-xxxxE/Z LF
PM1-SERIES
Rev.11-2008
0.75 Watt
Unregulated
Single
and
Dual
Output
DIP14
Case
1 kV
DC I/O Isolation
Low Ripple and Noise
Mainzer Straße 151–153
D-55299 Nackenheim
Tel. +49 6135 7026-0
Fax: +49 6135 931070
www.peak-electronics.de
peak@peak-electronics.de
The PM1 series P5DU-xxxxE/ZLF is a family of cost effective 0.75 W single
& dual output DC-DC converters. These converters are in an ultra miniature
DIP14 case. Devices are encapsulated. High performance features:
1000VDC input/output isolation, high efficiency operation, output voltage
accuracy of ±3% maximum, input range of ±10% tolerance and low output
ripple and noise.
All specifications typical at Ta=25° nominal input voltage and full load unless otherwise specified
C,
Input Specifications
Voltage Range
Input Filter
Input Reflected Ripple Current¹
Output Specifications
Voltage Accuracy
Short Circuit Protection
Line Regulation
Load Regulation
(20% - 100%)
Ripple and Noise
(20Mhz bandwidth)
Temperature Coefficient
General Specifications
Efficiency
I/O Isolation Voltage
(3 sec.)
I/O Isolation Capacity
I/O Isolation Resistance
Switching Frequency
Humidity
Reliability Calculated MTBF
(MIL-HDBK-217F)
Physical Specifications
Case Material
Potting Material
Weight
Environment Specifications
Operating Temperature
Maximum Case Temperature
Storage Temperature
Cooling
RoHS Conform
± 10%
Capacitor
20 mA pk-pk
± 3%
Short Term
± 1.2% / 1% Vin Change
± 10% (3.3 Vout Models: ± 20%)
75 mV pk-pk
± 0.02% / °
C
See Table
1000 VDC
60 pF, typ.
1000 M Ohm
80 kHz
(Variable)
95% rel H
> 1.121 Mhrs
Non Conductive Black Plastic
(UL94V-0 rated)
Epoxy
(UL94V-0 rated)
~ 2.6g, typ.
-40 to +85°
(ambient)
C
100°
C
-40 to +125°
C
Free Air Convection
Soldering 260° max.
(1.5mm from case 10s.)
C,
PM1-Series – P5DU-xxxxE/Z LF – Single and Dual Output – DIP14 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 1/4
Selection Guide
Single
Output
)
)
m A)
(mA ad (mA
ad (
d
o
Lo
DC)
C)
Loa
ull L
uF)²
(VD
e (V
Full
No
nt F
)
ad (
g
t
t
e
urre
o lta
rre n
y (% citor Lo
rre n
ltag
ut V
ut C
t Vo
t Cu put Cu
ienc
a
p
p
In p u
In p u
In
O ut
O ut
E ffic
Cap
Order #
SINGLE OUTPUT
P5DU-053R3ELF
P5DU-0505ELF
P5DU-057R2ELF
P5DU-0509ELF
P5DU-0512ELF
P5DU-0515ELF
P5DU-0518ELF
P5DU-0524ELF
P5DU-123R3ELF
P5DU-1205ELF
P5DU-127R2ELF
P5DU-1209ELF
P5DU-1212ELF
P5DU-1215ELF
P5DU-1218ELF
P5DU-1224ELF
P5DU-243R3ELF
P5DU-2405ELF
P5DU-247R2ELF
P5DU-2409ELF
P5DU-2412ELF
P5DU-2415ELF
P5DU-2418ELF
P5DU-2424ELF
5
5
5
5
5
5
5
5
12
12
12
12
12
12
12
12
24
24
24
24
24
24
24
24
30
30
30
30
30
30
30
30
20
20
20
20
20
20
20
20
10
10
10
10
10
10
10
10
205
200
202
200
197
197
197
194
85
84
84
83
81
80
80
80
42
42
41
41
40
40
40
39
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
3.3
5
7.2
9
12
15
18
24
227.3
150
104.2
83.3
62.5
50
41.7
31.2
227.3
150
104.2
83.3
62.5
50
41.7
31.2
227.3
150
104.2
83.3
62.5
50
41.7
31.2
73
75
74
75
76
76
76
77
73
74
74
75
77
78
78
78
74
74
75
75
78
78
78
80
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
220
If you need other specifications, please enquire.
PM1-Series – P5DU-xxxxE/Z LF – Single and Dual Output – DIP14 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 2/4
Selection Guide
Dual
Output
A)
)
)
d (m
(mA ad (mA
a
ad
C)
o
ll L o
C)
uF)²
(VD
o Lo t Full L
t Fu
(VD
)
ad (
ge
t N re n
e
en
o
a
n
%
r
g
or L
V o lt
cy (
Cur
ur
u rre
olta
acit
put
put
cien
ut V
ut C Input C
In p
In p
O ut
O ut
E ffi
Cap
Order #
DUAL OUTPUT
P5DU-053R3ZLF
P5DU-0505ZLF
P5DU-057R2ZLF
P5DU-0509ZLF
P5DU-0512ZLF
P5DU-0515ZLF
P5DU-0518ZLF
P5DU-0524ZLF
P5DU-123R3ZLF
P5DU-1205ZLF
P5DU-127R2ZLF
P5DU-1209ZLF
P5DU-1212ZLF
P5DU-1215ZLF
P5DU-1218ZLF
P5DU-1224ZLF
P5DU-243R3ZLF
P5DU-2405ZLF
P5DU-247R2ZLF
P5DU-2409ZLF
P5DU-2412ZLF
P5DU-2415ZLF
P5DU-2418ZLF
P5DU-2424ZLF
5
5
5
5
5
5
5
5
12
12
12
12
12
12
12
12
24
24
24
24
24
24
24
24
30
30
30
30
30
30
30
30
20
20
20
20
20
20
20
20
10
10
10
10
10
10
10
10
230
211
202
202
197
197
189
189
126
85
84
84
80
78
78
80
46
42
41
41
40
40
40
40
± 3.3
±5
± 7.2
±9
± 12
± 15
± 18
± 24
± 3.3
±5
± 7.2
±9
± 12
± 15
± 18
± 24
± 3.3
±5
± 7.2
±9
± 12
± 15
± 18
± 24
± 113.6
± 75
± 52
± 41.6
± 31.2
± 25
± 20.8
± 15.6
± 113.6
± 75
± 52
± 41.6
± 31.2
± 25
± 20.8
± 15.6
± 113.6
± 75
± 52
± 41.6
± 31.2
± 25
± 20.8
± 15.6
65
71
74
74
76
76
79
79
65
73
74
74
78
80
80
78
67
74
76
76
78
78
78
78
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
± 100
If you need other specifications, please enquire.
PM1-Series – P5DU-xxxxE/Z LF – Single and Dual Output – DIP14 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 3/4

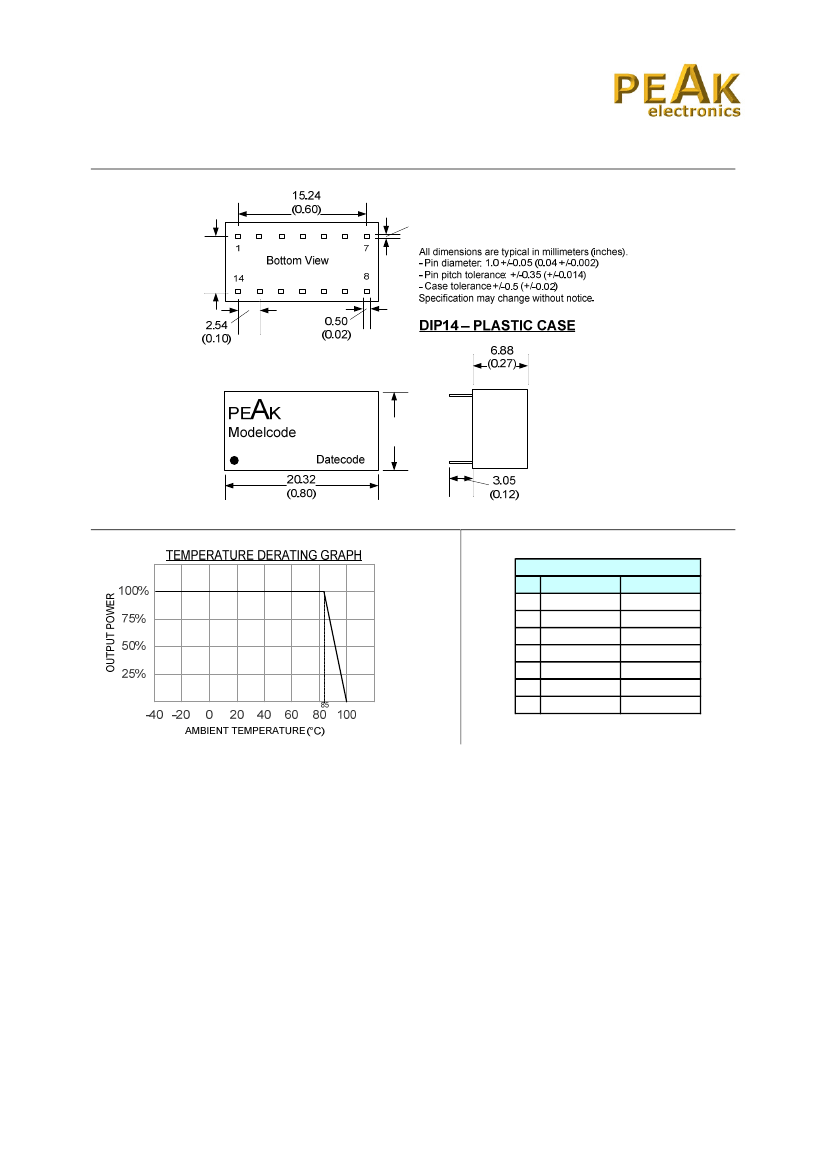

Package / Pinning / Derating
7.62
(0.30)
10.16
(0.40)
0.25
(0.01)
PIN CONNECTIONS
#
SINGLE
DUAL
1 - Vin
- Vin
7 N.C.
N.C.
8 Omitted
Common
9 +Vout
+Vout
10 Omitted
Omitted
11 - Vout
- Vout
14 +Vin
+Vin
App Notes:
¹ =
Measured Input reflected ripple current with a simulated source inductance of 12uH.
² =
Tested by minimal Vin and constant resistive load.
- Operation under no-load conditions will not damage these devices, but they will not observe the listed specifications.
PM1-Series – P5DU-xxxxE/Z LF – Single and Dual Output – DIP14 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 4/4
