P6CUI-xxxxZ(H30)LF
PM1-SERIES
Rev.02-2009
1 Watt
Unregulated
Dual Separate
Output
SIP7
Case
1 - 3 kV
DC I/O Isolation
Low Ripple and Noise
Mainzer Straße 151–153
D-55299 Nackenheim
Tel. +49 6135 7026-0
Fax: +49 6135 931070
www.peak-electronics.de
peak@peak-electronics.de
The PM1 series P6CUI-xxxxZ(H30)LF is a family of cost effective 1 W dual
separate output DC/DC converters. These converters are in an ultra
miniature SIP7 case. Devices are encapsulated. High performance
features: 1000VDC up to 3000VDC input/output isolation, high efficiency
operation, output voltage accuracy of ±3% maximum, input range of ±10%
tolerance and low output ripple and noise.
All specifications typical at Ta=25° nominal input voltage and full load unless otherwise specified
C,
Input Specifications
Voltage Range
Input Filter
Input Reflected Ripple Current¹
Output Specifications
Voltage Accuracy
Short Circuit Protection
Line Regulation
Load Regulation
(20% - 100%)
Ripple and Noise
(20Mhz bandwidth)
Temperature Coefficient
General Specifications
Efficiency
I/O Isolation Voltage
(3 sec.)
I/O Isolation Capacity
I/O Isolation Resistance
Switching Frequency
Humidity
Reliability Calculated MTBF
(MIL-HDBK-217F)
Physical Specifications
Case Material
Potting Material
Weight
Environment Specifications
Operating Temperature
Maximum Case Temperature
Storage Temperature
Cooling
RoHS Conform
± 10%
Capacitor
20 mA pk-pk
± 3%
Short Term
± 1.2% / 1% Vin Change
± 10% (3.3 Vout Models: ± 20%)
75 mV pk-pk
± 0.02% / °
C
See Table
1000 VDC
(3000 VDC optional)*
60 pF, typ.
1000 MOhm
80 kHz
(Variable)
95% rel H
> 1.121 Mhrs
Non Conductive Black Plastic
(UL94V-0 rated)
Epoxy
(UL94V-0 rated)
~ 2.3g, typ.
-40 to +85°
(ambient)
C
100°
C
-40 to +125°
C
Free Air Convection
(10 mm distance required)
Soldering 260° max.
(1.5 mm from case 10s.)
C,
PM1-Series – P6CUI-xxxxZ(H30)LF – Dual Separate Output – SIP7 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 1/3
Selection Guide
Dual Separate
Output
)
)
m A)
(mA ad (mA
ad (
d
²
ll Lo
Lo
DC)
C)
Loa
(uF)
t Fu
(V D
No
F u ll
e (V
)
t
t
g
e
en
oad
n
n
a
r
%
g
L
C ur
cy (
V o lt
u rre
urre
olta
itor
c ie n
ut V
ut C Input C
tp u t
tp u t
pac
Inp
In p
Ou
Ou
E ffi
Ca
Order #
DUAL SEPARATE OUTPUT
P6CUI-05053R3ZLF
5
P6CUI-05057R2ZLF
5
P6CUI-050509ZLF
5
P6CUI-050512ZLF
5
P6CUI-050515ZLF
5
P6CUI-057R218ZLF
5
P6CUI-12053R3ZLF
12
P6CUI-12057R2ZLF
12
P6CUI-120509ZLF
12
P6CUI-120512ZLF
12
P6CUI-120515ZLF
12
P6CUI-24053R3ZLF
24
P6CUI-24057R2ZLF
24
P6CUI-240509ZLF
24
P6CUI-240512ZLF
24
P6CUI-240515ZLF
24
P6CUI-050505ZLF
P6CUI-057R27R2ZLF
P6CUI-050909ZLF
P6CUI-051212ZLF
P6CUI-051515ZLF
P6CUI-120505ZLF
P6CUI-127R27R2ZLF
P6CUI-120909ZLF
P6CUI-121212ZLF
P6CUI-121515ZLF
P6CUI-240505ZLF
P6CUI-247R27R2ZLF
P6CUI-240909ZLF
P6CUI-241212ZLF
P6CUI-241515ZLF
5
5
5
5
5
12
12
12
12
12
24
24
24
24
24
25
25
25
25
25
24
15
15
15
15
15
8
8
8
8
8
25
25
25
25
25
15
15
15
15
15
8
8
8
8
8
259
266
259
259
256
251
106
111
108
92
106
55
55
54
53
53
266
259
253
250
243
111
108
108
104
102
55
54
52
50
50
5, 3.3 100, 152
5, 7.2 100, 69
5, 9
100, 56
5, 12 100, 42
5, 15 100, 33
7.2, 18 100, 10
5, 3.3 100, 152
5, 7.2 100, 69
5, 9
100, 56
5, 12 100, 42
5, 15 100, 33
5, 3.3 100, 152
5, 7.2 100, 69
5, 9
100, 56
5, 12 100, 42
5, 15 100, 33
5, 5 100, 100
7.2, 7.2 69, 69
9, 9
56, 56
12, 12 42, 42
15, 15 33, 33
5, 5 100, 100
7.2, 7.2 69, 69
9, 9
56, 56
12, 12 42, 42
15, 15 33, 33
5, 5 100, 100
7.2, 7.2 69, 69
9, 9
56, 56
12, 12 42, 42
15, 15 33, 33
77
75
77
77
78
74
78
75
77
80
78
75
75
77
78
78
75
77
79
80
82
75
77
77
80
81
75
77
79
82
82
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
If you need other specifications, please enquire.
* For optional 3kV DC I/O Isolation, please add “H30” before LF!
Example: P6CUI-050505ZH30LF for 3kV
PM1-Series – P6CUI-xxxxZ(H30)LF – Dual Separate Output – SIP7 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 2/3

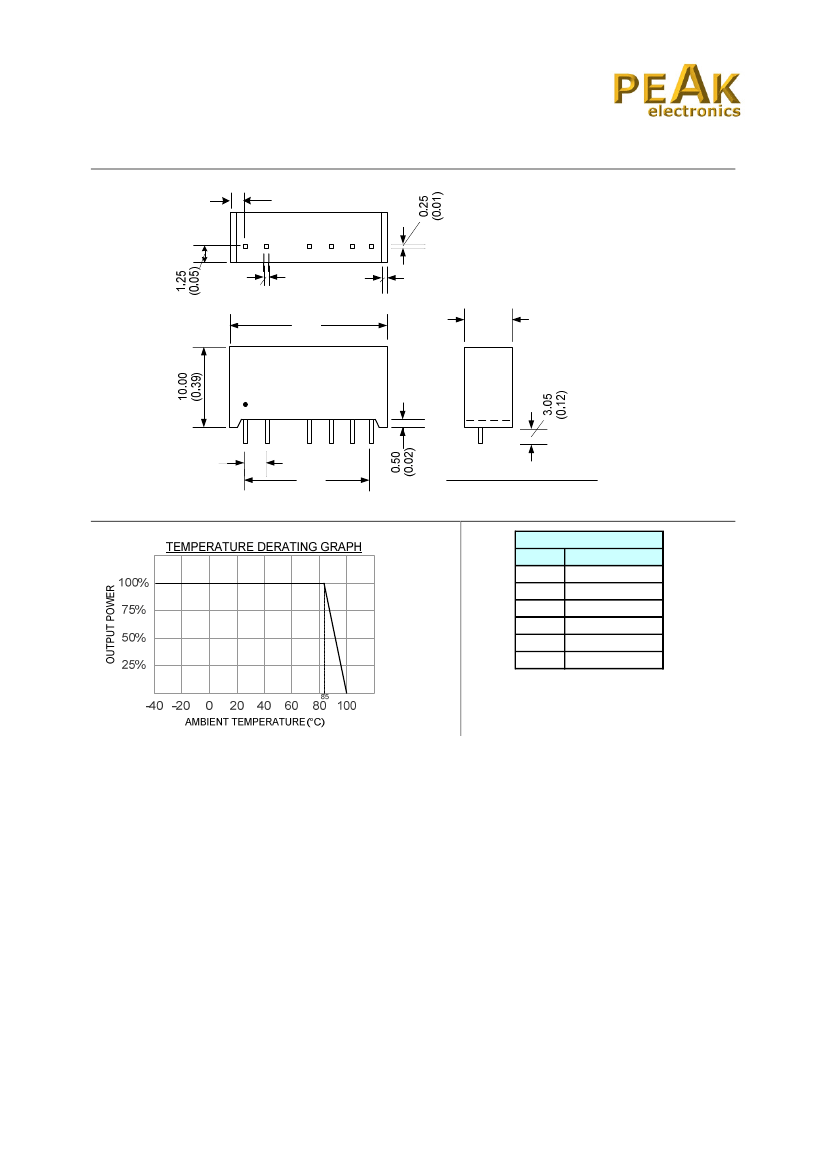

Package / Pinning / Derating
2.1
(0.9)
All dimensions are typical in millimeters (inches).
- Pin diameter: 0.5 +/-0.05 (0.02 +/-0.002)
- Pin pitch tolerance: +/-0.35 (+/-0.014)
- Case tolerance +/-0.5 (+/-0.02)
Specification may change without notice.
0.50
(0.02)
19.50
(0.76)
0.50
(0.02)
6.00*
(0.24)
* The thickness
of 48Vin voltage
is 7.20(0.28)
PE
A
K
Modelcode
Datecode
1
2
4
5
6
7
2.54
(0.10)
15.24
(0.60)
SIP 7 – PLASTIC CASE
PIN CONNECTIONS
#
DUAL SEP.
1
+Vin
2
- Vin
4
+V1out
5
- V1out
6
+V2out
7
- V2out
Same Pinning for 3kV Models!
App Notes:
¹ =
Measured Input reflected ripple current with a simulated source inductance of 12uH.
² =
Tested by minimal Vin and constant resistive load.
- Operation under no-load conditions will not damage these devices, but they will not observe the listed specifications.
PM1-Series – P6CUI-xxxxZ(H30)LF – Dual Separate Output – SIP7 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 3/3
