DV74ACT258N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74ACT258N

DV74ACT258N: DescriptionMultiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size225KB，4 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74ACT258N Overview

Multiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDIP16, PLASTIC, DIP-16

DV74ACT258N Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-PDIP-T16
length	19.175 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	9.5 ns
Certification status	Not Qualified
Maximum seat height	4.44 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

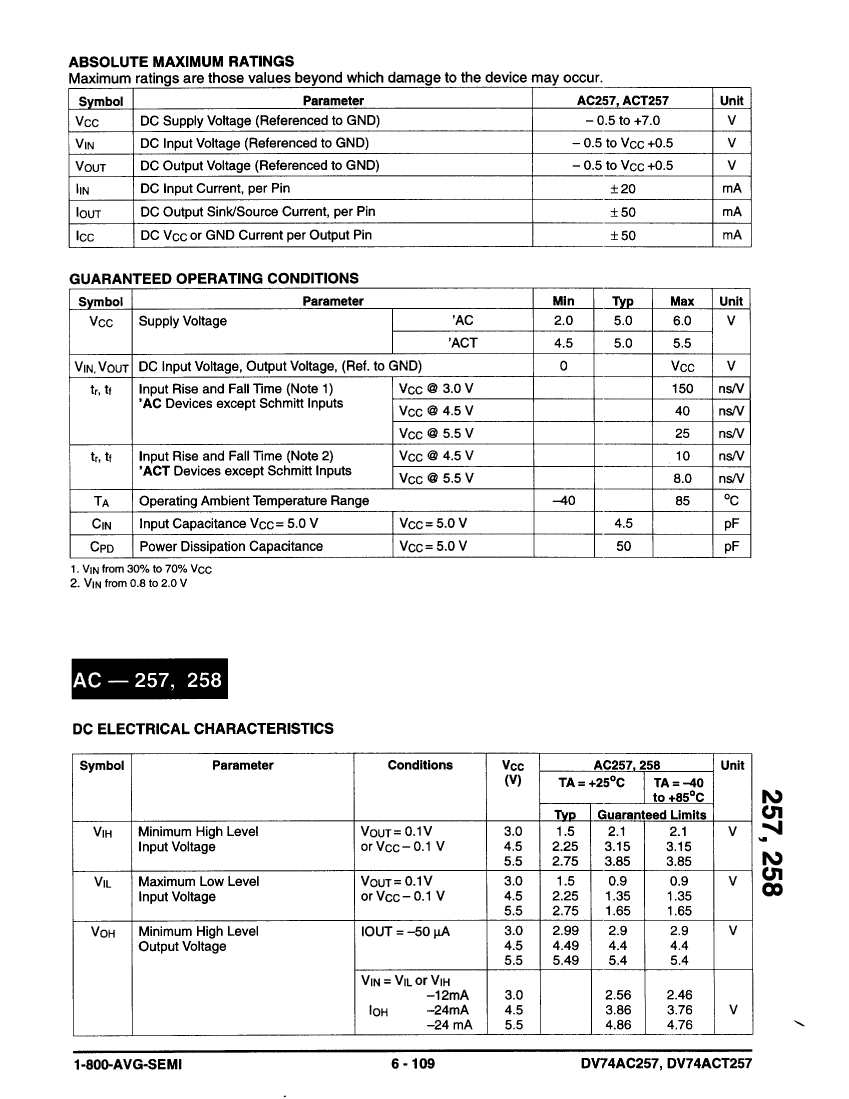

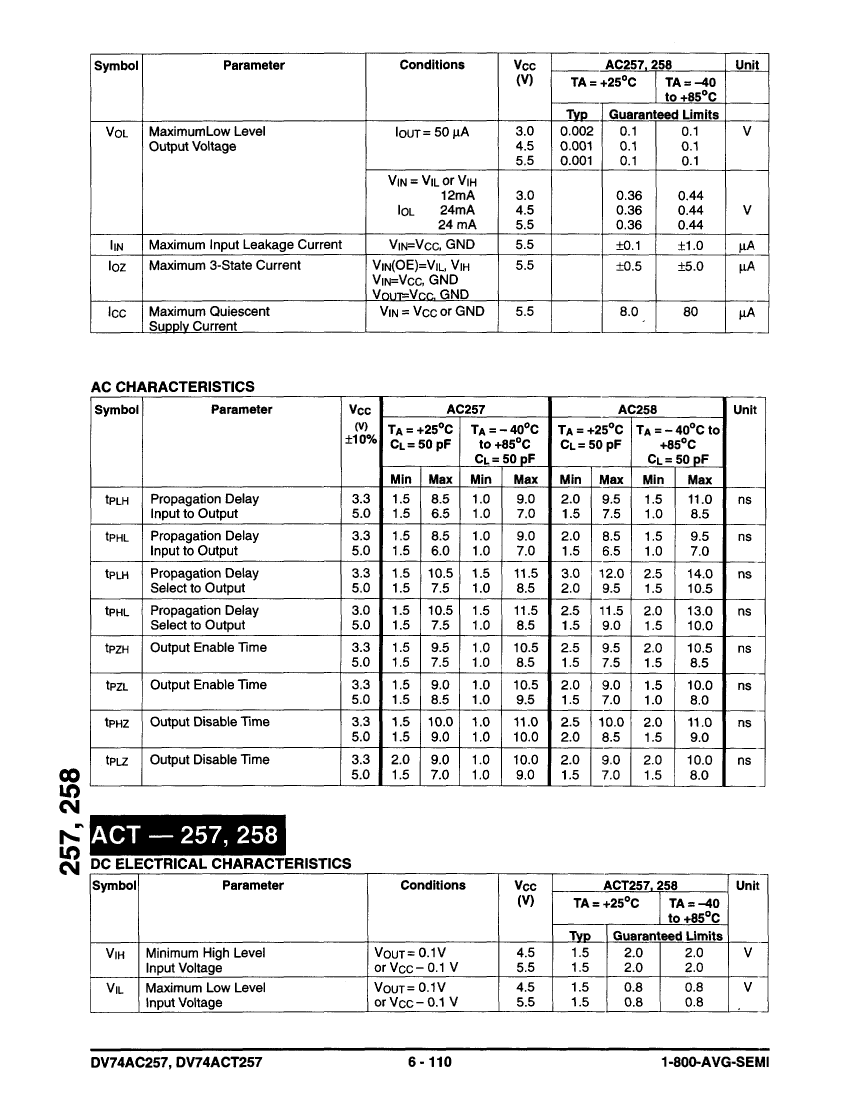

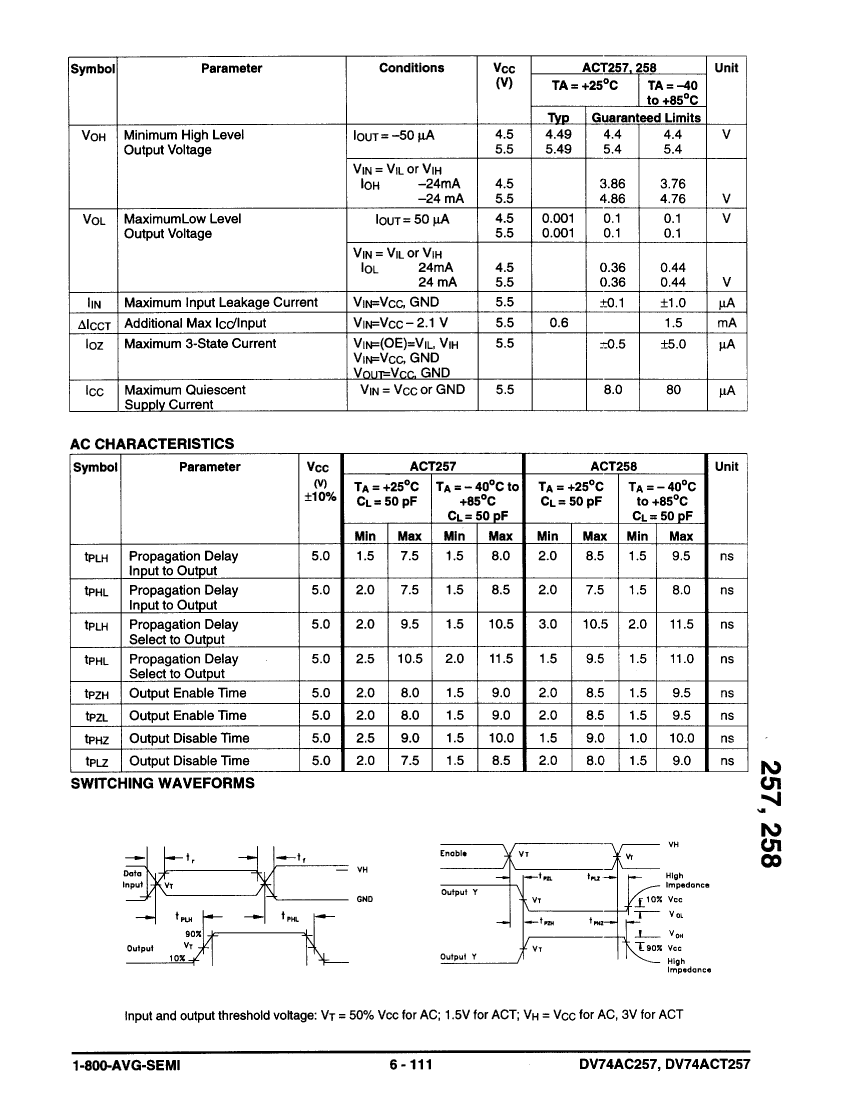

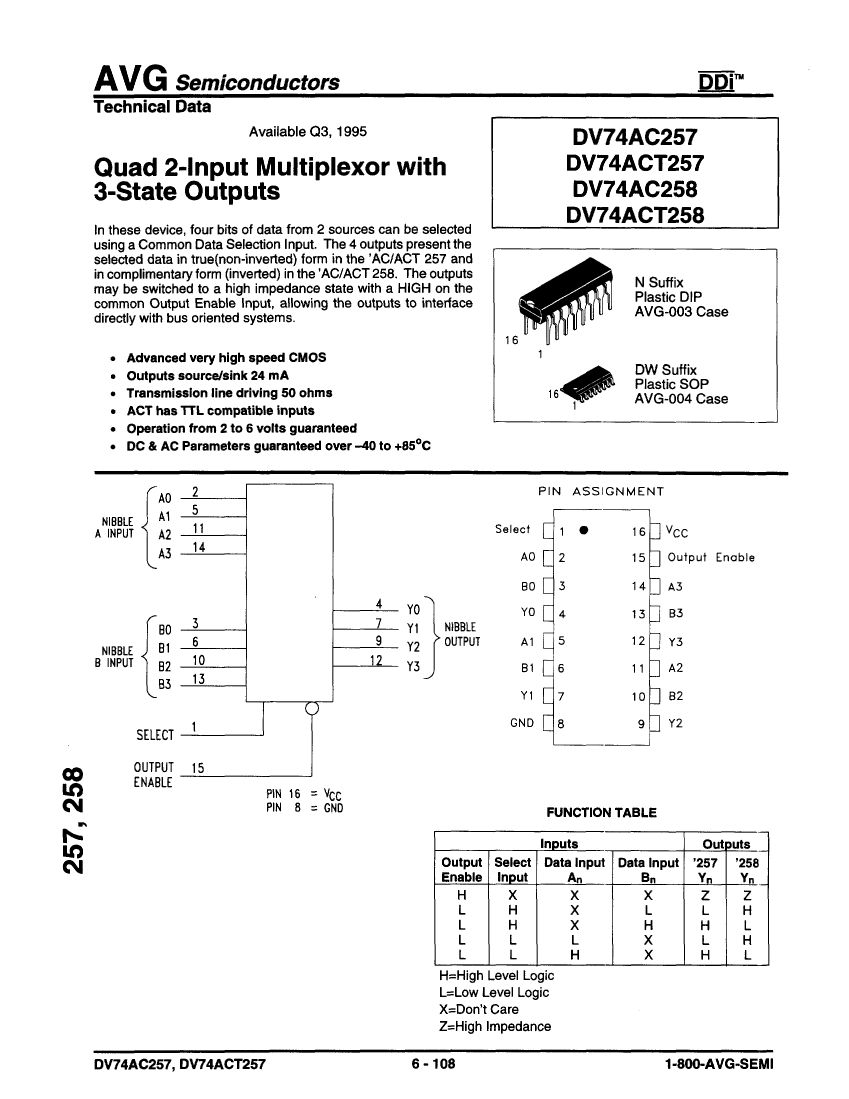

Preview

Download Datasheet

View All

DV74ACT258N Related Products

	DV74ACT258N	DV74AC257N	DV74ACT258DW	DV74ACT257DW	DV74AC258N	DV74AC257DW	DV74AC258DW	DV74ACT257N
Description	Multiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDIP16, PLASTIC, DIP-16	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16	Multiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, PLASTIC, SOP-16	Multiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16, PLASTIC, SOP-16	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDIP16, PLASTIC, DIP-16	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16, PLASTIC, SOP-16	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, PLASTIC, SOP-16	Multiplexer, ACT Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16
Parts packaging code	DIP	DIP	SOIC	SOIC	DIP	SOIC	SOIC	DIP
package instruction	PLASTIC, DIP-16	PLASTIC, DIP-16	SOP,	SOP,	DIP,	SOP,	PLASTIC, SOP-16	DIP,
Contacts	16	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	ACT	AC	ACT	ACT	AC	AC	AC	ACT
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16
length	19.175 mm	19.175 mm	9.9 mm	9.9 mm	19.175 mm	9.9 mm	9.9 mm	19.175 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2	2	2
Output times	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	TRUE	INVERTED	TRUE	INVERTED	TRUE	INVERTED	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP	DIP	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
propagation delay (tpd)	9.5 ns	9 ns	9.5 ns	11 ns	8.5 ns	9 ns	8.5 ns	11 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.44 mm	4.44 mm	1.75 mm	1.75 mm	4.44 mm	1.75 mm	1.75 mm	4.44 mm
Maximum supply voltage (Vsup)	5.5 V	6 V	5.5 V	5.5 V	6 V	6 V	6 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	2 V	4.5 V	4.5 V	2 V	2 V	2 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	3.9 mm	3.9 mm	7.62 mm	3.9 mm	3.9 mm	7.62 mm
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	-	-	-	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
