D15VD40-4000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D15VD40-4000

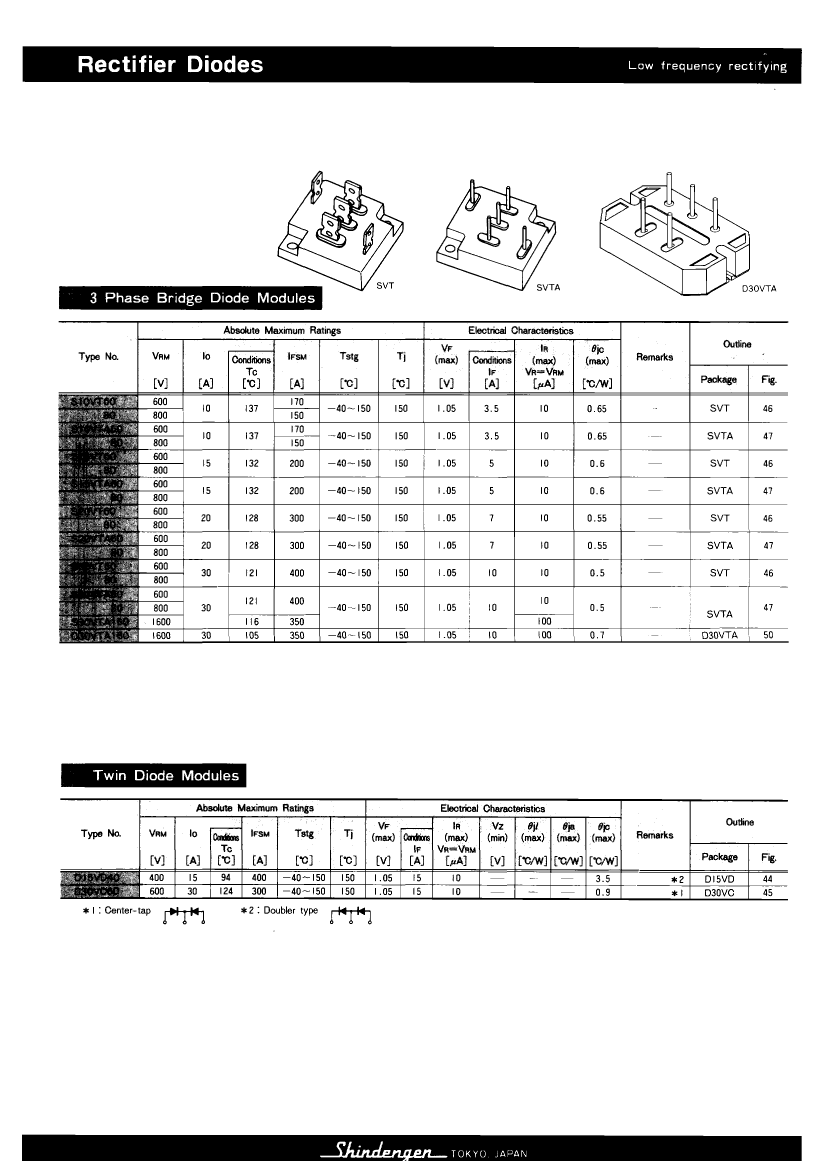

D15VD40-4000: DescriptionRectifier Diode, 1 Phase, 2 Element, 15A, Silicon,; CategoryDiscrete semiconductor diode; File Size73KB，1 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

D15VD40-4000 Overview

Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon,

D15VD40-4000 Parametric

Parameter Name	Attribute value
Maker	SHINDENGEN
package instruction	S-PUFM-D3
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	S-PUFM-D3
Maximum non-repetitive peak forward current	400 A
Number of components	2
Phase	1
Number of terminals	3
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

Preview

Download Datasheet

View All

D15VD40-4000 Related Products

	D15VD40-4000	S20VTA60-4000	D30VTA160-4000	S10VTA80-4000	S15VTA80-4000	S30VTA80-4000	S15VTA60-4000	S30VTA160-4000	S10VTA60-4000
Description	Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon,	Bridge Rectifier Diode, 3 Phase, 20A, Silicon, MODULE-5	Bridge Rectifier Diode, 3 Phase, 30A, Silicon	Bridge Rectifier Diode, 3 Phase, 10A, Silicon, MODULE-5	Bridge Rectifier Diode, 3 Phase, 15A, Silicon, MODULE-5	Bridge Rectifier Diode, 3 Phase, 30A, Silicon, MODULE-5	Bridge Rectifier Diode, 3 Phase, 15A, Silicon, MODULE-5	Bridge Rectifier Diode, 3 Phase, 30A, Silicon,	Bridge Rectifier Diode, 3 Phase, 10A, Silicon, MODULE-5
package instruction	S-PUFM-D3	S-PUFM-P5	R-PUFM-P5	S-PUFM-P5	S-PUFM-P5	S-PUFM-P5	S-PUFM-P5	S-PUFM-D5	S-PUFM-P5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	S-PUFM-D3	S-PUFM-P5	R-PUFM-P5	S-PUFM-P5	S-PUFM-P5	S-PUFM-P5	S-PUFM-P5	S-PUFM-D5	S-PUFM-P5
Maximum non-repetitive peak forward current	400 A	300 A	350 A	150 A	200 A	400 A	200 A	350 A	170 A
Number of components	2	6	6	6	6	6	6	6	6
Phase	1	3	3	3	3	3	3	3	3
Number of terminals	3	5	5	5	5	5	5	5	5
Maximum output current	15 A	20 A	30 A	10 A	15 A	30 A	15 A	30 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	SOLDER LUG	PIN/PEG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	SHINDENGEN	-	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN
Parts packaging code	-	MODULE	-	MODULE	MODULE	MODULE	MODULE	-	MODULE
Contacts	-	5	-	5	5	5	5	-	5
Minimum breakdown voltage	-	600 V	-	800 V	800 V	800 V	600 V	-	600 V
Shell connection	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum forward voltage (VF)	-	1.05 V	-	1.05 V	1.05 V	1.05 V	1.05 V	-	1.05 V
Maximum operating temperature	-	150 °C	-	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum reverse current	-	10 µA	-	10 µA	10 µA	10 µA	10 µA	-	10 µA
