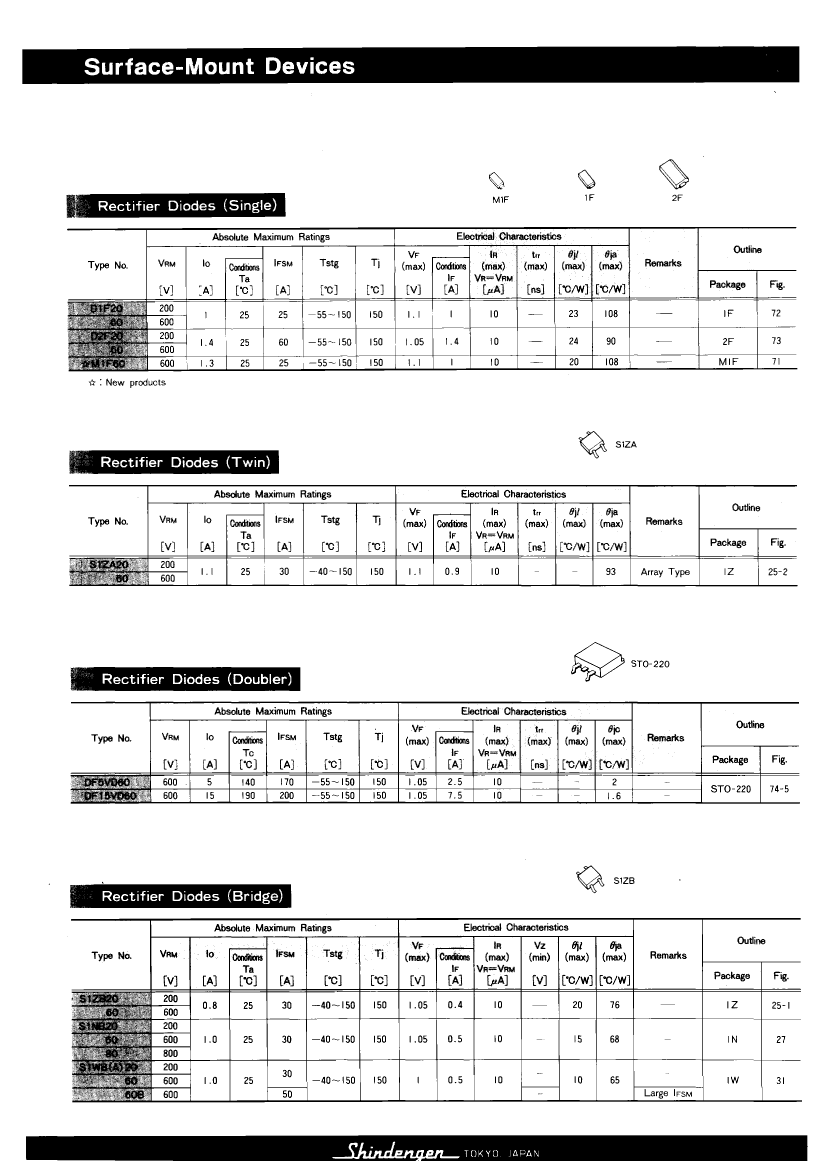

Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, 1F, 2 PIN
| Parameter Name | Attribute value |
| Maker | SHINDENGEN |
| package instruction | R-PDSO-C2 |
| Contacts | 2 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JESD-30 code | R-PDSO-C2 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 150 °C |
| Maximum output current | 1 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 200 V |
| surface mount | YES |
| Terminal form | C BEND |
| Terminal location | DUAL |
| D1F20-4103 | DF5VD60-4102 | S1WB(A)20-4102 | DF15VD60-4102 | S1WB(A)60B-4102 | S1WB(A)60-4102 | |
|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, 1F, 2 PIN | Rectifier Diode, 1 Phase, 1 Element, 5A, Silicon, STO-220, 3 PIN | 1A, SILICON, BRIDGE RECTIFIER DIODE, 1W, 4 PIN | Rectifier Diode, 1 Phase, 1 Element, 15A, Silicon, STO-220, 3 PIN | Bridge Rectifier Diode, 1 Phase, 1A, Silicon, 1W, 4 PIN | Bridge Rectifier Diode, 1 Phase, 1A, 600V V(RRM), Silicon, 1W, 4 PIN |
| package instruction | R-PDSO-C2 | STO-220, 3 PIN | 1W, 4 PIN | S-PSSO-G2 | R-PDSO-G4 | R-PDSO-G4 |
| Contacts | 2 | 3 | 4 | 3 | 4 | 4 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Configuration | SINGLE | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | BRIDGE, 4 ELEMENTS | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | BRIDGE, 4 ELEMENTS | BRIDGE, 4 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE |
| JESD-30 code | R-PDSO-C2 | S-PSSO-G2 | R-PDSO-G4 | S-PSSO-G2 | R-PDSO-G4 | R-PDSO-G4 |
| Number of components | 1 | 1 | 4 | 1 | 4 | 4 |
| Number of terminals | 2 | 2 | 4 | 2 | 4 | 4 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Maximum output current | 1 A | 5 A | 1 A | 15 A | 1 A | 1 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES | YES |
| Terminal form | C BEND | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | SINGLE | DUAL | SINGLE | DUAL | DUAL |
| Maker | SHINDENGEN | SHINDENGEN | - | - | SHINDENGEN | SHINDENGEN |
| ECCN code | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 |
| Maximum non-repetitive peak forward current | - | 170 A | 30 A | 200 A | 50 A | 30 A |
| Phase | - | 1 | 1 | 1 | 1 | 1 |
